Hikvision DS-96128NXI-S24R AcuSense S-Series 128-Channel 4U NVR, 24-Bay RAID, 8K Output, Redundant Power

Price:

12,736.90


Hikvision DS-96128NXI-S16R AcuSense 128-Channel 3U 8K NVR, 16-Bay RAID, Redundant PSU
Hikvision DS-96128NXI-S16R AcuSense 128-Channel 3U 8K NVR, 16-Bay RAID, Redundant PSU
10,008.90
10,008.90
Hikvision DS-2CD2E43G2-U AcuSense 4MP In-Ceiling Mini Dome Network Camera, Fixed Lens, Built-in Microphone
Hikvision DS-2CD2E43G2-U AcuSense 4MP In-Ceiling Mini Dome Network Camera, Fixed Lens, Built-in Microphone
352.00
352.00

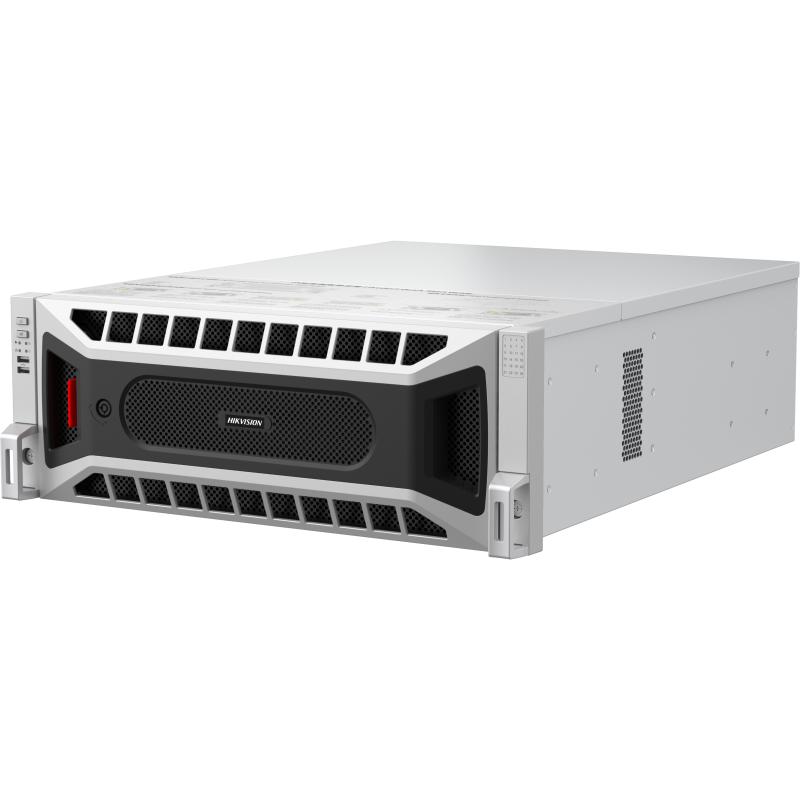

Hikvision DS-96128NXI-S24R AcuSense S-Series 128-Channel 4U NVR, 24-Bay RAID, 8K Output, Redundant Power

https://arcip.com.au/web/image/product.template/9751/image_1920?unique=12e6e76
The DS-96128NXI-S24R is Hikvision’s 128-channel flagship S Series NVR, supporting IP cameras up to 32 MP with AcuSense AI for facial recognition, perimeter protection, and video structuralization across all channels. Twenty-four SATA bays (up to 20 TB each) with RAID 0, 1, 5, 6, and 10 protection provide enterprise-grade storage resilience, while 8K HDMI and four independent display outputs deliver maximum control-room flexibility. A built-in redundant power supply and four×2.5G Ethernet ports make it ready for mission-critical 24/7 operation.

12,736.90 12736.9 AUD 12,736.90 incl. GST

Not Available For Sale


  • Brand
  • Form Factor
  • HDD Bays
  • Video Output
  • Max Resolution
  • Channels
  • RAID Support
  • Network Ports
  • Power Supply

This combination does not exist.

Hikvision NVR RAID AcuSense 128-Channel 4U Rackmount
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
DS-96128NXI-S24R
Hikvision DS-96128NXI-S24R — 128-Channel AcuSense S‑Series Network Video Recorder, 4U Rackmount, 24‑Bay RAID, 8K Output, Redundant Power

Key Features

  • Supports up to 128 IP camera channels at resolutions up to 32 MP, providing unmatched scalability for enterprise-grade surveillance deployments.
  • AcuSense AI analytics deliver reliable human and vehicle classification, dramatically reducing false alarms triggered by animals, leaves, and environmental interference.
  • Perimeter protection by camera on all channels and simultaneous 8-channel NVR-side analysis (up to 2 MP per channel) for layered intrusion detection across large sites.
  • Facial recognition supports up to 64 face picture libraries with 300,000 stored faces, 16-channel face comparison at 24 pictures per second, and AcuSearch across 345,600 daily targets.
  • 8K (7680 × 4320) HDMI 3 output plus three additional HDMI outputs and two VGA outputs across four independent or simultaneous display modes.
  • 24 SATA bays accepting 3.5-inch HDDs up to 20 TB each, plus 1 eSATA interface and fibre connectivity for maximum storage flexibility.
  • RAID 0, 1, 5, 6, and 10 with N+M hot spare keep recordings protected against drive failure without interrupting live recording operations.
  • Incoming bandwidth of 1,024 Mbps (640 Mbps in RAID mode) and outgoing bandwidth of 800 Mbps (512 Mbps in RAID mode) for high-density streaming environments.
  • 4 × RJ-45 10/100/1000/2500 Mbps self-adaptive Ethernet interfaces with support for IPv4, IPv6, ONVIF, ISAPI, and RTSP protocols.
  • Redundant power supply (100–240 VAC, 50–60 Hz) with ≤ 100 W consumption (without HDD) ensures continuous operation in mission-critical environments.
  • 32-channel synchronous playback at up to 32 MP and full H.265+/H.265/H.264+/H.264 decoding support for efficient storage utilisation.
  • RCM, CE, CB, IC, RoHS, REACH, WEEE, and UKCA certified, making it fully compliant for Australian and international installations.

Specifications

Video & Audio
IP Video Input128-channel, up to 32 MP resolution
Incoming Bandwidth1,024 Mbps (640 Mbps in RAID mode)
Outgoing Bandwidth800 Mbps (512 Mbps in RAID mode)
HDMI 1 OutputUp to 4K (3840 × 2160) @ 60 Hz
HDMI 2 OutputUp to 4K (3840 × 2160) @ 60 Hz
HDMI 3 OutputUp to 8K (7680 × 4320) @ 30 Hz
HDMI 4 Output1080P (1920 × 1080) @ 60 Hz
VGA 1 & VGA 2 Output1080P (1920 × 1080) @ 60 Hz each
HDMI Input1-channel
HDMI Loopback1-channel (matches HDMI input)
Audio Output2-channel RCA (Linear, 1 kΩ)
Two-Way Audio1-channel RCA (2.0 Vp-p, 1 kΩ)
Recording & Decoding
Decoding FormatH.265 / H.265+ / H.264 / H.264+
Decoding Capability2‑ch @ 32 MP (30 fps) / 4‑ch @ 16 MP (30 fps) / 8‑ch @ 8 MP (30 fps) / 16‑ch @ 4 MP (30 fps) / 32‑ch @ 2 MP (30 fps)
Synchronous Playback16-channel
Recording Resolution32 MP / 24 MP / 12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080P / 720P / VGA / 4CIF / QCIF
HDD & RAID Storage
SATA Interfaces24 × SATA (3.5-inch HDD, up to 20 TB each)
eSATA Interface1 × eSATA
RAID TypesRAID 0, RAID 1, RAID 5, RAID 6, RAID 10
Max Raw CapacityUp to 480 TB (24 × 20 TB HDDs)
Network
Network Interface4 × RJ-45 10/100/1000/2500 Mbps self-adaptive Ethernet
Remote ConnectionsUp to 128
Network ProtocolsTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF v2.2, OTAP
APIONVIF (Profile S/G), SDK, ISAPI
Camera Access ProtocolONVIF v2.5, RTSP
Compatible BrowsersIE 11, Chrome V57, Firefox V52, Safari V12, Edge V89 or above
Intelligent Analytics (AcuSense)
AI by NVRFacial recognition, perimeter protection, video structuralization
AI by CameraFacial recognition, perimeter protection, video structuralization, AcuSearch, motion detection 2.0, ANPR, people counting, VCA
AcuSearch by NVRUp to 32 channels
AcuSearch by CameraAll channels, up to 345,600 targets per day
Face Picture LibrariesUp to 64 libraries with 300,000 faces total (each ≤ 4 MB, total ≤ 10 GB)
Face Comparison16-channel, 24 pictures per second
Perimeter Protection (NVR)Simultaneous mode: 8‑ch up to 2 MP; Independent mode: 4‑ch up to 2 MP
Perimeter Protection (Camera)All channels
Interface & General
USBFront: 2 × USB 2.0; Rear: 4 × USB 3.0
Serial Interface1 × RS-232, 2 × RS-485 (half-duplex)
Alarm In / Out32 / 16
Power Supply100–240 VAC, 50–60 Hz, redundant
Power Consumption≤ 100 W (without HDD)
Operating Temperature−10 to 55 °C
Operating Humidity10 to 90%
Dimensions (W × D × H)447 mm × 572 mm × 173 mm (4U rack)
Weight≤ 19 kg (without HDD)
CertificationsCE, IC, CB, RoHS, REACH, WEEE, RCM, UKCA, LOA

Frequently Asked Questions

What is the DS-96128NXI-S24R and how many cameras does it support?

The Hikvision DS-96128NXI-S24R is a 128-channel, 4U rackmount Network Video Recorder from the S Series with AcuSense AI technology. It accepts up to 128 IP cameras at resolutions up to 32 MP, making it one of the highest-capacity NVRs in its class. It is designed for large-scale enterprise, campus, and critical-infrastructure surveillance deployments.

What AcuSense features does the DS-96128NXI-S24R S Series NVR provide?

The AcuSense S Series platform combines NVR-side and camera-side AI analytics. The NVR provides facial recognition, perimeter protection (8-channel simultaneous, up to 2 MP), and video structuralization. When paired with AcuSense cameras, every channel gains perimeter protection, motion detection 2.0, ANPR, people counting, and VCA. AcuSearch allows post-event searching across up to 32 NVR channels or all camera channels at up to 345,600 targets per day.

How many hard drives does the DS-96128NXI-S24R support, and what RAID modes are available?

The DS-96128NXI-S24R is equipped with 24 SATA interfaces accepting 3.5-inch hard drives at up to 20 TB each, yielding a maximum raw capacity of up to 480 TB. It supports RAID 0, RAID 1, RAID 5, RAID 6, and RAID 10, with N+M hot-spare capability. A dedicated eSATA port provides additional external storage expansion. In RAID mode, incoming bandwidth is 640 Mbps and outgoing is 512 Mbps.

What video output options does the DS-96128NXI-S24R offer?

The NVR features four HDMI outputs and two VGA outputs. HDMI 3 supports up to 8K (7680 × 4320) at 30 Hz for ultra-high-resolution video walls. HDMI 1 and HDMI 2 each support up to 4K (3840 × 2160) at 60 Hz. HDMI 4 and both VGA outputs support 1080P at 60 Hz. Four configurable output modes allow simultaneous, independent, or combined 8K+4K+1080P display configurations to suit any control-room layout.

Does the DS-96128NXI-S24R have a redundant power supply?

Yes. The DS-96128NXI-S24R includes a built-in redundant power supply rated at 100–240 VAC, 50–60 Hz. Power consumption is ≤ 100 W without HDDs installed. Redundant power ensures the NVR continues operating without interruption if one power module fails, a critical requirement for 24/7 security surveillance in mission-critical environments.

Is the Hikvision DS-96128NXI-S24R certified for use in Australia?

Yes. The DS-96128NXI-S24R carries RCM (Regulatory Compliance Mark) certification required for the Australian and New Zealand markets, along with CE, CB, IC, RoHS, REACH, WEEE, and UKCA certifications for global compliance. It is available from Australian stock held by ARC IP Networks, ensuring rapid delivery without the lead times associated with international sourcing.

Professional Overview

The Hikvision DS-96128NXI-S24R is the flagship model of the S Series, purpose-built for large-scale, enterprise-grade IP video surveillance. Accepting up to 128 cameras at resolutions reaching 32 megapixels, it delivers the channel density and bandwidth — 1,024 Mbps incoming, 800 Mbps outgoing — that complex installations demand. The rackmount 4U chassis houses 24 SATA bays for up to 480 TB of raw storage, backed by comprehensive RAID 0/1/5/6/10 protection to safeguard critical footage around the clock. Its four-port network stack (4 × 10/100/1000/2500 Mbps Ethernet) and full ONVIF, ISAPI, and SDK support guarantee seamless integration into existing enterprise infrastructure.

AcuSense artificial intelligence sits at the core of the DS-96128NXI-S24R’s detection engine. The NVR-side AI processes facial recognition across up to 64 libraries containing 300,000 stored face pictures, compares live captures at 24 frames per second across 16 simultaneous channels, and applies perimeter protection across 8 simultaneous channels at up to 2 MP. When paired with AcuSense-enabled cameras, every one of the 128 channels gains independently processed perimeter protection, ANPR, people counting, and motion detection 2.0 — returning only actionable human and vehicle events to operators rather than noise-driven alerts.

Display flexibility is equally impressive. The DS-96128NXI-S24R supports four configurable video output modes spanning six simultaneous outputs: HDMI 3 reaches true 8K (7680 × 4320) for ultra-high-resolution video walls, HDMI 1 and HDMI 2 each deliver 4K at 60 Hz, and a dedicated HDMI input with loopback enables direct source pass-through to a display without disturbing the NVR’s own outputs. Sixteen-channel synchronous playback at up to 32 MP with H.265+/H.265/H.264+/H.264 decoding ensures investigators can review multi-camera incidents in real time.

Built for continuous 24/7 operation, the DS-96128NXI-S24R features a fully redundant power supply (100–240 VAC) rated at ≤ 100 W without HDDs, an operating temperature range of −10 to 55 °C, and comprehensive alarm I/O (32 in / 16 out) with RS-232 and RS-485 serial interfaces for PTZ and peripheral integration. It carries RCM certification for the Australian market alongside CE, CB, IC, RoHS, REACH, WEEE, and UKCA marks for global compliance. Australian stock from ARC IP Networks.

Brand Hikvision
Form Factor 4U Rackmount
HDD Bays 24
Video Output 8K HDMI
Max Resolution 32 MP
Channels 128
RAID Support RAID 0/1/5/6/10
Network Ports 4 x 2.5G Ethernet
Power Supply Redundant
DS-96128NXI-S24R_Datasheet.pdf
