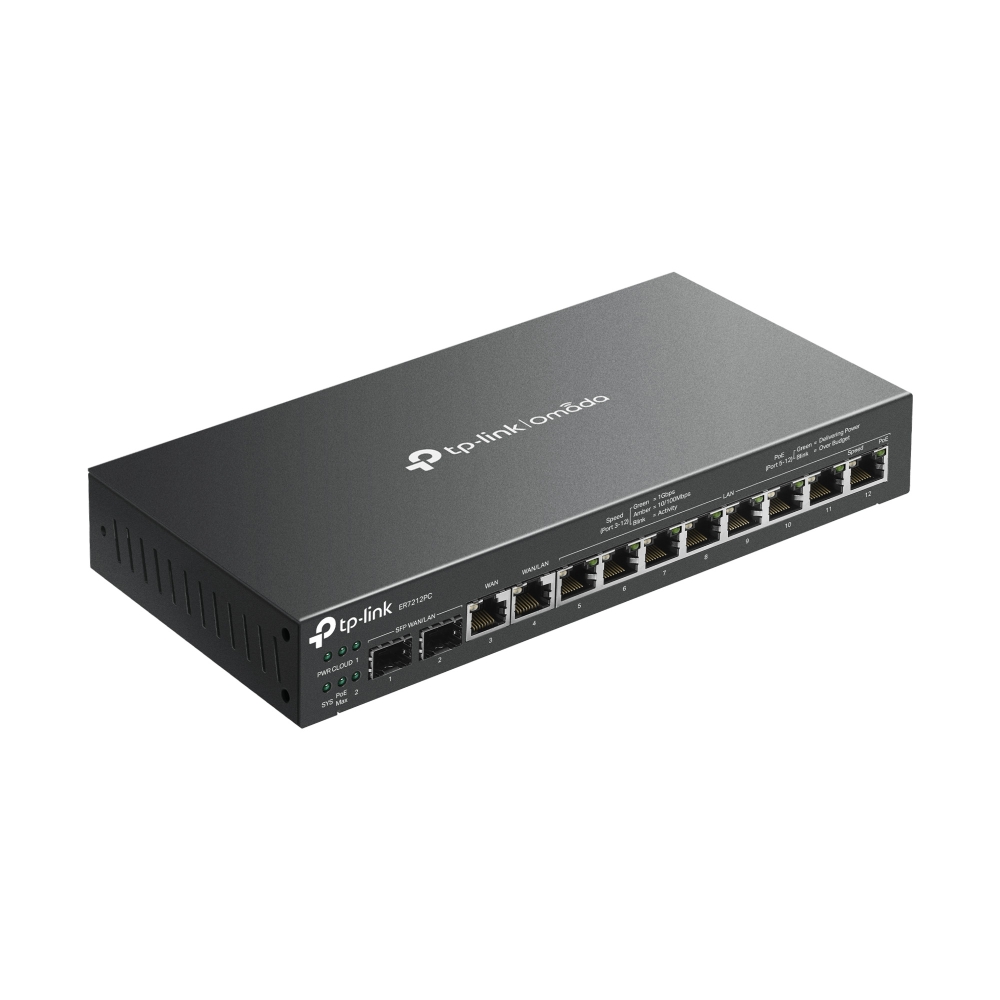

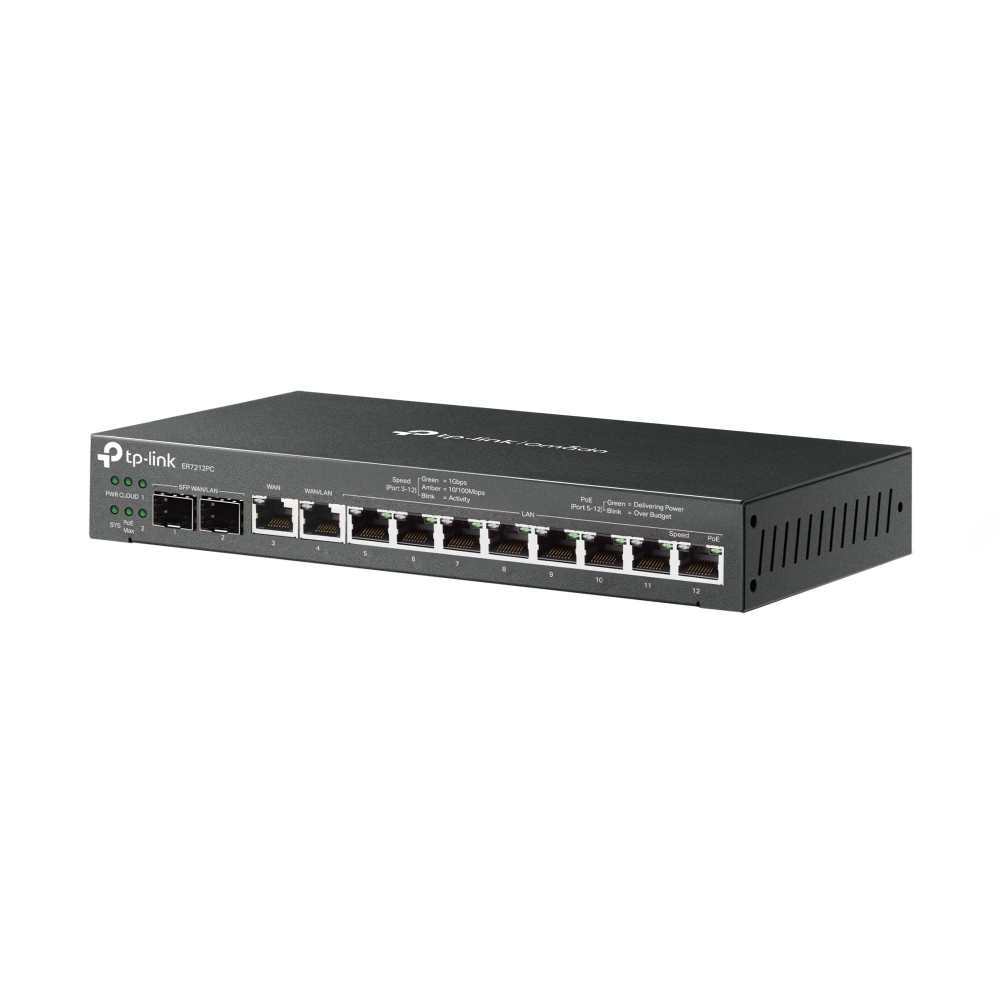

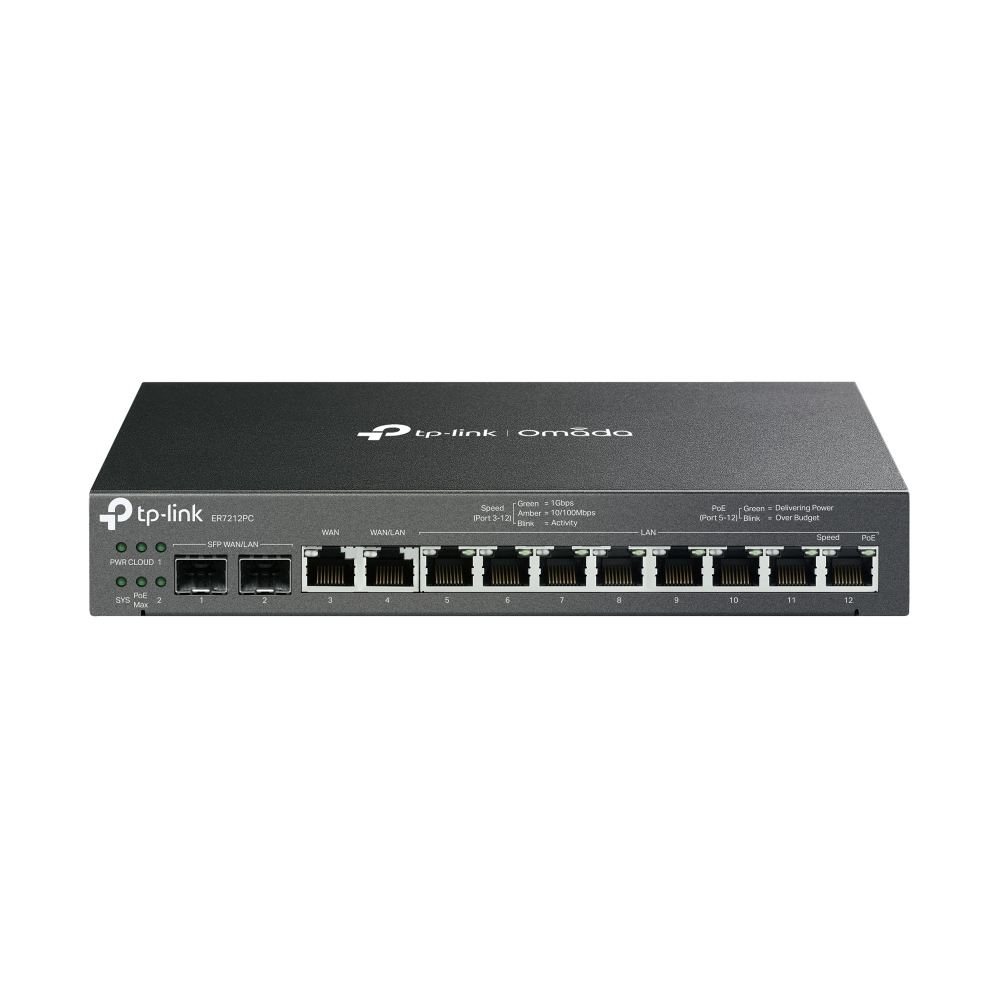

TP-Link ER7212PC Omada 3-in-1 Gigabit VPN Gateway

https://arcip.com.au/web/image/product.template/11169/image_1920?unique=6cd61da

The TP-Link ER7212PC is an Omada 3-in-1 gateway that combines a gigabit VPN router, an 8-port PoE+ switch with a 110 W budget and a built-in Omada controller in one fanless steel box: 12 gigabit ports including two SFP ports, up to four WAN links, IPsec, SSL, OpenVPN and WireGuard VPN, and cloud management through the Omada app.

$ 707.42 707.42 AUD $ 707.42 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

In stock online
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
ER7212PC
Barcode
4897098688717

The TP-Link ER7212PC is an Omada 3-in-1 gateway that combines a gigabit VPN router, an 8-port PoE+ switch with a 110 W budget and a built-in Omada controller in one fanless steel box: 12 gigabit ports including two SFP ports, up to four WAN links, IPsec, SSL, OpenVPN and WireGuard VPN, and cloud management through the Omada app.

ER7212PC overview

The ER7212PC is designed for small businesses and well-equipped homes that want a complete Omada network without a stack of separate boxes. TP-Link calls it a 3-in-1 gateway: it is the router and firewall, it is an eight-port PoE+ switch that can power access points, cameras and phones directly, and it runs an Omada controller internally, so the access points and switches it powers can be managed centrally without an OC200, a PC or a cloud controller.

It has 12 gigabit ports in total: two gigabit SFP WAN/LAN ports for fibre or SFP modules, one gigabit WAN port, one gigabit LAN/WAN port and eight gigabit LAN ports. That allows up to four WAN connections for load balancing and failover. The eight LAN ports supply IEEE 802.3at PoE+ from a 110 W budget, enough for several Omada access points or PoE cameras. The unit is fanless, built in a steel enclosure with 6 kV surge protection, measures 226 x 131 x 35 mm, and can be mounted on a desk or wall, or in a rack with the rackmount kit sold separately. Power comes from the included 53.5 V / 2.43 A adapter.

VPN capability is strong for its size. TP-Link lists 20 IPsec tunnels, 80 SSL VPN tunnels, 16 OpenVPN, 16 L2TP and 16 PPTP tunnels, plus WireGuard, and it can act as a VPN client to up to ten servers. TP-Link's measured IPsec throughput is about 985 to 990 Mbps (for example 990.5 Mbps with ESP-SHA2-AES256), with NAT throughput of about 940 to 948 Mbps, 50,000 concurrent sessions and 3,800 new sessions per second. Hardware is a step up from entry gateways, with 2 GB of DDR4 memory and 8 GB of eMMC storage.

Because the controller is built in, the ER7212PC brings Omada management features straight out of the box: automatic device discovery, intelligent network monitoring, abnormal-event warnings, unified configuration, reboot schedules and captive-portal configuration for guest Wi-Fi, with cloud access through the Omada app. SD-WAN is available in controller mode. TP-Link publishes different figures for how many devices the built-in controller manages across its AU page and datasheet, so for larger networks talk to us about whether a dedicated Omada controller is the better fit.

Key features

3-in-1: router, PoE switch, controller

A VPN gateway, an 8-port PoE+ switch and an Omada controller in one fanless box.

8 x PoE+ with 110 W budget

Power Omada access points, cameras and VoIP phones directly from the gateway's eight LAN ports.

12 gigabit ports incl. 2 SFP

Two SFP WAN/LAN, one WAN, one WAN/LAN and eight LAN ports, for up to four WAN connections.

Near-gigabit IPsec VPN

TP-Link measures about 990 Mbps IPsec throughput (ESP-SHA2-AES256) for fast site-to-site links.

IPsec, SSL, OpenVPN and WireGuard

20 IPsec, 80 SSL VPN, 16 OpenVPN, 16 L2TP and 16 PPTP tunnels, plus WireGuard.

Built-in Omada controller

Manage the APs and switches it powers without an OC200, a PC or a cloud controller, with cloud access via the Omada app.

Fanless steel design

Silent, steel-enclosed hardware with 6 kV surge protection for desks, walls or racks.

Multi-WAN load balancing

Spread traffic across up to four wired services, or keep a backup link ready for failover.

Captive portal and monitoring

Guest Wi-Fi portal, network monitoring, event warnings and scheduled reboots from the controller.

ER7212PC specifications

At a glance

Gateway + PoE switch + controller
8 x PoE+ ports
110 W PoE budget
12 Gigabit ports
2 x SFP WAN/LAN
Up to 4 WAN
~990 Mbps IPsec VPN
Fanless steel
ER7212PC full specifications
Security
IDS/IPSSignature-based IPS/IDS threat detection
Access ControlSource/Destination IP Based Access Control
DPISupported by v2 and above:; Deep Packet Inspection; Support 2421 type Applications; Max Throughput (Upload / Download) 942.7Mbps/937.3Mbps
ACLSource/Destination IP Based ACL; Stateful ACL; IPv4/IPv6 ACL; National Based ACL; FQDN
DNS ProxyDNSSEC, DoH, and DoT
FilteringURL Filtering
Attack DefenseTCP/UDP/ICMP Flood Defense; Block TCP Scan (Stealth FIN/Xmas/Null); Block Ping from WAN
ARP InspectionSending GARP Packets; IP-MAC Binding
Vpn
SSL VPN80 Tunnels
IPsec VPN20 IPSec VPN Tunnels; LAN-to-LAN, Client-to-LAN; Main, Aggressive Negotiation Mode; DES, 3DES, AES128, AES192, AES256 Encryption Algorithm; IPsec Failover; IKE v1/v2; MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm; NAT Traversal (NAT-T); Dead Peer Detection (DPD); Perfect Forward Secrecy (PFS)
PPTP VPNPPTP VPN Server; PPTP VPN Client (10); 16 Tunnels; PPTP with MPPE Encryption
L2TP VPNL2TP VPN Server; L2TP VPN Client (10); 16 Tunnels; L2TP over IPSec
OpenVPNOpenVPN Server; OpenVPN Client (10); 16 OpenVPN Tunnels; "Certificate + Account" Mode; Full Mode
WireGuard VPN√
SD-WAN√ (Only in Controller Mode)
Hardware Features
Standards and ProtocolsIEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE; 802.1q, TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, SNMP
Interface2 Gigabit SFP WAN/LAN ports; 1 Gigabit WAN port; 1 Gigabit LAN/WAN port; 8 Gigabit LAN ports
Network Media10BASE-T: UTP category 3, 4, 5 cable (Max 100 m); EIA/TIA-568 100Ω STP (Max 100 m); 100BASE-TX: UTP category 5, 5e cable (Max 100 m); EIA/TIA-568 100Ω STP (Max 100 m); 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
Fan QuantityFanless
ButtonReset Button

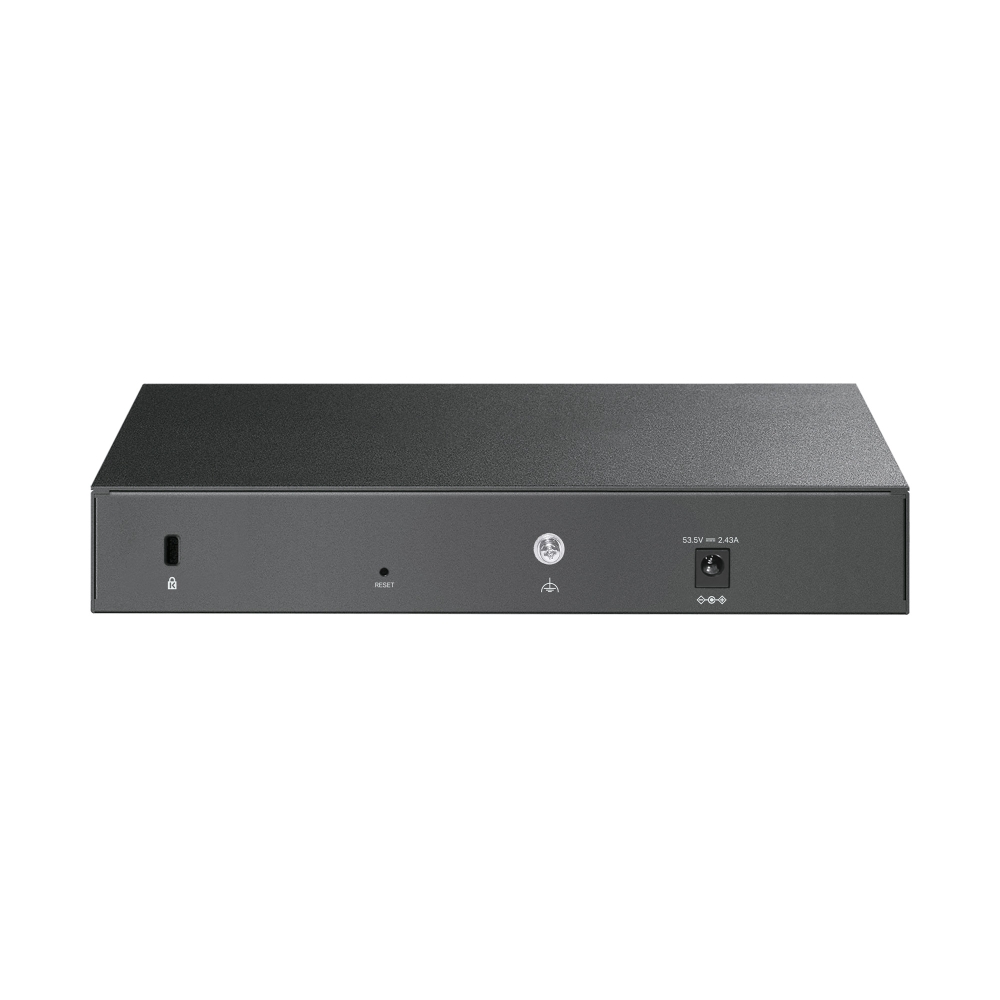

Power Supply53.5VDC/2.43A Adapter
PoE Budget8 ports PoE+ output, 110 W PoE Budget
Flash32Mbit Nor+8GB eMMC
DRAM2 GB DDR4
LEDPWR, SYS, CLOUD, PoE Max, SFP 1, SFP 2, WAN (Speed, Link/Act), LAN (Speed, Link/Act)
Dimensions ( W x D x H )8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
Protection6kV surge protection
EnclosureSteel

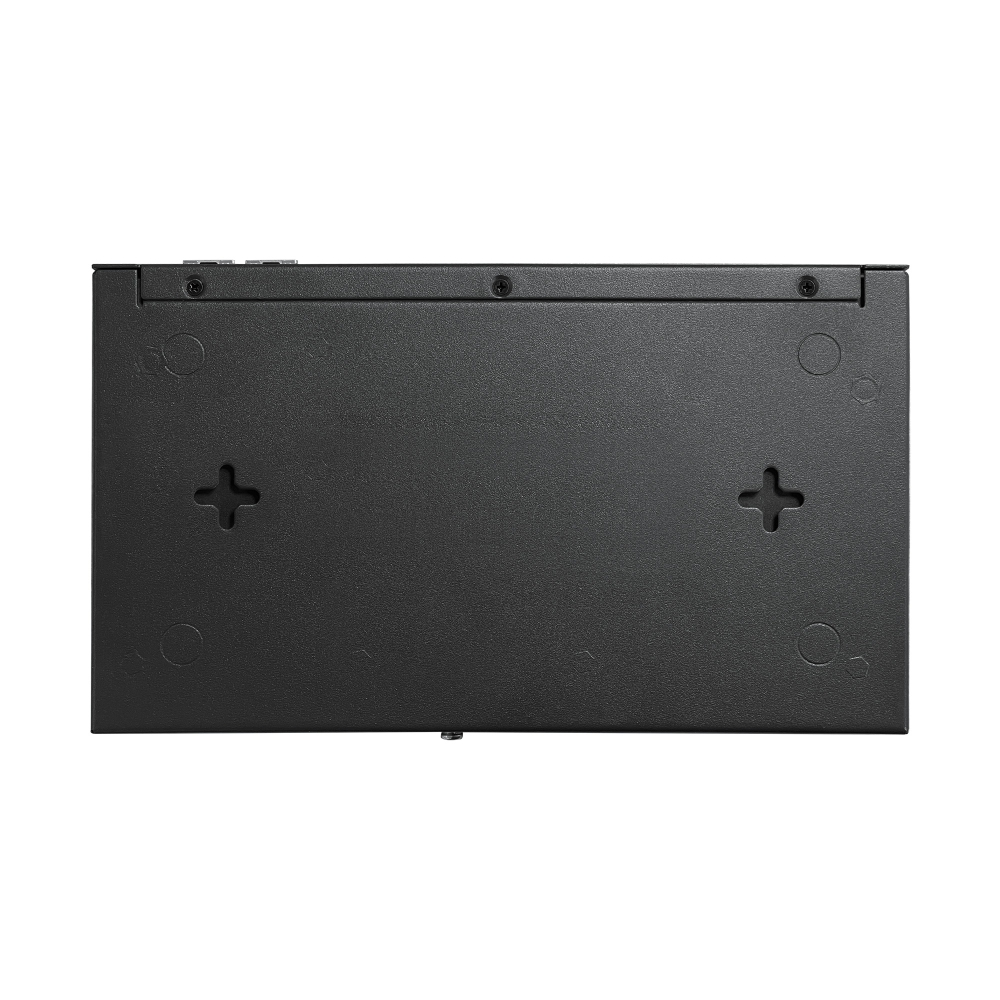

MountingDesktop; Wall-mount; Rack-mount (rackmount kit sold separately)
Max. Power Consumption131 W (110 V/60 Hz) (With 110 W PD connected)
Performance
Concurrent Session50,000
New Sessions /Second3,800
NAT (Static IP)940.2 Mbps / 947.5 Mbps
NAT(DHCP)947.8 Mbps / 948.6 Mbps
NAT(PPPoE)943.1 Mbps / 942.6 Mbps
NAT (L2TP)898.4 Mbps / 915.8 Mbps
NAT (PPTP)909.7 Mbps / 912.8 Mbps
66 Byte Packet Forwarding Rate1,453,459 pps / 1,453,459 pps
1,518 Byte Packet forwarding rate81,272 pps / 81,272 pps
IPsec VPN ThroughputESP-SHA1-AES256: 984.7 Mbps, ESP-SHA2-AES256: 990.5 Mbps,; ESP-SHA384-AES256: 983.9 Mbps, ESP-SHA512-AES256: 985.8 Mbps
OpenVPN233.1 Mbps
L2TP VPN ThroughputUnencrypted: 1,273.9 Mbps; Encrypted: 851.8 Mbps
PPTP VPN ThroughputUnencrypted: 1293.5 Mbps; Encrypted: 297.1 Mbps
Management Features
Omada AppYes.
Centralised ManagementManagement of up to 1 Omada gateway and total 12 Omada switches and access points
Cloud AccessYes.
ServiceDynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customisation)
MaintenanceWeb Management Interface; Remote Management; Export & Import Configuration; SNMP v1/v2c/v3; Diagnostics (Ping & Traceroute); NTP Synchronize; Port Mirroring; Syslog Support
Zero-Touch Provisioning-
Management FeaturesAutomatic Device Discovery; Intelligent Network Monitoring; Abnormal Event Warnings; Unified Configuration; Reboot Schedule; Captive Portal Configuration
Basic Functions
WAN Connection TypeStatic IP; Dynamic IP; PPPoE; PPTP; L2TP
MAC CloneModify WAN MAC Address
DHCPDHCP Server; DHCP Options Customisation; DHCP Address Reservation; Multi-IP Interfaces; Multi-Net DHCP
Quality of Service√
Bridge VLAN√
mDNS Repeater√
IPv6StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
VLAN802.1Q VLAN
IPTVIGMP v2/v3 Proxy, Custom Mode, Bridge Mode
Advanced Features
Access ControlSource/Destination IP Based ACL; Stateful ACL; IPv4/IPv6 ACL; National Based ACL
Advanced RoutingStatic Routing; Policy Routing
Bandwidth ControlIP-based Bandwidth Control
Load BalanceIntelligent Load Balance; Application Optimised Routing; Link Backup; Online Detection
NATMulti-Net NAT; One-to-One NAT; Port Forwarding; NAT-DMZ; FTP/H.323/SIP/IPSec/PPTP ALG; UPnP
Session LimitIP-based Session Limit
Authentication
Web AuthenticationNo Authentication; Simple Password; Hotspot (Local User / Voucher/ SMS / Radius); External Radius Server; External Portal Server
Others
CertificationCE, FCC
System RequirementsMicrosoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/8.1/10/11; MAC OS, NetWare, UNIX or Linux
EnvironmentOperating Temperature: -5 °C to 45 °C; Storage Temperature: -40 °C to 70 °C; Operating Humidity: 10% to 90% non-condensing; Storage Humidity: 5% to 90% non-condensing

Source: TP-Link's published specifications for this model (TP-Link Australia product page and datasheet). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • ER7212PC
  • Power Adapter
  • Power Cord
  • Quick Installation Guide

Source: TP-Link's published package contents.

Who the ER7212PC is for

Small businesses

  • Gateway, PoE switch and controller in one box
  • Power a few Omada APs and cameras directly
  • Fast site-to-site and remote-worker VPN

Larger homes and home offices

  • Silent fanless design for living spaces
  • Omada Wi-Fi throughout the house from one unit
  • Managed from the Omada app

Installers and MSPs

  • Fewer boxes to install and power
  • Built-in controller with cloud access
  • Fibre-ready SFP WAN ports

ER7212PC compared

The ER7212PC and ER605 are both Omada gigabit VPN gateways. Choose the ER7212PC when you also want PoE and a built-in controller; choose the ER605 when you only need a compact router.

FeatureER7212PCER605
Gigabit ports12 (2 SFP WAN/LAN, 1 WAN, 1 WAN/LAN, 8 LAN)5 (1 WAN, 2 WAN/LAN, 2 LAN)
PoE output8 x PoE+, 110 W budgetNone
Built-in Omada controllerYesNo
IPsec throughput (ESP-SHA256-AES256)990.5 Mbps250.94 Mbps
SSL VPN tunnels80Not listed
Concurrent sessions50,000150,000
Size226 x 131 x 35 mm158 x 101 x 25 mm

Source: TP-Link Australia product pages for each model.

Buy the ER7212PC from ARC IP Networks

ARC IP Networks supplies genuine TP-Link Omada networking from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • Genuine TP-Link: new TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the ER7212PC from the ARC IP Networks team.

Last reviewed October 2026.

It combines three devices: a gigabit VPN router, an 8-port PoE+ switch with a 110 W budget, and a built-in Omada controller that manages Omada switches and access points.

Eight PoE+ (802.3at) ports with a total PoE budget of 110 W, enough to power several Omada access points, PoE cameras or phones.

Not for smaller networks: the controller is built in. TP-Link quotes different managed-device figures on its AU page and in its datasheet, so for larger networks ask us whether a dedicated controller is the better choice.

Up to four: two gigabit SFP WAN/LAN ports, one gigabit WAN port and one gigabit LAN/WAN port, with load balancing and failover.

IPsec (20 tunnels), SSL VPN (80 tunnels), OpenVPN, L2TP and PPTP (16 tunnels each) and WireGuard. TP-Link measures IPsec throughput at about 990 Mbps with ESP-SHA2-AES256.

Yes. It is fanless, in a steel enclosure with 6 kV surge protection.

Yes, with the rackmount kit, which is sold separately. It can also sit on a desk or mount on a wall.

The ER7212PC, a power adapter, a power cord and a quick installation guide, according to TP-Link's published package contents.

Choose the ER7212PC if you also need PoE for access points or cameras and want the controller built in. Choose the ER605 for a compact, router-only gateway.

Yes. ARC IP Networks supplies genuine TP-Link ER7212PC gateways with the full TP-Link manufacturer's warranty.

Need several ER7212PC units for a small business or multi-site rollout?

Ask ARC IP Networks for volume and project pricing on genuine TP-Link Omada networking.
