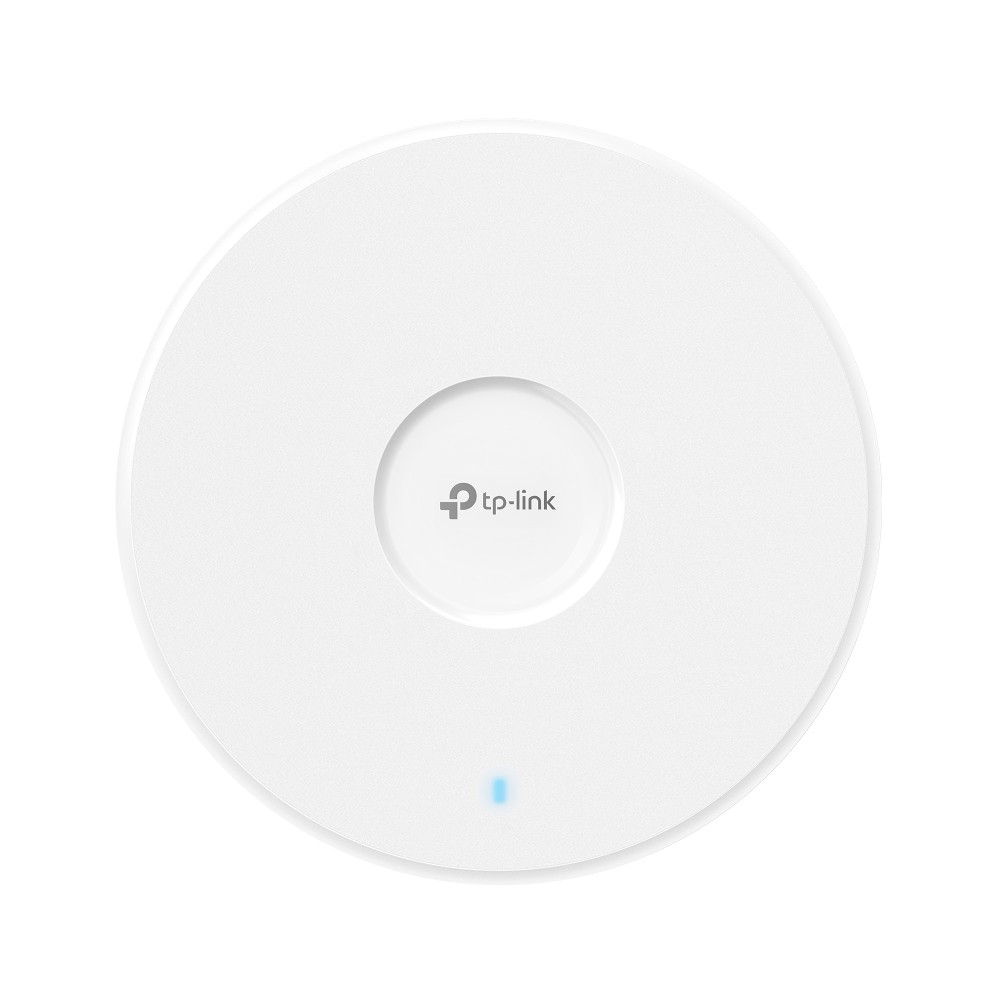

TP-Link EAP772 Omada BE9300 Wi-Fi 7 Tri-Band Ceiling Mount Access Point

https://arcip.com.au/web/image/product.template/8079/image_1920?unique=8232884

The TP-Link EAP772 is an Omada BE9300 tri-band Wi-Fi 7 ceiling mount access point for modern business networks. Six spatial streams across 2.4 GHz, 5 GHz and 6 GHz deliver up to 688, 4324 and 5765 Mbps respectively, with 320 MHz channels on 6 GHz, Multi-Link Operation, Multi-RUs and 4K-QAM for high speed and low latency. TP-Link lists 380+ concurrent clients and up to 140 square metres of coverage. A single 2.5 Gbps multi-gigabit port provides the uplink and accepts 802.3at PoE+, or the AP can run from 12 V / 2.5 A DC (adapter not included). It supports 24 SSIDs, captive portal, mesh and 802.11k/v/r roaming, managed through Omada cloud, OC200, OC300 or software controllers.

$ 487.17 487.17 AUD $ 487.17 incl. GST

Not Available For Sale


  • Brand
  • WiFi Standard

This combination does not exist.

In stock online
WiFi 7 Access Point TP-Link Omada
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
EAP772
Barcode
8885020623055
Tags

The TP-Link EAP772 is an Omada BE9300 tri-band Wi-Fi 7 ceiling mount access point with six streams: 688 Mbps on 2.4 GHz, 4324 Mbps on 5 GHz and 5765 Mbps on 6 GHz with 320 MHz channels. It supports MLO, 4K-QAM and Multi-RUs, 380+ concurrent clients and 140 square metres of coverage, and has one 2.5 Gbps port powered by 802.3at PoE+ or 12 V / 2.5 A DC (adapter not included), plus Bluetooth 5.2.

EAP772 overview

The EAP772 is TP-Link's Omada tri-band ceiling mount Wi-Fi 7 access point. TP-Link says it delivers high-speed, low-latency wireless performance with enhanced multi-user efficiency to meet the demands of modern businesses. In Australia it is listed as BE9300, with signal rates of 688 Mbps on 2.4 GHz, 4324 Mbps on 5 GHz and 5765 Mbps on 6 GHz; TP-Link's global datasheet describes the same model as BE11000 for the US and BE9300 for the EU. It supports IEEE 802.11a/b/g/n/ac/ax/be with six streams across three bands. TP-Link notes that maximum signal rates are physical rates from the IEEE 802.11 specifications, and that actual throughput, coverage and connected devices will vary.

Wi-Fi 7 technologies listed for the EAP772 are Multi-Link Operation (MLO), the 6 GHz band, 320 MHz bandwidth (EHT320), 4K-QAM, Multi-RUs, MU-MIMO, OFDMA and BSS colouring, which TP-Link says significantly enhance throughput, connection stability and concurrent capacity. MLO lets compatible clients use more than one band at once, and the 320 MHz channel on 6 GHz is what enables the 5765 Mbps figure. The datasheet also mentions long-range 6 GHz coverage with AFC (automated frequency coordination), noting that AFC availability varies by region or country. Internal antennas are 2 x 4 dBi on 2.4 GHz and 2 x 5 dBi each on 5 GHz and 6 GHz, plus a 4 dBi antenna for the Bluetooth 5.2 radio.

TP-Link lists coverage of up to 140 square metres (1,500 sq ft) and 380+ concurrent clients, both based on laboratory testing. The wired uplink is one 10M/100M/1000M/2.5G multi-gigabit RJ45 port, which TP-Link says ensures fast connectivity throughout the network; connected to a 2.5G switch port it can pass more than Gigabit traffic. Power is either 802.3at PoE+ on that port or 12 V / 2.5 A DC through a separate DC jack. Maximum consumption is 25.44 W on PoE and 22.57 W on DC. The power adapter is not included, so plan for an 802.3at PoE+ switch or injector.

The housing measures 220 x 220 x 32.5 mm and the main unit weighs 0.7 kg. The AU page lists ceiling and wall mounting kits in the box, and the datasheet also lists junction box and T-bar mounting kits and a cable compartment cover. It operates from 0 to 40 °C and is certified to CE, FCC and IC. Wireless functions include 24 SSIDs (eight per band), load balance, band steering, beamforming, airtime fairness, WMM QoS, rate limits, RADIUS accounting, MAC authentication and wireless and reboot schedules. Security covers captive portal authentication, access control, up to 4,000 MAC filter entries, client isolation, VLAN, rogue AP detection and WPA, WPA2 and WPA3 Personal/Enterprise.

For management, TP-Link lists the Omada Cloud-Based Controller, the OC300 and OC200 hardware controllers and the Omada Software Controller, plus the Omada app, web management, SNMP v1/v2c/v3, syslog, email alerts and LED control. Cloud access requires one of those controllers. 802.11k/v/r seamless roaming is supported, and Omada mesh and captive portal work with an Omada controller. Compared with the EAP773, the EAP772 has a 2.5G rather than 10G port and a higher listed 5 GHz rate (4324 versus 2880 Mbps); compared with the EAP772-Outdoor, it is an indoor ceiling unit that also accepts DC power. In the box are the EAP772, a ceiling/wall mounting kit and an installation guide.

Key features

BE9300 tri-band Wi-Fi 7

688 Mbps (2.4 GHz) + 4324 Mbps (5 GHz) + 5765 Mbps (6 GHz).

320 MHz on 6 GHz

EHT320 channels for the highest throughput where supported.

MLO, Multi-RUs and 4K-QAM

Lower latency and better efficiency with compatible Wi-Fi 7 clients.

380+ concurrent clients

With up to 140 m² coverage, based on laboratory testing.

2.5G multi-gigabit port

One 2.5 Gbps RJ45 uplink with 802.3at PoE+ input.

PoE+ or DC power

802.3at PoE or 12 V / 2.5 A DC; adapter not included.

24 SSIDs

Eight per band, with VLAN, captive portal and client isolation.

Omada SDN

Cloud, OC200, OC300 or software controller, mesh and 802.11k/v/r roaming.

EAP772 specifications

At a glance

BE9300 Wi-Fi 7
Tri-band 2.4/5/6 GHz
320 MHz on 6 GHz
380+ clients
1 x 2.5G port
802.3at PoE / 12 V DC
Bluetooth 5.2
Omada SDN
EAP772 full specifications
Hardware Features
Interface1× 2.5G Ethernet Port
ButtonReset
Power Supply802.3at PoE or 12V/2.5A DC
Max. Power Consumption25.44 W (For PoE);; 22.57 W (For DC)
Dimensions ( W x D x H )8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)
Antenna2.4 GHz: 2× 4.0 dBi; 5 GHz: 2× 5.0 dBi; 6 GHz: 2× 5.0 dBi
Bluetooth1 × 4.0 dBi, Bluetooth 5.2 Firmware update may be required.
MountingCeiling / Wall Mounting (Kits Included)
Management Features
Omada AppYes
Centralised ManagementOmada Cloud-Based Controller; Omada Hardware Controller (OC300); Omada Hardware Controller (OC200); Omada Software Controller
Cloud AccessYes. Require the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller.
Email AlertsYes
LED ON/OFF ControlYes
Management MAC Access ControlYes
SNMPv1, v2c, v3
System Logging Local/Remote SyslogYes
Web-based ManagementYes
Wireless Features
Coverage140㎡(1500 ft²)
Concurrent Clients380+
Wireless StandardsIEEE 802.11 a/b/g/n/ac/ax/be
Frequency6 GHz, 5 GHz, and 2.4 GHz
Signal Rate688 Mbps (2.4 GHz) + 4324 Mbps (5 GHz) + 5765 Mbps (6 GHz)
Wireless FunctionsMLO; 4K-QAM; Seamless Roaming(802.11k/v/r); MU-MIMO; EHT320; Mesh; BSS Coloring; OFDMA; Load Balance; Band Steering; Beamforming; Airtime Fairness; Multiple SSIDS:24(8 on each band); Wireless Schedule; Reboot Schedule; QoS(WMM); Rate Limit; Static IP/Dynamic IP; RADIUS Accounting; MAC Authentication
Wireless SecurityCaptive Portal Authentication; Access Control; Maximum number of MAC Filter: 4,000; Wireless Isolation Between Clients; VLAN; Rogue AP Detection; WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Others
CertificationCE, FCC, IC
EnvironmentOperating Temperature: 0 °C–40 °C (32 °F–104 °F);; Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);; Operating Humidity: 10%–90% non-condensing;; Storage Humidity: 5%–90% non-condensing;

Source: TP-Link's published specifications for this model (TP-Link Australia product page and datasheet). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • EAP772
  • Installation Guide
  • Ceiling/Wall Mounting Kit Note: Power Adapter is NOT included.

Source: TP-Link's published package contents.

Who the EAP772 is for

Wi-Fi 7 offices

  • Tri-band with 6 GHz
  • MLO and 4K-QAM
  • 2.5G uplink

Busy shared spaces

  • 380+ concurrent clients
  • 24 SSIDs
  • Band steering and airtime fairness

Omada-managed networks

  • Cloud, OC200, OC300 or software controller
  • Mesh and 802.11k/v/r roaming
  • Email alerts and SNMP

EAP772 compared

The EAP772, EAP773 and EAP772-Outdoor are all BE9300 tri-band Wi-Fi 7 access points. They differ in uplink speed, per-band rates, power options and where they can be installed.

SpecificationEAP772EAP773EAP772-Outdoor
Signal rate (AU page)688 + 4324 + 5765 Mbps574 + 2880 + 5760 Mbps688 + 2882 + 5765 Mbps
Ethernet port1 x 2.5G1 x 10G1 x 2.5G
Power802.3at PoE or 12 V DC802.3at PoE or 12 V DC802.3at PoE only
Max power (PoE)25.44 W24.05 W21.5 W
Coverage (lab)140 m²140 m²300 m² recommended
EnclosureIndoor ceilingIndoor ceilingIP68 outdoor
Weight0.7 kg0.73 kg1.41 kg

Source: TP-Link Australia product pages for each model.

Buy the EAP772 from ARC IP Networks

ARC IP Networks supplies TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the EAP772 from the ARC IP Networks team.

Last reviewed October 2026.

It is a BE9300 tri-band Wi-Fi 7 access point: 688 Mbps on 2.4 GHz, 4324 Mbps on 5 GHz and 5765 Mbps on 6 GHz. These are maximum physical rates; actual throughput varies.

TP-Link's global datasheet lists BE11000 for the US and BE9300 for the EU. The AU product page lists BE9300.

Yes. It is tri-band with a 6 GHz radio that supports 320 MHz channels, subject to local regulations and client support.

One 2.5 Gbps multi-gigabit RJ45 port with PoE in. The EAP773 is the sibling with a 10G port.

By 802.3at PoE+ or by 12 V / 2.5 A DC. The power adapter is not included. Maximum consumption is 25.44 W on PoE and 22.57 W on DC.

TP-Link lists 380+ concurrent clients and up to 140 square metres of coverage, both based on laboratory testing.

24 SSIDs, eight on each band.

The Omada Cloud-Based Controller, OC300 and OC200 hardware controllers and the Omada Software Controller, plus the Omada app.

A ceiling/wall mounting kit is included; the datasheet also lists junction box and T-bar mounting. The unit is 220 x 220 x 32.5 mm and weighs 0.7 kg.

The EAP772, a ceiling/wall mounting kit and an installation guide. The power adapter is not included.
