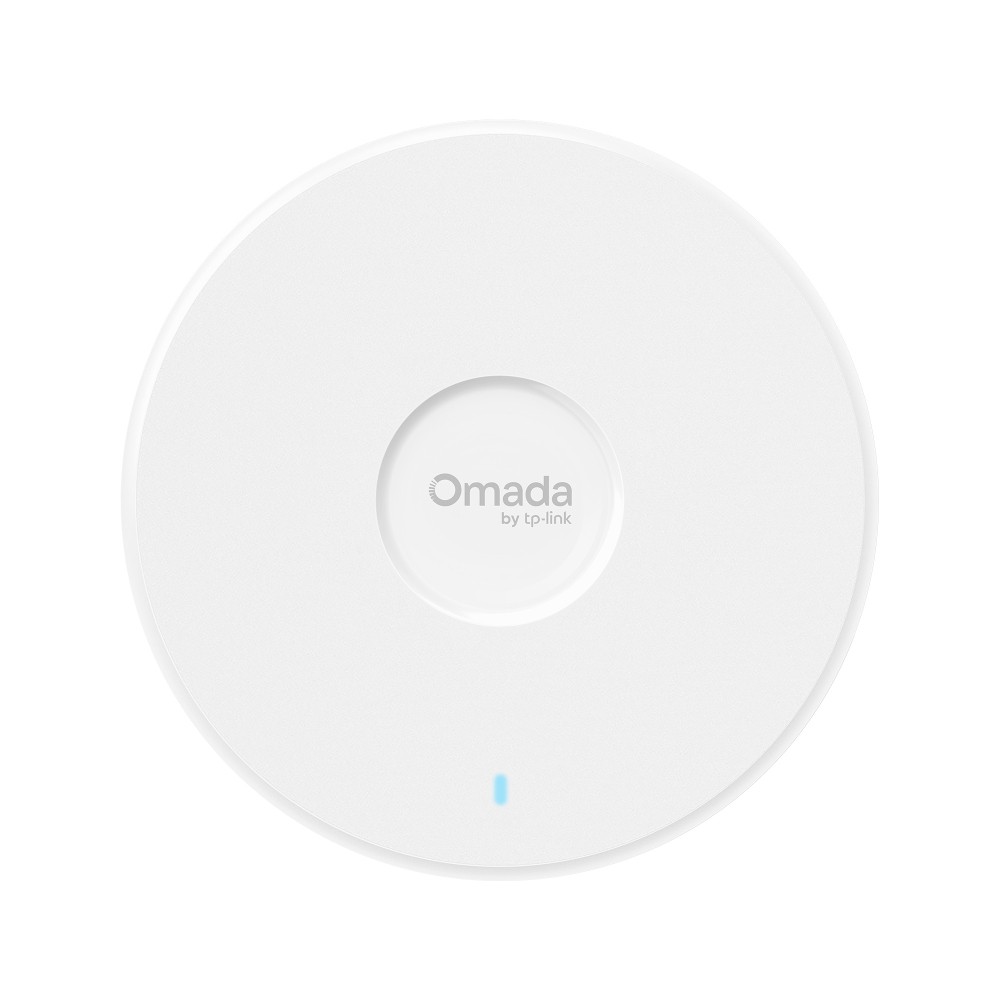

TP-Link EAP787 Omada BE12000 Wi-Fi 7 Tri-Band Ceiling Access Point with 10G Port

https://arcip.com.au/web/image/product.template/8082/image_1920?unique=a3ad2ec

The TP-Link EAP787 is TP-Link's flagship Omada ceiling mount access point, rated BE12000 for the EU/AU region. It is tri-band Wi-Fi 7 with 2x2 on 2.4 GHz (688 Mbps), 4x4 on 5 GHz (5765 Mbps) and 2x2 on 6 GHz (5765 Mbps), and supports 320 MHz bandwidth, Multi-Link Operation, 4K-QAM, Multi-RUs, OFDMA and MU-MIMO. A single 10 Gbps multi-gigabit RJ45 port takes 802.3bt PoE (802.3at also supported) or a 12 V DC adapter, sold separately. Dedicated RF Scanning provides real-time spectrum monitoring, and the AP supports 24 SSIDs, WPA3, seamless roaming, mesh, a BLE 5.2 radio and central management through Omada Central, hardware or software controllers.

$ 876.37 876.37 AUD $ 876.37 incl. GST

Not Available For Sale


  • Brand
  • WiFi Standard

This combination does not exist.

WiFi 7 Access Point TP-Link Omada
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
EAP787
Barcode
1210002600569
Tags

The TP-Link EAP787 is the flagship Omada BE12000 tri-band Wi-Fi 7 ceiling mount access point. It combines 688 Mbps on 2.4 GHz, 5765 Mbps on 5 GHz and 5765 Mbps on 6 GHz across eight spatial streams, with 320 MHz channels, Multi-Link Operation, 4K-QAM and Multi-RUs, a 10 Gbps PoE++ Ethernet port (802.3bt/at PoE or 12 V DC), Dedicated RF Scanning, 510+ concurrent clients and Omada SDN cloud management.

EAP787 overview

The EAP787 is TP-Link's Omada BE12000 tri-band ceiling mount Wi-Fi 7 access point, which TP-Link describes as the flagship model of its ceiling mount access points, fully leveraging Wi-Fi 7 technology to deliver optimal performance for the most demanding clients and applications. It is sold as BE15000 in the US and BE12000 in the EU region, and the AU product page lists the BE12000 rates: 688 Mbps on 2.4 GHz, 5765 Mbps on 5 GHz and 5765 Mbps on 6 GHz. It works to IEEE 802.11a/b/g/n/ac/ax/be with eight spatial streams in total: 2x2 on 2.4 GHz, 4x4 on 5 GHz and 2x2 on 6 GHz, all uplink and downlink with MU-MIMO. TP-Link notes that maximum wireless signal rates are physical rates derived from the IEEE 802.11 specifications, and actual throughput, coverage and number of connected devices are not guaranteed.

The Wi-Fi 7 feature set is complete: 320 MHz bandwidth on 6 GHz, Multi-Link Operation (MLO), 4096-QAM (4K-QAM), Multi-RUs, OFDMA and BSS colouring, together with beamforming, band steering, load balance and airtime fairness. TP-Link says these significantly enhance throughput, connection stability and concurrent capacity. A distinguishing feature of the EAP787 is Dedicated RF Scanning, which continuously scans surrounding wireless frequencies without impacting normal user data, identifies interference sources and channel congestion in real time, adds air packet capture for troubleshooting and provides channel utilisation metrics; it requires an Omada controller V6.0 or above. The datasheet also describes 6 GHz AFC support for extended 6 GHz range, noting that AFC availability varies by region and country.

For wired performance the EAP787 has one 10M/100M/1G/2.5G/5G/10 Gbps multi-gigabit RJ45 port with PoE in, which TP-Link says delivers multi-gigabit performance for higher bandwidth and faster Wi-Fi. It is powered by 802.3bt PoE or a 12 V / 2.5 A DC supply, with 802.3at PoE also supported; the system LED shows orange when power is insufficient (802.3at or 802.3af), so full performance should be planned on 802.3bt or DC. Maximum power consumption is listed at 26.3 W on PoE and 22.4 W on DC. Note that the power adapter is not included. Antennas are internal: 2 x 4.0 dBi on 2.4 GHz, 4 x 5.0 dBi on 5 GHz and 2 x 5.0 dBi on 6 GHz, plus an internal 5 dBi Bluetooth module (BLE 5.2), for which TP-Link notes a firmware update may be required.

The AU page lists coverage of up to 190 square metres (2050 sq ft) and 510+ concurrent clients, with a maximum of 512 associated stations in the datasheet; TP-Link notes coverage is calculated from laboratory testing and actual capacity depends on the wireless environment. Security and guest features include up to 24 SSIDs (eight on each band), captive portal authentication with SMS login, WPA3-Personal/Enterprise, access control, MAC filtering, wireless isolation between clients, VLAN, rogue AP detection, RADIUS accounting and MAC authentication. Seamless roaming (802.11k/v/r) and mesh are supported with an Omada controller.

Management runs through Omada Central (cloud-based), an Omada hardware controller or an Omada software controller, with zero-touch provisioning and batch configuration through Omada's unified SDN; cloud access requires an Omada controller. The datasheet lists Omada Controller v5.15.20 and Omada Essential v5.15.22 and above (V6.0 for Dedicated RF Scanning) and the Omada app v4.24. It also supports standalone web management, SSH, SNMP v1/v2c/v3, local and remote syslog, email alerts, management MAC access control and LED on/off control. The 220 x 220 x 38.8 mm unit weighs 0.885 kg, installs with a push-up-and-rotate lock on the included ceiling, wall and junction box mounting kit, operates from 0 to 40 °C, and carries CE, FCC and IC certification.

Key features

BE12000 tri-band Wi-Fi 7

688 Mbps (2.4 GHz) + 5765 Mbps (5 GHz) + 5765 Mbps (6 GHz) across eight spatial streams.

320 MHz, MLO and 4K-QAM

Multi-Link Operation, Multi-RUs, OFDMA and BSS colouring for low latency and less interference.

10G PoE++ port

One 10 Gbps multi-gigabit RJ45 port powered by 802.3bt PoE or 12 V DC.

Dedicated RF Scanning

Real-time spectrum monitoring, interference detection and air packet capture (Omada controller V6.0 or above).

510+ concurrent clients

Up to 190 m² of coverage on the AU page, based on laboratory testing.

24 SSIDs and WPA3

Eight SSIDs per band, captive portal with SMS login, rogue AP detection and client isolation.

Seamless roaming and mesh

802.11k/v/r roaming and Omada mesh with an Omada controller.

Omada SDN management

Omada Central, hardware or software controllers with zero-touch provisioning and batch configuration.

EAP787 specifications

At a glance

BE12000 Wi-Fi 7
Tri-band 2.4/5/6 GHz
8 spatial streams
1 x 10G RJ45 port
802.3bt PoE or 12 V DC
510+ clients
Up to 190 m²
Omada SDN
EAP787 full specifications
Hardware Features
Interface1× 10G/2.5G Ethernet Port
ButtonReset
Power Supply802.3bt/at PoE or 12V/2.5A DC
Max. Power Consumption26.3 W (For PoE);; 22.4 W (For DC)
Dimensions ( W x D x H )8.7 × 8.7 × 1.5 in (220 × 220 × 38.8 mm)
Antenna2.4 GHz: 2× 4.0 dBi; 5 GHz: 4× 5.0 dBi; 6 GHz: 2× 5.0 dBi
Bluetooth1 × 5 dBi (peak gain), Internal antenna module Firmware update may be required.
MountingCeiling / Wall/ Junction Box Mounting (Kits Included)
Management Features
Omada AppYes
Centralised ManagementOmada Central (Cloud-Based); Omada Hardware Controller; Omada Software Controller
Cloud AccessYes. Require the use of an Omada controller.
Email AlertsYes
LED ON/OFF ControlYes
Management MAC Access ControlYes
SNMPv1, v2c, v3
System Logging Local/Remote SyslogYes
Web-based ManagementYes
Wireless Features
Coverage2050 ft² (190 m²)
Concurrent Clients510+
Wireless StandardsIEEE 802.11 a/b/g/n/ac/ax/be
Frequency6 GHz, 5 GHz, and 2.4 GHz
Signal Rate688 Mbps (2.4 GHz) + 5765 Mbps (5 GHz) + 5765 Mbps (6 GHz)
Wireless Functions320 MHz Bandwidth; MLO; 4K-QAM; Multi-RUs; Seamless Roaming(802.11k/v/r); MU-MIMO; Mesh; BSS Coloring; OFDMA; Load Balance; Band Steering; Beamforming; Airtime Fairness; Multiple SSIDS:24(8 on each band); Wireless Schedule; Reboot Schedule; QoS(WMM); Rate Limit; Static IP/Dynamic IP; RADIUS Accounting; MAC Authentication
Wireless SecurityCaptive Portal Authentication; Access Control; Mac Filter; Wireless Isolation Between Clients; VLAN; Rogue AP Detection; WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power6-20 dBm (2.4 GHz, EIRP) 9-23 dBm (5 GHz, U-NII-1 & U-NII-2A, EIRP) 9-30 dBm (5 GHz, U-NII-2C, EIRP) 6-23 dBm (6 GHz, EIRP)
Others
CertificationCE, FCC, IC
EnvironmentOperating Temperature: 0 °C–40 °C (32 °F–104 °F);; Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);; Operating Humidity: 10%–90% non-condensing;; Storage Humidity: 5%–90% non-condensing;

Source: TP-Link's published specifications for this model (TP-Link Australia product page and datasheet). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • EAP787
  • Installation Guide
  • Ceiling/Wall/Junction Box Mounting Kit Note: Power Adapter is NOT included.

Source: TP-Link's published package contents.

Who the EAP787 is for

High-density, high-demand spaces

  • 510+ concurrent clients
  • 4x4 5 GHz plus 2x2 6 GHz
  • 320 MHz and MLO on Wi-Fi 7 clients

Multi-gigabit networks

  • 10 Gbps RJ45 uplink
  • Pair with a 10G 802.3bt PoE++ switch
  • 12 V DC option where PoE is not available

Managed enterprise Wi-Fi

  • Dedicated RF Scanning for interference
  • Omada Central cloud management
  • Rogue AP detection and WPA3

Buy the EAP787 from ARC IP Networks

ARC IP Networks supplies TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the EAP787 from the ARC IP Networks team.

Last reviewed October 2026.

It is sold as BE15000 in the US and BE12000 in the EU region. The Australian product page lists the BE12000 rates of 688 Mbps (2.4 GHz) + 5765 Mbps (5 GHz) + 5765 Mbps (6 GHz).

Yes. It has 2.4 GHz, 5 GHz and 6 GHz radios: 2x2 on 2.4 GHz, 4x4 on 5 GHz and 2x2 on 6 GHz, for eight spatial streams in total.

By 802.3bt PoE through its 10G Ethernet port or by a 12 V / 2.5 A DC supply. 802.3at PoE is also supported, but the LED indicates insufficient power on 802.3at or 802.3af. The power adapter is not included.

TP-Link lists maximum consumption of 26.3 W on PoE and 22.4 W on DC.

One 10M/100M/1G/2.5G/5G/10 Gbps multi-gigabit RJ45 port with PoE in.

It continuously scans the surrounding spectrum without affecting client traffic, identifying interference and channel congestion in real time and providing air packet capture and channel utilisation data. It requires an Omada controller V6.0 or above.

TP-Link lists 510+ concurrent clients and, on the AU page, up to 190 square metres. Coverage is from laboratory testing and actual results vary with the environment.

It supports standalone web management, but cloud access, mesh, seamless roaming and Dedicated RF Scanning use an Omada controller: Omada Central, a hardware controller or a software controller.

On a ceiling, wall or junction box using the included mounting kit, with a push-up-and-rotate lock. The datasheet also lists T-bar mounting.

The EAP787, an installation guide and the ceiling/wall/junction box mounting kit. A power adapter is not included.

Need more than one EAP787 for a high-density Wi-Fi 7 rollout?

Ask ARC IP Networks for volume and project pricing on TP-Link Omada products.

Brand TP-Link
