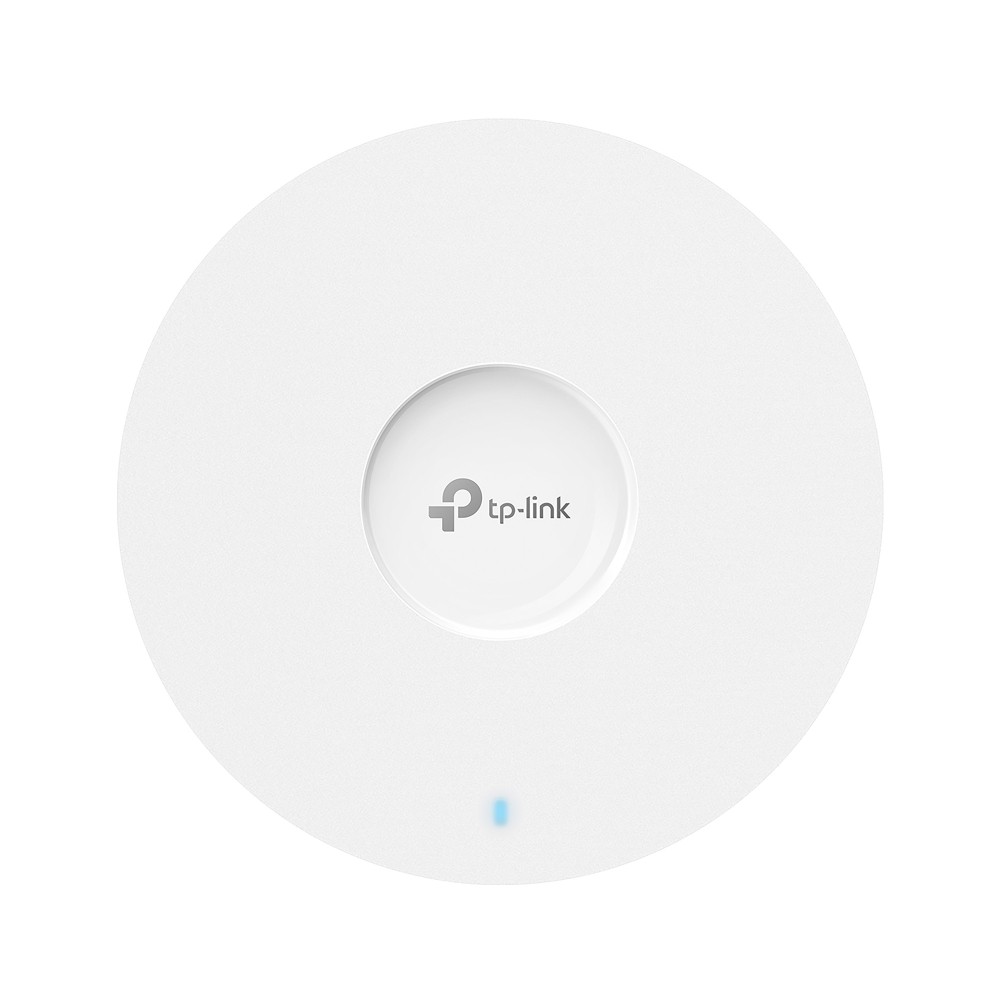

TP-Link EAP660 HD Omada AX3600 Wi-Fi 6 Dual-Band Multi-Gigabit Ceiling Access Point

https://arcip.com.au/web/image/product.template/8075/image_1920?unique=180342a

The TP-Link EAP660 HD is an Omada AX3600 dual-band ceiling mount Wi-Fi 6 access point built for busy, high-density environments. Eight spatial streams (4x4 on each band) deliver up to 2402 Mbps on 5 GHz and 1148 Mbps on 2.4 GHz, with 4x4 downlink MU-MIMO, OFDMA and 1024-QAM, and TP-Link lists 1,020+ concurrent clients and up to 200 square metres of coverage. A 2.5 Gbps multi-gigabit Ethernet port carries the extra bandwidth and accepts 802.3at PoE+, or the AP can run from the included 12 V DC adapter. It has Bluetooth 5.2, up to 16 SSIDs and captive portal, and is managed through Omada cloud, hardware or software controllers with mesh and 802.11k/v/r roaming.

$ 625.55 625.55 AUD $ 625.55 incl. GST

Not Available For Sale


  • Brand
  • WiFi Standard

This combination does not exist.

In stock online
WiFi 6 Access Point TP-Link Omada
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
EAP660 HD
Barcode
4895252506167
Tags

The TP-Link EAP660 HD is an Omada AX3600 high-density Wi-Fi 6 ceiling mount access point with eight streams: 4x4 on 5 GHz for up to 2402 Mbps and 4x4 on 2.4 GHz for up to 1148 Mbps. It supports 1,020+ concurrent clients and up to 200 square metres of coverage, has one 2.5 Gbps Ethernet port powered by 802.3at PoE+ or 12 V DC (adapter included), Bluetooth 5.2, and Omada SDN with mesh and roaming.

EAP660 HD overview

The EAP660 HD is TP-Link's Omada AX3600 dual-band ceiling mount Wi-Fi 6 access point, with HD standing for high density. TP-Link says it delivers reliable connectivity and enhanced capacity for busy environments, using core Wi-Fi 6 technologies to manage more simultaneous connections and keep the user experience stable and consistent. Its headline is eight-stream dual-band Wi-Fi 6: 2402 Mbps on 5 GHz and 1148 Mbps on 2.4 GHz. That 2.4 GHz figure is double that of typical 2x2 AX3000 access points, because the EAP660 HD runs 4x4 radios on both bands. TP-Link notes that maximum signal rates are physical rates from the IEEE 802.11 specifications and actual throughput, coverage and connected devices will vary.

Capacity is the reason to choose this model. The AU product page lists 1,020+ concurrent clients (the datasheet headline says up to 1,000+ concurrent connections in crowded environments) and coverage of up to 200 square metres (2,150 sq ft), both based on laboratory testing. MU-MIMO is 4x4 downlink on both 2.4 GHz and 5 GHz, and OFDMA, 1024-QAM, the 4x longer OFDM symbol and beamforming are supported; TP-Link explains that OFDMA allows multiple devices to share channels efficiently, reducing latency and improving performance in dense environments. The internal omni antennas are 4 x 4 dBi on 2.4 GHz and 4 x 5 dBi on 5 GHz. The datasheet also lists RF scan, WLAN optimisation and lock to AP.

To keep up with the radios, the wired uplink is a single 100M/1G/2.5G multi-gigabit RJ45 port rather than a Gigabit port. TP-Link describes it as optimised wired performance for higher bandwidth and faster Wi-Fi, and the port supports IEEE 802.3at PoE+ input (42.5 to 57 V, 0.6 A). Alternatively, the AP can run from 12 V DC (12 V / 2 A), and a power adapter is included in the box. Maximum power consumption is 25.5 W (EU) or 22.3 W (US). To get the full benefit of the 2.5G port, connect it to a 2.5G switch port; it also works on Gigabit ports.

The housing measures 220 x 220 x 32.5 mm and the main unit weighs 0.75 kg. Mounting kits for ceiling, wall and junction box installation are included (the datasheet also lists T-bar mounting), along with a cable compartment cover. A Bluetooth 5.2 (BLE) radio is built in. It operates from 0 to 40 °C and is CE and FCC certified. Wireless functions include up to 16 SSIDs (eight per band), band steering, load balance, airtime fairness, rate limits, WMM QoS, reboot and wireless schedules and statistics by SSID, AP or client.

Security covers captive portal authentication, access control, wireless MAC filtering, client isolation, SSID-to-VLAN mapping, rogue AP detection, 802.1X and WEP, WPA, WPA2 and WPA3 Personal/Enterprise. Management options are HTTP/HTTPS, SSH, SNMP v1/v2c/v3, local and remote syslog, L3 and multi-site management, a management VLAN, management MAC access control and LED control. It is managed centrally through Omada cloud-based, hardware or software controllers and the Omada app. Cloud access requires an Omada controller, zero-touch provisioning requires the Omada Cloud-Based Controller, and captive portal, Omada mesh and 802.11k/v/r seamless roaming work with an Omada controller.

Key features

AX3600 eight-stream Wi-Fi 6

4x4 on both bands: 2402 Mbps on 5 GHz and 1148 Mbps on 2.4 GHz.

High-density capacity

1,020+ concurrent clients listed on the AU page, based on laboratory testing.

2.5G PoE+ port

One 100M/1G/2.5G multi-gigabit port with 802.3at PoE+ input.

12 V DC adapter included

Run it from the supplied adapter where PoE+ is not available.

Up to 200 m² coverage

TP-Link-rated coverage of 2,150 sq ft from laboratory testing.

4x4 MU-MIMO and OFDMA

4x4 DL MU-MIMO on both bands, 1024-QAM and beamforming.

Bluetooth 5.2

Built-in BLE 5.2 radio.

Omada SDN

Cloud, hardware or software controllers, mesh and 802.11k/v/r roaming.

EAP660 HD specifications

At a glance

AX3600 Wi-Fi 6
4x4 + 4x4 streams
2402 + 1148 Mbps
1,020+ clients
1 x 2.5G PoE+ port
12 V DC adapter included
Up to 200 m²
Omada SDN
EAP660 HD full specifications
Hardware Features
Interface1× 2.5 Gbps Ethernet Port (supports IEEE802.3at PoE)
ButtonReset
Power Supply802.3at PoE; 12 V DC
Max. Power ConsumptionEU: 25.5 W; US: 22.3 W
Dimensions ( W x D x H )8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)
AntennaInternal Omni; 2.4 GHz: 4× 4 dBi; 5 GHz: 4× 5 dBi
BluetoothV5.2
MountingCeiling / Wall / Junction Box Mounting (Kits Included)
Management Features
Omada AppYes
Centralised ManagementOmada Cloud-Based Controller; Omada Hardware Controller; Omada Software Controller
Cloud AccessYes. Require the use of an Omada controller.
Email AlertsYes
LED ON/OFF ControlYes
Management MAC Access ControlYes
SNMPv1, v2c, v3
System Logging Local/Remote SyslogLocal/Remote Syslog
SSHYes
Web-based ManagementHTTP/HTTPS
L3 ManagementYes
Multi-site ManagementYes
Management VLANYes
Zero-Touch ProvisioningYes. Requiring the use of Omada Cloud-Based Controller.
Wireless Features
Coverage200㎡(2150ft²)
Concurrent Clients1,020+
Wireless StandardsIEEE 802.11ax/ac/n/g/b/a
Frequency2.4 GHz and 5 GHz
Signal Rate5 GHz: Up to 2402 Mbps; 2.4 GHz: Up to 1148 Mbps
Wireless Functions1024-QAM; 4× Longer OFDM Symbol; OFDMA; Multiple SSIDs (Up to 16 SSIDs, 8 for each band); Enable/Disable Wireless Radio; Automatic Channel Assignment; Transmit Power Control (Adjust Transmit Power on dBm); QoS(WMM); MU-MIMO (2G: 4x4 DL MU-MIMO; 5G: 4x4 DL MU-MIMO); Seamless Roaming(802.11k/v/r); Omada Mesh; Band Steering; Load Balance; Airtime Fairness; Beamforming; Rate Limit; Reboot Schedule; Wireless Schedule; Wireless Statistics based on SSID/AP/Client
Wireless SecurityCaptive Portal Authentication; Access Control; Wireless Mac Address Filtering; Wireless Isolation Between Clients; SSID to VLAN Mapping; Rogue AP Detection; 802.1X Support; WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission PowerCE:; FCC:
Others
CertificationCE, FCC
System RequirementsMicrosoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
EnvironmentOperating Temperature: 0–40 ℃ (32–104 ℉); Storage Temperature: -40–70 ℃ (-40–158 ℉); Operating Humidity: 10–90% RH non-condensing; Storage Humidity: 5–90% RH non-condensing

Source: TP-Link's published specifications for this model (TP-Link Australia product page and datasheet). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • EAP660 HD
  • Power Adapter
  • Ceiling/Wal/Junctionl Mounting Kits
  • Installation Guide

Source: TP-Link's published package contents.

Who the EAP660 HD is for

Crowded venues

  • 1,020+ concurrent clients
  • 4x4 MU-MIMO on both bands
  • OFDMA for dense environments

Multi-gigabit networks

  • 2.5G PoE+ uplink
  • 2402 Mbps on 5 GHz
  • 1148 Mbps on 2.4 GHz

Omada-managed sites

  • Cloud, hardware or software controller
  • Mesh and seamless roaming
  • Zero-touch provisioning

Buy the EAP660 HD from ARC IP Networks

ARC IP Networks supplies TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the EAP660 HD from the ARC IP Networks team.

Last reviewed October 2026.

High density. It is built for busy environments, with eight spatial streams and 1,020+ concurrent clients listed by TP-Link.

AX3600: up to 2402 Mbps on 5 GHz and 1148 Mbps on 2.4 GHz, using 4x4 radios on both bands. These are maximum physical rates; actual throughput varies.

It has one 2.5 Gbps multi-gigabit RJ45 port (100M/1G/2.5G). It works on a Gigabit switch, but a 2.5G port is needed for full uplink bandwidth.

By 802.3at PoE+ on the 2.5G port or by 12 V / 2 A DC. A power adapter is included. Maximum consumption is 25.5 W (EU) or 22.3 W (US).

The AU product page lists 1,020+ concurrent clients and the datasheet 1,000+. Actual capacity depends on the wireless environment and client traffic.

Up to 200 square metres (2,150 sq ft), calculated from laboratory testing.

Yes. Omada mesh and 802.11k/v/r seamless roaming are supported with an Omada controller.

Yes, Bluetooth 5.2 (BLE) is built in.

Ceiling, wall or junction box mounting kits are included; the datasheet also lists T-bar mounting. The unit is 220 x 220 x 32.5 mm and weighs 0.75 kg.

The EAP660 HD, a power adapter, ceiling/wall/junction box mounting kits and an installation guide; the datasheet also lists a cable compartment cover.
