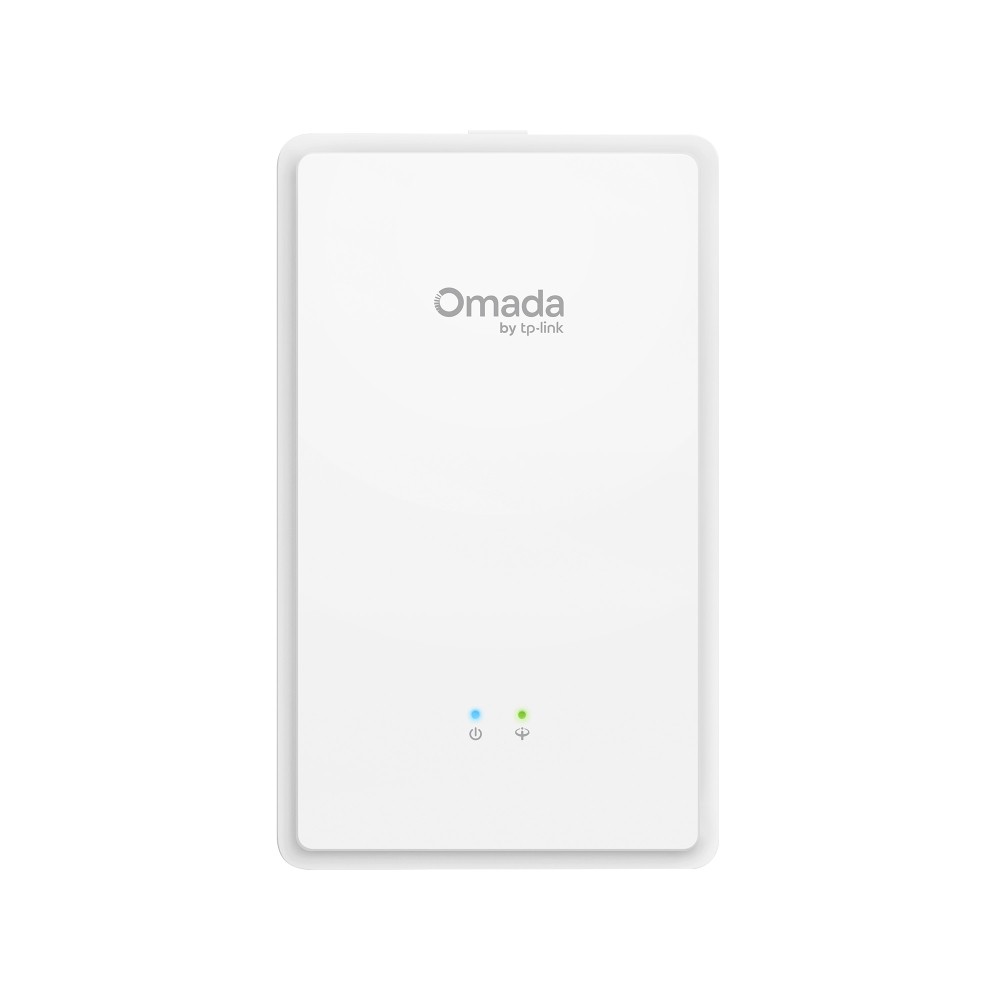

TP-Link EAP625GP-Wall Omada AX1800 Wi-Fi 6 Wall Plate GPON Access Point with PoE Out

Price:

$ 129.81


TP-Link EAP615GP-Wall Omada AX1800 Wi-Fi 6 GPON Wall Plate Access Point
TP-Link EAP615GP-Wall Omada AX1800 Wi-Fi 6 GPON Wall Plate Access Point
$ 188.16
$ 188.16
TP-Link EAP660 HD Omada AX3600 Wi-Fi 6 Dual-Band Multi-Gigabit Ceiling Access Point
TP-Link EAP660 HD Omada AX3600 Wi-Fi 6 Dual-Band Multi-Gigabit Ceiling Access Point
$ 625.55
$ 625.55

TP-Link EAP625GP-Wall Omada AX1800 Wi-Fi 6 Wall Plate GPON Access Point with PoE Out

https://arcip.com.au/web/image/product.template/8070/image_1920?unique=6fa640d

The TP-Link EAP625GP-Wall is an Omada AX1800 Wi-Fi 6 wall-mount GPON access point for FTTR/FTTH deployments in hotels, MDUs and similar point-to-multipoint sites. A single fibre to its SC/APC GPON port (ITU G.984.x, Class B+, 2.488 Gbps down / 1.244 Gbps up, up to 20 km) carries wired, wireless, voice and video services, and the unit adds one FXS port for an analogue phone and two Gigabit RJ45 ports, with ETH0 providing up to 15.4 W of 802.3af PoE out for a camera or IP phone. Dual-band 2x2 Wi-Fi 6 delivers up to 1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz with OFDMA and MU-MIMO, and the AP works with Omada OLTs, switches, gateways and controllers for unified management and zero-touch provisioning.

$ 129.81 129.81 AUD $ 129.81 incl. GST

Not Available For Sale


  • Brand
  • WiFi Standard

This combination does not exist.

In stock online
WiFi 6 Access Point TP-Link Omada
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
EAP625GP-WALL
Barcode
8885020625080
Tags

The TP-Link EAP625GP-Wall is an Omada AX1800 Wi-Fi 6 wall plate access point with a built-in GPON uplink, designed for fibre-to-the-room and fibre-to-the-home deployments. It has one SC/APC GPON port, one FXS phone port and two Gigabit RJ45 ports, one of which supplies 802.3af PoE out (15.4 W), plus 1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz, mesh, seamless roaming and Omada SDN management.

EAP625GP-Wall overview

The EAP625GP-Wall is TP-Link's Omada AX1800 Wi-Fi 6 wall plate GPON access point. TP-Link designed it specifically for FTTR and FTTH deployments, where it integrates with the Omada Optical Networking Solution to deliver enterprise-grade Gigabit Passive Optical Networking. The complete solution combines Omada GPON access points with Omada switches, gateways, OLTs (optical line terminals) and ONUs (optical network units), and TP-Link positions it for point-to-multipoint environments such as hotels and multi-dwelling units. Within the solution all devices support unified management, easy adoption and setup, and zero-touch provisioning.

The defining feature is the fibre uplink. Instead of a copper Ethernet backhaul, the EAP625GP-Wall connects to the network through one SC/APC GPON port built to ITU-984.x and G.988 with a Class B+ optical budget. It runs at 2.488 Gbps downstream and 1.244 Gbps upstream over 9/125 µm single-mode fibre, with a maximum cable length of 20 km. A GPON LED on the front shows registration with the OLT: green when registered, flashing green while registering, flashing red when no or too weak an optical signal is received, and solid red when blocked by the OLT. TP-Link sums it up as one fibre for multiple services: wired, wireless, voice, VoIP, data and HD video.

Around the fibre sit three local ports. There is one FXS (RJ11) port for an analogue telephone, and two 10/100/1000 Mbps RJ45 ports for devices such as PCs, TVs, cameras and IP phones. The key difference from the EAP615GP-Wall is that the EAP625GP-Wall's ETH0 port supplies 802.3af PoE out, up to 15.4 W in total (53.5 V, 0.287 A), so a PoE camera or phone can be powered directly from the wall plate. The unit itself is mains powered (100 to 240 V AC, 50/60 Hz, 0.5 A), with maximum consumption of 30.5 W at full 15 W PoE out load and 6.5 W idle. Because of the PoE circuitry it is also slightly deeper and heavier than its non-PoE sibling: 143 x 86 x 44.6 mm and 0.35 kg.

The wireless side is dual-band 2x2 Wi-Fi 6 (IEEE 802.11ax) with uplink and downlink MU-MIMO and OFDMA, 1024-QAM and transmit beamforming. Signal rates are up to 1201 Mbps on 5 GHz with HE80 channels and 574 Mbps on 2.4 GHz. Internal omni antennas are 2 x 4 dBi on 2.4 GHz and 2 x 6.5 dBi on 5 GHz. TP-Link lists coverage of 50 square metres (600 sq ft) and 120+ concurrent clients, with a datasheet maximum of 128 associated stations; these figures come from laboratory testing and real results vary with the environment and client traffic. TP-Link notes that maximum signal rates are physical rates from IEEE 802.11 specifications and actual throughput is not guaranteed.

Wi-Fi functions include up to 16 SSIDs (eight per band), band steering, load balance, airtime fairness, rate limits, guest network, automatic channel assignment, WMM QoS, RADIUS accounting, MAC authentication, URL filtering and wireless schedules. Omada mesh and 802.11k/v/r seamless roaming require an Omada controller, as do captive portal authentication and multiple portals; PPSK is listed in the datasheet. Security covers WPA3, WPA2 and WPA Personal/Enterprise, 802.1X, MAC filtering, client isolation, SSID and dynamic VLANs and rogue AP detection. It can be managed standalone through the web interface, SSH and SNMP v1/v2c/v3, or centrally by Omada cloud-based, hardware or software controllers; the datasheet lists Omada Controller V5.15.24 and above and Omada App V5.0 and above. It is rated for 0 to 40 °C operation and carries CE, FCC and IC certification.

Key features

Built-in GPON uplink

SC/APC GPON port, ITU G.984.x Class B+, 2.488 Gbps down / 1.244 Gbps up over up to 20 km of single-mode fibre.

802.3af PoE out

ETH0 supplies up to 15.4 W to a camera, IP phone or other PoE device.

FXS phone port

One RJ11 FXS port for an analogue telephone over the same fibre.

Two Gigabit ports

Two 10/100/1000 Mbps RJ45 ports for PCs, TVs and other wired devices.

AX1800 Wi-Fi 6

1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz with 2x2 MU-MIMO, OFDMA and beamforming.

Mesh and seamless roaming

Omada mesh and 802.11k/v/r roaming with an Omada controller.

Omada optical solution

Works with Omada OLTs, ONUs, switches, gateways and controllers for unified management.

Wall plate design

143 x 86 x 44.6 mm wall mount unit with mounting kit included.

EAP625GP-Wall specifications

At a glance

AX1800 Wi-Fi 6
1 x GPON (SC/APC)
1 x FXS port
2 x Gigabit RJ45
802.3af PoE out 15.4 W
16 SSIDs
Mains powered
Omada SDN
EAP625GP-Wall full specifications
Hardware Features
Interface1x GPON Port; 1x FXS Port; 2x Gigabit RJ45 Ports (One supporting 802.3af PoE Out)
GPON InterfacePort Type: SC-APC; Standards and Protocols: ITU-984.x, G.988, Class B+; Data Rate: 2.488 Gbps (Downstream); 1.244 Gbps (Upstream); Fibre Type: 9/125 um Single mode; Max. Cable Length: 20 km
ButtonReset; LED
Power Supply100–240V~ 50/60Hz, 0.5A
Max. Power Consumption30.5W (PoE out full load 15W)
Weight350g
Dimensions ( W x D x H )5.6 × 3.4 × 1.8 in (143 × 86 × 44.6 mm)
AntennaInternal Omni; 2.4 GHz: 2× 4 dBi; 5 GHz: 2× 6.5 dBi
MountingWall Mounting (Kits included)
Management Features
Omada AppYes
Centralised ManagementOmada Cloud-Based Controller; Omada Hardware Controller; Omada Software Controller
Cloud AccessYes. Require the use of an Omada controller.
Email AlertsYes
LED ON/OFF ControlYes
Management MAC Access ControlYes
SNMPv1, v2c, v3
System Logging Local/Remote SyslogSystem Log
SSHYes
Web-based ManagementYes
Zero-Touch ProvisioningYes. Require the use of Omada Cloud-Based Controller.
Wireless Features
Coverage50㎡(600ft²)
Concurrent Clients120+
Wireless StandardsIEEE 802.11 a/b/g/n/ac/ax
Frequency2.4 GHz and 5 GHz
Signal Rate5 GHz: 1201 Mbps; 2.4 GHz: 574 Mbps
Wireless Functions2×2 (2.4G & 5G) MU-MIMO; HE80 (80 MHz Bandwidth); OFDMA; Mesh; Seamless Roaming; Multiple SSIDs (16 SSIDs, 8 on each band); Enable/Disable SSID Broadcast; Enable/Disable Wireless Radio; Guest Network; Automatic Channel Assignment; Beamforming; Rate Limit; Band Steering; Load Balance; Airtime Fairness; Transmit Power Control (Adjust Transmit Power on dBm); QoS (WMM); RADIUS Accounting; MAC Authentication; Reboot Schedule; Wireless Schedule and Statistics; Static IP/Dynamic IP
Wireless SecurityCaptive Portal Authentication; Access Control; Wireless Mac Address Filtering; Wireless Isolation Between Clients; VLAN; Rogue AP Detection; 802.1X Support; WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission PowerCE:; FCC:
Others
CertificationCE, FCC, IC
System RequirementsMicrosoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
EnvironmentOperating Temperature: 0–40 ℃ (32–104 ℉); Storage Temperature: -40–70 ℃ (-40–158 ℉); Operating Humidity: 10–90% RH non-condensing; Storage Humidity: 5–90% RH non-condensing

Source: TP-Link's published specifications for this model (TP-Link Australia product page and datasheet). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • EAP625GP-Wall
  • Wall Mounting Kit
  • Installation Guide

Source: TP-Link's published package contents.

Who the EAP625GP-Wall is for

Hotels and multi-dwelling units

  • One fibre per room
  • Data, voice and Wi-Fi from one plate
  • Point-to-multipoint GPON design

Rooms with a PoE device

  • 802.3af PoE out on ETH0
  • Up to 15.4 W for a camera or IP phone
  • Second Gigabit port for a PC or TV

Omada optical networks

  • Omada OLT and switch integration
  • Zero-touch provisioning
  • Cloud, hardware or software controller

EAP625GP-Wall compared

The EAP625GP-Wall and EAP615GP-Wall share the same AX1800 Wi-Fi 6 radio, GPON uplink and FXS port. The EAP625GP-Wall adds 802.3af PoE out on one Gigabit port, which raises its maximum power draw, depth and weight.

SpecificationEAP625GP-WallEAP615GP-Wall
Wi-FiAX1800 Wi-Fi 6, 1201 + 574 MbpsAX1800 Wi-Fi 6, 1201 + 574 Mbps
Uplink1 x GPON (SC/APC)1 x GPON (SC/APC)
Ethernet ports2 x Gigabit RJ452 x Gigabit RJ45
PoE out802.3af on one port, 15.4 WNone
FXS port11
Max power consumption30.5 W (PoE out full load 15 W)12.2 W
Dimensions143 x 86 x 44.6 mm143 x 86 x 37.6 mm
Weight350 g320 g

Source: TP-Link Australia product pages for each model.

Buy the EAP625GP-Wall from ARC IP Networks

ARC IP Networks supplies TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the EAP625GP-Wall from the ARC IP Networks team.

Last reviewed October 2026.

It is an Omada AX1800 Wi-Fi 6 wall plate access point with a built-in GPON uplink, designed for fibre-to-the-room and fibre-to-the-home deployments such as hotels and MDUs.

Both have the same Wi-Fi 6 radio, GPON port, FXS port and two Gigabit ports. The EAP625GP-Wall adds 802.3af PoE out (up to 15.4 W) on its ETH0 port; the EAP615GP-Wall has no PoE out.

Single-mode 9/125 µm fibre to the SC/APC GPON port. It is ITU G.984.x Class B+, runs at 2.488 Gbps down and 1.244 Gbps up, and supports up to 20 km of fibre. It registers with a GPON OLT.

It is mains powered at 100 to 240 V AC, 50/60 Hz. It does not take PoE in; instead it supplies PoE out on one Ethernet port.

An 802.3af device drawing up to 15.4 W in total, such as an IP phone or a PoE camera.

Yes. It has one FXS (RJ11) port for an analogue telephone, and the Gigabit ports can serve IP phones.

Up to 1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz with 2x2 MU-MIMO. These are maximum physical rates; actual throughput varies.

TP-Link lists 50 square metres (600 sq ft), calculated from laboratory testing; real coverage depends on the building and clients.

It supports standalone web management, but mesh, seamless roaming, captive portal and centralised management need an Omada controller, and zero-touch provisioning needs the Omada Cloud-Based Controller. The datasheet lists Omada Controller V5.15.24 and above.

The EAP625GP-Wall, a wall mounting kit and an installation guide.

Need more than one EAP625GP-Wall for a hotel or apartment fibre-to-the-room rollout?

Ask ARC IP Networks for volume and project pricing on TP-Link Omada products.
