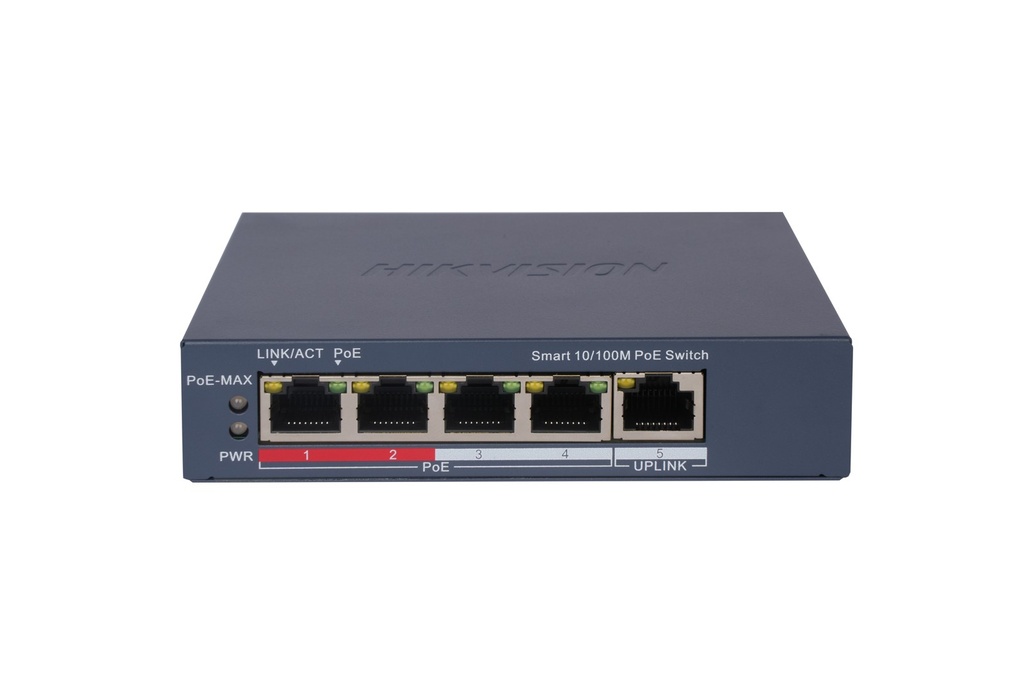

Hikvision DS-3E1105P-EI 4-Port Fast Ethernet Smart Managed PoE Switch, 60 W

https://arcip.com.au/web/image/product.template/11161/image_1920?unique=d95db27
  • 4 x 10/100 Mbps PoE + 1 x 10/100 Mbps RJ45 uplink
  • 60 W PoE budget, up to 30 W per port (802.3af/at)
  • PoE watchdog auto-restarts frozen cameras
  • Up to 300 m long-range PoE
  • VLAN, STP/RSTP, Hik-Partner Pro cloud management

$ 72.26 72.26 AUD $ 72.26 incl. GST

Not Available For Sale


  • Brand
  • Switching Capacity
  • Network Layer
  • Form Factor
  • Port Speed
  • Ports
  • Uplink
  • PoE Specification

This combination does not exist.

In stock online
Managed Switch Hikvision PoE Switch Network Switch
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
DS-3E1105P-EI
Tags
At a glance

The Hikvision DS-3E1105P-EI is a compact 4-port Fast Ethernet smart-managed PoE switch. Four 10/100 Mbps PoE ports share a 60 W budget (up to 30 W per port), with one 10/100 Mbps RJ45 uplink, PoE watchdog, VLANs and up to 300 m long-range PoE. Desk or wall mount.

Device type
Smart-managed PoE switch
Ports
4 × 10/100 Mbps PoE + 1 × 10/100 Mbps RJ45 uplink
PoE budget
60 W total
PoE standard
IEEE 802.3af / 802.3at
Power per port
Up to 30 W per port
Long-range PoE
Up to 300 m on ports 1–4
PoE watchdog
Yes — ports 1–4
Management
Web, HikCentral Pro, Hik-Partner Pro cloud
Switching capacity
1 Gbps
MAC address table
2 K
Power input
54 V DC, 1.2 A (external adapter)
Installation
Desktop or wall mount, metal housing
Surge protection
6 kV on PoE ports
Operating temperature
0 to 40 °C
Dimensions
121.1 × 27.6 × 83.1 mm (W × H × D)
Warranty
Australian warranty via ARC IP Networks

Key Features

4 PoE + 1 Uplink
60 W Budget
PoE Watchdog
300 m Long Range
Smart Managed
6 kV Surge

Why choose the DS-3E1105P-EI

The Hikvision DS-3E1105P-EI brings smart-managed features to a four-camera site. It is small enough to sit on a shelf or screw to a wall, yet it carries the same management toolkit as the larger rack switches in the range: 802.1Q VLANs to keep cameras off the office network, STP/RSTP loop prevention, port isolation, port mirroring, LLDP and cable diagnostics that find open circuits, shorts and cable length.

Four 10/100 Mbps PoE ports share a 60 W budget — each port can supply up to 30 W (802.3at), so a mix of turrets, bullets and a compact PTZ is no problem. Ports 1 and 2 are VIP ports whose traffic is forwarded first when bandwidth is short, and the PoE watchdog automatically restarts any camera that stops responding. Long-range mode stretches a run to 300 m for a gate or far boundary camera.

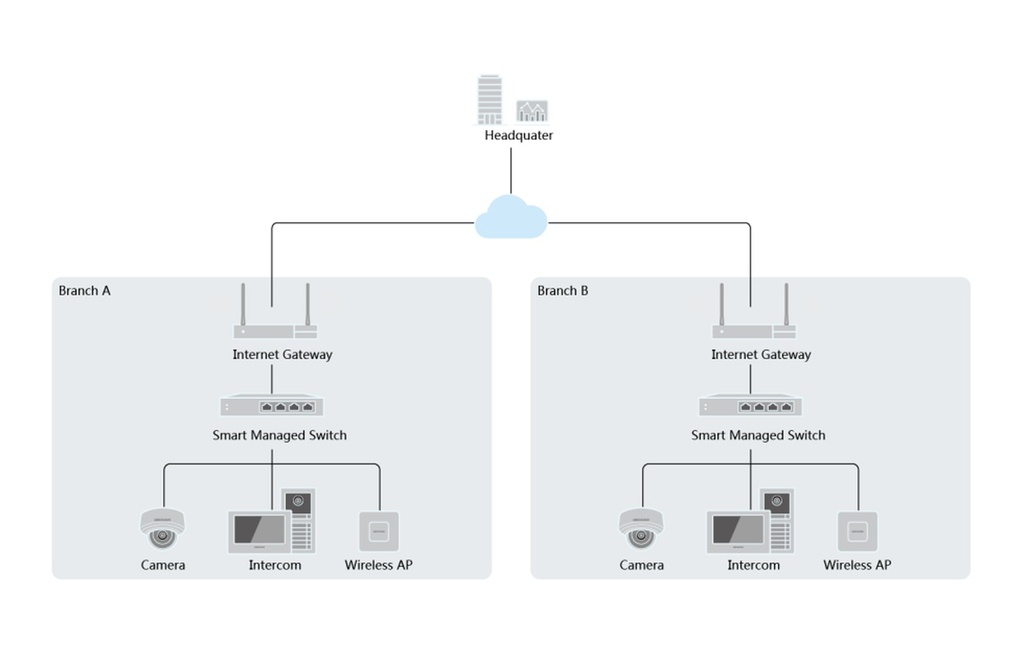

Remote sites are where it shines: activate it in Hik-Partner Pro and you can see port rates, PoE usage, topology and alarms, restart a port or push a firmware update without driving to site. Supplied by ARC IP Networks as genuine Australian stock with local warranty and support.

Best for

  • Small camera systems: four PoE cameras on one compact switch.
  • Extending an NVR: add cameras beyond the recorder’s built-in PoE ports.
  • Remote sites: manage, monitor and restart ports through Hik-Partner Pro.
  • Long cable runs: reach a camera up to 300 m away in long-range mode.
  • Wall-mounted installs: screw it inside a comms cupboard or ceiling space.

Who it’s for

Installers

A managed 4-port switch with cloud visibility for small jobs.

Small business

Shops, offices and cafes with up to four cameras.

Homes

Tidy, single-cable power and data for a home camera system.

Integrators

VLANs, loop prevention and port isolation in a compact box.

Property managers

Restart a frozen camera remotely instead of a callout.

Multi-site operators

Consistent switching across many small sites.

DS-3E1105P-EI
4-Port Fast Ethernet Smart-Managed PoE Switch

Features

  • 4 × 10/100 Mbps PoE ports and 1 × 10/100 Mbps RJ45 port
  • Total PoE power budget 60 W, up to 30 W per port (IEEE 802.3af/at)
  • PoE watchdog detects and restarts cameras that stop responding
  • Up to 300 m long-range PoE transmission on ports 1–4
  • 802.1Q VLAN (up to 32 VLANs), STP/RSTP loop prevention, port isolation
  • Cable detection, port mirroring and LLDP for fault finding
  • Web, HikCentral Professional and Hik-Partner Pro management
  • 6 kV surge protection on PoE ports

Specifications

Ports & performance

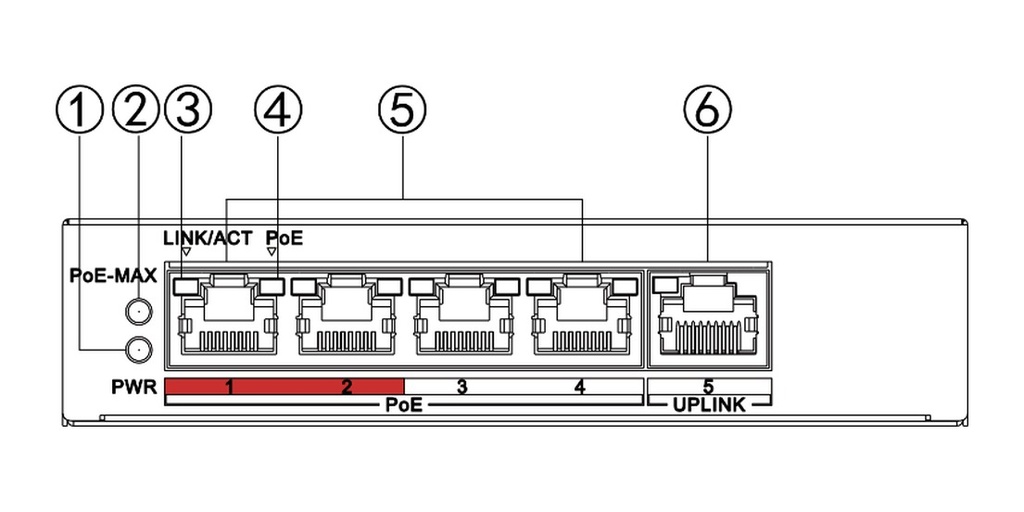

Ports4 × 10/100 Mbps PoE port, 1 × 10/100 Mbps RJ45 port
MAC address table2 K
Switching capacity1 Gbps
Packet forwarding rate0.74 Mpps
Internal cache768 Kbits
PoE
PoE standardIEEE 802.3af, IEEE 802.3at
PoE power pinsEnd-span: 1/2(−), 3/6(+)
PoE portsPorts 1 to 4
Max. port power30 W
PoE power budget60 W
Software functions
Long rangePorts 1 to 4: up to 300 m (varies with camera model and cable condition)
VIP portPorts 1 to 2: traffic forwarded first when bandwidth is insufficient
Port isolationPorts 1 to 4
PoE watchdogPorts 1 to 4: auto detect and restart non-responding cameras
Link aggregationStatic, 1 aggregation group
Loop prevention802.1D STP, 802.1w RSTP (disabled by default)
VLAN802.1Q, VLAN ID 1–4094, Trunk/Access, max. 32 VLANs
ManagementWeb, DHCP client, Super IP 10.180.190.200, HikCentral Professional, Hik-Partner Pro
MaintenanceCable detection, 802.1ab LLDP, port mirroring
General
ShellMetal

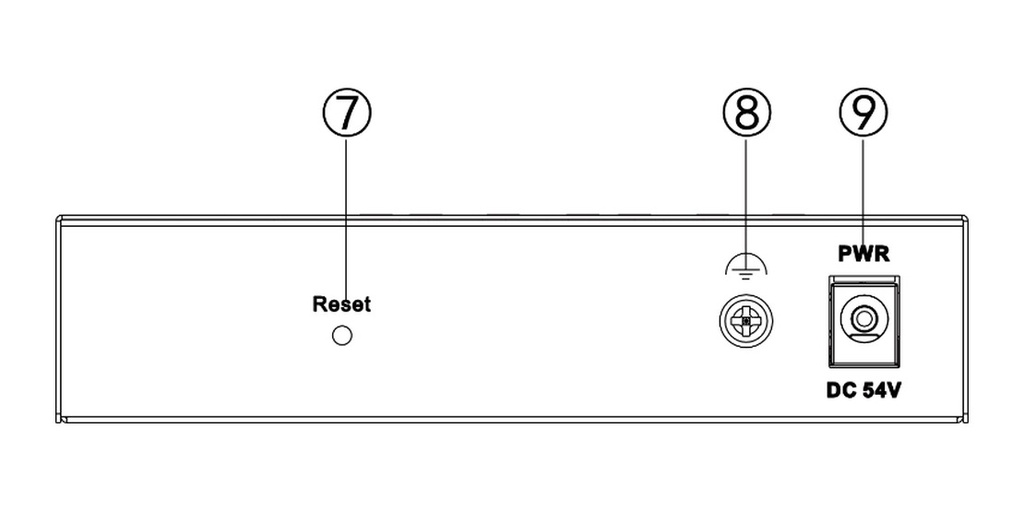

Power supply54 V DC, 1.2 A
Max. power consumption65 W
Idle power consumption0.9 W
Surge protection6 kV
InstallationDesk-mounted, wall-mounted
Operating temperature0 °C to 40 °C
Storage temperature−40 °C to 85 °C
Operating humidity5% to 95% (non-condensing)

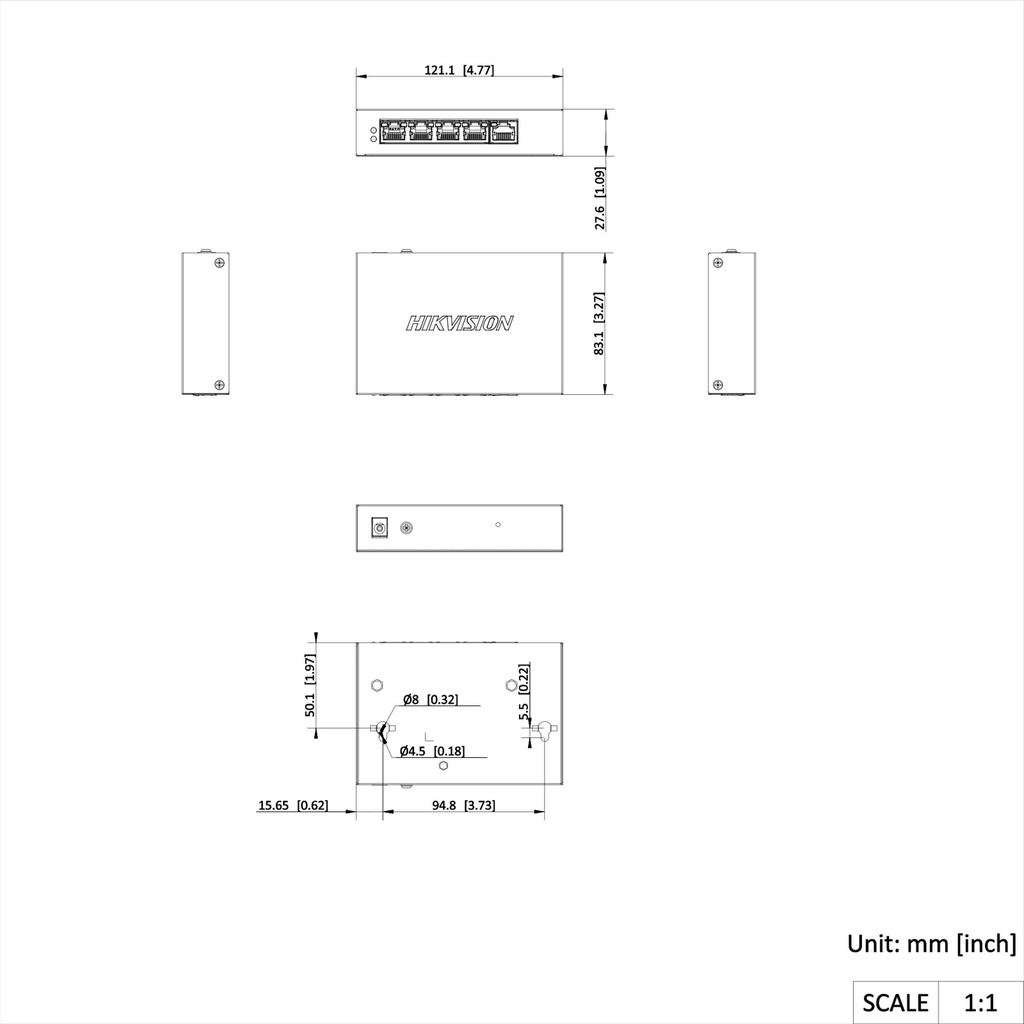

Dimensions (W × H × D)121.1 × 27.6 × 83.1 mm
Net weight0.26 kg
Approvals
EMCCE-EMC (EN 55032, EN IEC 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035)
SafetyCB (IEC 62368-1), CE-LVD (EN 62368-1)
ChemistryCE-RoHS, WEEE, REACH

Specifications from the official Hikvision datasheet. Weight and dimensions are shown for reference only.

Professional Overview

The Hikvision DS-3E1105P-EI is a four-port smart-managed PoE switch built for small surveillance systems and for extending a recorder that has run out of PoE ports. Its four 10/100 Mbps PoE ports share a 60 W budget and can each deliver up to 30 W under IEEE 802.3at, while a fifth 10/100 Mbps RJ45 port provides the uplink to an NVR, router or core switch. Fast Ethernet is ample for IP cameras, whose streams are typically a few megabits per second each.

What separates it from an unmanaged switch is control. 802.1Q VLANs keep camera traffic segregated, STP/RSTP stops accidental cabling loops from taking the network down, and port isolation prevents cameras from talking to each other. The PoE watchdog watches each powered device and power-cycles a port when a camera stops responding, and VIP ports 1 and 2 give priority to your most important cameras when bandwidth is tight.

For installers the Hik-Partner Pro integration is the headline: one-click activation, a live topology view, PoE power usage and alarm status, remote port restarts, remote long-range mode and remote firmware upgrades. Cable detection reports open circuits, shorts and cable length, which takes much of the guesswork out of fault finding. The metal housing is desk or wall mountable and is powered by an external 54 V DC supply.

Choose the DS-3E1105P-EI for homes, small shops and offices, remote huts and gates, or anywhere you need four managed PoE ports in a small footprint. Pair it with Hikvision or HiLook PoE cameras and a Hikvision NVR for a complete, centrally managed system. Australian stock from ARC IP Networks.

How it compares

All Hikvision smart-managed (-EI) PoE switches share PoE watchdog, 300 m long-range mode and Hik-Partner Pro management. The choice comes down to port count, Fast Ethernet vs gigabit, and PoE budget.

FeatureDS-3E1105P-EIThis productDS-3E1309P-EI8-portDS-3E1510P-EI8-port
PoE ports488
Port speedFast Ethernet (10/100)Fast Ethernet (10/100)Gigabit
Uplink1 × 10/100 RJ451 × Gigabit RJ452 × Gigabit RJ45
PoE budget60 W110 W110 W
Max. per port30 W30 W30 W
PoE watchdogYesYesYes
Long rangeUp to 300 mUp to 300 mUp to 300 m
MountingDesk / wallDesk / wallDesk / wall

Figures from the official Hikvision specifications for each model. Click a model name for full details and current availability.

Complete your system

Pair this switch with Hikvision or HiLook PoE cameras and a Hikvision NVR. Add up each camera’s maximum power draw and keep it under the 60 W budget, and use solid-copper Cat6 cable for long runs.

Browse Hikvision NVRs →Browse cameras →

Works with your system

Fast Ethernet is plenty for cameras. A typical 4 MP–8 MP camera stream uses only a few megabits per second, so four cameras sit comfortably within the 100 Mbps uplink.

Hikvision & HiLook cameras

Any IEEE 802.3af/at PoE camera — Hikvision, HiLook or third-party.

Hik-Partner Pro

One-click activation, topology, PoE usage, alarms, port restarts and remote firmware upgrades.

HikCentral Professional

Manage the switch alongside cameras and recorders in HikCentral Pro.

Web management

Built-in web GUI with DHCP client and a fixed “Super IP” (10.180.190.200) for direct access.

Any NVR or network

Standard Ethernet uplink to a non-PoE NVR, a router or your core switch.

Cable diagnostics

Detects open circuits, short circuits and cable length from the switch.

Part of the Hikvision range

Genuine Australian stock from ARC IP Networks — explore the range and guides:

RecordersCamerasBullet camerasWhere to buy

Frequently asked questions

It has four PoE ports and a 60 W total PoE budget, with up to 30 W per port. Four standard fixed cameras fit comfortably. If you mix in higher-draw devices, add up each camera’s maximum power and keep the total under 60 W.

No. On the current DS-3E1105P-EI (V2) hardware all five ports, including the uplink, are 10/100 Mbps. That is ample for four IP cameras. If you need gigabit ports, look at the DS-3E1510P-EI.

A camera occasionally locks up and stops sending video while still drawing power. The PoE watchdog on the DS-3E1105P-EI detects a camera that stops responding and power-cycles that port automatically to restart it — so a frozen camera recovers itself instead of needing a site visit.

Standard Ethernet is specified to 100 m. In long-range mode the DS-3E1105P-EI can reach a powered camera up to 300 m away on its PoE ports. Hikvision notes long-range performance varies with the camera model and cable condition, so use good-quality solid-copper Cat6 for long runs.

Each PoE port supplies up to 30 W (IEEE 802.3af/at), which runs standard fixed cameras and many compact PTZs. Large PTZs, heated housings or devices needing more than 30 W require a Hi-PoE (802.3bt) switch or the camera’s own power supply. Always check the camera’s maximum power draw.

Yes. It is a standard IEEE 802.3af/at PoE switch, so it works with any compliant PoE camera — Hikvision, HiLook or third-party — and connects to any NVR, router or network switch through its uplink port(s).

Through a built-in web interface, through HikCentral Professional, or remotely through the Hik-Partner Pro cloud, which shows port rate, bandwidth use, PoE usage, topology and alarms and lets you restart ports, enable long-range mode and upgrade firmware remotely.

It runs from an external 54 V DC, 1.2 A power supply, and the metal housing can sit on a desk or shelf or be wall-mounted.
Brand Hikvision
Switching Capacity 1 Gbps
Network Layer Layer 2 (Smart Managed)
Form Factor Compact desktop, wall
Port Speed Fast Ethernet
Ports 5 Ports
Uplink 1 x 10/100 RJ45
PoE Specification Up to PoE+ / 60W Budget
