Ubiquiti AMO-2G10 2GHz AirMax Dual Omni, 10dBi w/ Rocket Mounting Kit (Rocket not Included)

Price:

284.35


Ubiquiti AM-5G19-120 4.9-5.9Ghz AirMax Base Station 19dBi, 120deg w/ Rocket Kit
Ubiquiti AM-5G19-120 4.9-5.9Ghz AirMax Base Station 19dBi, 120deg w/ Rocket Kit
222.75
222.75
Ubiquiti NBE-2AC-13 NanoBeam 2AC, 13 dBi
Ubiquiti NBE-2AC-13 NanoBeam 2AC, 13 dBi
163.90
163.90

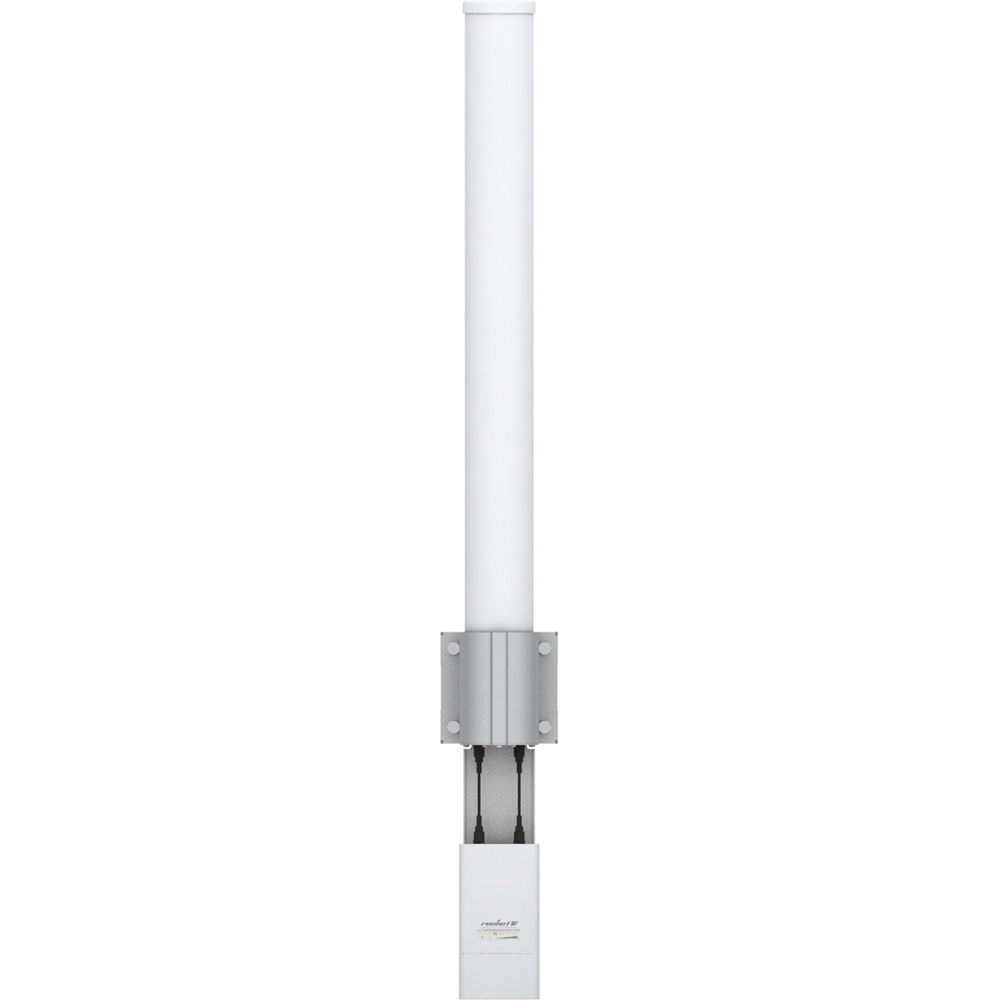

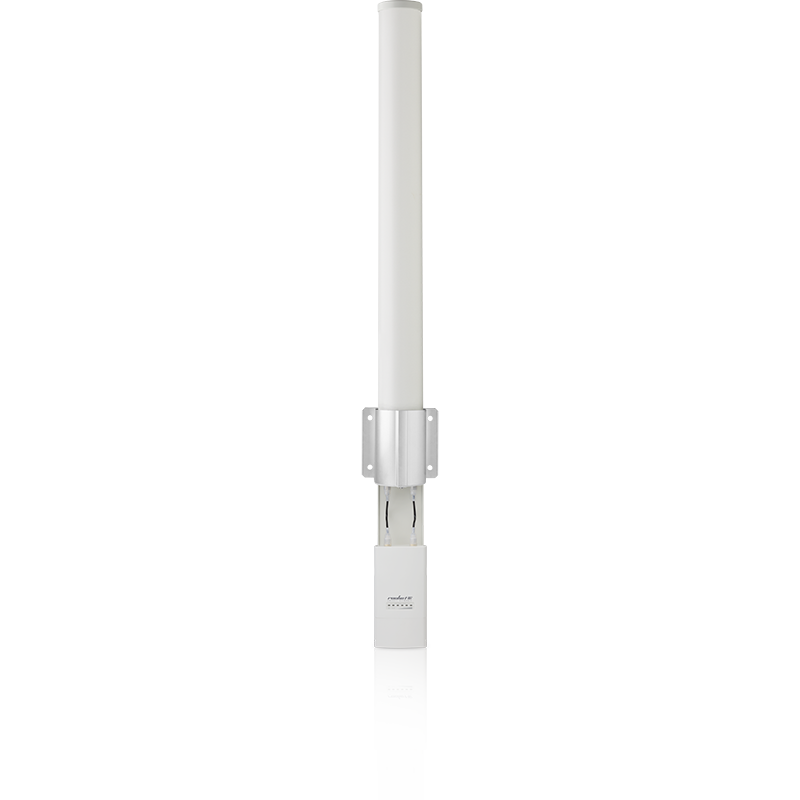

Ubiquiti AMO-2G10 2GHz AirMax Dual Omni, 10dBi w/ Rocket Mounting Kit (Rocket not Included)

https://arcip.com.au/web/image/product.template/3779/image_1920?unique=0405192
The AMO-2G10. 2.4 GHz, 10 dBi carrier-class 2x2 dual-polarity MIMO omnidirectional antenna.

284.35 284.35 AUD 284.35 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

In stock online
UISP Ubiquiti
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
AMO-2G10
Barcode
810354020957
Tags
AMO-2G10
Ubiquiti airMAX 2.4 GHz, 10 dBi Omni Antenna

Features

  • 2x2 dual-polarity MIMO
  • 360° coverage
  • Easy to assemble
  • Compatible with RocketPrism

Specifications

Mechanical
Dimensions1030 x 122 x 84 mm /
Weight2.1 kg
Wind Survivability200 km/h (125 mph)
Wind Loading62.3 N at 160 km/h (14 lbf at 100 mph)
MountingUniversal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
Downtilt
Hardware
Frequency Range2.35—2.55 GHz
Antenna Gain10 dBi
Elevation Beamwidth12°
Max. VSWR1.7:1
PolarizationDual-Linear
Cross-Pol Isolation25 dB Min.
ETSI SpecificationEN 302 326 DN2

Professional Overview

The AMO-2G10 is a UISP networking device. 2.4 GHz, 10 dBi carrier-class 2x2 dual-polarity MIMO omnidirectional antenna.

Australian stock, fast shipping from ARC IP Networks.

Ubiquiti AMO-2G10: omnidirectional antenna

The airMAX 2.4 GHz, 10 dBi Omni Antenna is a omnidirectional antenna with 10 dBi of gain and covering 2.35—2.55 GHz.

2.4 GHz, 10 dBi carrier-class 2x2 dual-polarity MIMO omnidirectional antenna.

An omni covers a full 360°, which suits a small site with subscribers in every direction — at the cost of gain and of picking up noise from everywhere at once.

RF performance

SpecificationValue
Frequency range2.35—2.55 GHz
Gain10 dBi
Elevation beamwidth12°
Downtilt
PolarisationDual-Linear
Cross-pol isolation25 dB Min.
Max. VSWR1.7:1
ETSI specificationEN 302 326 DN2

Cross-pol isolation is what lets the two polarities carry separate streams. The higher the figure, the better 2x2 MIMO holds up in a noisy environment.

Build and mounting

SpecificationValue
MountingUniversal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
Wind survivability200 km/h (125 mph)
Wind loading62.3 N at 160 km/h (14 lbf at 100 mph)
Dimensions1030 x 122 x 84 mm (40.6 x 4.8 x 3.3")
Weight2.1 kg (4.6 lb)

The mount hardware listed above ships with the AMO-2G10 — check it against your pole diameter before ordering a separate bracket.

Wind loading is the force the mast has to carry in a gale. On a tall or marginal mount it, not the antenna, is what fails first — size the structure for it.

Who the AMO-2G10 suits

  • Small sites with subscribers spread in every direction
  • Temporary and event deployments where aiming is impractical
  • Networks small enough that gain matters less than coverage

What the AMO-2G10 works with

The AMO-2G10 is a passive antenna. It needs a radio to drive it, and the radio is a separate purchase — an airMAX Rocket or equivalent, mounted to the antenna and cabled back with the supplied RF jumpers.

Gain figures are only half a link budget. The other half is the radio, the path, and what the far end is running — an antenna cannot rescue a link with an obstructed Fresnel zone.

Browse PoE switches and cloud gateways for the wired side, or read the Australian Ubiquiti buying guide.

Frequently Asked Questions

What is the Ubiquiti AMO-2G10?

The airMAX 2.4 GHz, 10 dBi Omni Antenna is a omnidirectional antenna with 10 dBi of gain.

Does the AMO-2G10 include a radio?

No. It is a passive antenna and needs a radio — an airMAX Rocket or equivalent — which is ordered separately.

What is the gain of the AMO-2G10?

10 dBi.

What frequency range does the AMO-2G10 cover?

2.35—2.55 GHz. In Australia the radio driving it must be set to the local regulatory domain and operated within the ACMA class licence.

What polarisation does it use of the AMO-2G10?

Dual-Linear.

What is the cross-pol isolation of the AMO-2G10?

25 dB Min..

What is the maximum VSWR of the AMO-2G10?

1.7:1.

How is the AMO-2G10 mounted?

Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included.

What wind speed does the AMO-2G10 survive?

200 km/h (125 mph). Size the mast and its footing for the wind loading figure, not just the antenna's own rating.

Is the Ubiquiti AMO-2G10 available in Australia?

Yes. ARC IP Networks is an authorised Ubiquiti reseller holding Australian stock with full manufacturer warranty and fast domestic shipping.
