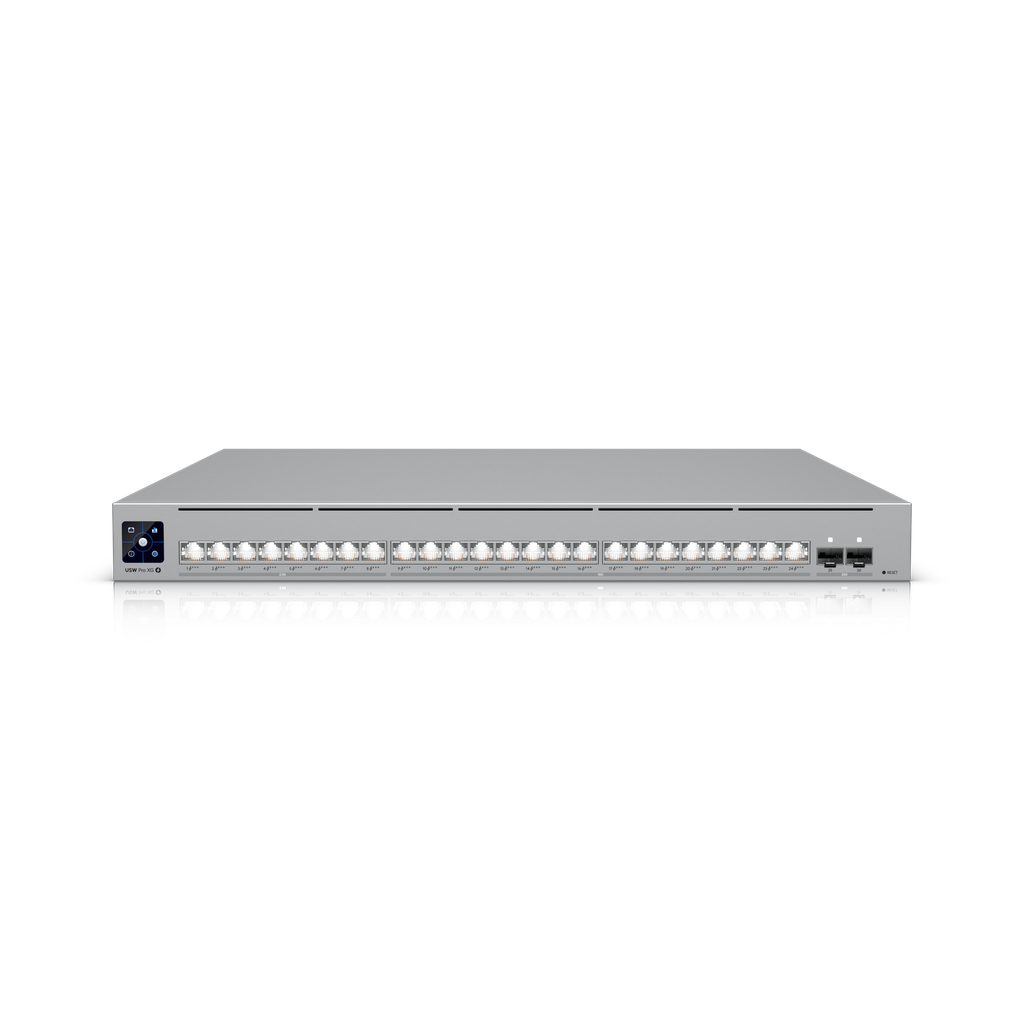

Ubiquiti USW-Pro-XG-24-PoE UniFi Professional-grade, 24-port Layer 3 Etherlighting™ PoE+++ switch with (16) 10 GbE, (8) 2.5 GbE, (2) 25G SFP28 ports

https://arcip.com.au/web/image/product.template/4053/image_1920?unique=d07ac9f
The Ubiquiti USW-Pro-XG-24-PoE is a Layer 2 managed switch with (8) 2.5 GbE + (16) 10G RJ45 + (2) 25G SFP28. Professional-grade, 24-port Layer 3 Etherlighting™ PoE+++ switch with (16) 10 GbE, (8) 2.5 GbE, and (2) 25G SFP28 ports.

2,785.93 2785.93 AUD 2,983.75 incl. GST

Not Available For Sale


  • Brand
  • Switching Capacity
  • Network Layer
  • Form Factor
  • Port Speed
  • Ports
  • Network Connectivity
  • Uplink
  • PoE Specification
  • Switch Features

This combination does not exist.

In stock online
2.5GbE 10GbE UniFi Switch Rackmount SFP+ PoE Managed Switch Ubiquiti Etherlighting 26-Port 25GbE 720W PoE 460 Gbps
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
USW-Pro-XG-24-PoE
Barcode
810177160885
Tags
USW-Pro-XG-24-PoE
Ubiquiti UniFi Switch Pro XG 24 PoE — 460 Gbps Switching, 720W PoE
USW-Pro-XG-24-PoE
USW-Pro-XG-24-PoE
USW-Pro-XG-24-PoE

Features

  • Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
  • (16) 10 GbE, (8) 2.5 GbE ports, all PoE+++ (90W capable)
  • (2) 25G SFP28 ports
  • DC power backup ready**
  • 720W total PoE availability
  • *Pair with UniFi Etherlighting Patch Cables for optimal brightness.**Requires UniFi RPS.

Specifications

Overview
Dimensions442 x 480 x 44 mm
2.5 GbE RJ458 (All PoE+++) / (2.5G/1G/100M/10M)
10 GbE RJ4516 (All PoE+++) / (10G/5G/2.5G/1G/100M/10M)
25G SFP282 / (25G/10G/1G)
Max. PoE OutputUp to PoE+++
Total PoE Availability720W
RedundancyDC Power Backup
Form FactorRack mount (1U)
Performance
Switching Capacity460 Gbps
Total Non-Blocking Throughput230 Gbps
Forwarding Rate342 Mpps
Supported VLANs1,000
MAC Address Table Size32,000
ARP Entries32,000
IPv4 Routes256,000
IPv4 Static Routes512
Packet Buffer Size8 MB
IPv4256
MAC256
Hardware
PoE+++24
PoE15.4W
PoE+30W
PoE++60W
PoE+++90W
Max. Power Consumption150W (Excluding PoE Output) / 870W (Including PoE Output)
Power Method(1) Universal input, 100–240V AC, 50/60 Hz / (1) USP RPS DC input
Power Input MethodAC input
Power SupplyAC/DC, internal, 870W
Supported Voltage Range100–240V AC
ManagementEthernet / AR
WeightWithout mounting brackets: 7.9 kg / With mounting brackets: 8 kg
Enclosure MaterialSGCC steel
Mount MaterialSGCC steel
Supported Rack Depth482.6 mm four-post racks / Posts depths ranging from 600 to 1,066 mm (23.6-42”)
LCM Display1.3" touchscreen
ESD ProtectionAir: ± 30kV, contact: ± 20kV
Ambient Operating Temperature-5 to 40° C (23 to 104° F)
Ambient Operating Humidity10 to 90% noncondensing
CertificationsCE, FCC, IC, Anatel: 04322-25-08356
Software
UniFi NetworkVersion 9.1.120 and later

Professional Overview

The Ubiquiti USW-Pro-XG-24-PoE is a Layer 2 managed switch with (8) 2.5 GbE + (16) 10G RJ45 + (2) 25G SFP28. Professional-grade, 24-port Layer 3 Etherlighting™ PoE+++ switch with (16) 10 GbE, (8) 2.5 GbE, and (2) 25G SFP28 ports.

With 460 Gbps switching capacity and 230 Gbps non-blocking throughput at 342 Mpps forwarding rate, the switch delivers wire-speed performance for demanding network environments. The 720W PoE budget powers access points, cameras, and VoIP phones over Ethernet.

The USW-Pro-XG-24-PoE features DC Power Backup redundancy, a Rack mount (1U) form factor measuring 442 x 480 x 44 mm. It integrates with the UniFi Network ecosystem for centralised management, VLAN configuration, and traffic monitoring.

Weighing Without mounting brackets: 7.9 kg / With mounting brackets: 8 kg, the USW-Pro-XG-24-PoE is engineered for reliable 24/7 operation. Australian stock, fast shipping from ARC IP Networks.

Part of our Ubiquiti UniFi Switches range — browse and compare the full lineup of PoE, aggregation, compact and 10G switches.

USW-Pro-XG-24-PoE vs USW-Pro-Max-24-PoE vs USW-Pro-XG-8-PoE — Which UniFi PoE Switch Do You Need?

The Pro XG 24 PoE is UniFi's 10-gigabit PoE workhorse: (16) 10 GbE + (8) 2.5 GbE RJ45 ports, (2) 25G SFP28 uplinks, a 720W PoE budget and up to 90W PoE+++ per port, with 460 Gbps switching capacity. The Pro Max 24 PoE covers standard-density sites with 2.5 GbE ports, 400W of PoE and 10G uplinks, while the compact Pro XG 8 PoE brings 10 GbE PoE to small racks with a 155W budget.

SpecificationPro XG 8 PoEPro Max 24 PoEPro XG 24 PoE
Total PoE budget155W400W720W
Max. PoE per portPoE++ (60W)PoE++ (60W)PoE+++ (90W)
Uplinks(2) 10G SFP+(2) 10G SFP+(2) 25G SFP28
Switching capacity200 Gbps112 Gbps460 Gbps
Non-blocking throughput100 Gbps56 Gbps230 Gbps
Supported VLANs1,0001,0001,000
Redundant power (USP-RPS)— (external adapter)YesYes

Choose the Pro XG 24 PoE when your access layer is going multi-gigabit — WiFi 7 APs like the UniFi E7 (10 GbE, PoE++) and high-power cameras plug straight in at full speed, with headroom on the 25G uplinks back to your gateway. Choose the Pro Max 24 PoE for standard 2.5 GbE deployments, and the Pro XG 8 PoE for small sites needing 10G PoE. Browse the full range on our Ubiquiti UniFi switches guide. Australian stock from ARC IP Networks.

Frequently Asked Questions — Ubiquiti USW-Pro-XG-24-PoE

What is the Ubiquiti USW-Pro-XG-24-PoE?

The USW-Pro-XG-24-PoE is a professional 24-port Layer 3 UniFi PoE switch with (16) 10 GbE and (8) 2.5 GbE RJ45 ports, (2) 25G SFP28 uplinks, a 720W total PoE budget and up to 90W PoE+++ per port, delivering 460 Gbps switching capacity with Etherlighting port indication.

How much PoE power does the Pro XG 24 PoE deliver?

It provides a 720W total PoE budget across its 24 RJ45 ports, supporting PoE (15.4W), PoE+ (30W), PoE++ (60W) and PoE+++ (90W) per port - enough for WiFi 7 access points, PTZ cameras, and high-draw devices simultaneously.

What is the difference between the Pro XG 24 PoE and Pro Max 24 PoE?

The Pro XG 24 PoE steps up to 10 GbE access ports (16 of them), 25G SFP28 uplinks, a 720W PoE budget and 90W PoE+++ - roughly four times the switching capacity of the Pro Max 24 PoE (112 vs 460 Gbps), which offers 2.5 GbE ports, 400W of PoE and 10G uplinks for standard-density sites.

Which access points and cameras can it power?

With 90W PoE+++ available per port and 10 GbE speeds, it powers any current UniFi device - including the E7 WiFi 7 access point (PoE++, 10 GbE uplink), AI-series and PTZ cameras, and the AI Key - each over a single cable.

Does the Pro XG 24 PoE support Layer 3 routing?

Yes. It is a Layer 3 switch supporting inter-VLAN routing with up to 1,000 VLANs, managed through the UniFi Network application with no licensing fees.

Does it support redundant power?

Yes. Alongside its internal 870W power supply, it accepts a USP-RPS DC input for redundant power - recording and WiFi stay up if the primary supply fails.

Where can I buy the Ubiquiti USW-Pro-XG-24-PoE in Australia?

The Ubiquiti USW-Pro-XG-24-PoE is available in Australia from ARC IP Networks, an Australian Ubiquiti reseller, with stock on hand. Order online on this page with a GST tax invoice, Australia-wide shipping, or free warehouse pickup from Melbourne. Trade and volume pricing for integrators and enterprise network projects is available on request or via 1300 100 440.

How much does the USW-Pro-XG-24-PoE cost in Australia?

Current Australian pricing is shown live on this page in AUD including GST, and is kept competitive against other Australian retailers. Volume pricing for multi-switch projects is available - request a trade quote for the best rate.

Ubiquiti USW-Pro-XG-24-PoE: Layer 3 Etherlighting switch

The Switch Pro XG 24 PoE is a Layer 3 UniFi switch offering 720W of PoE, 230 Gbps of non-blocking throughput, 460 Gbps switching capacity.

Port layout is 8 × 2.5 GbE RJ45, 16 × 10 GbE RJ45, 2 × 25G SFP28.

Etherlighting ports illuminate to show port location, speed and link state, and the native VLAN — genuinely useful when tracing a patch lead in a busy rack. Ubiquiti recommends pairing them with UniFi Etherlighting patch cables for best brightness.

Ports and PoE

InterfaceCount & speeds
2.5 GbE RJ458 (All PoE+++) (2.5G/1G/100M/10M)
10 GbE RJ4516 (All PoE+++) (10G/5G/2.5G/1G/100M/10M)
25G SFP282 (25G/10G/1G)
Total PoE availability720W
Max. PoE outputUp to PoE+++

Per-port PoE classes: PoE (802.3af) up to 15.4W; PoE+ (802.3at) up to 30W; PoE++ (802.3bt) up to 60W; 24 ports at PoE+++ up to 90W.

Total PoE availability is 720W, which is the budget shared across all powered ports — not a per-port figure. Add up the draw of everything you intend to power before committing; our access point comparison lists the consumption of each UniFi AP.

Switching performance

Non-blocking throughput230 Gbps
Switching capacity460 Gbps
Forwarding rate342 Mpps
Supported VLANs1,000
MAC address table32,000
IPv4 static routes512
Packet buffer8 MB

Because it supports IPv4 static routes it can route between VLANs itself rather than sending all inter-VLAN traffic up to the gateway — see the UniFi cloud gateway range if you also need the routing and firewall layer.

Who the USW-Pro-XG-24-PoE suits

  • 10 Gigabit access layers for high-throughput workstations and servers.
  • WiFi 7 estates where access points need multi-gig and high PoE.
  • Media and production networks moving large files across the access layer.
  • Sites with 25G uplinks to an aggregation switch.

Physical, power and mounting

Form factorRack mount (1U)
Dimensions442 x 480 x 44 mm (17.4 x 18.9 x 1.7")
WeightWithout mounting brackets: 7.9 kg (17.4 lb) With mounting brackets: 8 kg (17.6 lb)
Supported rack depth482.6 mm (19") four-post racks Posts depths ranging from 600 to 1,066 mm (23.6-42”)
Power supplyAC/DC, internal, 870W
Power method(1) Universal input, 100–240V AC, 50/60 Hz (1) USP RPS DC input
Max. power consumption150W (Excluding PoE Output) 870W (Including PoE Output)
Operating temperature-5 to 40° C (23 to 104° F)
Display1.3" touchscreen
EnclosureSGCC steel
RequiresVersion 9.1.120 and later

Two power figures are quoted: the switch itself, and the total including PoE output. Size the circuit and any UPS on the higher figure.

ARC IP Networks, authorised Ubiquiti reseller in Australia — Australian stock, manufacturer warranty, fast shipping, trade pricing.
ARC IP Networks is an authorised Ubiquiti reseller in Australia — Australian stock, full manufacturer warranty, fast shipping and trade pricing. Call 1300 100 440 or read more about buying from an authorised reseller.

Buy the Ubiquiti USW-Pro-XG-24-PoE in Australia

ARC IP Networks is an authorised Ubiquiti reseller supplying the USW-Pro-XG-24-PoE from Australian stock, with full manufacturer warranty and fast shipping nationwide.

  • Authorised Ubiquiti reseller — genuine Australian stock, not grey import
  • Full manufacturer warranty with local RMA support
  • Competitive Australian pricing, monitored against the local market daily
  • Fast dispatch Australia-wide, or collect from our warehouse
  • Trade and project pricing for installers, MSPs and multi-site rollouts

Browse the full UniFi switch range, plus cloud gateways, access points and the Protect camera range. More on buying from an authorised Ubiquiti reseller in Australia.

Brand UBIQUITI
Switching Capacity 460 Gbps
Network Layer Layer 2
Form Factor Rack mount (1U)
Port Speed (8) 2.5 GbE + (16) 10G RJ45 + (2) 25G SFP28
Ports 26 Ports
Network Connectivity Wired
Uplink 2 25G SFP28
PoE Specification Up to PoE+++ / 720W Budget
Switch Features Etherlighting, DC Power Backup
