Ubiquiti UDB-Pro-AU Unifi Device Bridge Pro

https://arcip.com.au/web/image/product.template/3955/image_1920?unique=cdb3afc

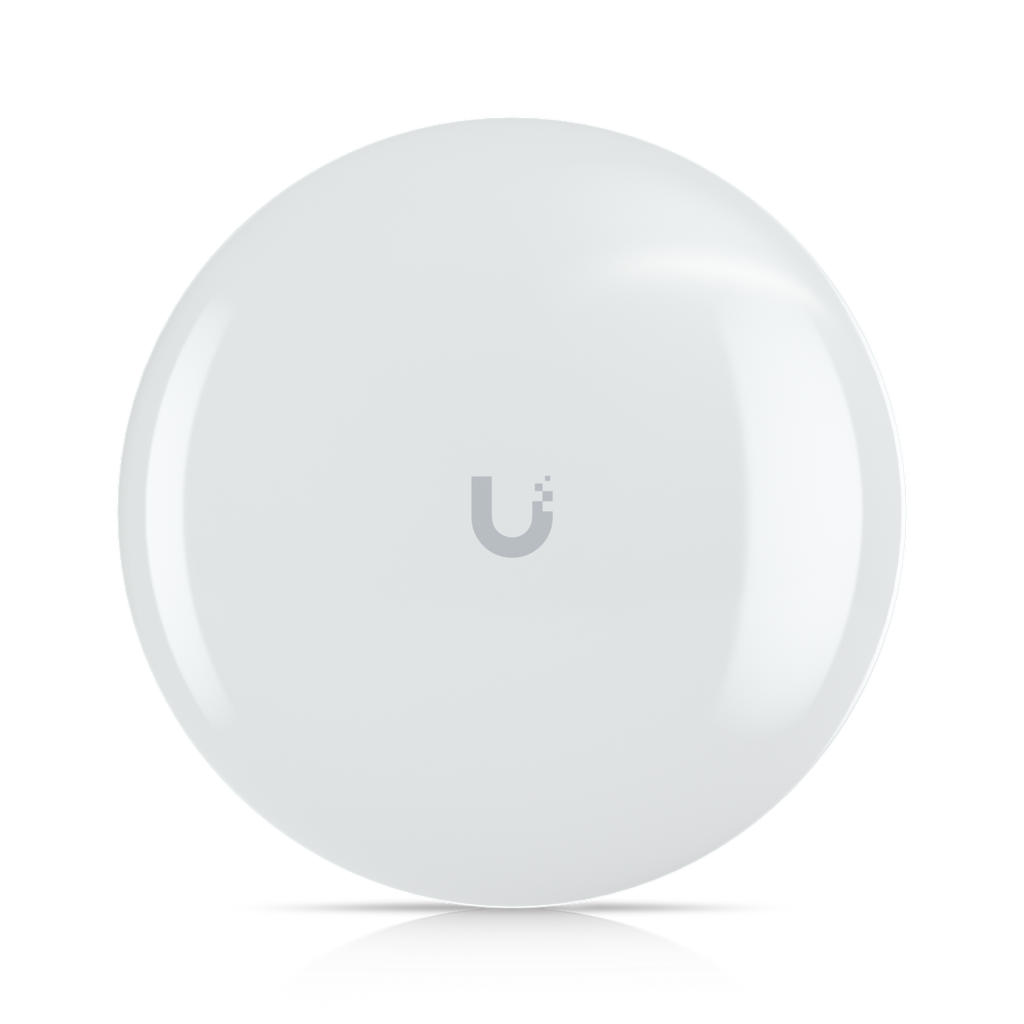

The Ubiquiti UDB-Pro-AU (Device Bridge Pro) is a 5 GHz wireless bridge with PoE output that connects at 5+ km distances or uplinks to UniFi WiFi. It uses WiFi 5 with 2 x 2 streams, a 19 dBi internal antenna and up to 867 Mbps on 5 GHz. It has two GbE RJ45 ports, one PoE in and one passive PoE output, with PoE+ input required for PoE passthrough; a 48V PoE adapter and pole mount are included. It is IPX6 rated and managed via UniFi Console, Official UniFi Hosting or a self-hosted UniFi Network Server. For the longest range, Ubiquiti recommends uplinking to another UDB Pro or UDB Pro Sector. Supplied by ARC IP Networks from Australian stock with the full manufacturer's warranty.

$ 369.05 369.05 AUD $ 369.05 incl. GST

Not Available For Sale


  • Brand
  • Form Factor
  • Ports
  • WiFi Standard
  • Frequency Band
  • Max Throughput
  • PoE Requirement
  • Coverage Area
  • Antenna Gain
  • Operating Temperature
  • Weatherproofing

This combination does not exist.

Outdoor UniFi PoE Ubiquiti WiFi 5 Point-to-Point Wireless Bridge Weatherproof
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
UDB-Pro-AU
Barcode
810084698198
Tags

Ubiquiti UDB-Pro-AU at a glance

The Ubiquiti UDB-Pro-AU (Device Bridge Pro) is a 5 GHz WiFi 5 wireless bridge with PoE output that connects at 5+ km distances or uplinks to UniFi WiFi. It offers 2 x 2 spatial streams, up to 867 Mbps (BW80) and 19 dBi antenna gain, with an IPX6-rated enclosure and a PoE adapter included.

ARC IP Networks is an authorised Ubiquiti reseller in Australia. We supply the genuine UniFi Device Bridge Pro from Australian stock with the full manufacturer's warranty.

WiFi standardWiFi 5, 5 GHz
Coverage5 km (3.1 mi)
5 GHz rate867 Mbps (BW80)
Antenna gain19 dBi
Ports(2) GbE RJ45
PowerPoE / PoE+, adapter included
WeatherproofingIPX6
Operating temp-40 to 60° C

Best for

  • Long-range point-to-point wireless links
  • Uplinking to UniFi WiFi
  • Outdoor pole or wall installations

Consider instead

  • Ubiquiti UDB-AU: a plug-and-play bridging PoE adapter with a GbE LAN port providing up to 15W of PoE, for shorter-range device connections

Key features

See the UniFi Device Bridge Pro




Introducing: UniFi Device Bridging (Video: Ubiquiti)

UDB-Pro-AU
UDB-Pro-AU
UDB-Pro-AU

Ubiquiti UDB-Pro-AU specifications

Overview

Dimensions⌀189.5 x 64.3 mm / (⌀7.4 x 2.5")
WiFi StandardWiFi 5
Spatial Streams2
Coverage Area5 km (3.1 mi)
Mounting LocationsWall, pole
MountingPole (Included)
WeatherproofingIPX6
Power MethodPoE / PoE+ (Required for PoE output)
Power Supply48V, 0.32A PoE adapter (Included)

Performance

5 GHz radio2 x 2
5 GHz max data rate867 Mbps (BW80)
5 GHz antenna gain19 dBi
5 GHz max TX power25 dBm
Max. Conducted TX Power25 dBm (Combined)
802.11ac (WiFi 5)6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
802.11n6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11a6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless SecurityWPA2 AES

Hardware

Max. Power Consumption9W
Supported Voltage Range42.5–57V DC
Networking Interface(2) GbE RJ45 ports
AntennasInternal
Management(1) PoE in (PoE output not used) / (1) Passive PoE output
Channel Bandwidth20/40/80 (MHz)
Wind Loading69 N at 200 km/h (15.5 lbf at 125 mph)
WeightDevice: 431 g (0.95 lb) / With mount: 515 g (1.1 lb)
Enclosure MaterialUV-resistant polycarbonate
Mount MaterialUV-stabilized polycarbonate, stainless steel
Pole Mount Diameter0.8–2.1" (20–53.1 mm)
Button(1) Factory reset
SystemPower, (2) Ethernet status - main port/PoE out port, (4) signal strength
CertificationsCE, FCC, IC
Operating frequency (worldwide)5150 - 5875 MHz
Ambient Operating Temperature-40 to 60° C (-40 to 140° F)
Ambient Operating Humidity5 to 95% noncondensing

Specifications from Ubiquiti's official product data for the UDB-Pro, checked October 2026.

The UniFi Device Bridge Pro in depth

Long-range 5 GHz wireless bridging

The Device Bridge Pro is a 5 GHz wireless bridge that connects at 5+ km distances or seamlessly uplinks to UniFi WiFi. It uses WiFi 5 with 2 x 2 spatial streams, delivering up to 867 Mbps (BW80) with 19 dBi antenna gain and 25 dBm transmit power. For the longest range, uplinking to another UDB Pro or UDB Pro Sector is recommended.

PoE output and power options

The bridge is powered by PoE or PoE+ and includes a 48V, 0.32A PoE adapter. It has (2) GbE RJ45 ports, including a passive PoE output for connected equipment. A PoE+ input is required for PoE passthrough. Maximum power consumption is 9W.

Built for outdoor mounting

The enclosure is UV-resistant polycarbonate with an IPX6 weatherproofing rating and operates from -40 to 60° C. A pole mount is included, suiting poles of 20–53.1 mm diameter, and the bridge can also be wall mounted. The device weighs 431 g, or 515 g with the mount. It is managed via a UniFi Console, Official UniFi Hosting, or a Self-Hosted UniFi Network Server.

Frequently asked questions

Straight answers about the UniFi Device Bridge Pro from the ARC IP Networks team. Last reviewed October 2026.

It is the Device Bridge Pro, a 5 GHz WiFi 5 wireless bridge with PoE output. It connects at 5+ km distances or uplinks to UniFi WiFi.

The listed coverage is 5 km (3.1 mi). For the longest range, Ubiquiti recommends uplinking to another UDB Pro or UDB Pro Sector.

Yes, a 48V, 0.32A PoE adapter is included. A PoE+ input is required for PoE passthrough.

A pole mount is included for poles of 20–53.1 mm diameter. The listed mounting locations are wall and pole.

It is managed via a UniFi Console, Official UniFi Hosting, or a Self-Hosted UniFi Network Server.

It has an IPX6 weatherproofing rating and a UV-resistant polycarbonate enclosure. It operates in ambient temperatures from -40 to 60° C.

ARC IP Networks is an authorised Ubiquiti reseller and supplies the UDB-Pro-AU from Australian stock with the full manufacturer's warranty.

Related Ubiquiti products

Ubiquiti UDB-AU

Unifi Device Bridge

Browse the full range: Ubiquiti access points and wireless · Why buy Ubiquiti from ARC IP Networks

Buy the Ubiquiti UDB-Pro-AU in Australia

ARC IP Networks is an authorised Ubiquiti reseller supplying UniFi networking, WiFi, camera and access products to businesses, schools, MSPs and installers across Australia.

  • Genuine Ubiquiti: sourced through Ubiquiti's authorised Australian distribution.
  • Australian stock with the correct AU power supply where one is included.
  • Full manufacturer's warranty and local pre-sales and after-sales support.
  • Trade and project pricing available.

ARC IP Networks, authorised Ubiquiti reseller in Australia — Australian stock, manufacturer warranty, fast shipping, trade pricing.

Planning a long-range wireless link with the UDB Pro?

Ask ARC IP Networks for project pricing or a configured quote, or call us to check the right model for your site.

Brand UBIQUITI
Form Factor Wall / Pole Mount
Ports 2 x GbE RJ45 (1 PoE In, 1 Passive PoE Out)
WiFi Standard WiFi 5 (802.11ac)
Frequency Band Single-Band (5 GHz)
Max Throughput 867 Mbps (BW80)
PoE Requirement PoE+
