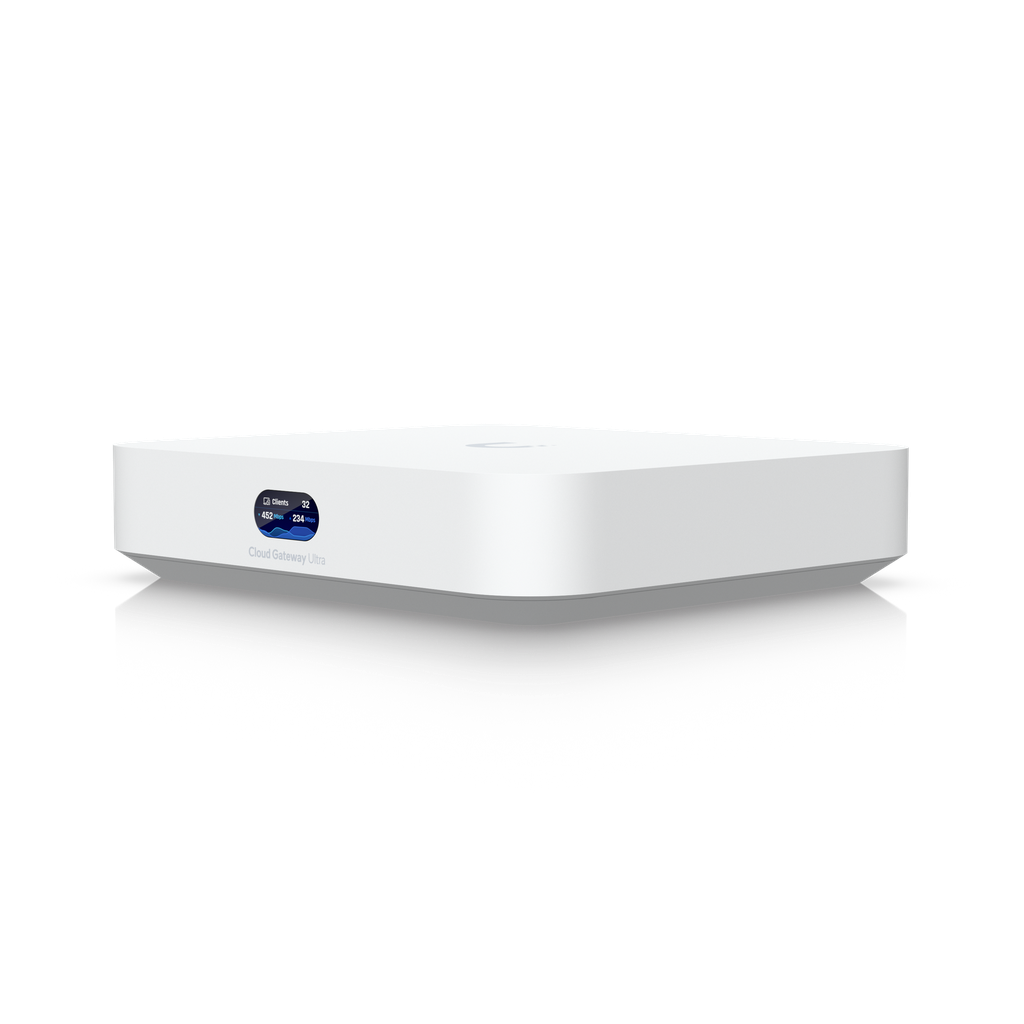

Ubiquiti UCG-Ultra-AU UniFi Controller Cloud Gateway Ultra

https://arcip.com.au/web/image/product.template/3951/image_1920?unique=5178fcc
The UCG-Ultra is a UniFi enterprise gateway. Compact Cloud Gateway with 30+ UniFi device / 300+ client support, 1 Gbps IPS routing, and multi-WAN load balancing.

190.85 190.85 AUD 190.85 incl. GST

Not Available For Sale


  • Brand
  • Form Factor
  • IDS/IPS Throughput
  • Gateway Features

This combination does not exist.

In stock online
UniFi Gateway Ubiquiti IDS/IPS VPN Firewall 1 Gbps IDS/IPS
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
UCG-Ultra
Barcode
810084695395
Tags
UCG-Ultra
Ubiquiti UniFi Cloud Gateway Ultra — 1 Gbps IDS/IPS
UCG-Ultra
UCG-Ultra

Features

  • Runs UniFi Network for full-stack network management
  • Manages 30+ UniFi Network devices and 300+ clients
  • 1 Gbps routing with IDS/IPS
  • Multi-WAN load balancing
  • 0.96" LCM status display
  • USB-C powered (adapter included)
  • Note. EU Store version includes EU power plug only.

Specifications

Overview
Dimensions141.8 x 127.6 x 30 mm /
Managed UniFi Devices30+
Simultaneous Users Connected300+
Max. WAN Port Count4
Default WAN Ports(1) 2.5 GbE RJ45
1 GbE RJ454 / (1G/100M/10M)
2.5 GbE RJ451 / (2.5G/1G/100M/10M)
IDS/IPS Throughput1 Gbps
Form FactorCompact desktop
Security
IDS/IPS Signatures55,000+ with CyberSecure
Networking
MAC Address Table Size2,000
Hardware
Max. Power Consumption6.2W
Power MethodUSB type C (5V DC/3A)
Power SupplyUSB type C (5V DC/3A) (Adapter included)
Supported Voltage Range100–240V AC
Heat Dissipation21 BTU/hr
ProcessorQuad-core ARM® Cortex®-A53 at 1.5 GHz
System Memory3 GB
On-board Storage16 GB
Weight520 g
Enclosure MaterialPolycarbonate
LCM Display0.96" status display
ManagementEthernet / Bluetooth
Button(1) Factory reset
Ambient Operating Temperature-10 to 40° C (14 to 104° F)
Ambient Operating Humidity5 to 95% noncondensing
CertificationsCE, FCC, IC, Anatel: 04653-24-08356, SRRC
Software
Mobile AppUniFi iOS™: Version 10.12.0 and later / UniFi Android™: Version 10.11.2 and later

Professional Overview

The Ubiquiti UCG-Ultra is a enterprise gateway for the UniFi ecosystem. Compact Cloud Gateway with 30+ UniFi device / 300+ client support, 1 Gbps IPS routing, and multi-WAN load balancing.

it delivers 1 Gbps IDS/IPS throughput for enterprise-grade security and traffic management.

Managed via the UniFi Network app for centralised configuration, DPI, and traffic analytics.

In a Compact desktop form factor weighing 520 g, the UCG-Ultra is designed for reliable 24/7 operation. Australian stock, fast shipping from ARC IP Networks.

Part of our Ubiquiti UniFi Routers range — browse and compare the full range of UniFi gateways, Dream Machines and routers.

Ubiquiti UCG-Ultra: the entry point to UniFi networking

The UniFi Cloud Gateway Ultra is the most affordable way into a proper UniFi network. It provides 1 Gbps of IDS/IPS routing, supports 300+ clients and 30+ UniFi devices, and includes the UniFi Network controller — so there is nothing else to buy to start managing UniFi gear.

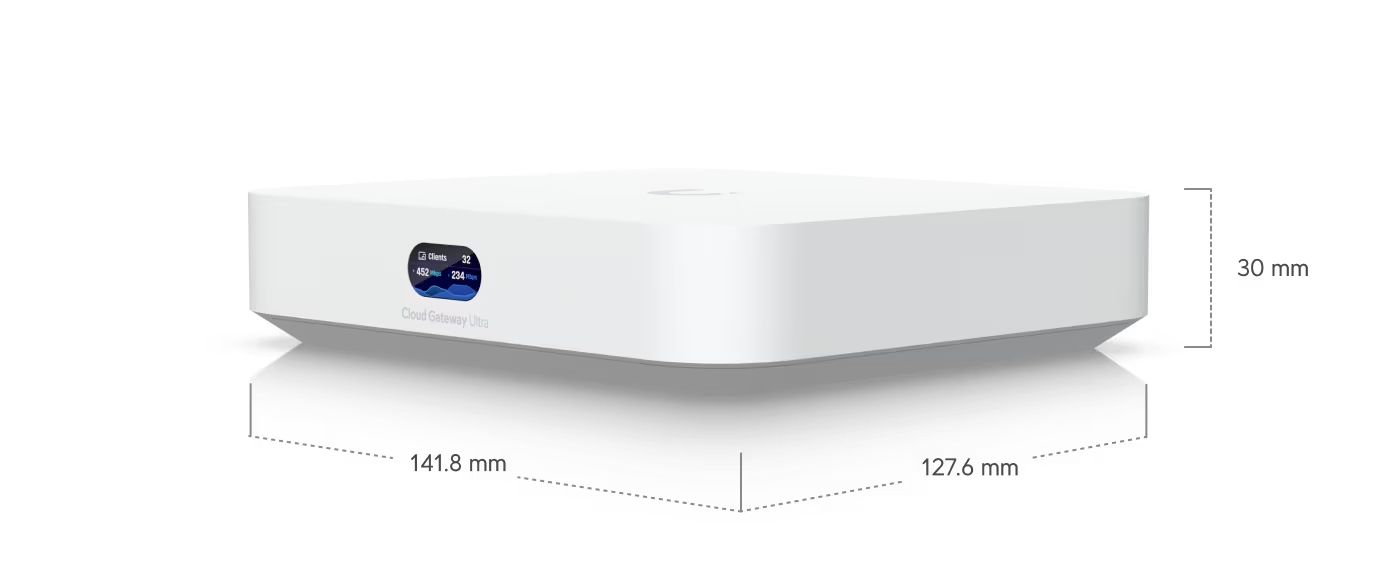

It is genuinely small and genuinely frugal: 141.8 x 127.6 x 30 mm, 520 g (1.1 lb), fanless, and drawing a maximum of 6.2W over USB-C.

Important: UniFi Network only

This is the one thing to understand before buying. Ubiquiti lists the UCG-Ultra's application suite as Network — it runs UniFi Network, and only UniFi Network.

That means no UniFi Protect. The UCG-Ultra has no NVR storage and no camera capacity in its specification, so it cannot record security cameras. It also does not host UniFi Access, Talk or Innerspace.

UCG-UltraUCG-Max
UniFi NetworkYesYes
UniFi Protect (cameras)NoYes — (15) HD (8) 2K (5) 4K
NVR storageNoneSelectable NVMe SSD up to 2 TB
UniFi Access hubs50

If you want cameras, choose the UCG-Max — it adds the full application suite and ships with a 512 GB NVMe SSD included. The UCG-Ultra is the right choice when you need routing, firewalling, VLANs and WiFi management, and nothing more.

Ports and multi-WAN

ItemSpecification
2.5 GbE RJ451 (2.5G/1G/100M/10M)
1 GbE RJ454 (1G/100M/10M)
Default WAN(1) 2.5 GbE RJ45
Max. WAN ports4
MAC address table2,000
Threat signatures55,000+ with CyberSecure

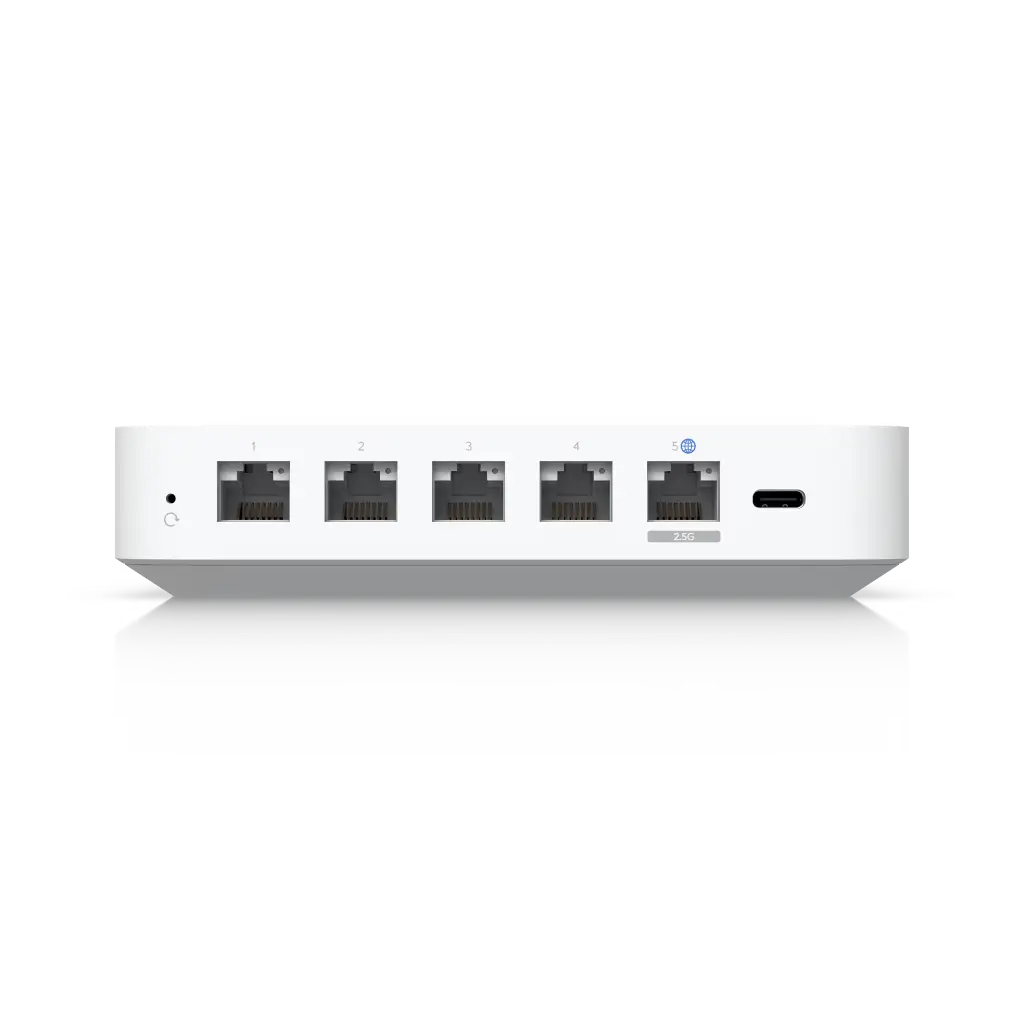

The single 2.5 Gigabit port is the WAN, with four Gigabit ports for the LAN. Multi-WAN load balancing is supported across up to 4 WAN ports, so you can run a second service for failover.

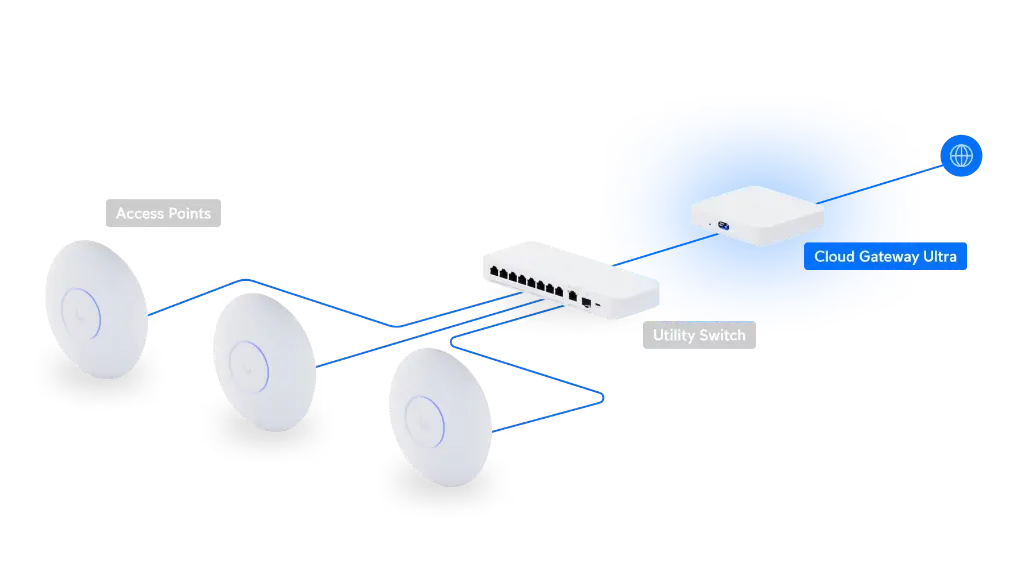

Two things this does not have: no PoE, so access points and cameras need a PoE switch; and no 10 Gigabit. The LAN ports being gigabit also means the 1 Gbps routing figure is well matched to the hardware — this is a gateway for services up to about a gigabit.

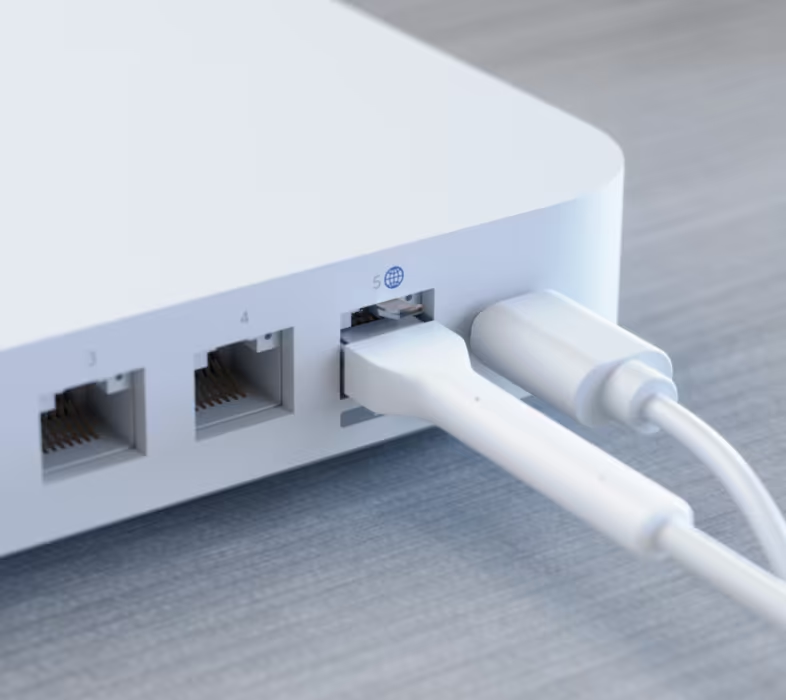

6.2W over USB-C

Power draw is the quiet advantage here. At a maximum of 6.2W and 21 BTU/hr, the UCG-Ultra uses less energy than most LED bulbs, runs completely silently, and is powered by USB-C (5V DC/3A) with the adapter included.

In practice that means it can sit anywhere — a shelf, a cupboard, behind a TV — and can be kept alive on a modest UPS or USB-C power bank through an outage, which is not something you can say about a rack gateway. It operates from -10 to 40° C (14 to 104° F).

UCG-Ultra vs UCG-Max vs UCG-Fiber

UCG-UltraUCG-MaxUCG-Fiber
IDS/IPS throughput1 Gbps2.3 Gbps5 Gbps
Clients300+300+500+
Managed UniFi devices30+30+50+
UniFi ProtectNoYesYes
NVMe SSD includedYes, 512 GBNo — extra
Fastest port2.5 GbE2.5 GbE10G SFP+ / 10 GbE
PoENoneNone30W
Max. power6.2W16.1W29.4W (Excluding PoE output)

Full write-up in our UniFi cloud gateway comparison.

Who the UCG-Ultra suits

  • Homes and small offices on services up to about a gigabit wanting enterprise-grade firewalling, VLANs and VPN.
  • First UniFi deployment — the Network controller is built in, so it can adopt and manage access points and switches immediately.
  • Replacing an ISP-supplied router with something that has real traffic inspection and network segmentation.
  • Low-power or silent installs — 6.2W, fanless, USB-C.
  • Networks with no camera requirement, or where cameras are recorded on a separate NVR.

Adding cameras later? Plan for the UCG-Max instead, or pair the Ultra with a dedicated recorder from the Protect NVR comparison. Choosing access points to go with it? See the access point comparison.

Frequently Asked Questions

Can the UCG-Ultra record security cameras?

No. Ubiquiti lists the UCG-Ultra's application suite as Network only, and it has no NVR storage or camera capacity in its specification. For UniFi Protect you need the UCG-Max, UCG-Fiber or a Dream Machine.

What is the difference between the UCG-Ultra and the UCG-Max?

The Max is faster at 2.3 Gbps versus 1 Gbps, has five 2.5 GbE ports instead of one 2.5 GbE plus four gigabit, and crucially runs the full UniFi application suite including Protect with a 512 GB NVMe SSD included. The Ultra runs UniFi Network only.

How fast is the UCG-Ultra?

1 Gbps of IDS/IPS routing throughput with 55,000+ with CyberSecure threat signatures. It suits internet services up to about a gigabit.

Does the UCG-Ultra have PoE?

No. It provides no PoE. Access points and cameras need a separate PoE switch, which the gateway will still adopt and manage.

How many devices and clients does it support?

300+ simultaneous clients and 30+ managed UniFi devices.

What ports does the UCG-Ultra have?

One 2.5 GbE RJ45 port and four gigabit RJ45 ports. The 2.5 GbE port is the default WAN, and up to 4 WAN ports can be configured for multi-WAN load balancing.

How is it powered?

By USB-C — USB type C (5V DC/3A) — with the adapter included. Maximum draw is only 6.2W.

Do I need a separate UniFi controller?

No. The UniFi Network controller runs on the gateway itself, so it can manage your UniFi switches and access points with no additional hardware or cloud subscription.

Is there a subscription or licence fee?

No. UniFi has no recurring licence costs. CyberSecure is the one optional paid add-on for an expanded threat signature set.

Is the UCG-Ultra suitable for a business?

Yes, for smaller sites. It handles 300+ clients with full firewalling, VLANs and VPN. Larger sites, multi-gig services or anything needing UniFi Protect should step up to the UCG-Max or UCG-Fiber.

How much is the UCG-Ultra in Australia?

See the price on this page. ARC IP Networks is an authorised Ubiquiti reseller with Australian stock, pricing monitored against the local market daily, and full manufacturer warranty.

Is the UCG-Ultra available in Australia?

Yes. We hold Australian stock with full manufacturer warranty and fast domestic shipping.

ARC IP Networks, authorised Ubiquiti reseller in Australia — Australian stock, manufacturer warranty, fast shipping, trade pricing.
ARC IP Networks is an authorised Ubiquiti reseller in Australia — Australian stock, full manufacturer warranty, fast shipping and trade pricing. Call 1300 100 440 or read more about buying from an authorised reseller.

Buy the Ubiquiti UCG-Ultra in Australia

ARC IP Networks is an authorised Ubiquiti reseller supplying the Cloud Gateway Ultra from Australian stock, with full manufacturer warranty and fast shipping nationwide.

  • Authorised Ubiquiti reseller — genuine Australian stock, not grey import
  • Full manufacturer warranty with local RMA support
  • Competitive Australian pricing, monitored against the local market daily
  • Fast dispatch Australia-wide, or collect from our warehouse
  • Trade and project pricing for installers, MSPs and multi-site rollouts

Need UniFi Protect or more throughput? Compare the UCG-Max and UCG-Fiber. Browse UniFi cloud gateways, routers, switches, access points and the Protect camera range. More on buying from an authorised Ubiquiti reseller in Australia.
