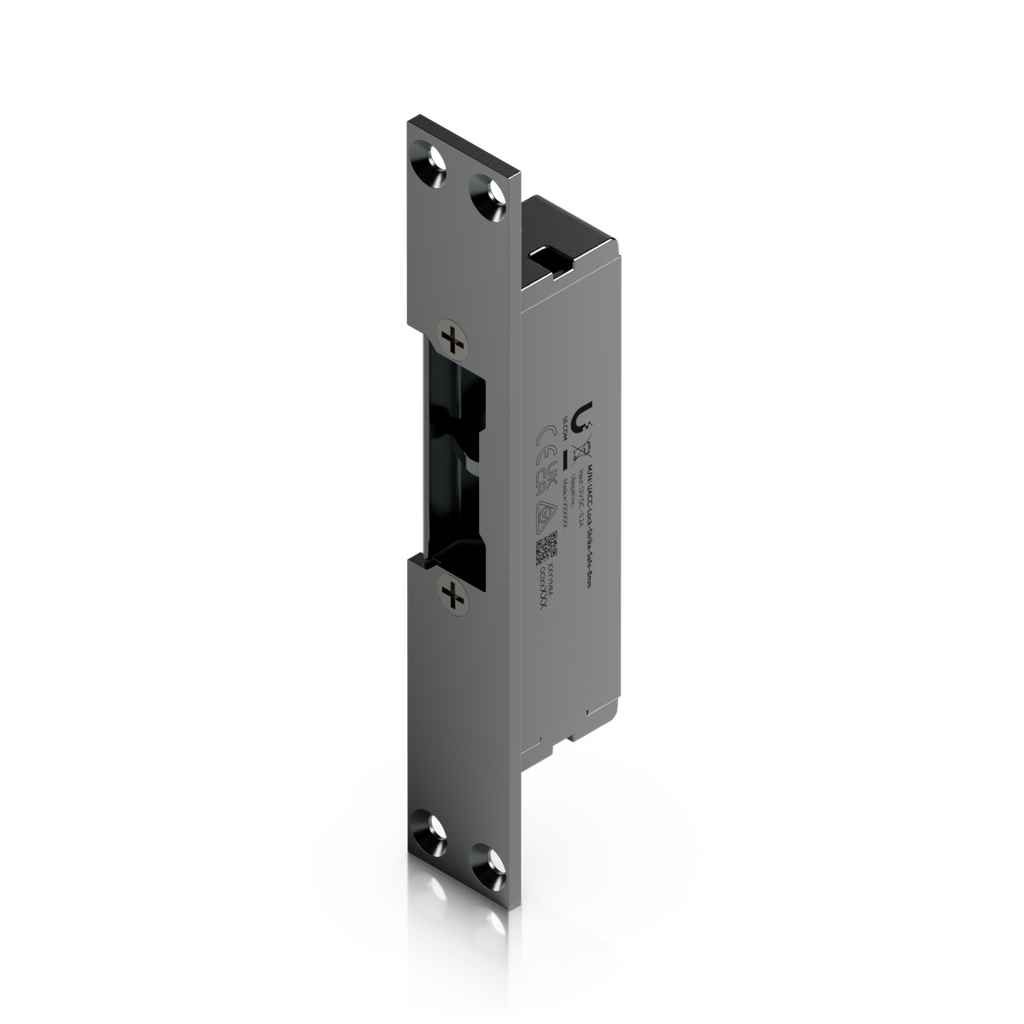

Ubiquiti UACC-Lock-Strike-Safe-8mm UniFi Access Fail-Safe Electric Strike Lock 8mm

Price:

$ 147.51


Ubiquiti USW-Flex-Mini-3 UniFi Switch Flex Mini 5-Port Gigabit 3-Pack
Ubiquiti USW-Flex-Mini-3 UniFi Switch Flex Mini 5-Port Gigabit 3-Pack
$ 165.43
$ 185.35 (11% OFF)
Ubiquiti UVC-G4-IRExtender UniFi Protect G4 Bullet IR Enhancer 25m
Ubiquiti UVC-G4-IRExtender UniFi Protect G4 Bullet IR Enhancer 25m
$ 137.62
$ 149.60 (8% OFF)

Ubiquiti UACC-Lock-Strike-Safe-8mm UniFi Access Fail-Safe Electric Strike Lock 8mm

https://arcip.com.au/web/image/product.template/10136/image_1920?unique=963416b
The Ubiquiti UACC-Lock-Strike-Safe-8mm is a fail-safe electric strike lock for UniFi Access, supporting an 8 mm lock slot depth. It has a holding force of 227 kg, draws 200 mA ±10% at 12V DC ±10%, and mounts as a door frame recess into a single wooden or metal door. The lock body is 112 x 21 x 28 mm zinc alloy weighing 200 g with stainless steel front plates and latches. It includes a dry-contact door status output rated to 30V DC at 0.1A, wired on white and its return. Being fail-safe, it unlocks when power is removed.

$ 147.51 147.51 AUD $ 158.95 incl. GST

Not Available For Sale


  • Brand
  • Door Access Form Factor
  • Power Method

This combination does not exist.

In stock online
UniFi Ubiquiti Door Access UniFi Access Electric Lock
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
UACC-Lock-Strike-Safe-8mm
Barcode
810177163442
Tags

Ubiquiti UACC-Lock-Strike-Safe-8mm at a glance

The Ubiquiti UACC-Lock-Strike-Safe-8mm (Access Fail-Safe Strike Lock, 8 mm) is a fail-safe electric strike lock with 8 mm lock slot depth support. It offers a holding force of 227 kg, runs on 12V DC ±10% at 200mA ± 10%, and suits single wooden or metal doors.

ARC IP Networks is an authorised Ubiquiti reseller in Australia. We supply the genuine UniFi Access Fail-Safe Strike Lock (8 mm) from Australian stock with the full manufacturer's warranty.

Lock typeFail safe
Slot depth8 mm support
Holding force227 kg (500 lb)
Voltage12V DC ±10%
Current200mA ± 10%
Operating temp-10 to 60° C
CertificationsFCC, IC, CE

Best for

  • Single wooden or metal doors
  • Door frame recess mounting
  • Fail-safe access control installations

Consider instead

Key features

See the UniFi Access Fail-Safe Strike Lock (8 mm)

UACC-Lock-Strike-Safe-8mm deployment
UACC-Lock-Strike-Safe-8mm in-use
UACC-Lock-Strike-Safe-8mm dimensions
UACC-Lock-Strike-Safe-8mm mounting
UACC-Lock-Strike-Safe-8mm in-the-box

Ubiquiti UACC-Lock-Strike-Safe-8mm specifications

Overview

DimensionsLock body:112 x 21 x 28 mm (4.4 x 0.8 x 1.1") / Short front plate:152 x 24.5 x 3 mm (6 x 0.9 x 0.1") / Long front plate:250 x 25 x 3 mm (9.8 x 0.9 x 0.1")
WeightLock body: 200 g (7.0 oz) / Short front plate: 62 g (2.2 oz) / Long front plate: 97 g (3.4 oz)
Enclosure MaterialLock body: zinc alloy / Front plate: stainless steel / Latches: zinc alloy
Lock TypeFail safe
Support Door TypeSingle door (Wooden/metal)
Holding Force227 kg (500 lb)
Current Power200mA ± 10%
Support Voltage Range12V DC ±10%
Wiring(1) Lock 12V/NC (red) / (1) Lock 12V/COM (black) / (1) DPS/- (white) / (1) DPS/+ (orange)
MountingDoor frame recess mount
TypeDry contact
LogicDoor Open: DPS/+ & DPS/- = Open / Door Close: DPS/+ & DPS/- = Short
RatingMax. 30V DC, 0.1A
Ambient Storage Temperature-20 to 70° C (-4 to 158° F)
Ambient Operating Temperature-10 to 60° C (14 to 140° F)
Ambient Operating Humidity5 to 90% noncondensing
CertificationsFCC, IC, CE

Specifications from Ubiquiti's official product data for the UACC-Lock-Strike-Safe-8mm, checked October 2026.

The UniFi Access Fail-Safe Strike Lock (8 mm) in depth

Fail-safe electric strike for 8 mm lock slots

The Access Fail-Safe Strike Lock (8 mm) is a fail-safe electric strike lock with 8 mm lock slot depth support. It is designed for single doors, either wooden or metal, and mounts as a door frame recess mount. It is rated for a holding force of 227 kg (500 lb).

Construction and electrical details

The lock body is zinc alloy, the front plate is stainless steel and the latches are zinc alloy. Two front plates are included in the specifications: a short plate (152 x 24.5 x 3 mm) and a long plate (250 x 25 x 3 mm). The lock body measures 112 x 21 x 28 mm and weighs 200 g. It operates on 12V DC ±10% and draws 200mA ± 10%.

Wiring and door position sensing

Wiring comprises Lock 12V/NC (red), Lock 12V/COM (black), DPS/- (white) and DPS/+ (orange). The door position sensor output is a dry contact rated at max. 30V DC, 0.1A. With the door open, DPS/+ and DPS/- read open; with the door closed, they are shorted. Operating conditions are -10 to 60° C and 5 to 90% noncondensing humidity.

Frequently asked questions

Straight answers about the UniFi Access Fail-Safe Strike Lock (8 mm) from the ARC IP Networks team. Last reviewed October 2026.

It is the Access Fail-Safe Strike Lock (8 mm), a fail-safe electric strike lock with 8 mm lock slot depth support. It is designed for single wooden or metal doors.

It supports 12V DC ±10% and draws 200mA ± 10%.

The holding force is 227 kg (500 lb).

Yes, the wiring includes DPS/+ (orange) and DPS/- (white) dry contact connections rated at max. 30V DC, 0.1A. The contact is open when the door is open and shorted when the door is closed.

The lock body and latches are zinc alloy and the front plate is stainless steel. The short front plate measures 152 x 24.5 x 3 mm and the long front plate measures 250 x 25 x 3 mm.

ARC IP Networks is an authorised Ubiquiti reseller and supplies the UACC-Lock-Strike-Safe-8mm from Australian stock with the full manufacturer's warranty.

Related Ubiquiti products

Ubiquiti UACC-Lock-Strike-Safe-15mm

UniFi Access Fail-Safe Electric Strike Lock 15mm

Ubiquiti UACC-Lock-Strike-Secure-15mm

UniFi Access Electric Lock (UA-Lock-Electric)

Ubiquiti UACC-Lock-Bolt-Secure

Access Fail-Secure Bolt Lock

Ubiquiti UACC-Junction-Utility

Access Junction Utility

Ubiquiti UA-Card-B-10

UniFi Access Card 10 Pack

Browse the full range: Ubiquiti accessories · Why buy Ubiquiti from ARC IP Networks

Buy the Ubiquiti UACC-Lock-Strike-Safe-8mm in Australia

ARC IP Networks is an authorised Ubiquiti reseller supplying UniFi networking, WiFi, camera and access products to businesses, schools, MSPs and installers across Australia.

  • Genuine Ubiquiti: sourced through Ubiquiti's authorised Australian distribution.
  • Australian stock with the correct AU power supply where one is included.
  • Full manufacturer's warranty and local pre-sales and after-sales support.
  • Trade and project pricing available.

ARC IP Networks, authorised Ubiquiti reseller in Australia — Australian stock, manufacturer warranty, fast shipping, trade pricing.

Planning a door access install with the 8 mm Fail-Safe Strike Lock?

Ask ARC IP Networks for project pricing or a configured quote, or call us to check the right model for your site.

Brand UBIQUITI
Door Access Form Factor Fail-Safe Electric Strike (8 mm)
Power Method 12V DC, 200 mA
