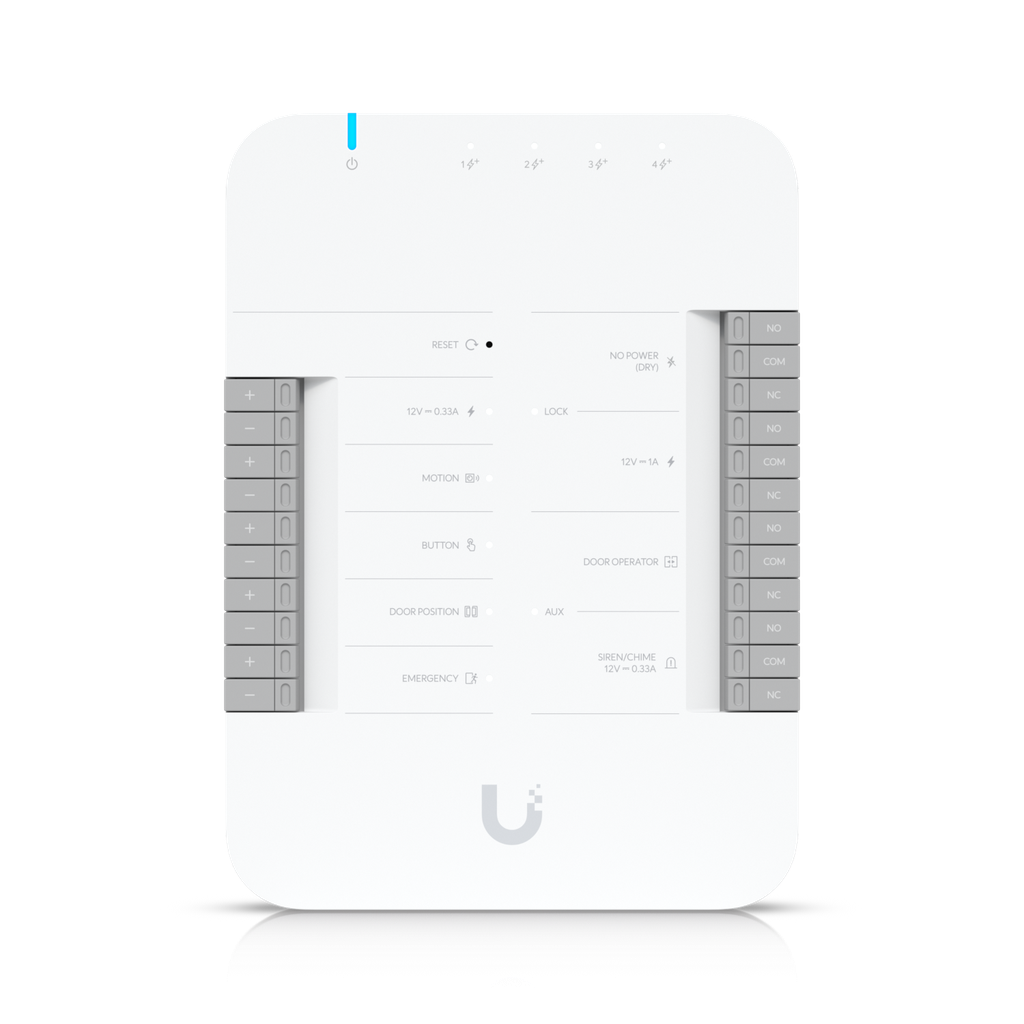

Ubiquiti UA-Hub-Door UniFi Access Hub Door

Price:

$ 366.85


Cisco CS-BAR-T-C-K9 Room Bar Video Bar, Carbon Black, with Table-Stand Room Navigator
Cisco CS-BAR-T-C-K9 Room Bar Video Bar, Carbon Black, with Table-Stand Room Navigator
$ 10,691.89
$ 10,691.89
Hikvision DS-2CD2066G2H-I2U/SL 6MP 4mm AcuSense Strobe Light and Audible Warning Fixed Bullet Network Camera
Hikvision DS-2CD2066G2H-I2U/SL 6MP 4mm AcuSense Strobe Light and Audible Warning Fixed Bullet Network Camera
$ 365.16
$ 365.16

Ubiquiti UA-Hub-Door UniFi Access Hub Door

https://arcip.com.au/web/image/product.template/2822/image_1920?unique=6bbe47d

The Ubiquiti UA-Hub-Door (Access Door Hub) is a single-door mechanism that provides complete entry and exit control via connected Access Readers. It has (2) lock terminals (12V and Dry), (2) AUX terminals for an external siren and automatic door opener, and (4) additional inputs for sensors and buttons. It connects and is powered using PoE++, connects to two UniFi Access readers and two UniFi Protect cameras or a UniFi Protect Chime, and supports up to 6,000 users. It mounts on DIN rail for indoor use. Supplied by ARC IP Networks from Australian stock with the full manufacturer's warranty.

$ 366.85 366.85 AUD $ 366.85 incl. GST

Not Available For Sale


  • Brand
  • Connectivity
  • Door Access Form Factor

This combination does not exist.

UniFi PoE Ubiquiti Door Access UniFi Access Access Hub
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
UA-Hub-Door
Barcode
810084690598
Tags

Ubiquiti UA-Hub-Door at a glance

The Ubiquiti UA-Hub-Door (Access Door Hub) is a single-door mechanism that provides complete entry and exit control via connected Access Readers. It offers 2 lock terminals, 2 AUX terminals and 4 additional inputs, and is powered using PoE++. It supports a maximum of 6,000 users.

ARC IP Networks is an authorised Ubiquiti reseller in Australia. We supply the genuine UniFi Access Door Hub from Australian stock with the full manufacturer's warranty.

Lock terminals2 (12V and Dry)
AUX terminals2 (siren and door opener)
Additional inputs4 (sensors and buttons)
PowerPoE++ input, 4 PoE+ outputs
Max users6,000
Dimensions174.9 x 126 x 32.9 mm
MountingDIN-rail (included)

Best for

  • Single-door entry and exit control with UniFi Access Readers
  • Doors that need a lock, siren, door opener, sensors and buttons connected to one hub
  • Indoor installations

Consider instead

Key features

(2) Lock terminals (12V and Dry)

(2) AUX terminals for an external siren and automatic door opener

(4) Additional inputs (sensors and buttons)

Connect and power using PoE++

Connect to two UniFi Access readers and two UniFi Protect camera or UniFi Protect Chime

See the UniFi Access Door Hub




Introducing: Ubiquiti UniFi Access (Reader Pro, Reader Lite, Access Hub, Mission Critical) [2021] (Video: Ubiquiti)

UA-Hub-Door
UA-Hub-Door

Ubiquiti UA-Hub-Door specifications

Overview

Dimensions174.9 x 126 x 32.9 mm / (6.9 x 5 x 1.3")
Supported Doors1
Maximum User Count6,000
Input Terminals(2) Door exit request / (1) Door position / (1) Emergency
Power MethodPoE++ / UL 294 Power-limited Class 2 PSU / UL 60950-1/62368-1 LPS/PS2 PSU
UL 294 LevelDestructive attack: Level I / Line security: Level I / Endurance: Level I / Standby power: Level I

Mechanical

Weight363 g (12.8 oz)
Enclosure MaterialPolycarbonate
Mount MaterialPolycarbonate
MountingDIN-rail (Included)

Hardware

Digital InputRequest to exit, request to enter, remote release, door position sensor
Dry Output RelayLock: 30V DC, 1A / Aux: 30V DC, 1A
Powered Output RelayLock: 12V DC, 1A / Aux: 12V DC, 0.33A / 12V DC, 0.33A
Indoor and Outdoor UseIndoor only
Ambient Operating Temperature0 to 40° C / (32 to 104° F)
Ambient Operating Humidity5 to 95% noncondensing
Networking Interface(5) 10/100/1000 Base-T
PoE Interface(1) PoE++ input, 50V DC, 1A / (4) PoE+ outputs, 50V DC, 30W per port / (Max 45W aggregated)
Max. Power Consumption30W (Without PoE output) / 50W (With PoE output)
LEDsW/B Learn More
Buttons(1) Factory reset
UA-Lock-Electric (400mA)24 AWG length: 25 m (82 ft) / 22 AWG length: 42 m (138 ft) / 20 AWG length: 66 m (217 ft) / 18 UACC-Cable-DoorLockRelay length: 100 m (328 ft)
UA-Lock-Magnetic-540kg (500mA)24 AWG length: 20 m (66 ft) / 22 AWG length: 32 m (105 ft) / 20 AWG length: 51 m (167 ft) / 18 UACC-Cable-DoorLockRelay length: 80 m (262 ft)
UA-Lock-Magnetic-270kg (800mA)24 AWG length: 12 m (39 ft) / 22 AWG length: 20 m (66 ft) / 20 AWG length: 30 m (98 ft) / 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft)
Other locks (1A)24 AWG length: 9 m (30 ft) / 22 AWG length: 15 m (49 ft) / 20 AWG length: 24 m (79 ft) / 18 UACC-Cable-DoorLockRelay length: 36 m (118 ft)
PoE Cabling RequirementsCat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. / The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 StatementCompliance with IEEE 802.3 (at or af) specifications was not verified as part of UL 294. / The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 GradeGrade assignment: 1
CertificationsCE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision levelUA-Hub-Door002, V01

Software

Management ApplicationAccess
Software InformationThe software version can be checked at https://unifi.ui.com

Specifications from Ubiquiti's official product data for the UA-Hub-Door, checked October 2026.

The UniFi Access Door Hub in depth

Complete single-door control

The Access Door Hub is a single-door mechanism that provides complete entry and exit control via connected Access Readers. It has 2 lock terminals (12V and Dry) and 2 AUX terminals for an external siren and automatic door opener. It also provides 4 additional inputs for sensors and buttons, so the main door hardware can connect to one unit. The hub supports up to 6,000 users and is managed through the Access application.

Power and connectivity

The hub is connected and powered using PoE++, with a PoE++ input at 50V DC, 1A. It has 4 PoE+ outputs (50V DC, 30W per port, max 45W aggregated). It can connect to two UniFi Access readers and two UniFi Protect cameras or UniFi Protect Chime. Networking uses (5) 10/100/1000 Base-T ports. Maximum power consumption is 30W without PoE output and 50W with PoE output.

Inputs, outputs and build

Input terminals comprise 2 door exit request, 1 door position and 1 emergency. Digital inputs cover request to exit, request to enter, remote release and a door position sensor. The dry output relay is rated 30V DC, 1A for lock and aux. The powered output relay is 12V DC, 1A for lock and 12V DC, 0.33A for aux. The polycarbonate enclosure weighs 363 g, includes DIN-rail mounting and is for indoor use only, at 0 to 40° C.

Frequently asked questions

Straight answers about the UniFi Access Door Hub from the ARC IP Networks team. Last reviewed October 2026.

The Ubiquiti UA-Hub-Door is the Access Door Hub, a single-door mechanism that provides complete entry and exit control via connected Access Readers. It is powered using PoE++ and managed with the Access application.

It supports 1 door and a maximum of 6,000 users.

You can connect two UniFi Access readers and two UniFi Protect cameras or UniFi Protect Chime. It also has 2 lock terminals, 2 AUX terminals for an external siren and automatic door opener, and 4 additional inputs for sensors and buttons.

It is powered by a PoE++ input (50V DC, 1A). Power Method also lists a UL 294 Power-limited Class 2 PSU or a UL 60950-1/62368-1 LPS/PS2 PSU. Its 4 PoE+ outputs provide 30W per port, with a maximum of 45W aggregated.

No. The record lists the hub as indoor only, with an ambient operating temperature of 0 to 40° C and humidity of 5 to 95% noncondensing.

It uses DIN-rail mounting, and the DIN-rail mount is included. The enclosure and mount are both polycarbonate.

ARC IP Networks is an authorised Ubiquiti reseller and supplies the UA-Hub-Door from Australian stock with the full manufacturer's warranty.

Buy the Ubiquiti UA-Hub-Door in Australia

ARC IP Networks is an authorised Ubiquiti reseller supplying UniFi networking, WiFi, camera and access products to businesses, schools, MSPs and installers across Australia.

  • Genuine Ubiquiti: sourced through Ubiquiti's authorised Australian distribution.
  • Australian stock with the correct AU power supply where one is included.
  • Full manufacturer's warranty and local pre-sales and after-sales support.
  • Trade and project pricing available.

ARC IP Networks, authorised Ubiquiti reseller in Australia — Australian stock, manufacturer warranty, fast shipping, trade pricing.

Planning a single-door access control install with the UA-Hub-Door?

Ask ARC IP Networks for project pricing or a configured quote, or call us to check the right model for your site.

Brand UBIQUITI
