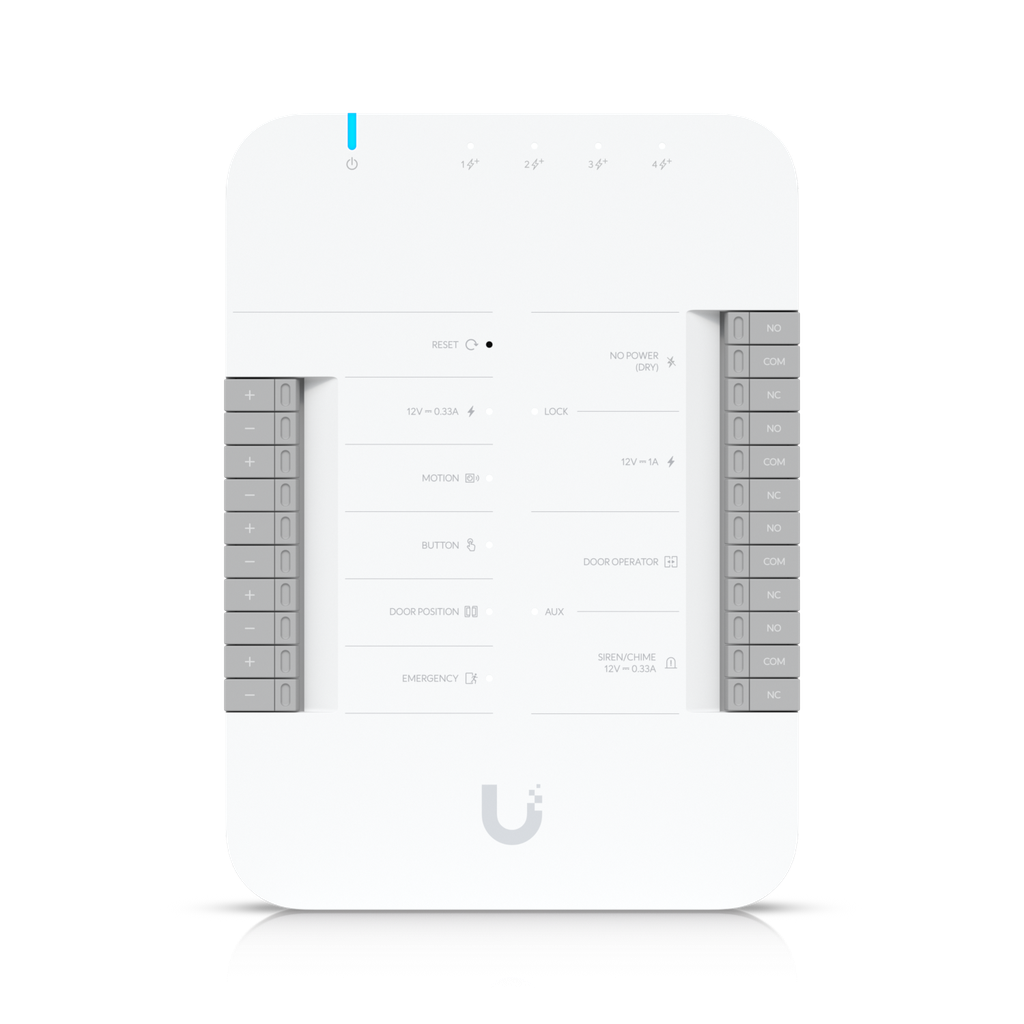

Ubiquiti UA-Hub-Door UniFi Access Hub Door

https://arcip.com.au/web/image/product.template/2822/image_1920?unique=79aa135
The UA-Hub-Door is a UniFi hub. A single-door mechanism that provides complete entry and exit control via connected Access Readers.

359.70 359.7 AUD 359.70 incl. GST

Not Available For Sale


  • Brand
  • Connectivity
  • Door Access Form Factor

This combination does not exist.

UniFi PoE Ubiquiti Door Access UniFi Access Access Hub
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
UA-Hub-Door
Barcode
810084690598
Tags
UA-Hub-Door
Ubiquiti UniFi Access Door Hub — Hub
UA-Hub-Door
UA-Hub-Door

Features

  • (2) Lock terminals (12V and Dry)
  • (2) AUX terminals for an external siren and automatic door opener
  • (4) Additional inputs (sensors and buttons)
  • Connect and power using PoE++
  • Connect to two UniFi Access readers and two UniFi Protect camera or UniFi Protect Chime

Specifications

Overview
Dimensions174.9 x 126 x 32.9 mm /
Supported Doors1
Maximum User Count6,000
Input Terminals(2) Door exit request / (1) Door position / (1) Emergency
Power MethodPoE++ / UL 294 Power-limited Class 2 PSU / UL 60950-1/62368-1 LPS/PS2 PSU
UL 294 LevelDestructive attack: Level I / Line security: Level I / Endurance: Level I / Standby power: Level I
Mechanical
Weight363 g (12.8 oz)
Enclosure MaterialPolycarbonate
Mount MaterialPolycarbonate
MountingDIN-rail (Included)
Hardware
Digital InputRequest to exit, request to enter, remote release, door position sensor
Dry Output RelayLock: 30V DC, 1A / Aux: 30V DC, 1A
Powered Output RelayLock: 12V DC, 1A / Aux: 12V DC, 0.33A / 12V DC, 0.33A
Indoor and Outdoor UseIndoor only
Ambient Operating Temperature0 to 40° C / (32 to 104° F)
Ambient Operating Humidity5 to 95% noncondensing
Networking Interface(5) 10/100/1000 Base-T
PoE Interface(1) PoE++ input, 50V DC, 1A / (4) PoE+ outputs, 50V DC, 30W per port / (Max 45W aggregated)
Max. Power Consumption30W (Without PoE output) / 50W (With PoE output)
LEDsW/B Learn More
Buttons(1) Factory reset
UA-Lock-Electric (400mA)24 AWG length: 25 m (82 ft) 22 AWG length: 42 m (138 ft) 20 AWG length: 66 m (217 ft) 18 UACC-Cable-DoorLockRelay length: 100 m (328 ft)
UA-Lock-Magnetic-540kg (500mA)24 AWG length: 20 m (66 ft) 22 AWG length: 32 m (105 ft) 20 AWG length: 51 m (167 ft) 18 UACC-Cable-DoorLockRelay length: 80 m (262 ft)
UA-Lock-Magnetic-270kg (800mA)24 AWG length: 12 m (39 ft) 22 AWG length: 20 m (66 ft) 20 AWG length: 30 m (98 ft) 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft)
Other locks (1A)24 AWG length: 9 m (30 ft) 22 AWG length: 15 m (49 ft) 20 AWG length: 24 m (79 ft) 18 UACC-Cable-DoorLockRelay length: 36 m (118 ft)
PoE Cabling RequirementsCat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. / The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 StatementCompliance with IEEE 802.3 (at or af) specifications was not verified as part of UL 294. / The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 GradeGrade assignment: 1
CertificationsCE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision levelUA-Hub-Door002, V01
Software
Management ApplicationAccess
Software InformationThe software version can be checked at https://unifi.ui.com

Professional Overview

The Ubiquiti UA-Hub-Door is a UniFi hub. A single-door mechanism that provides complete entry and exit control via connected Access Readers.

Powered via PoE++ / UL 294 Power-limited Class 2 PSU / UL 60950-1/62368-1 LPS/PS2 PSU. Integrates with the UniFi Access or Protect ecosystem for centralised management and smart automation.

Weighing 363 g (12.8 oz), the UA-Hub-Door is built for 24/7 operation. Australian stock, fast shipping from ARC IP Networks.

Part of our Ubiquiti UniFi Access range — browse and compare the full range of UniFi Access readers, hubs, intercoms and kits.

Ubiquiti UA-Hub-Door: Access Door Hub

The Access Door Hub is part of the UniFi Access range. A single-door mechanism that provides complete entry and exit control via connected Access Readers.

It controls 1 door, holds up to 6,000 users and provides 2 lock terminals.

Indoor only. The hub belongs inside the building — in a comms cabinet or above the ceiling on the secure side of the door, never on the outside face where it is exposed to weather and to anyone with a screwdriver.

It is listed to UL 294, the North American access-control standard, at the levels published below. There is no direct Australian equivalent certification for this class of product, so treat it as evidence of build quality rather than as local compliance.

Ports and interfaces

Networking interface(5) 10/100/1000 Base-T
PoE4 PoE Ports

Capacity and terminals

Supported doors1
Maximum user count6,000
Lock terminals2 Lock Terminals
Additional inputs4 Additional Inputs
Input terminals(2) Door exit request (1) Door position (1) Emergency
AUX terminals2 AUX Terminals
Digital inputsRequest to exit, request to enter, remote release, door position sensor
Dry output relayLock: 30V DC, 1A Aux: 30V DC, 1A
Powered output relayLock: 12V DC, 1A Aux: 12V DC, 0.33A 12V DC, 0.33A
PoE ports4 PoE Ports

Networking and power

Networking interface(5) 10/100/1000 Base-T
PoE interface(1) PoE++ input, 50V DC, 1A (4) PoE+ outputs, 50V DC, 30W per port (Max 45W aggregated)
Power methodPoE++ UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU
Max. power consumption30W (Without PoE output) 50W (With PoE output)

Power and data share the one Ethernet run, so the cable that connects the device also feeds it.

Who the UA-Hub-Door suits

  • Doors being brought onto UniFi Access
  • Sites standardising on UniFi across network, cameras and access
  • Installs where the hardware must be managed from the same console as the rest of the network

Physical and environment

Dimensions174.9 x 126 x 32.9 mm (6.9 x 5 x 1.3")
Weight363 g (12.8 oz)
MountingDIN-rail (Included)
Enclosure materialPolycarbonate
Indoor / outdoor useIndoor only
LEDsW/B Learn More
Buttons(1) Factory reset
Operating temperature0 to 40° C (32 to 104° F)
Operating humidity5 to 95% noncondensing

Maximum lock cable run

UA-Lock-Electric (400mA)24 AWG length: 25 m (82 ft) 22 AWG length: 42 m (138 ft) 20 AWG length: 66 m (217 ft) 18 UACC-Cable-DoorLockRelay length: 100 m (328 ft)
UA-Lock-Magnetic-540kg (500mA)24 AWG length: 20 m (66 ft) 22 AWG length: 32 m (105 ft) 20 AWG length: 51 m (167 ft) 18 UACC-Cable-DoorLockRelay length: 80 m (262 ft)
UA-Lock-Magnetic-270kg (800mA)24 AWG length: 12 m (39 ft) 22 AWG length: 20 m (66 ft) 20 AWG length: 30 m (98 ft) 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft)
Other locks (1A)24 AWG length: 9 m (30 ft) 22 AWG length: 15 m (49 ft) 20 AWG length: 24 m (79 ft) 18 UACC-Cable-DoorLockRelay length: 36 m (118 ft)

Cable run is limited by the current the lock draws and the gauge of the conductor, not by the Ethernet run. Read the row for the lock you are fitting and size the cable for the distance from the hub to the door.

Compliance and cabling

UL 294 levelDestructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I
CAN/ULC-60839-11-1 gradeGrade assignment: 1
CertificationsCE, FCC, IC, UL 294, CAN/ULC-60839-11-1
UL 294 statementCompliance with IEEE 802.3 (at or af) specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
PoE cabling requirementsCat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.

Management

Managed byAccess
Software informationThe software version can be checked at https://unifi.ui.com

Frequently Asked Questions

What is the UA-Hub-Door?

The Access Door Hub is part of the UniFi Access range. A single-door mechanism that provides complete entry and exit control via connected Access Readers.

How many doors does the UA-Hub-Door control?

1. Add a hub per door beyond that.

How many users can the UA-Hub-Door hold?

Up to 6,000.

How is the UA-Hub-Door powered, and can it power the readers?

(1) PoE++ input, 50V DC, 1A (4) PoE+ outputs, 50V DC, 30W per port (Max 45W aggregated). That means the hub takes power in over Ethernet and passes power out to the readers or cameras on the door, so you are not running a separate supply to each one.

Can the UA-Hub-Door be mounted outside?

Indoor only. Mount it on the secure side of the door — an access hub on the unsecured side is both a weather problem and a security one.

What lock types does the UA-Hub-Door support?

The lock terminal switches between wet and dry operation, dry output Lock: 30V DC, 1A Aux: 30V DC, 1A. Wet drives a 12 V strike or maglock directly; dry is a volt-free contact for a lock with its own power supply.

Is it certified for access control?

It is listed to UL 294 at Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I. UL 294 is the North American standard; Australia has no direct equivalent listing for this class of device.

What software manages the UA-Hub-Door?

UniFi Access, running on a UniFi console — a Cloud Gateway, Dream Machine or compatible host. The hub does not run the application itself.

What temperature range is the UA-Hub-Door rated for?

0 to 40° C (32 to 104° F).

How is the UA-Hub-Door mounted?

DIN-rail (Included).

Is the UA-Hub-Door available in Australia?

Yes. ARC IP Networks is an authorised Ubiquiti reseller holding Australian stock with full manufacturer warranty and fast domestic shipping.
