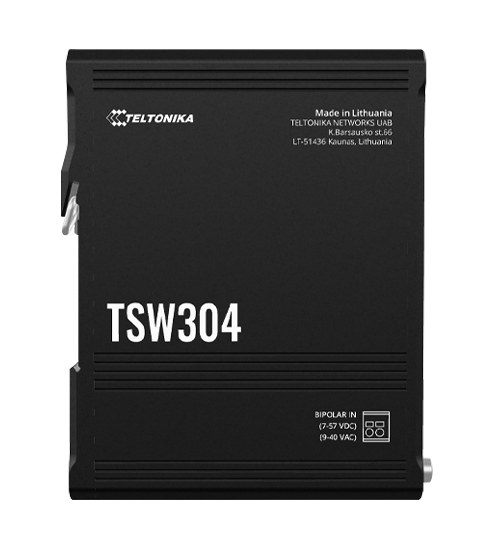

Teltonika TSW304 DIN Rail Ethernet Switch

https://arcip.com.au/web/image/product.template/15490/image_1920?unique=6bbe47d

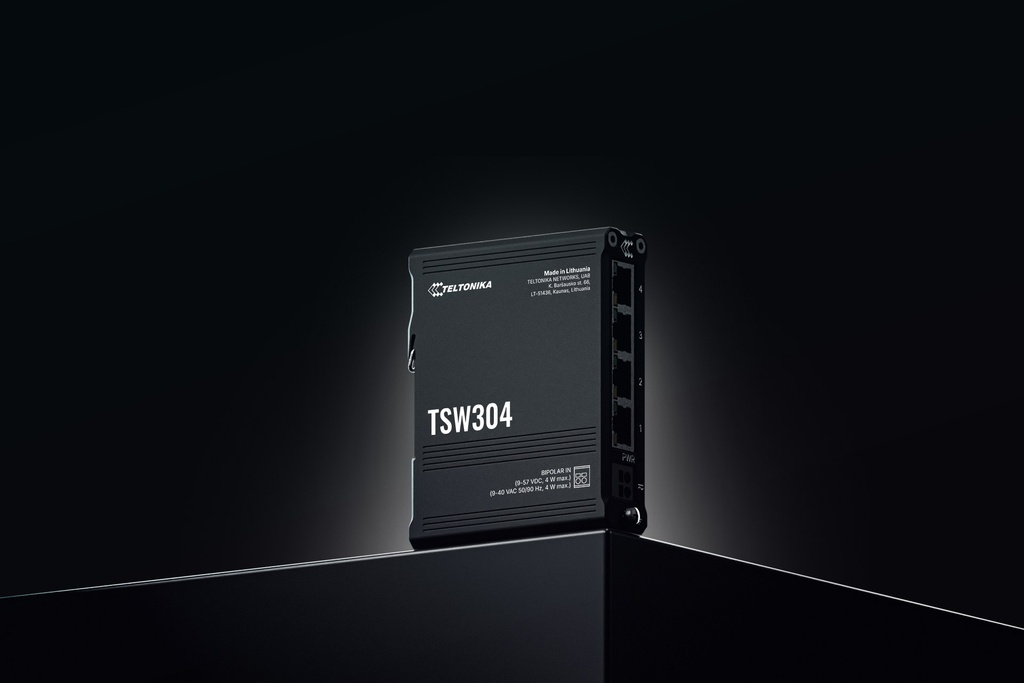

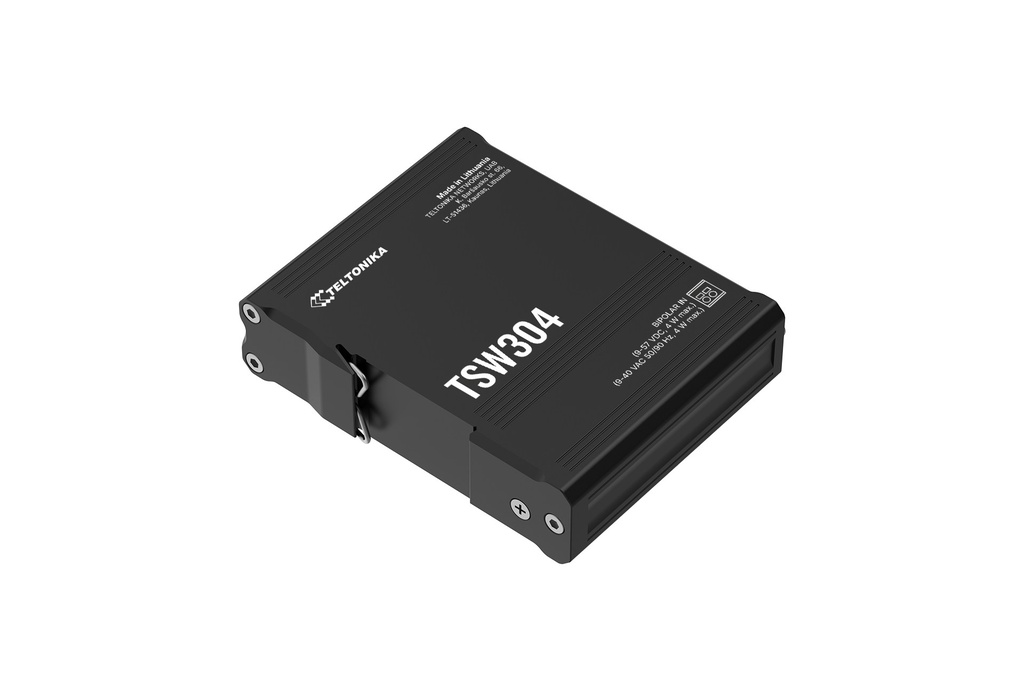

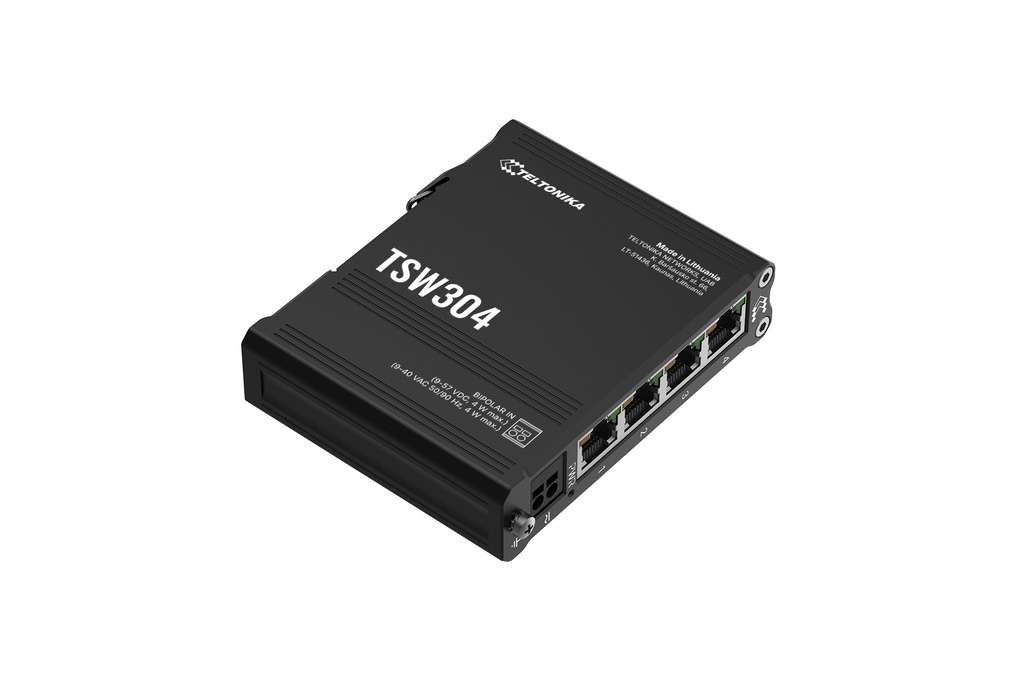

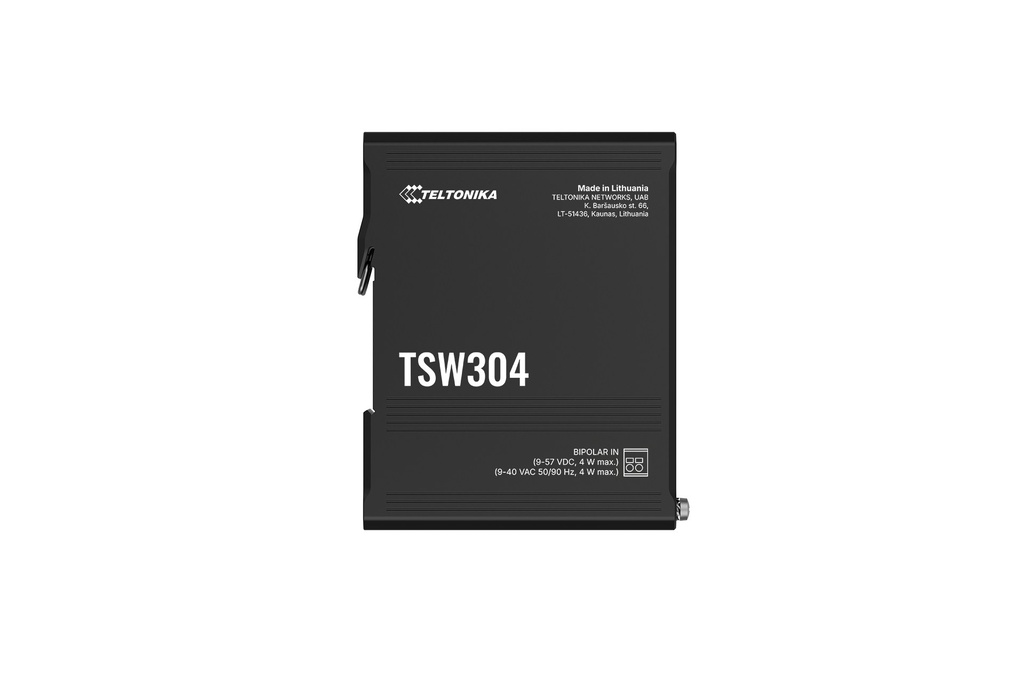

The Teltonika TSW304 (TSW304 DIN Rail Ethernet Switch) is an extra-compact industrial Ethernet switch with 4 x Gigabit Ethernet ports (10/100/1000 Mbps) and an integrated DIN rail bracket. It measures 102 x 25 x 81.5 mm, accepts 7 - 57 VDC or 9 - 40 VAC, and operates from -40 °C to 75 °C.

$ 134.53 134.53 AUD $ 134.53 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
Barcode
4779051840144

Teltonika TSW304 at a glance

The Teltonika TSW304 (TSW304 DIN Rail Ethernet Switch) is an extra-compact industrial Ethernet switch with 4 x Gigabit Ethernet ports (10/100/1000 Mbps) and an integrated DIN rail bracket. It measures 102 x 25 x 81.5 mm, accepts 7 - 57 VDC or 9 - 40 VAC, and operates from -40 °C to 75 °C.

ARC IP Networks supplies the genuine TSW304 DIN Rail Ethernet Switch from Australian stock with the full manufacturer's warranty.

Ethernet ports4 x Gigabit RJ45
Bandwidth8 Gbps non-blocking
Dimensions102 x 25 x 81.5 mm
Input voltage7-57 VDC / 9-40 VAC
Power consumption0.26 W idle / 1.44 W max
Operating temp-40 °C to 75 °C
Ingress protectionIP30

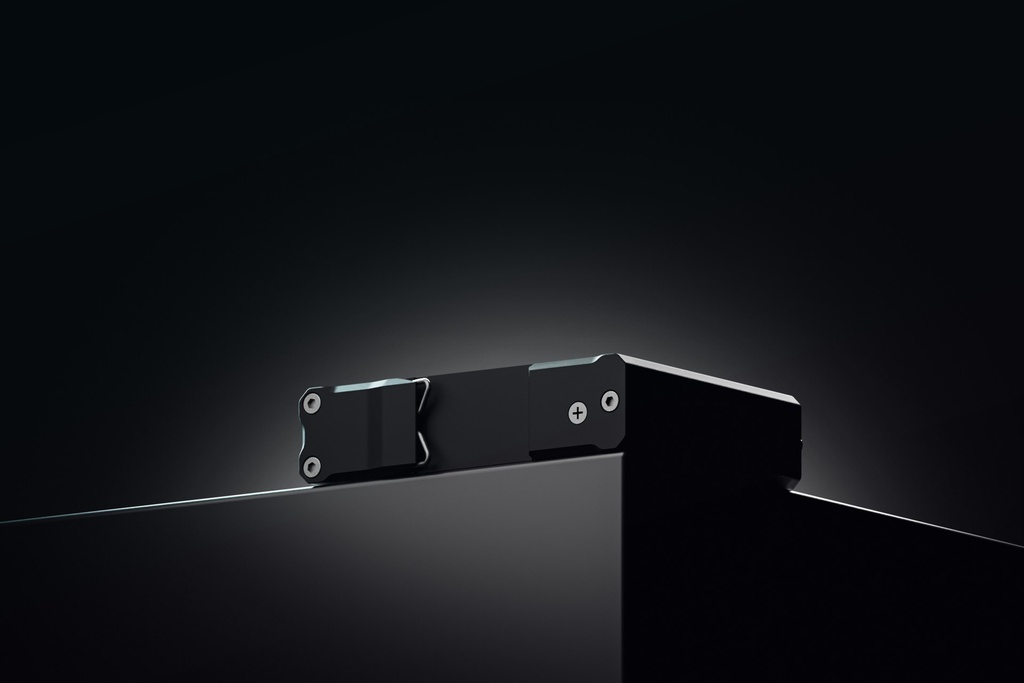

MountingIntegrated DIN rail bracket

Best for

  • Server cabinets and DIN rail enclosures where space is limited
  • Industrial environments needing a durable, shock-resistant casing
  • Adding four Gigabit Ethernet ports in a compact footprint

Consider instead

  • Teltonika TSW114: a five-port Gigabit Ethernet industrial switch with an integrated DIN rail bracket
  • Teltonika TSW110: five Gigabit Ethernet ports with a -40 °C to 75 °C operating range
  • Teltonika TSW100: four PoE+ ports with 802.3af and 802.3at support
  • Teltonika TSW210: eight Gigabit Ethernet ports plus two SFP ports for fibre-optic links
  • Teltonika TSW212: a managed switch with L2 and L3 features, PROFINET, EtherNet/IP and MRP support

Key features

Mounting: Integrated DIN rail bracket

Compact: 102 x 25 x 81.5 mm

Gigabit Ethernet: 4 x Gigabit Ethernet with speeds of up to 1000 Mbps

7-57 Vdc / 9-40 Vac: Wide range of supported power supply voltages

Teltonika TSW304 specifications

Ethernet

ETH4 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
IEEE 802.3 series standards802.3i, 802.3u, 802.3ab, 802.3x, 802.3az

Industrial Protocols

ProfinetProfinet Class A conformance (available with optional order code)

Performance Specifications

Bandwidth (Non-blocking)8 Gbps
Packer buffer128 KB
MAC address table size2K entries
Jumbo frame support9216 bytes

Power

Connector2-pin industrial DC power socket
Input voltage range7 - 57 VDC; 9 - 40 VAC
PoE (passive)Possibility to power up through ETH1 ports, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC
Power consumptionIdle: 0.26 W / Max: 1.44 W

Physical Interfaces

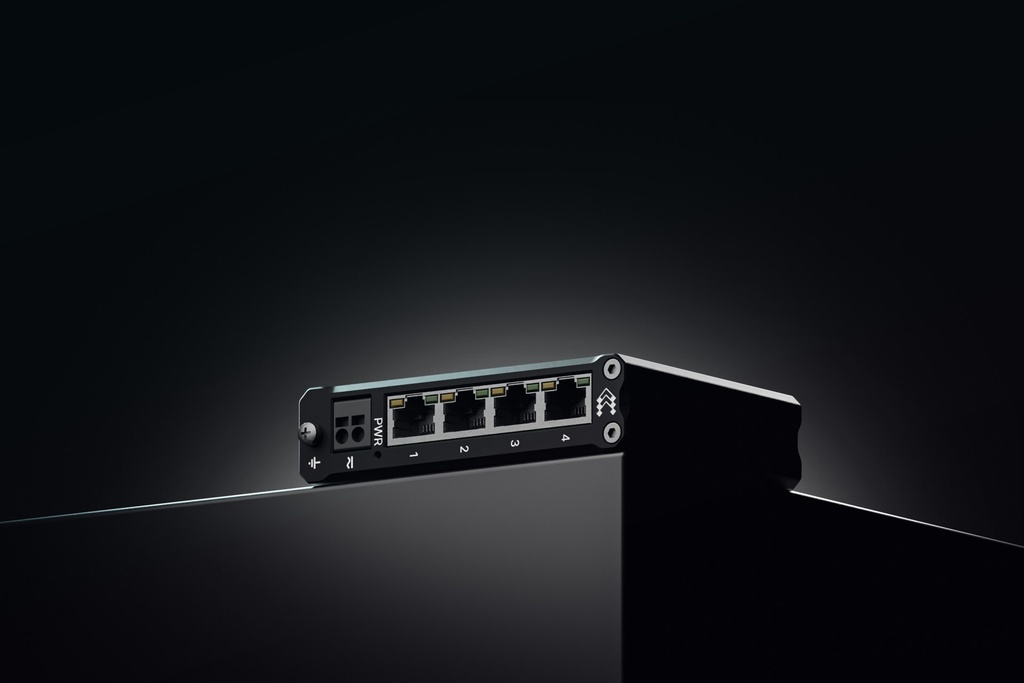

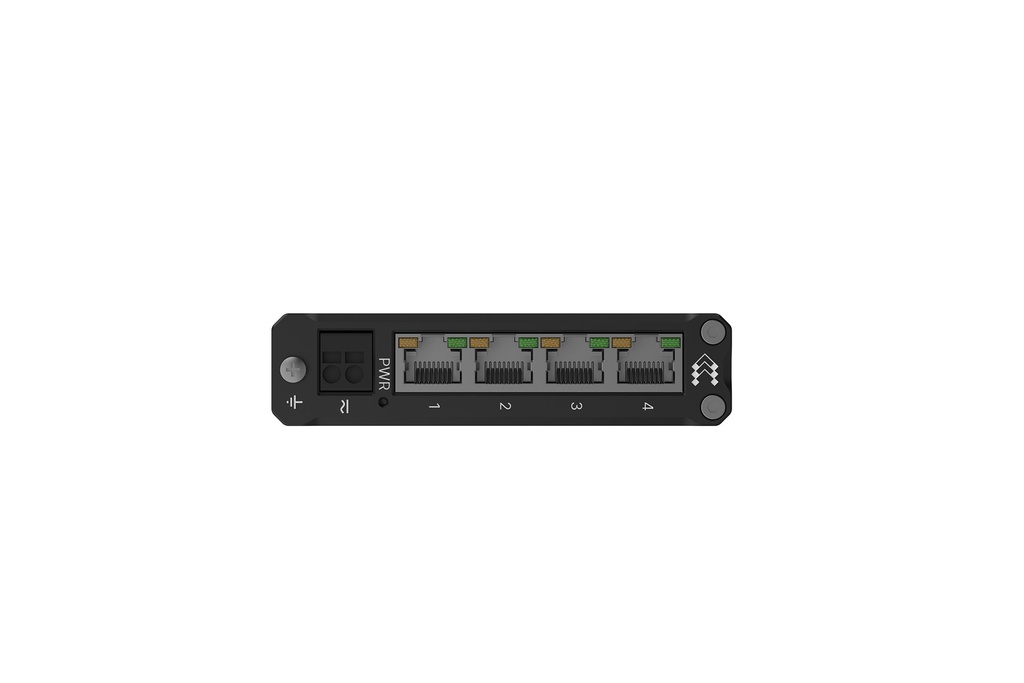

Ethernet4 x RJ45 ports, 10/100/1000 Mbps
Status LEDs8 x ETH status LEDs, 1 x Power LED
Power1 x 2-pin industrial DC power socket
Other1 x Grounding screw

Physical Specification

Casing materialAnodised aluminium housing and panels
Dimensions (W x H x D)102 x 25 x 81.5 mm
Weight210 g
Mounting optionsIntegrated DIN rail bracket; wall mount and flat surface (additional kit needed)

Operating Environment

Operating temperature-40 °C to 75 °C
Operating humidity5% to 95% non-condensing
Ingress Protection RatingIP30

Specifications from Teltonika's official product data for the TSW304, checked October 2026.

The TSW304 DIN Rail Ethernet Switch in depth

Teltonika's tiniest Ethernet switch

The TSW304 is the tiniest Ethernet switch in the Teltonika Networks portfolio and was designed with industrial application scenarios in mind. At 102 x 25 x 81.5 mm and 210 g, it comes with an integrated DIN rail bracket and fits easily into any server cabinet. The casing is anodised aluminium housing and panels, and the durable, shock-resistant design suits challenging industrial environments. Wall mount and flat surface mounting are also possible with an additional kit.

Four Gigabit ports and solid switching performance

The TSW304 provides 4 x RJ45 ports running at 10/100/1000 Mbps with auto MDI/MDIX crossover. It supports IEEE 802.3i, 802.3u, 802.3ab, 802.3x and 802.3az. Switching performance is listed at 8 Gbps non-blocking bandwidth, a 128 KB packet buffer, a 2K-entry MAC address table and 9216-byte jumbo frame support. Eight Ethernet status LEDs and one power LED show port and power status at a glance.

Wide power input and extended temperature range

Power is supplied through a 2-pin industrial DC power socket, accepting 7 - 57 VDC or 9 - 40 VAC. Power consumption is 0.26 W idle and 1.44 W at maximum. The switch operates from -40 °C to 75 °C at 5% to 95% non-condensing humidity and has an IP30 rating. A grounding screw is included on the housing, and passive PoE powering is possible through the ETH1 port (9 - 30 VDC).

Frequently asked questions

Straight answers about the TSW304 DIN Rail Ethernet Switch from the ARC IP Networks team. Last reviewed October 2026.

The TSW304 is an extra-compact DIN rail Ethernet switch from Teltonika Networks with four Gigabit Ethernet ports. It is described as the tiniest Ethernet switch in the Teltonika Networks portfolio and is built for industrial applications.

It accepts 7 - 57 VDC or 9 - 40 VAC through a 2-pin industrial DC power socket. Power consumption is 0.26 W idle and 1.44 W maximum.

It offers passive PoE powering through the ETH1 port, at 9 - 30 VDC (Mode B). This is not compatible with the IEEE 802.3af, 802.3at and 802.3bt standards.

It has an integrated DIN rail bracket. Wall mount and flat surface mounting are also possible, but an additional kit is needed.

The operating temperature is -40 °C to 75 °C, with 5% to 95% non-condensing humidity. The ingress protection rating is IP30.

The specifications list Profinet Class A conformance as available with an optional order code.

The box contains the TSW304, a QSG (Quick Start Guide) and the packaging box.

ARC IP Networks supplies the Teltonika TSW304 from Australian stock with the full manufacturer's warranty.

Buy the Teltonika TSW304 in Australia

ARC IP Networks supplies Teltonika industrial routers, gateways, switches and accessories to businesses, integrators, MSPs and installers across Australia.

  • Genuine Teltonika: sourced through Australian distribution.
  • Australian stock with the correct AU power supply where one is included.
  • Full manufacturer's warranty and local pre-sales and after-sales support.
  • Trade and project pricing available.

Planning a DIN rail network with TSW304 switches?

Ask ARC IP Networks for project pricing or a configured quote, or call us to check the right model for your site.
