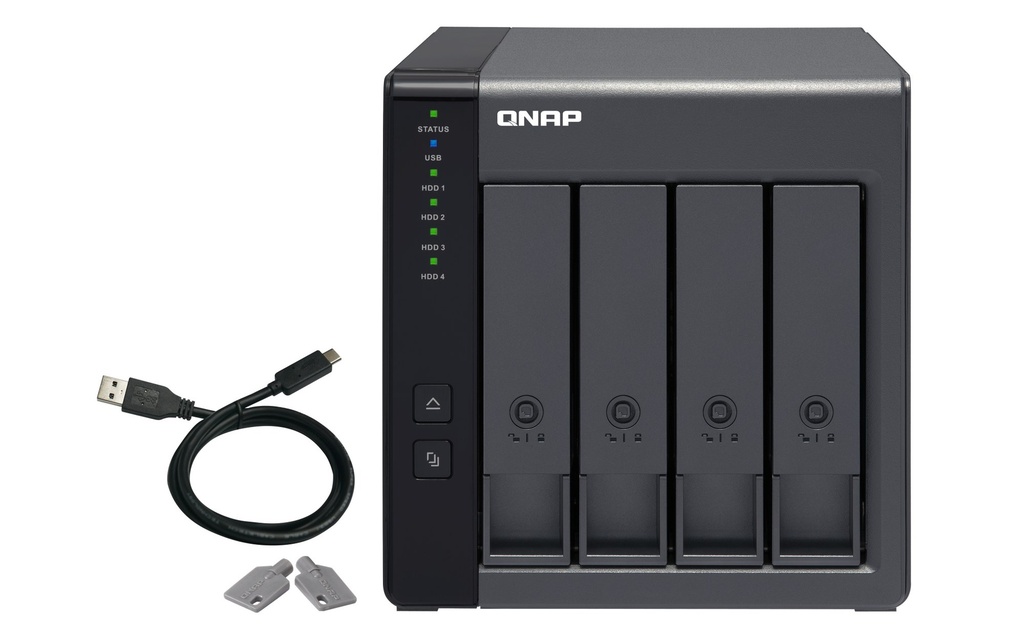

QNAP TR-004 4-Bay USB Type-C Direct Attached Storage with Hardware RAID

https://arcip.com.au/web/image/product.template/8313/image_1920?unique=874d354

QNAP TR-004 4-bay tower direct attached storage (DAS) enclosure with hardware RAID. 4 x 3.5-inch SATA bays (also 2.5-inch SATA HDD/SSD), shipped without drives. 1 x USB 3.2 Gen 1 Type-C port. DIP-switch RAID modes: Individual, JBOD, RAID 0, RAID 1/10 and RAID 5, plus Software Ctrl mode for management from a QNAP NAS or QNAP External RAID Manager. Use as QNAP NAS expansion with storage pools and snapshots, or as external storage for Windows, Mac and Linux computers. 120mm fan. 2-year warranty, extendable up to 5 years. Genuine QNAP from ARC IP Networks, authorised QNAP reseller with Australian stock.

$ 492.56 492.56 AUD $ 492.56 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

In stock online
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
TR-004
Barcode
4713213514429

QNAP TR-004 at a glance

The QNAP TR-004 is a 4-bay tower direct attached storage (DAS) enclosure with hardware RAID, connecting over a USB 3.2 Gen 1 Type-C port. DIP switches set Individual, JBOD, RAID 0, RAID 1/10 or RAID 5, or Software Ctrl mode hands RAID management to a QNAP NAS or QNAP External RAID Manager on a computer.

ARC IP Networks is an authorised QNAP reseller in Australia. We supply the genuine QNAP TR-004 from Australian stock, with a GST tax invoice on every order.

Drive bays4 x 3.5-inch SATA
InterfaceUSB 3.2 Gen 1 Type-C
RAIDRAID 0/1/5/10, JBOD
Form factorTower

Best for

  • Adding protected RAID 5 storage to PCs and laptops
  • Expanding a QNAP NAS without using NAS system resources for RAID
  • Physically moving or backing up large data collections

Key features

Four 3.5-inch SATA bays that also accept 2.5-inch SATA HDDs and SSDs.

USB 3.2 Gen 1 Type-C host connection.

Hardware RAID by DIP switch: Individual, JBOD, RAID 0, RAID 1/10 or RAID 5.

Software Ctrl mode for RAID configuration from a QNAP NAS or QNAP External RAID Manager.

As external hardware RAID it operates independently and uses fewer NAS system resources than the UX-500P expansion enclosure.

NAS expansion mode supports storage pools and snapshots via Storage & Snapshots Manager.

Compatible with devices using the exFAT file system for cross-platform file sharing.

120mm fan, buzzer warning and Kensington security slot.

QNAP TR-004 specifications

QNAP TR-004 technical specifications
SpecificationValue
Storage
Drive bays4 x 3.5-inch (shipped without drives)
Drive compatibility3.5-inch and 2.5-inch SATA 3Gb/s slots (SATA 6Gb/s HDD/SSD backward compatible, performance limited to 3Gb/s)
RAID controllerMicro processor with hardware RAID
RAID modesSingle Disk, JBOD, RAID 0, RAID 1, RAID 5, RAID 5 + Spare, RAID 10
Hot-swappableYes (not supported in Individual mode)
NoteOnly one disk type (HDD or SSD) per RAID group
Connectivity
InterfaceUSB
USB port1 x Type-C USB 3.2 Gen 1
Compatibility
SystemsQTS / QuTS hero, Windows, Ubuntu, Mac
Use asHardware RAID DAS or QNAP NAS expansion
External RAID ManagerRequires Windows 8.1 or later, Windows Server 2012 R2 or later
Physical
Form factorTower
Dimensions (HxWxD)168.5 × 160.2 × 219 mm (excluding foot pad)
Fan1 x 120mm, 12VDC
System warningBuzzer
Kensington security slotYes
Power and environment
Power supplyMinimum 60W adapter (12VDC), 100-240VAC
Power consumption (HDD sleep)4.17 W
Power consumption (operating, typical)18.21 W, tested with drives fully populated
Operating temperature0 - 40 °C
Storage temperature-20 - 70 °C
Relative humidity5-95% RH non-condensing
Warranty
Standard warranty2 years (extendable up to 5 years)

Figures from QNAP's official product page and hardware specifications.

The QNAP TR-004 in depth

Four bays of RAID-protected expansion

The TR-004 gives PCs and laptops four 3.5-inch SATA bays with RAID support. RAID 5 needs at least three drives and distributes parity to protect against one disk failing, while RAID 1/10 mirrors half the capacity for higher protection.

Managed in hardware or software

Choose a RAID mode with the DIP switches, or switch to Software Ctrl mode and configure the unit from Storage & Snapshots Manager on a QNAP NAS or the QNAP External RAID Manager utility for Windows, which also shows RAID health and status.

An alternative to NAS expansion enclosures

Connected to a QNAP NAS, the TR-004 works as a NAS expansion with storage pools and snapshots or as external storage. It can only be used as an individual storage pool or volume, NAS applications cannot be installed on it, and QNAP lists the TS-128, TS-228, TS-131, TS-231, TS-431 and TS-431U as unsupported.

Frequently asked questions

Straight answers about the QNAP TR-004 from the ARC IP Networks team. Last reviewed October 2026.

Yes. The DIP switches support Individual, JBOD, RAID 0, RAID 1/10 and RAID 5; RAID 5 requires at least three drives.

It has 1 x USB 3.2 Gen 1 Type-C port. The drive slots run at SATA 3Gb/s, with SATA 6Gb/s drives supported at 3Gb/s performance.

QNAP states drives can only be migrated from one TR-004 to another TR-004; data on drives moved to or from a NAS or other device will not be recognised.

QNAP lists 18.21 W typical in operation with drives fully populated and 4.17 W in HDD sleep mode, using a minimum 60W 12VDC adapter.

The TR-004 is backed by a 2-year warranty, and QNAP offers warranty extensions up to 5 years.

ARC IP Networks is an authorised QNAP reseller and supplies the TR-004 from Australian stock with a GST tax invoice.
