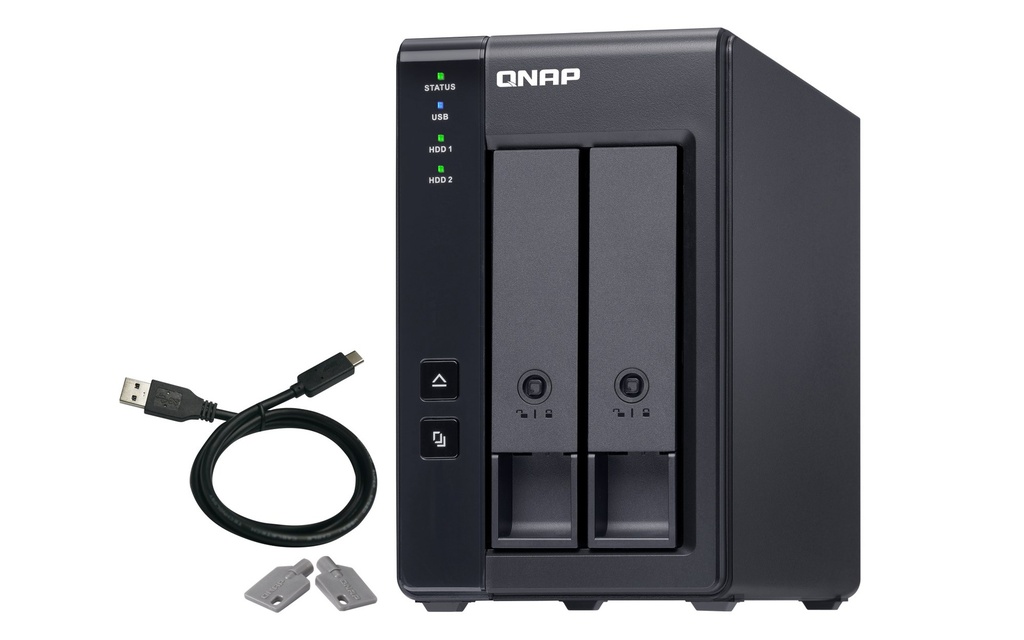

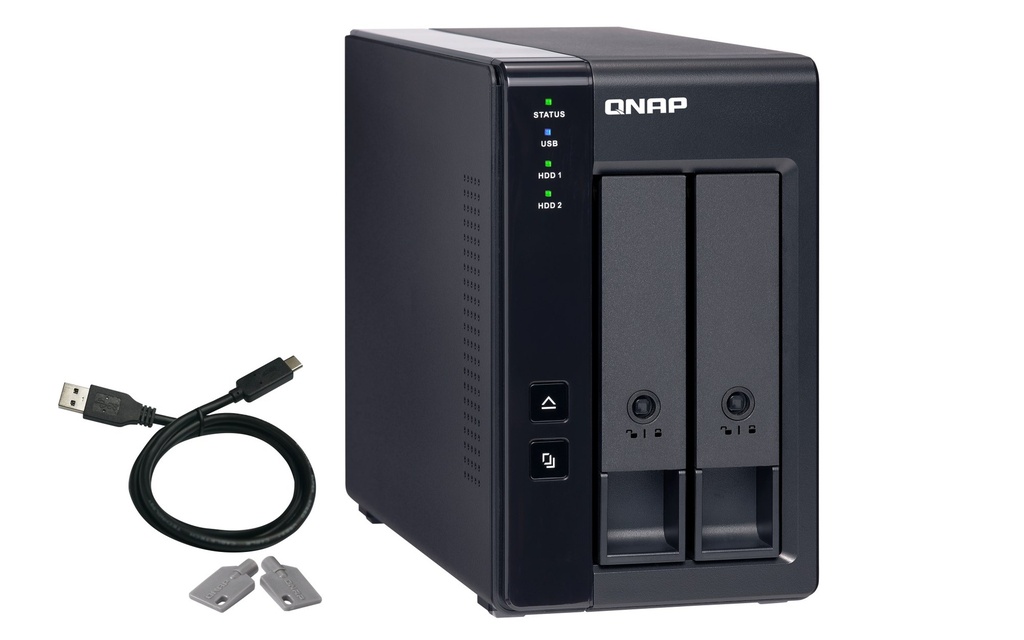

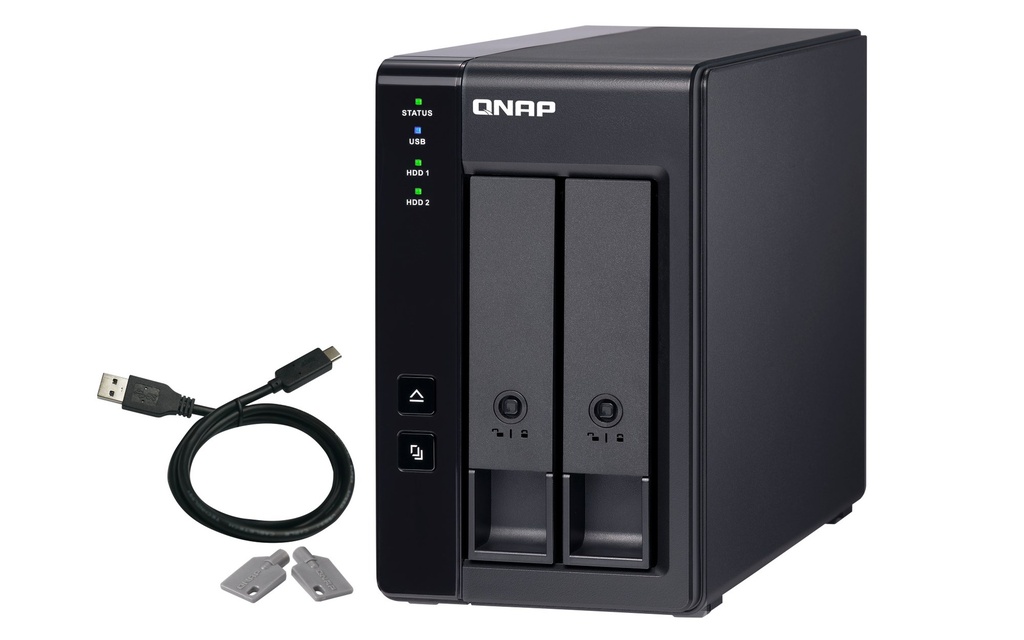

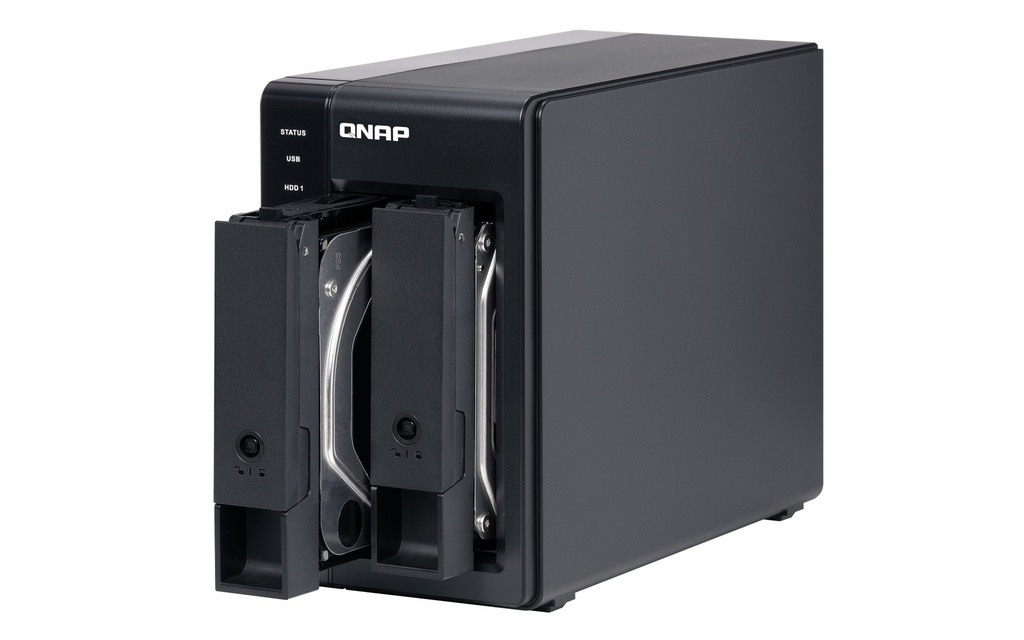

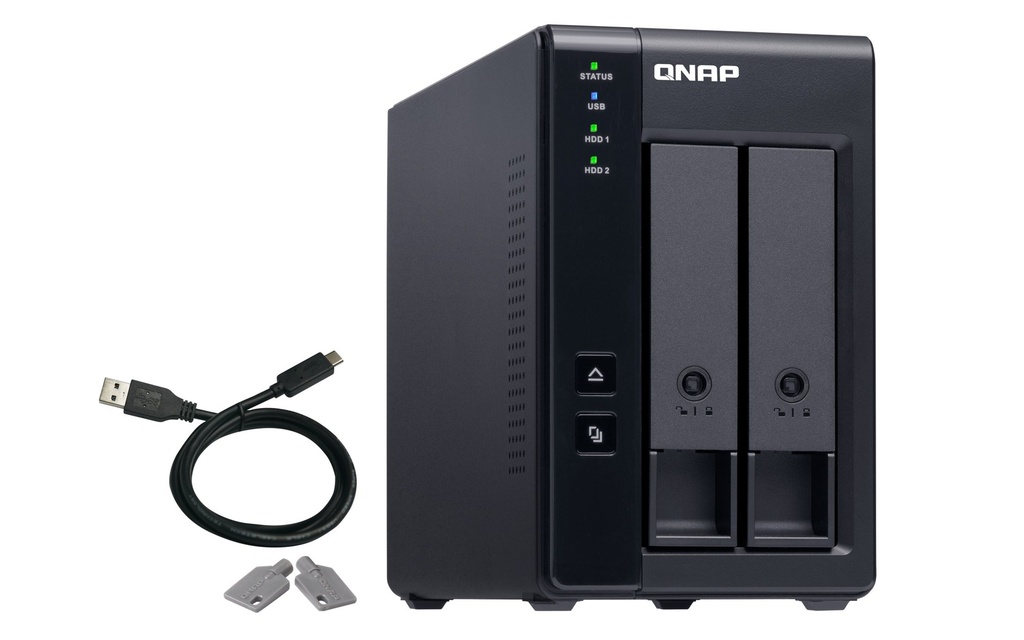

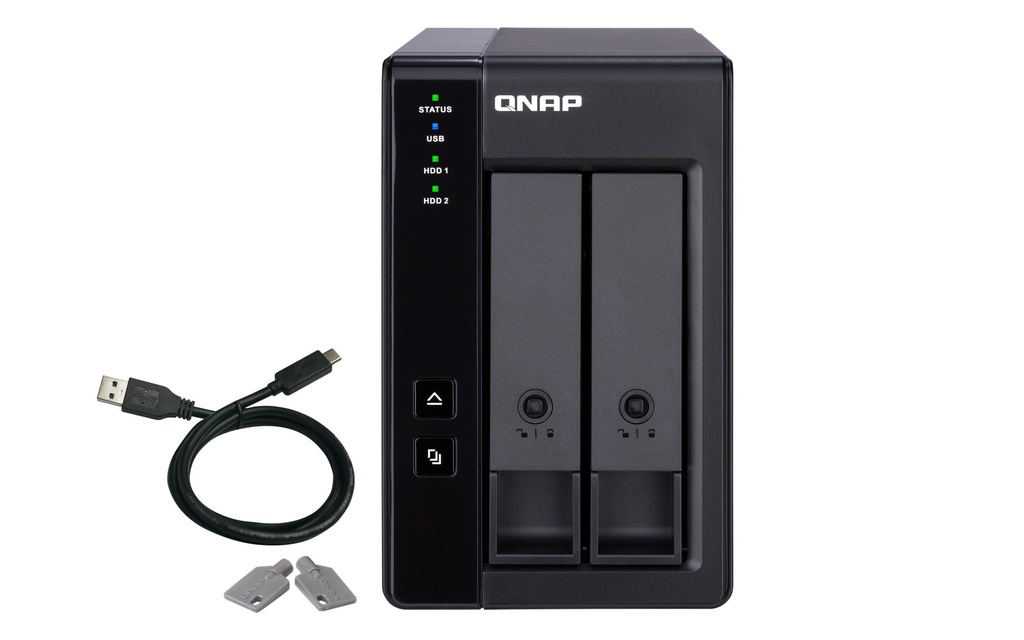

QNAP TR-002 2-Bay USB Type-C Direct Attached Storage with Hardware RAID

https://arcip.com.au/web/image/product.template/8312/image_1920?unique=874d354

QNAP TR-002 2-bay tower direct attached storage (DAS) enclosure with hardware RAID. 2 x 3.5-inch SATA bays (also 2.5-inch SATA HDD/SSD), shipped without drives. 1 x USB 3.2 Gen 2 Type-C 10Gbps port. DIP-switch RAID modes: Individual, JBOD, RAID 0, RAID 1, plus Software Ctrl mode for management from a QNAP NAS or QNAP External RAID Manager. Works as QNAP NAS expansion with storage pools and snapshots, or as external storage for Windows, Mac and Linux. 70mm fan, 168.5 x 102 x 219 mm. 2-year standard warranty. Genuine QNAP from ARC IP Networks, authorised QNAP reseller with Australian stock.

$ 391.58 391.58 AUD $ 391.58 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

In stock online
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
TR-002
Barcode
4713213515310

QNAP TR-002 at a glance

The QNAP TR-002 is a 2-bay tower direct attached storage (DAS) enclosure with hardware RAID that connects over a single USB 3.2 Gen 2 (10Gbps) Type-C port. It takes 3.5-inch or 2.5-inch SATA drives and can be set by DIP switch to Individual, JBOD, RAID 0 or RAID 1, or switched to Software Ctrl mode to be managed from a QNAP NAS or computer.

ARC IP Networks is an authorised QNAP reseller in Australia. We supply the genuine QNAP TR-002 from Australian stock, with a GST tax invoice on every order.

Drive bays2 x 3.5-inch SATA
InterfaceUSB 3.2 Gen 2 Type-C
RAIDRAID 0/1, JBOD, Individual
Form factorTower

Best for

  • Adding large-capacity storage to laptops and PCs
  • Expanding the storage capacity of a QNAP NAS
  • Moving files between devices with different file systems

Key features

Two 3.5-inch SATA drive bays that also accept 2.5-inch SATA HDDs and SSDs.

One USB 3.2 Gen 2 Type-C port rated at 10Gbps for the host connection.

Hardware RAID set by DIP switch: Individual, JBOD, RAID 0 or RAID 1.

Software Ctrl mode lets you configure RAID from a QNAP NAS or with QNAP External RAID Manager on your computer.

As a NAS expansion unit it supports storage pools and snapshots through Storage & Snapshots Manager.

Disk health monitoring on QNAP QTS and Windows.

Can also be used as external storage for Windows, Mac and Linux computers.

Compact tower with a 70mm fan and buzzer system warning.

QNAP TR-002 specifications

QNAP TR-002 technical specifications
SpecificationValue
Storage
Drive bays2 x 3.5-inch (shipped without drives)
Drive compatibility3.5-inch SATA 6Gb/s, 3Gb/s HDD; 2.5-inch SATA 6Gb/s, 3Gb/s HDD and SSD
RAID controllerMicro processor with hardware RAID
RAID modesSingle Disk, JBOD, RAID 0, RAID 1
Hot-swappableYes (not supported in Individual mode)
NoteOnly one disk type (HDD or SSD) per RAID group
Connectivity
InterfaceUSB
USB port1 x Type-C USB 3.2 Gen 2 10Gbps
Compatibility
SystemsQTS / QuTS hero, Windows, Ubuntu, Mac
Use asHardware RAID DAS or QNAP NAS expansion
Physical
Form factorTower
Dimensions (HxWxD)168.5 × 102 × 219 mm (excluding foot pad)
Fan1 x 70mm, 12VDC
System warningBuzzer
Kensington security slotYes
Power and environment
Power supplyMinimum 36W adapter (12VDC), 100-240VAC
Power consumption (HDD sleep)2.98 W
Power consumption (operating, typical)10.15 W, tested with drives fully populated
Operating temperature0 - 40 °C
Storage temperature-20 - 70 °C
Relative humidity5-95% RH non-condensing
Warranty
Standard warranty2 years

Figures from QNAP's official product page and hardware specifications.

The QNAP TR-002 in depth

Storage expansion with RAID

The TR-002 gives PCs, and especially laptops that cannot fit larger drives, two 3.5-inch SATA bays with RAID support. RAID 1 mirrors one disk to the other for protection against drive failure, while RAID 0 stripes data for the fastest performance without protection.

Hardware or software RAID control

DIP switches select Individual, JBOD, RAID 0 or RAID 1 in hardware. In Software Ctrl mode the RAID is configured and disk health monitored from Storage & Snapshots Manager on a QNAP NAS, or with QNAP External RAID Manager on a computer, which also supports Multiple RAID configurations.

NAS expansion or external storage

Connected to a QNAP NAS, the TR-002 can run in NAS expansion mode with storage pools and snapshots, or in external storage mode as a DAS. QNAP notes it can only be used as an individual storage pool or volume on the NAS and is not supported on some older models such as the TS-128, TS-228, TS-131, TS-231, TS-431 and TS-431U.

Frequently asked questions

Straight answers about the QNAP TR-002 from the ARC IP Networks team. Last reviewed October 2026.

Yes. It can expand a QNAP NAS (managed in Storage & Snapshots Manager) or act as external storage for Windows, Mac and Linux computers over USB 3.2 Gen 2 Type-C.

Using the DIP switches it supports Individual, JBOD, RAID 0 and RAID 1. Software Ctrl mode hands RAID configuration to a QNAP NAS or QNAP External RAID Manager.

No. The 2 x 3.5-inch bays are shipped without drives and accept 3.5-inch SATA HDDs and 2.5-inch SATA HDDs or SSDs.

QNAP lists 10.15 W typical in operation with drives fully populated and 2.98 W in HDD sleep mode, from a minimum 36W 12VDC adapter.

QNAP lists a 2-year standard warranty.

ARC IP Networks is an authorised QNAP reseller and supplies the TR-002 from Australian stock with a GST tax invoice.
