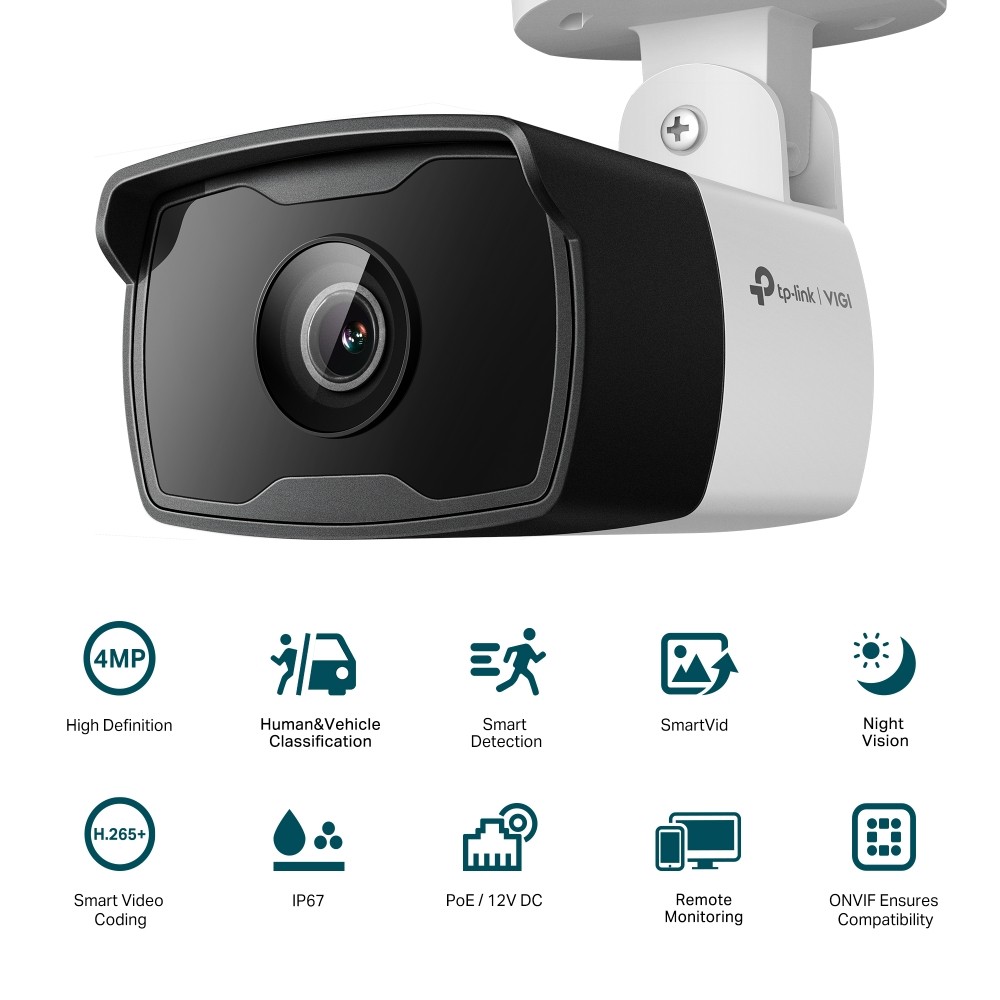

TP-Link VIGI C340I(2.8mm) 4MP Outdoor IR Bullet Network Camera

https://arcip.com.au/web/image/product.template/9434/image_1920?unique=eefdb22

The TP-Link VIGI C340I(2.8mm) is a 4MP outdoor IR bullet network camera with a 2.8 mm F2.2 lens covering 88.8° horizontally, DORI detection at 60 m and identification at 6 m. It records up to 2560 x 1440 in H.265+. TP-Link's V1.2 specifications list two IR LEDs with a 50 m range, a built-in microphone, human and vehicle classification with smart detection, IP67 protection and PoE or 12 V DC power at up to 5.5 W. Supplied by ARC IP Networks with the full manufacturer's warranty.

$ 105.02 105.02 AUD $ 105.02 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
TL-VIGI-C340I-2.8
Barcode
4897098688991

The TP-Link VIGI C340I(2.8mm) is a 4MP outdoor IR bullet network camera with the wide 2.8 mm F2.2 lens, the widest of its three lens options, covering 88.8 degrees horizontally with published detection at 60 m. Under TP-Link's V1.2 specifications it has two 850 nm IR LEDs reaching 50 m, a built-in microphone, human and vehicle classification, an IP67 housing and PoE (802.3af/at) or 12 V DC power.

VIGI C340I(2.8mm) overview

TP-Link makes the VIGI C340I with 2.8 mm, 4 mm and 6 mm lenses, describing the choice as a wide-angle lens to cover enclosed spaces or a higher millimetre lens for longer distances in open spaces. This product is the 2.8 mm version, the wide-angle member of the family. Its aperture is F2.2 (the 4 mm and 6 mm versions are F2.0) and its field of view is 88.8 degrees horizontally, 48.9 degrees vertically and 106.5 degrees diagonally. DORI distances published for the 2.8 mm lens are detect 60 m, observe 25 m, recognise 12 m and identify 6 m. The camera records 4MP at up to 2560 x 1440 from a 1/3-inch progressive scan CMOS, which TP-Link says is more than enough pixels to pick up some of the more discrete details.

TP-Link lists two hardware versions of the C340I, and the figures on this page follow the current V1.2 specification published on the 2.8 mm lens page. Under V1.2 the bullet has two 850 nm IR LEDs with a 50 m range, an IR-cut filter, and a minimum illumination of 0.01 lux in colour and 0 lux with IR; the IR can run on auto, a schedule, always on or always off. Image quality is handled by SmartVid, which TP-Link says covers Smart IR, WDR, 3D DNR and night vision, together with BLC, HLC, digital WDR and protection against infrared overexposure. Up to four privacy masks and one region of interest can be set.

On the analytics side, integrated AI chips tell humans and vehicles apart from other objects so alarm rules can be customised for more accurate notifications. V1.2 lists intrusion, line-crossing, region entering and exiting, object abandoned or removal, abnormal sound, and people and vehicle detection, with motion detection enhanced by human and vehicle classification, video tampering detection and illegal-login exceptions, and alarms are delivered as push messages. The V1.2 built-in microphone records within a 5 m (16.4-ft) radius; there is no speaker and no onboard memory card slot, so recording is to an NVR. The main stream uses H.265+, H.265, H.264+ or H.264 at 256 Kbps to 4 Mbps.

The C340I is rated IP67 and TP-Link says it withstands -30 to 60 degrees C and performs well in harsh environments with rain and dust. It can be secured to a ceiling, pole or wall, and the V1.2 bracket offers 0 to 360 degrees pan, 0 to 90 degrees tilt and 0 to 360 degrees rotation. One 10/100M RJ45 port carries PoE (802.3af/at, class 0, max 5.5 W), or the camera can run from 12 V DC (max 5 W) via a 5.5 mm coaxial plug. The V1.2 body measures 78.50 x 188.03 x 71.55 mm and weighs 0.28 kg. TP-Link's overview names four management methods: the web UI, NVR UI, VIGI app and VIGI Security Manager, and ONVIF Profile S is supported. The box includes the camera, quick start guide, waterproof cable attachments and mounting accessories.

Key features

Wide 2.8 mm lens

F2.2 with 88.8° horizontal, 48.9° vertical and 106.5° diagonal coverage.

60 m detection

DORI for the 2.8 mm lens: detect 60 m, observe 25 m, recognise 12 m, identify 6 m.

50 m IR (V1.2)

Two 850 nm IR LEDs with Smart IR and an IR-cut filter.

4MP detail

2560 x 1440 from a 1/3-inch progressive scan CMOS.

Human and vehicle classification

AI chips filter alarms to people and vehicles.

Smart detection

Intrusion, line-crossing, region entering/exiting, object abandoned/removal and abnormal sound.

IP67 bullet

Rated for rain and dust from -30 to 60 °C.

Ceiling, pole or wall

Bracket pans 360°, tilts 90° and rotates 360° (V1.2).

PoE or 12 V DC

802.3af/at class 0 PoE at up to 5.5 W, or 12 V DC at up to 5 W.

VIGI C340I(2.8mm) specifications

At a glance

4MP (2560 x 1440)
2.8 mm F2.2 lens
88.8° horizontal FOV
60 m detect (DORI)
50 m IR (V1.2)
H.265+
IP67
PoE 802.3af/at
VIGI C340I(2.8mm) full specifications
Camera
Image Sensor1/3” Progressive Scan CMOS
Shutter Speed1/3 to 1/10000 s
Slow ShutterYes
Minimum IlluminationColor: 0.01 Lux; 0 Lux with IR
Day/Night MechanismIR Cut Filter
Day/Night SwitchUnified/ Scheduled/ Auto
Lens
TypeFixed Focal Lens
Focal Length2.8 mm/4 mm/6 mm
Aperture2.8 mm: F2. 2; 4 mm: F2.0; 6 mm: F2.0
FOV2.8 mm: Horizontal FOV: 88.8°, Vertical FOV: 48.9°, Diagonal FOV: 106.5°; 4 mm: Horizontal FOV: 75.2°, Vertical FOV: 40.8°, Diagonal FOV: 88.3°; 6 mm: Horizontal FOV: 49.8°, Vertical FOV: 27.6°, Diagonal FOV: 57.7°
Lens MountM12
DORI Distance2.8 mm: Detect: 60 m (197 ft) Observe: 25 m (82 ft) Recognize: 12 m (39 ft) Identify: 6 m (20 ft); 4 mm: Detect: 80 m (262 ft) Observe: 33 m (109 ft) Recognize: 16 m (52 ft) Identify: 8 m (26 ft); 6 mm: Detect: 120 m (394 ft) Observe: 50 m (164 ft) Recognize: 24 m (79 ft) Identify: 12 m (39 ft)
Angle Adjustment (Manual)
RangePan: 0° to 360°; Tilt: 0° to 90°; Rotation: 0° to 360°
Illuminator
IR LEDQuantity: 2; Range: 50m; Wavelength: 850nm
White LEDN/A
Illuminator On/Off ControlAuto/Scheduled/Always on/Always off
Video
Max. Resolution2560 × 1440
Main StreamFrame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps; Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720; Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-StreamFrame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps; Resolution: 640x480, 352x288, 320x240; Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate ControlCBR, VBR
Video CompressionMain Stream: H.265+/H.265/H.264+/H.264; Sub-Stream: H.265/H.264
H.264 TypeHigh Profile
H.264+Main Stream Supported
H.265 TypeMain Profile
H.265+Main Stream Supported
Video Bit RateMain Stream: 256 Kbps to 4 Mbps; Sub-Stream: 64 Kbps to 512 Kbps
Image SettingsMirror; Brightness; Contrast; Saturation; Sharpness; Exposure; WDR; White Balance; Prevent Overexposure to Infrared Light; HLC Adjustable by Client Software; Rotation(90°/270°)
Image EnhancementBLC/3D DNR/HLC/SmartIR
Wide Dynamic RangeDWDR
SNR≥ 52 dB
Image Parameters SwitchYes
Privacy MaskUp to 4 Masks
ROI1 Region
OSD SettingYes
Audio
Audio CommunicationN/A
Audio InputYes
Audio OutputN/A
Audio CompressionYes
Audio Sampling Rate8KHz
Environment Noise FilteringYes
Audio Bit Rate64 Kbps(G.711 alaw)
Network
ProtocolTCP/IP; UDP; ICMP; HTTP; HTTPS; DHCP, DNS, RTSP; NTP; UPnP; SSL/TLS; FTP/SFTP; RTP; IPv4; IPv6; ARP
ONVIFYes
APIOpen Network Video Interface (Profile S)
Simultaneous Live View3 Main Streams & 3 Sub-Streams
ClientVIGI App, VIGI Security Manager, Web UI
Web BrowserGoogle Chrome 57 and above; Firefox 52 and above; Safari 11 and above; Microsoft Edge 91 and above
CloudYes
SecurityPassword Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Alarm And Event Management
Smart EventIntrusion Detection; Line-Crossing Detection; Region Entering Detection; Region Exiting Detection; Object Abandoned/Removal Detection; Abnormal Sound Detection; People Detection; Vehicle Detection
Basic EventMotion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts); Video Tampering Detection; Exception ( Illegal Login)
Alarm LinkageMessage Push
Interfaces
Network Interface1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
AlarmN/A
Reset ButtonN/A
PowerDC Power Port
On-board StorageN/A
Built-in MicrophoneYes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in SpeakerN/A
AudioN/A
General
Operating Temperature-30–60 °C
Storage Temperature-40–60 °C
Operating Humidity95% or Less (Non-Condensing)
Storage Humidity95% or Less (Non-Condensing)
MaterialPlastic
Net Weight0.28 Kg
Gross Weight0.43 Kg
Power Supply12V DC ± 5%, Max. 5 W, 5.5mm Coaxial Power Plug; PoE: 802.3af/at, class 0, Max. 5.5 W
ProtectionIP67 Waterproof
Product Dimensions (L x W x H)78.50 × 188.03 × 71.55 mm (3.09 × 7.40 × 2.82 in)
CertificationsCE, NTRA, VCCI, BSMI

Source: TP-Link's published specifications for this model (TP-Link Australia product page). throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

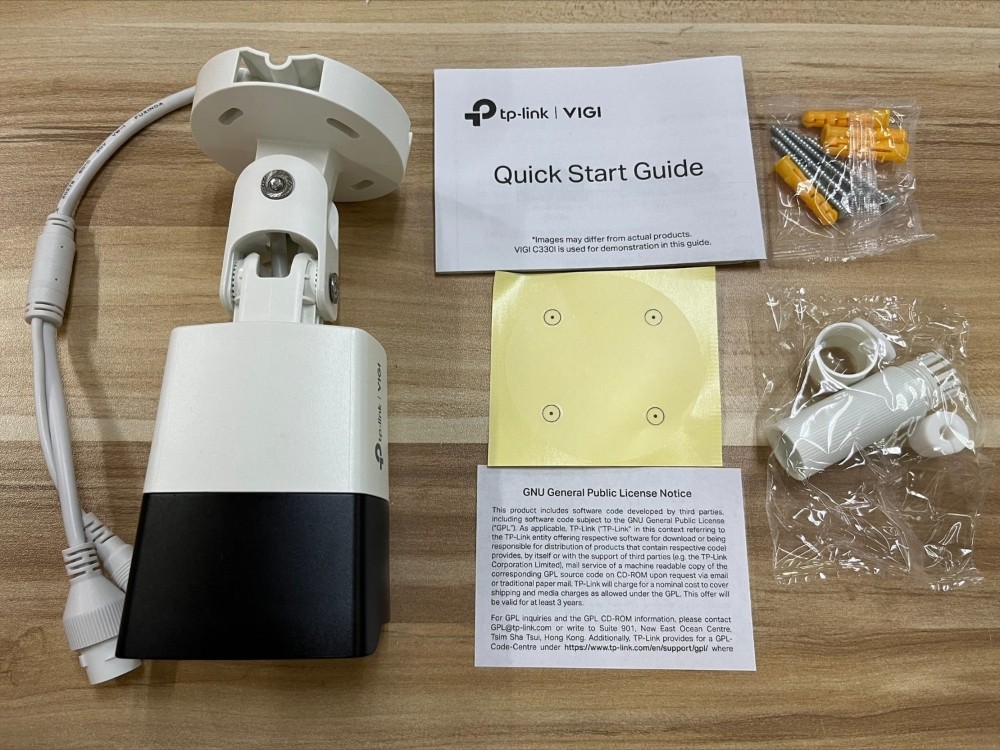

What's in the box

  • VIGI Network Camera
  • Quick Start Guide
  • Waterproof Cable Attachments
  • Mounting Accessories

Source: TP-Link's published package contents.

Who the VIGI C340I(2.8mm) is for

Enclosed spaces

  • TP-Link's wide-angle lens choice
  • 88.8° horizontal view
  • Identify at 6 m

IR night coverage

  • Two IR LEDs to 50 m (V1.2)
  • Smart IR against overexposure
  • 0 lux with IR

NVR-recorded systems

  • No onboard card slot: record to an NVR
  • ONVIF Profile S
  • Single-cable PoE

VIGI C340I(2.8mm) compared

With 2.8 mm lenses, the VIGI C340I uses IR for night images while the VIGI C345 bullet adds white LEDs for full-colour night video, two-way audio and a microSD slot.

VIGI C340I(2.8mm)VIGI C345(2.8mm)
Max. resolution2560 x 14402688 x 1520
ApertureF2.2F1.6
Horizontal FOV88.8°100°
DORI detect / identify60 m / 6 m64 m / 6 m
Night illumination2 IR LEDs, 50 m2 IR + 2 white LEDs, 30 m
AudioBuilt-in microphoneTwo-way audio
Onboard storageNonemicroSD up to 512 GB
Max. PoE power5.5 W10.7 W

Source: TP-Link Australia product pages for each model.

Buy the VIGI C340I(2.8mm) from ARC IP Networks

ARC IP Networks supplies TP-Link VIGI products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link VIGI product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the VIGI C340I(2.8mm) from the ARC IP Networks team.

Last reviewed October 2026.

The 2.8 mm F2.2 lens, the widest of the three C340I lens options (2.8 mm, 4 mm and 6 mm).

88.8 degrees horizontal, 48.9 degrees vertical and 106.5 degrees diagonal.

TP-Link's DORI figures for the 2.8 mm lens are detect 60 m, observe 25 m, recognise 12 m and identify 6 m.

TP-Link's V1.2 specification lists two 850 nm IR LEDs with a 50 m range. TP-Link also lists an earlier V1 hardware version, so check the version label if the IR range matters to your design.

No. Onboard storage is listed as N/A, so footage is recorded to an NVR.

The V1.2 model has a built-in microphone covering a 5 m radius. It has no speaker, so there is no two-way audio.

By PoE (802.3af/at, class 0, max 5.5 W) or 12 V DC (max 5 W) through a 5.5 mm coaxial plug.

Yes. It is rated IP67 and operates from -30 to 60 degrees C.

On a ceiling, pole or wall. The V1.2 bracket adjusts 0 to 360 degrees pan, 0 to 90 degrees tilt and 0 to 360 degrees rotation.

Need more than one VIGI C340I(2.8mm) for a business camera rollout?

Ask ARC IP Networks for volume and project pricing on TP-Link VIGI products.
