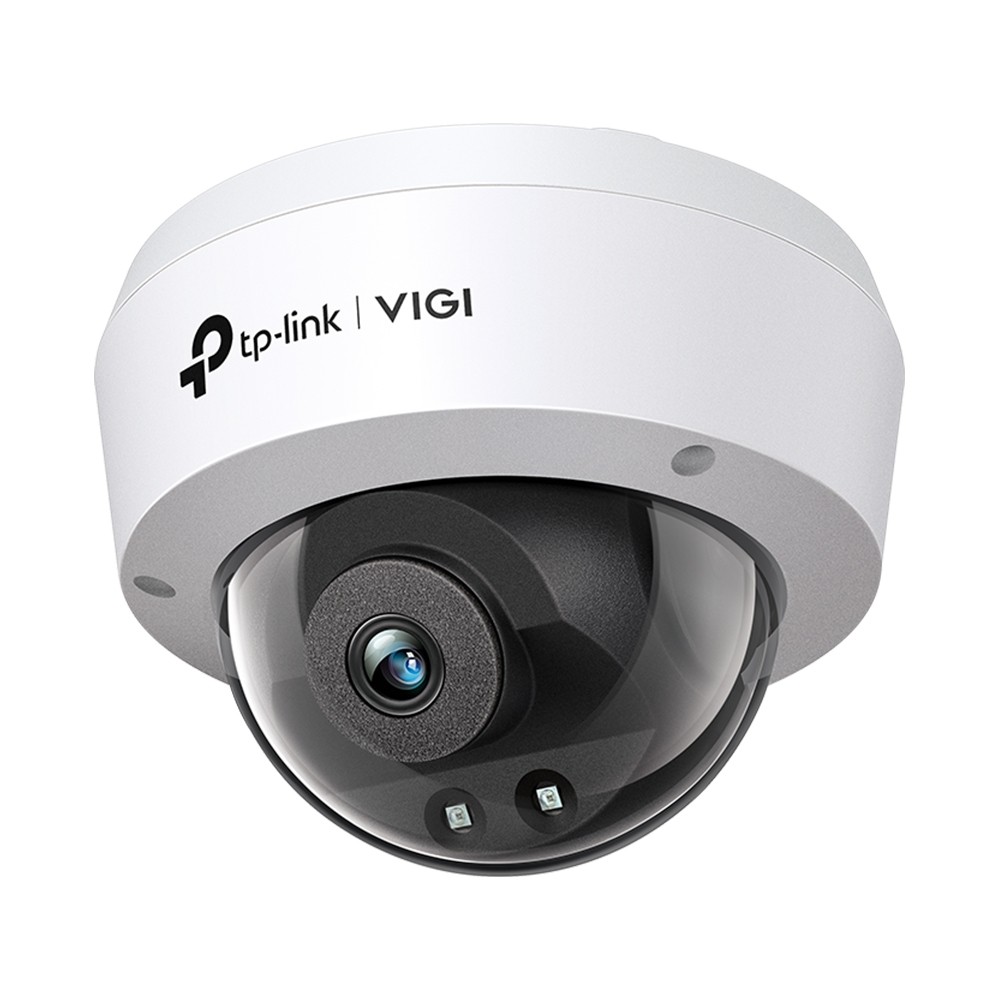

TP-Link VIGI C240I(2.8mm) 4MP IR Dome Network Camera

https://arcip.com.au/web/image/product.template/9427/image_1920?unique=a82dc21

The TP-Link VIGI C240I(2.8mm) is a 4MP IR dome network camera. Its 2.8 mm F2.2 lens gives an 88.8° horizontal, 48.9° vertical and 106.5° diagonal view, with DORI distances of 60 m detect, 25 m observe, 12 m recognise and 6 m identify. It records up to 2560 x 1440 in H.265+, has two IR LEDs reaching 30 m, human and vehicle classification with smart detection, an IK10 vandal-resistant and IP67 waterproof housing, and runs on PoE (802.3af/at) or 12 V DC. Supplied by ARC IP Networks with the full manufacturer's warranty.

$ 118.15 118.15 AUD $ 118.15 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
TL-VIGI-C240I-2.8
Barcode
4897098688908

The TP-Link VIGI C240I(2.8mm) is a 4MP IR dome network camera with the wider of its two lenses: a 2.8 mm F2.2 lens covering 88.8 degrees horizontally, with published DORI distances of 60 m detect and 6 m identify. Two 850 nm IR LEDs reach 30 m, and the dome has IK10 vandal-resistant and IP67 waterproof ratings, human and vehicle classification, smart detection and PoE or 12 V DC power.

VIGI C240I(2.8mm) overview

The VIGI C240I is a 4MP IR dome network camera, and VIGI offers it with a 2.8 mm or a 4 mm fixed lens. This is the 2.8 mm version, the wider of the two. Its F2.2 lens on an M12 mount covers 88.8 degrees horizontally, 48.9 degrees vertically and 106.5 degrees diagonally, and VIGI's DORI figures for it are detect 60 m, observe 25 m, recognise 12 m and identify 6 m. TP-Link says the 4MP sensor gives more than enough pixels to pick up some of the more discrete details; it is a 1/3-inch progressive scan CMOS with a 1/3 to 1/10000 s shutter and slow shutter support, and the maximum resolution is 2560 x 1440.

This is an IR camera rather than a full-colour model: it has no white LEDs, and night images come from two 850 nm IR LEDs with a 30 m working distance. Minimum illumination is 0.1 lux in colour and 0 lux with IR, and an IR-cut filter handles the day/night change on a unified, scheduled or automatic basis. TP-Link's SmartVid processing includes Smart IR, WDR (DWDR), 3D DNR and night vision, with BLC and HLC, an SNR of 52 dB or more, up to four privacy masks and one region of interest.

The housing is built for exposed positions. TP-Link describes it as a vandal-resistant, rugged, waterproof design made to withstand vandalism and harsh environments with rain and dust, and it is rated IK10 and IP67. The dome measures 115 x 115 x 86 mm, weighs 0.27 kg and runs from -30 to 60 degrees C. The manual mount adjusts pan 0 to 355 degrees and tilt 0 to 75 degrees.

Integrated AI chips distinguish humans and vehicles from other objects so alarm rules can be tuned and notifications are more accurate. Smart events include area intrusion, line-crossing, people and vehicle detection, region entering and exiting, and object abandoned and removal, with motion detection, video tampering and illegal-login exceptions as basic events; alarms are delivered by message push. Video is compressed in H.265+, H.265, H.264+ or H.264 at up to 25 fps (50 Hz) or 30 fps (60 Hz), limited to 20 fps if rotated 90 or 270 degrees. Two power options are offered: 802.3af/at PoE (class 0) or 12 V DC at up to 5 W. TP-Link lists four management methods: the web UI, a VIGI NVR, the VIGI app and VIGI Security Manager, and the camera supports ONVIF.

Key features

2.8 mm wide lens

F2.2, 88.8° horizontal, 48.9° vertical, 106.5° diagonal.

DORI for 2.8 mm

Detect 60 m, observe 25 m, recognise 12 m, identify 6 m.

30 m IR

Two 850 nm IR LEDs with Smart IR.

IK10 and IP67

Vandal-resistant, waterproof dome housing.

Human and vehicle classification

AI chips filter alerts to people and vehicles.

Smart detection

Intrusion, line-crossing, region entering/exiting and object abandoned/removal.

4MP H.265+

2560 x 1440 at 256 Kbps to 4 Mbps on the main stream.

PoE or 12 V DC

802.3af/at class 0, or 12 V DC at up to 5 W.

VIGI C240I(2.8mm) specifications

At a glance

4MP (2560 x 1440)
2.8 mm F2.2 lens
88.8° horizontal FOV
Detect 60 m / identify 6 m
2 IR LEDs, 30 m
IK10 + IP67
Human and vehicle classification
PoE or 12 V DC
VIGI C240I(2.8mm) full specifications
Camera
Image Sensor1/3” Progressive Scan CMOS
Shutter Speed1/3 to 1/10000 s
Slow ShutterYes
Aperture2.8 mm: F2.2 4 mm: F2.2
Lens2.8 mm/ 4 mm
Lens MountM12
Minimum IlluminationColor: 0.1 Lux; 0 Lux with IR
Day/Night MechanismIR Cut Filter
Day/Night SwitchUnified/ Scheduled/ Auto
Digital Noise Reduction3D DNR
WDRDWDR
Weatherproof RatingIP67
IR Working Distance30m
Viewing Angle2.8mm: 88.8°/48.9°/106.5°(H/V/D) 4mm: 75.1°/41.5°/88.7°(H/V/D)
Lens
TypeFixed Focal Lens
Focal Length2.8 mm/4 mm
Aperture2.8 mm: F2.2 4 mm: F2.2
FOV2.8 mm: Horizontal FOV: 88.8°, Vertical FOV: 48.9°, Diagonal FOV: 106.5° 4 mm: Horizontal FOV: 75.1°, Vertical FOV: 41.5°, Diagonal FOV: 88.7°
Lens MountM12
DORI Distance2.8 mm: Detect:60 m (197 ft) Observe: 25 m (82 ft) Recognize: 12 m (39 ft) Identify: 6 m (20 ft) 4 mm: Detect: 80 m (262 ft) Observe:33 m (109 ft) Recognize: 16 m (52 ft) Identify: 8 m (26 ft)
Angle Adjustment (Manual)
RangePan: 0° to 355° Tilt: 0° to 75°
Illuminator
IR LEDQuantity: 2 Range: 30m Wavelength: 850nm
White LEDN/A
Illuminator On/Off ControlAuto/Scheduled/Always on/Always off
Video
Max. Resolution2560 × 1440
Main StreamFrame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2560x1440,2304x1296, 2048x1280, 1920x1080, 1280x720 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-StreamFrame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 640x480,352x288, 320x240 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate ControlCBR, VBR
Video CompressionMain Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264
H.264 TypeMain Profile/High Profile
H.264+Main Stream Supported
H.265 TypeMain Profile
H.265+Main Stream Supported
Video Bit RateMain Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps
Image SettingsMirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°)
Image EnhancementBLC/3D DNR/HLC/SmartIR
Wide Dynamic RangeDWDR
SNR≥ 52 dB
Image Parameters SwitchYes
Privacy MaskUp to 4 Masks
ROI1 Region
OSD SettingYes
Audio
Audio CommunicationN/A
Audio InputYes (Bult-in Microphone)
Audio OutputN/A
Audio CompressionYes
Audio Sampling Rate8KHz
Environment Noise FilteringYes
Audio Bit Rate64 Kbps (G.711 alaw)
Network
ProtocolTCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
ONVIFYes
APIONVIF
Simultaneous Live View3 Main Streams & 3 Sub-Streams
ClientVIGI App, VIGI Security Manager, VIGI NVR, Web
Web BrowserGoogle Chrome 57 and above Firefox 52 and above Safari 11 and above Microsoft Edge 91 and above
CloudYes
SecurityPassword Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Alarm And Event Management
Smart EventArea Intrusion Detection; Line-Crossing Detection; People Detection; Vehicle Detection; Region Entering Detection; Region Exiting Detection; Object Abandoned Detection; Object Removal Detection
Basic EventMotion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts); Video Tampering Detection; Exception ( Illegal Login)
Alarm LinkageMessage Push
Linkage MethodN/A
Output NotificationMessage Push
Interfaces
Network Interface1 RJ45 10/100M Self-Adaptive Ethernet Port
AlarmN/A
Reset ButtonN/A
PowerDC Power Port
Button-
Video Output-
On-board StorageN/A
Built-in MicrophoneN/A
Built-in SpeakerN/A
AudioN/A
General
Operating Temperature-30–60 °C
Storage Temperature-40–60 °C
Operating Humidity95% or Less (Non-Condensing)
Storage Humidity95% or Less (Non-Condensing)
Dimensions( H X W X D )115 × 115 × 86 mm
MaterialPlastic
General FeaturesTwo Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Net Weight0.27 Kg
Gross Weight0.45 Kg
Max. Power Consumption12V DC: Max 5W PoE: Class 0
Power Supply12V DC ± 5%, 5.5mm Coaxial Power Plug PoE (802.3af/at, class 0)
Vandal ResistantIK10
ProtectionIP67, IK10
Product Dimensions (L x W x H)115× 86× 115 mm
CertificationsCE/BSMI/VCCI/ONVIF
Video/Image
Video CompressionMain Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264
Frame Rate & ResolutionsMain Stream: Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2560x1440,2304x1296, 2048x1280, 1920x1080, 1280x720 Sub-Stream: Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 640x480,352x288, 320x240
Max. Resolution4MP (2560 × 1440)
Video StreamingMain Stream Sub-Stream
Image SettingsMirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)
Image EnhancementBLC/3D DNR/HLC/SmartIR
Video Bit Rate64 Kbps to 4 Mbps
Day/Night SwitchDay/Night/Auto/Schedule
Smart Feature-Set
Smart EventHuman & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic EventMotion Detection, Camera Tampering Detection, Exception (Illegal Login)
Linkage MethodTrigger Notification: ONVIF, HTTPS
Region of Interest1 Region

Source: TP-Link's published specifications for this model (TP-Link Australia product page). throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories

Source: TP-Link's published package contents.

Who the VIGI C240I(2.8mm) is for

Harsh environments

  • IK10 vandal-resistant
  • IP67 waterproof
  • Rain and dust protection

Wider scenes

  • 88.8° horizontal view
  • Identify at 6 m
  • Pan 0-355°, tilt 0-75°

VIGI management

  • Web UI, NVR, app or Security Manager
  • ONVIF support
  • PoE or 12 V DC

VIGI C240I(2.8mm) compared

The C240I dome is listed with a 2.8 mm or 4 mm lens. This is the 2.8 mm model; the 4 mm figures are from the same VIGI page.

VIGI C240I(2.8mm)VIGI C240I(4mm)
ApertureF2.2F2.2
Horizontal FOV88.8°75.1°
Vertical FOV48.9°41.5°
Diagonal FOV106.5°88.7°
DORI detect60 m80 m
DORI observe25 m33 m
DORI recognise12 m16 m
DORI identify6 m8 m

Source: TP-Link Australia product pages for each model.

Buy the VIGI C240I(2.8mm) from ARC IP Networks

ARC IP Networks supplies TP-Link VIGI products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link VIGI product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the VIGI C240I(2.8mm) from the ARC IP Networks team.

Last reviewed October 2026.

The 2.8 mm F2.2 lens, the wider of the two C240I options, with an 88.8-degree horizontal view.

Detect 60 m, observe 25 m, recognise 12 m and identify 6 m for the 2.8 mm lens.

No. It is an IR camera with two 850 nm IR LEDs reaching 30 m and no white LEDs.

Yes, it is rated IK10, and IP67 for water and dust.

4MP, up to 2560 x 1440.

It has no speaker or two-way audio (audio output and audio communication are listed as N/A). VIGI's specification is inconsistent on the microphone: audio input is listed as a built-in microphone, while the interfaces section lists the built-in microphone as N/A.

No. Onboard storage is listed as N/A.

By 802.3af/at PoE (class 0) or 12 V DC through a 5.5 mm coaxial plug, with a maximum of 5 W on DC.

Need more than one VIGI C240I(2.8mm) for a VIGI dome camera installation?

Ask ARC IP Networks for volume and project pricing on TP-Link VIGI products.
