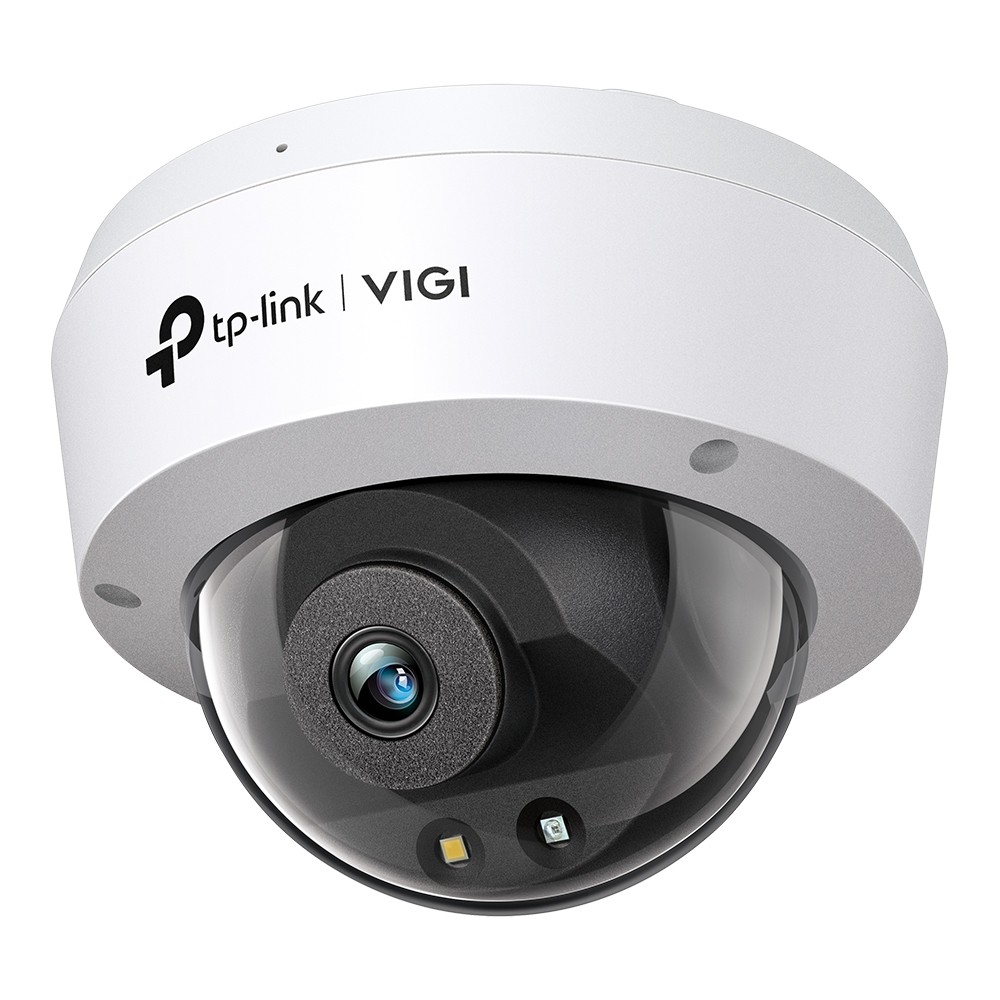

TP-Link VIGI C240(2.8mm) 4MP Full-Colour Dome Network Camera

https://arcip.com.au/web/image/product.template/9426/image_1920?unique=61c71ba

The TP-Link VIGI C240(2.8mm) is a 4MP full-colour dome network camera. Its 2.8 mm F1.6 lens covers 95.7° horizontally with DORI detection at 64 m, while one IR LED and one white LED each reach 30 m for colour or IR imaging at night. It records up to 2560 x 1440 in H.265+, classifies humans and vehicles, has a built-in microphone and microSD slot, is rated IK10 and IP67, and runs on PoE or 12 V DC. Supplied by ARC IP Networks with the full manufacturer's warranty.

$ 125.44 125.44 AUD $ 125.44 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
TL-VIGI-C240-2.8
Barcode
4895252501070

The TP-Link VIGI C240(2.8mm) is a 4MP full-colour dome network camera fitted with the wide 2.8 mm F1.6 lens, giving a 95.7-degree horizontal field of view and published detection at 64 m. One IR LED and one white LED each reach 30 m, and it adds human and vehicle classification, a built-in microphone, a microSD slot, IK10 and IP67 protection, and PoE (802.3af/at) or 12 V DC power.

VIGI C240(2.8mm) overview

This listing is the 2.8 mm version of the VIGI C240, TP-Link's 4MP full-colour dome network camera. The 2.8 mm lens is the wider of the two C240 options: at F1.6 on an M12 mount it gives a horizontal field of view of 95.7 degrees, a vertical field of view of 51.7 degrees and a diagonal of 113.0 degrees. For that lens TP-Link publishes DORI distances of 64 m to detect, 27 m to observe, 13 m to recognise and 6 m to identify. Behind the lens sits a 1/3-inch progressive scan CMOS sensor with a 1/3 to 1/10000 s shutter and slow shutter support, recording a maximum of 2560 x 1440.

TP-Link describes the C240 as a camera that monitors 24-hour clear and colourful details even on a pitch-dark night, combining a large-aperture lens, a high-sensitivity sensor and attached supplemental lights. Those lights are one white LED and one 850 nm IR LED, each rated to 30 m, with auto, scheduled, always-on and always-off control and an IR-cut filter for day/night switching. Minimum illumination is listed as 0.005 lux in colour and 0 lux with IR or white light. Image tools include digital WDR, 3D DNR, BLC, HLC and Smart IR, an SNR of at least 52 dB, up to four privacy masks, one region of interest and 90 or 270 degree rotation, which TP-Link notes limits the frame rate to 20 fps.

Integrated AI chips separate humans and vehicles from other moving objects so alarm rules can be tuned for fewer irrelevant alerts. The specification lists area intrusion, line-crossing, people, vehicle, region entering and exiting, object abandoned, object removal and abnormal sound detection, plus motion detection enhanced with human and vehicle classification, video tampering detection and an illegal-login exception. Alarms can flash the white light and push a message. A built-in microphone records anything going on within a 15-ft radius of the camera; there is no built-in speaker. The main stream supports H.265+, H.265, H.264+ and H.264 at 256 Kbps to 4 Mbps with CBR or VBR, and the sub-stream runs H.265 or H.264 at 64 to 512 Kbps.

The housing is plastic but rated IK10 for vandal resistance and IP67 against rain and dust, with an operating range of -30 to 60 degrees C. Power comes from PoE (802.3af/at, class 0) through the 10/100M RJ45 port or from 12 V DC (max 5.4 W) through a 5.5 mm coaxial plug. The cable can be routed into a dropped ceiling or out through the side outlet to avoid drilling. Management is through the web UI, a VIGI NVR, the VIGI app or VIGI Security Manager, with ONVIF support, three simultaneous main streams and three sub-streams, and a microSD slot that the 2.8 mm lens page lists as supporting cards up to 256 GB. The dome measures 115 x 86 x 115 mm and weighs 0.28 kg.

Key features

2.8 mm wide lens

F1.6 with a 95.7° horizontal, 51.7° vertical and 113.0° diagonal field of view.

64 m detection

DORI for the 2.8 mm lens: detect 64 m, observe 27 m, recognise 13 m, identify 6 m.

Full-colour night imaging

One white LED and one 850 nm IR LED, each rated to 30 m.

4MP resolution

Up to 2560 x 1440 from a 1/3-inch progressive scan CMOS sensor.

Human and vehicle classification

AI chips filter out other objects for more accurate event notifications.

Smart detection

Area intrusion, line-crossing, region entering/exiting, object abandoned/removal and abnormal sound.

Built-in microphone

Records audio within a 15-ft radius of the camera.

IK10 and IP67

Vandal-resistant, waterproof dome for -30 to 60 °C.

PoE or 12 V DC

802.3af/at class 0 PoE over one cable, or 12 V DC at up to 5.4 W.

VIGI C240(2.8mm) specifications

At a glance

4MP (2560 x 1440)
2.8 mm F1.6 lens
95.7° horizontal FOV
64 m detect (DORI)
30 m IR and white light
H.265+
IK10 / IP67
PoE 802.3af/at
VIGI C240(2.8mm) full specifications
Camera
Image Sensor1/3” Progressive Scan CMOS
Shutter Speed1/3 to 1/10000 s
Slow ShutterYes
Aperture2.8 mm: F1.6 4 mm: F1.6
Lens2.8 mm/ 4 mm
Lens MountM12
Minimum IlluminationColor: 0.005 Lux; 0 Lux with IR/White Light
Day/Night MechanismIR Cut Filter
Day/Night SwitchUnified/ Scheduled/ Auto
Digital Noise Reduction3D DNR
WDRDWDR
Weatherproof RatingIP67
Pan/Tilt RangePan: 0° to 360°, Tilt: 0° to 85°, Rotate: 0° to 360°
Viewing Angle2.8mm: Horizontal FOV: 95.7°, Vertical FOV: 51.7°, Diagonal FOV: 113.0° 4mm: Horizontal FOV: 79.7°, Vertical FOV:42.9°, Diagonal FOV: 93.9°
Lens
TypeFixed Focal Lens
Focal Length2.8 mm/4 mm
Aperture2.8 mm: F1.6 4 mm: F1.6
FOV2.8 mm: Horizontal FOV: 95.7°, Vertical FOV: 51.7°, Diagonal FOV: 113.0° 4 mm: Horizontal FOV: 79.7°, Vertical FOV: 42.9°, Diagonal FOV: 93.9°
Lens MountM12
DORI Distance2.8 mm: Detect: 64 m (209 ft) Observe: 27 m (87 ft) Recognize: 13 m (42 ft) Identify: 6 m (21 ft) 4 mm: Detect: 80 m (262 ft) Observe: 33 m (109 ft) Recognize: 16 m (52 ft) Identify: 8 m (26 ft)
Angle Adjustment (Manual)
RangePan: 0° to 355° Tilt: 0° to 75°
Illuminator
IR LEDQuantity: 1 Range: 30m Wavelength: 850nm
White LEDQuantity: 1 Range: 30m
Illuminator On/Off ControlAuto/Scheduled/Always on/Always off
Video
Max. Resolution2560 × 1440
Main StreamFrame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2560x1440,2304x1296, 2048x1280, 1920x1080, 1280x720 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-StreamFrame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 640x480,352x288, 320x240 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate ControlCBR, VBR
Video CompressionMain Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264
H.264 TypeMain Profile/High Profile
H.264+Main Stream Supported
H.265 TypeMain Profile
H.265+Main Stream Supported
Video Bit RateMain Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps
Image SettingsMirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°)
Image EnhancementBLC/3D DNR/HLC/SmartIR
Wide Dynamic RangeDWDR
SNR≥ 52 dB
Image Parameters SwitchYes
Privacy MaskUp to 4 Masks
ROI1 Region
OSD SettingYes
Audio
Audio CommunicationN/A
Audio InputYes
Audio OutputN/A
Audio CompressionYes
Audio Sampling Rate8KHz
Environment Noise FilteringYes
Audio Bit Rate64 Kbps(G.711 alaw)
Network
ProtocolTCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
ONVIFYes
APIONVIF
Simultaneous Live View3 Main Streams & 3 Sub-Streams
ClientVIGI App, VIGI Security Manager, VIGI NVR, Web
Web BrowserGoogle Chrome 57 and above Firefox 52 and above Safari 11 and above Microsoft Edge 91 and above
CloudYes
SecurityPassword Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Alarm And Event Management
Smart EventArea Intrusion Detection; Line-Crossing Detection; People Detection; Vehicle Detection; Region Entering Detection; Region Exiting Detection; Object Abandoned Detection; Object Removal Detection; Abnormal Sound Detection
Basic EventMotion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts); Video Tampering Detection; Exception ( Illegal Login)
Alarm LinkageWhite Light Flashing, Message Push
Linkage MethodN/A
Output NotificationMessage Push
Interfaces
Network Interface1 RJ45 10/100M Self-Adaptive Ethernet Port
AlarmN/A
Reset ButtonN/A
PowerDC Power Port
Button-
Video Output-
On-board StorageBuilt-in Memory Card Slot, Support MicroSD Card, Up to 256 GB
Built-in MicrophoneYes
Built-in SpeakerN/A
AudioN/A
General
Operating Temperature-30–60 °C
Storage Temperature-40–60 °C
Operating Humidity95% or Less (Non-Condensing)
Storage Humidity95% or Less (Non-Condensing)
Dimensions( H X W X D )115 × 115 × 86 mm
MaterialPlastic
General FeaturesTwo Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Net Weight0.28 Kg
Gross Weight0.46 Kg
Max. Power Consumption12V DC: Max 5.4W PoE: Class 0
Power Supply12V DC ± 5%, 5.5mm Coaxial Power Plug PoE (802.3af/at, class 0)
Vandal ResistantIK10
ProtectionIP67, IK10
Product Dimensions (L x W x H)115× 86× 115 mm
CertificationsCE/BSMI/VCCI/ONVIF
Video/Image
Video CompressionMain Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264
Frame Rate & ResolutionsMain Stream: Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2560x1440,2304x1296, 2048x1280, 1920x1080, 1280x720 Sub-Stream: Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 640x480,352x288, 320x240
Max. Resolution4MP (2560 × 1440)
Video StreamingMain Stream Sub-Stream
Image SettingsMirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)
Image EnhancementBLC/3D DNR/HLC/SmartIR
Video Bit Rate64 Kbps to 4 Mbps
Day/Night SwitchDay/Night/Auto/Schedule
Smart Feature-Set
Smart EventHuman & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic EventMotion Detection, Camera Tampering Detection, Exception (Illegal Login)
Linkage MethodTrigger Notification: ONVIF, HTTPS
Region of Interest1 Region

Source: TP-Link's published specifications for this model (TP-Link Australia product page). throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories

Source: TP-Link's published package contents.

Who the VIGI C240(2.8mm) is for

Wide coverage from one dome

  • 95.7° horizontal view
  • Detect at 64 m, identify at 6 m
  • Colour or IR at night

Exposed mounting points

  • IK10 vandal-resistant housing
  • IP67 against rain and dust
  • -30 to 60 °C operation

VIGI NVR systems

  • Record to a VIGI NVR or microSD
  • Single-cable PoE wiring
  • Side cable outlet or ceiling routing

VIGI C240(2.8mm) compared

The VIGI C240 and VIGI C250 are both full-colour domes with IK10 and IP67 housings; the C250 steps up to 5MP, a larger sensor and 120 dB WDR. Both are shown with the 2.8 mm lens.

VIGI C240(2.8mm)VIGI C250(2.8mm)
Max. resolution2560 x 1440 (4MP)2880 x 1620 (5MP)
Image sensor1/3-inch CMOS1/2.7-inch CMOS
Horizontal FOV95.7°109°
DORI detect / identify64 m / 6 m64 m / 6 m
Wide dynamic rangeDWDR120 dB
Supplemental light1 IR + 1 white LED, 30 m1 IR + 1 white LED, 30 m
Main-stream bit rateUp to 4 MbpsUp to 6 Mbps
ProtectionIK10, IP67IK10, IP67

Source: TP-Link Australia product pages for each model.

Buy the VIGI C240(2.8mm) from ARC IP Networks

ARC IP Networks supplies TP-Link VIGI products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link VIGI product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the VIGI C240(2.8mm) from the ARC IP Networks team.

Last reviewed October 2026.

The 2.8 mm fixed lens with an F1.6 aperture. It is the wider of the two C240 lens options, with a 95.7-degree horizontal field of view.

TP-Link's DORI figures for the 2.8 mm lens are detect 64 m, observe 27 m, recognise 13 m and identify 6 m.

It has one white LED and one IR LED, each rated to 30 m. Minimum illumination is 0.005 lux in colour and 0 lux with IR or white light, and the illuminators can run on auto, a schedule, always on or always off.

It is rated IP67 for rain and dust and IK10 for vandal resistance, with an operating temperature of -30 to 60 degrees C.

By PoE (802.3af/at, class 0) through the RJ45 port, or by 12 V DC through a 5.5 mm coaxial plug at up to 5.4 W.

It has a built-in microphone that records within a 15-ft radius. There is no built-in speaker, so it does not offer two-way audio.

Yes. It has a built-in microSD slot; the 2.8 mm lens page lists support for cards up to 256 GB. Footage can also be recorded to a VIGI NVR.

Human and vehicle classification, area intrusion, line-crossing, region entering and exiting, object abandoned, object removal and abnormal sound detection, plus motion and video tampering detection.

Through the web UI, a VIGI NVR, the VIGI app or VIGI Security Manager. ONVIF is supported.

Need more than one VIGI C240(2.8mm) for a dome camera installation?

Ask ARC IP Networks for volume and project pricing on TP-Link VIGI products.

Brand TP-Link

Accurate Shipping Costs

Our online shipping calculator is designed to provide a final, accurate shipping cost based on the items in your cart and your delivery postcode. Shipping costs are calculated at checkout based on your order and delivery postcode. The final cost is calculated based on several factors which are automatically accounted for by our system, including:

  • The stock location of the item(s) across our warehouses.
  • Orders with multiple items that may require special packaging.
  • The weight and dimensions of the order (including heavy or oversized items).
  • The delivery courier servicing your specific region.

Delivery Times




Standard Processing


Most orders placed by 2pm AEDT are dispatched for next working day delivery. Larger orders may require 1-2 additional business days for processing. If timing is critical, please contact us to discuss expedited options (additional charges may apply).


Delivery Timeframes


Region

Processing Time

Express Delivery

Standard Delivery

VIC, NSW, SA, QLD Metro, TAS

1-2 business days

1-2 business days

2-4 business days

NT, WA, QLD Rural

1-2 business days

1-2 business days

3-5 business days

New Zealand

1-2 business days

2-3 business days

4-10 business days

Please note: Processing times may extend during peak periods such as Christmas and end of financial year.

Free Warehouse Pickup



Save on shipping costs with free pickup from our ARC IP Networks Blackburn warehouse. Simply place your order online or by phone, and collect during business hours (Monday to Friday). Please allow time for picking and packing. For urgent orders, call 1300 100 440 to confirm your order is ready.

ARC IP Networks Pickup Address: 6 George Street, Blackburn, VIC 3130


Insurance & Tracking



All ARC IP Networks shipments are fully insured and trackable. Once dispatched, you'll receive an email with your tracking number and courier website details. If your item is confirmed lost or damaged by our courier, we'll arrange a replacement in consultation with you.


International Shipping



ARC IP Networks ships to New Zealand. Please note:


  • Import duties and taxes vary by country
  • Buyers are responsible for all customs charges
  • Contact your local customs authority before ordering
  • We'll provide required documentation for smooth customs clearance
  • Buyers cover all shipping costs for returns due to refused duties/taxes


Delivery Requirements


Signature Required


All deliveries must be signed for. If you won't be home, contact our Sales Support team to arrange Authority to Leave. Important: Authority to Leave voids shipping insurance if parcels are lost or stolen.


Delivery Restrictions


We do not deliver to PO Boxes or Parcel Lockers as our couriers cannot access them. Orders sent to these addresses will be returned, incurring redelivery fees.


Shipping Issue Resolution


ARC IP Networks works closely with our shipping partners to resolve any delivery issues quickly and fairly:


  1. Confirmation: We verify expected delivery dates with our shipping partners
  2. Investigation: Issues outside normal timeframes trigger formal investigations
  3. Communication: We keep you updated throughout the resolution process
  4. Resolution: Confirmed lost items are replaced or refunded after investigation completion


Please note: Refunds for lost, missing, or delayed orders cannot be processed until shipping partner investigations are complete. This does not affect your rights under the Australian Consumer Law, and refunds or replacements will be provided where required once loss or damage is confirmed.

Warranty & Faulty Products

ARC IP Networks complies with the Australian Consumer Law (ACL).

If a product is faulty, damaged, not of acceptable quality, or does not perform as advertised, you are entitled to a repair, replacement, or refund in accordance with ACL.

Manufacturer Warranty Returns

For faults developing after 14 days within the warranty period:

  • Contact ARC IP Networks first at info@arcip.com.au or 1300 100 440
  • We will assess the issue and coordinate with manufacturers, authorised service centres, or distributors on your behalf
  • Where required, a manufacturer RMA may be arranged
  • ARC IP Networks manages the return process and next steps

Dead on Arrival (DOA)

Products that arrive faulty or damaged must be reported within 14 days of delivery.

ARC IP Networks will arrange assessment, replacement, or refund as appropriate.

Change of Mind & Non-Faulty Returns

Change-of-mind returns must be requested within 14 days of delivery. For change-of-mind returns, the product must be unused, unopened, in its original packaging, and returned with all accessories and documentation. These conditions apply only to change-of-mind returns and do not limit or exclude your rights under the Australian Consumer Law. Some products are not eligible for change-of-mind returns, including:

  • Ex-demo products
  • Clearance or markdown items
  • Special-order items
  • Products clearly marked “No Change-of-Mind Returns”

Important

This does not affect your rights under Australian Consumer Law.

If a product is faulty, not of acceptable quality, or does not meet advertised specifications, it remains eligible for return regardless of category.

Refunds & Processing Timeframes

  • Approved refunds are processed within 7 business days of receiving returned goods
  • Refunds are issued to the original payment method, unless otherwise agreed
  • Replacement or repair may be offered where appropriate
  • Store credit may be offered only with customer consent

Handling fees and non-returnable service charges may not be refundable where permitted by law.


Restocking Fees

For approved change-of-mind or non-faulty returns, a 15% restocking fee applies.

  • Any applicable restocking fee will be clearly communicated prior to return approval
  • The fee will be deducted from the refund amount
  • Restocking fees do not apply to returns made under the Australian Consumer Law, including faulty, damaged, or misrepresented goods.

Return Shipping Costs

  • Change-of-mind returns: The customer is responsible for return shipping costs.
  • Faulty or defective products: ARC IP Networks covers return shipping under Australian Consumer Law.

Non-Warranty Repairs

For issues not covered by warranty:

  • ARC IP Networks will provide a quote before proceeding
  • Customers are responsible for all shipping and service costs
  • No repairs are undertaken without customer approval

Return Methods

Returns may be made:

  • In-store at ARC IP Networks – 6 George Street, Blackburn VIC 3130
  • Or by shipment as instructed by our support team

Proof of purchase is required for all returns.

Enquire About this Product


Any questions about this product? Fill out the form below, and we'll get back to you soon!
