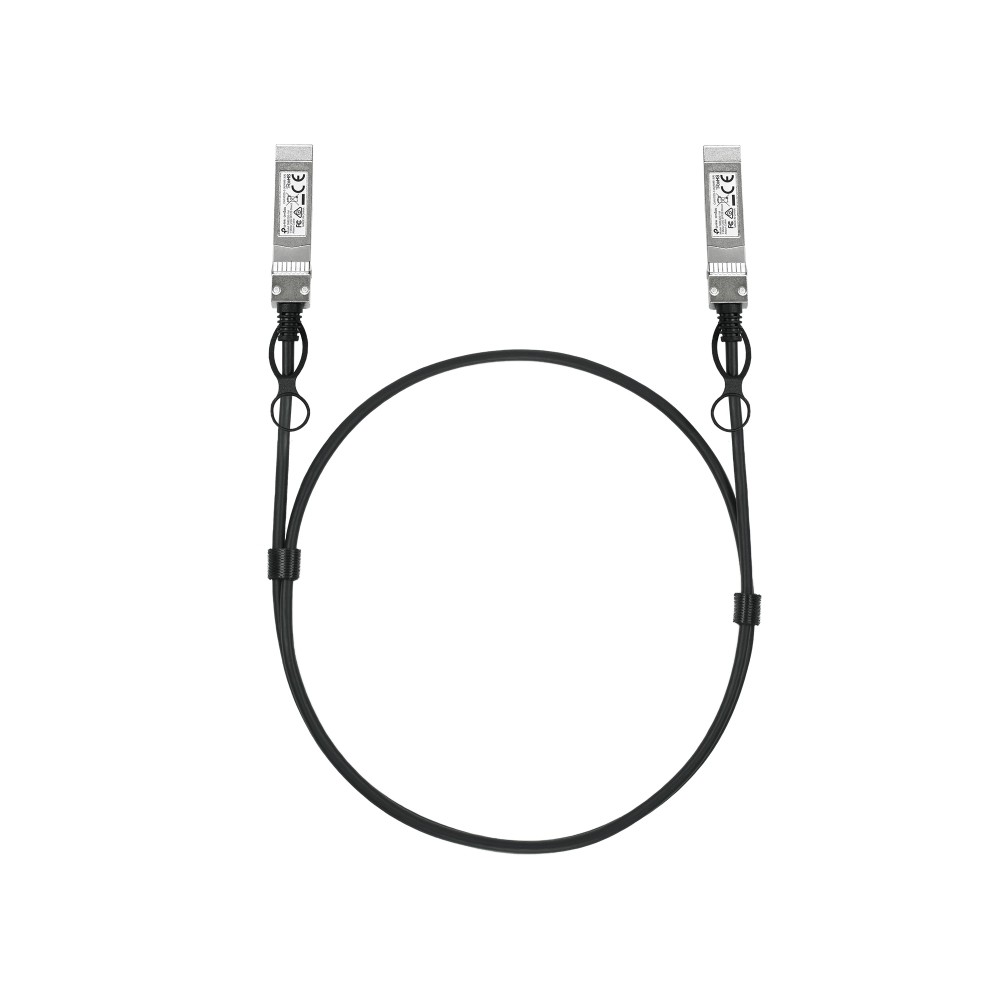

TP-Link SM6220-1M Omada 1 Metre 25G SFP28 Direct Attach Cable

https://arcip.com.au/web/image/product.template/9385/image_1920?unique=945ad85

The TP-Link SM6220-1M is a 1 metre 25G SFP28 direct attach cable in the Omada accessory range. It is a passive twin-ax assembly with an SFP28 connector on both sides, rated for 25 Gbps, 10 Gbps and 1 Gbps data rates over a maximum cable length of 1 m. Conductors are 30AWG silver-plated copper. The overall length is 1,000 mm, operating temperature 0 to 70 °C and storage -40 to 85 °C. For short links within a rack or to an adjacent rack.

$ 66.22 66.22 AUD $ 66.22 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

In stock online
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
TL-SM6220-1M
Barcode
8885020624052

The TP-Link SM6220-1M is an Omada 1 metre 25G SFP28 direct attach cable. It is a passive twin-ax cable assembly with an SFP28 connector on each side, supporting 25, 10 and 1 Gbps data rates over 1 m, with 30AWG silver-plated copper conductors. TP-Link positions it as a cost-effective way to connect within racks and across adjacent racks.

SM6220-1M overview

The SM6220-1M is TP-Link's Omada 1 Meter 25G SFP28 Direct Attach Cable, hardware version V1. It is a passive twin-ax cable assembly of 1 metre with an SFP28 connector on each side, so a 25G link between two SFP28 ports needs no separate transceivers or fibre patch lead. TP-Link's datasheet highlights are a 25G SFP28 connector on both sides and the ability to drive 25 Gigabit Ethernet over a 1 m distance, and TP-Link describes it as suitable for short distances and a cost-effective way to connect within racks and across adjacent racks.

The listed data rates are 25 Gbps, 10 Gbps and 1 Gbps. That is the main difference from the 10G-only SM5220-1M SFP+ DAC: the SM6220-1M is built for SFP28 ports running at 25 Gbps, while TP-Link also lists 10 Gbps and 1 Gbps rates. Conductors are silver-plated copper with a 30AWG wire gauge, and the maximum cable length is 1 m, with an overall assembly length of 1,000 mm (39.37 in).

When routing the cable, respect the minimum bend radius. TP-Link's AU web specification lists 22.5 mm, while the datasheet lists 23 mm; allowing at least 23 mm covers both. The plug dimensions are given as 57.5 x 13.55 x 8.55 mm on the web page and 58 x 13.6 x 8.5 mm in the datasheet, effectively the same size. The SM6220-1M is rated for 0 to 70 °C operation and -40 to 85 °C storage, with 10 to 90% RH non-condensing operating humidity and 5 to 90% RH non-condensing storage humidity.

A direct attach cable keeps a short 25G link simple: one part per link, no separate optics to match or clean, and connectors fitted at the factory. Because the SM6220-1M is a fixed 1 m assembly, it suits ports that sit close together, such as a switch and a server in the same rack, or two switches in adjacent racks. Longer routes, or links that leave the rack row, need a longer assembly or optical modules with fibre. As with any twin-ax cable, avoid sharp bends near the plugs and keep to the minimum bend radius above.

Before ordering, check that both devices have SFP28 ports and that the ports are within 1 m of each other along the cable path. For 10G SFP+ ports the SM5220-1M is the matching 1 m cable, and for 100G QSFP28 ports TP-Link offers the SM9220-1M.

Key features

SFP28 on both ends

Fixed SFP28 connectors, no transceivers needed.

25 / 10 / 1 Gbps

Data rates listed by TP-Link.

Drives 25GbE over 1 m

Datasheet highlight.

Passive twin-ax

A passive cable assembly.

30AWG silver-plated copper

Conductor and wire gauge.

Minimum bend radius

22.5 mm (web) / 23 mm (datasheet).

0 to 70 °C operating

Storage -40 to 85 °C.

In-rack connections

Within racks and across adjacent racks.

SM6220-1M specifications

At a glance

SFP28 to SFP28
25 / 10 / 1 Gbps
1 m length
Passive twin-ax
30AWG silver-plated copper
Min. bend radius 23 mm
0 to 70 °C operating
Omada accessory
SM6220-1M full specifications
General
Product DimensionsPlug: 2.26 0.53 0.34 in (57.5 13.55 8.55 mm);; Overall length: 39.37 in (1,000 mm)
SFP28 Cable
EnvironmentOperating Temperature: 0–70 ℃ (32–158 ℉); Storage Temperature: -40–85 ℃ (-40–185 ℉); Operating Humidity: 10–90% RH non-condensing; Storage Humidity: 5–90% RH non-condensing
Data Rate25 Gbps / 10 Gbps / 1 Gbps
ConductorSilver Plated Copper
Wire Gauge30AWG
Min. Bend Radius22.5mm
Max. Cable Length1 m

Source: TP-Link's published specifications for this model (TP-Link Australia product page and datasheet). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

Who the SM6220-1M is for

25G links

  • SFP28 on both ends
  • 25 Gbps data rate
  • No transceivers

Rack interconnects

  • 1 m length
  • Within or between adjacent racks
  • Passive cable

SM6220-1M compared

The SM6220-1M and SM5220-1M are both 1 m passive Omada direct attach cables. The SM6220-1M uses SFP28 connectors for 25G; the SM5220-1M uses SFP+ for 10G. The SM9220-1M is the 100G QSFP28 cable in the same 1 m family.

FeatureSM6220-1MSM5220-1MSM9220-1M
ConnectorSFP28SFP+QSFP28 to QSFP28
Data rate25 / 10 / 1 Gbps10 Gbps100 / 40 Gbps
Wire gauge30AWGNot listed30AWG
Min. bend radius22.5 mm (web) / 23 mm (datasheet)Not listed33 mm
Storage temperature-40 to 85 °C-40 to 80 °C-40 to 85 °C

Source: TP-Link Australia product pages for each model.

Buy the SM6220-1M from ARC IP Networks

ARC IP Networks supplies TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the SM6220-1M from the ARC IP Networks team.

Last reviewed October 2026.

A 1 metre passive twin-ax direct attach cable with an SFP28 connector on each end.

TP-Link lists 25 Gbps, 10 Gbps and 1 Gbps.

1 m, with an overall assembly length of 1,000 mm.

No. The SFP28 connectors are part of the cable.

TP-Link lists 22.5 mm on its AU web page and 23 mm in the datasheet.

30AWG silver-plated copper.

Short distances, connecting within racks and across adjacent racks.

0 to 70 °C operating and -40 to 85 °C storage.

Yes, the SM5220-1M is TP-Link's 1 m 10G SFP+ direct attach cable.

The AU web page lists 57.5 x 13.55 x 8.55 mm per plug; the datasheet lists 58 x 13.6 x 8.5 mm.

10 to 90% RH non-condensing in operation and 5 to 90% RH non-condensing in storage.

Yes, the SM9220-1M is TP-Link's 1 m 100G QSFP28 direct attach cable.

When the two SFP28 ports are more than 1 m apart along the cable route.

Both operate from 0 to 70 °C. The SM6220-1M is rated for storage from -40 to 85 °C, the SM5220-1M from -40 to 80 °C.

TP-Link Australia lists it as an Omada accessory, in the module and cable category.
