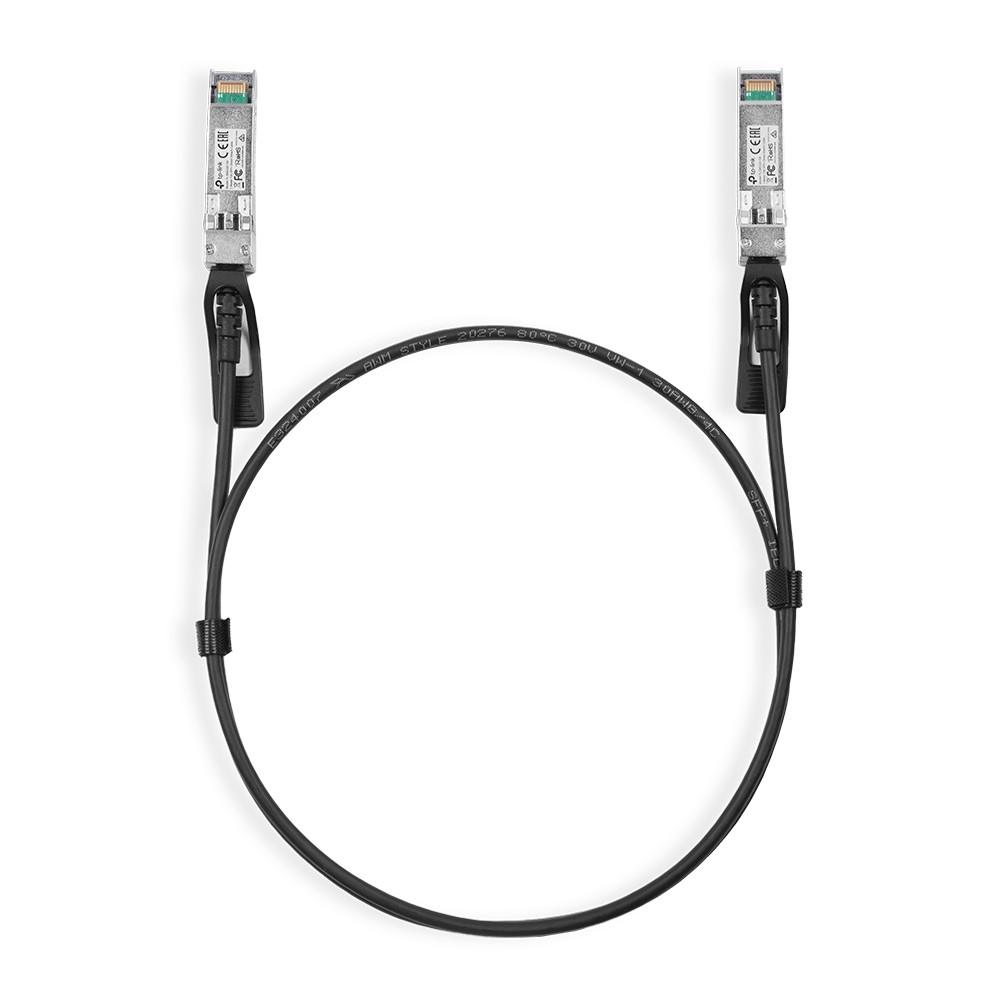

TP-Link SM5220-1M Omada 1 Metre 10G SFP+ Direct Attach Cable

https://arcip.com.au/web/image/product.template/9383/image_1920?unique=874d354

The TP-Link SM5220-1M is a 1 metre 10G SFP+ direct attach cable (DAC) in the Omada accessory range. It is a passive twin-ax assembly with a 10G SFP+ connector on both sides, supporting a 10 Gbps data rate over a maximum cable length of 1 m, with silver-plated copper conductors. Each plug measures 57.5 x 13.55 x 8.55 mm and the overall length is 1,000 mm. Operating temperature is 0 to 70 °C and storage -40 to 80 °C. Suited to short links within a rack or between adjacent racks.

$ 43.32 43.32 AUD $ 43.32 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

In stock online
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
TL-SM5220-1M
Barcode
4897098682814

The TP-Link SM5220-1M (TL-SM5220-1M) is an Omada 1 metre 10G SFP+ direct attach cable. It is a passive twin-ax cable assembly with an SFP+ connector on each end, driving 10 Gigabit Ethernet over 1 m. TP-Link positions it as a cost-effective way to connect devices within a rack or across adjacent racks. The conductor is silver-plated copper, and it is rated for 0 to 70 °C operation.

SM5220-1M overview

The SM5220-1M is TP-Link's Omada 1 Meter 10G SFP+ Direct Attach Cable, hardware version V1, also listed by TP-Link Australia as TL-SM5220-1M. A direct attach cable, or DAC, replaces a pair of optical transceivers and a fibre patch lead with a single assembly: the SM5220-1M is a passive twin-ax cable of 1 metre with an SFP+ connector permanently fitted to each end. Each end plugs into an SFP+ port, giving a 10 Gbps link without separate transceivers.

TP-Link's highlights for the SM5220-1M are a 10G SFP+ connector on both sides and the ability to drive 10 Gigabit Ethernet over a 1 m distance. The data rate is 10 Gbps and the maximum cable length is 1 m. TP-Link describes it as suitable for short distances and as a cost-effective way to connect within racks and across adjacent racks. The conductor is silver-plated copper.

Physically, each plug measures 57.5 x 13.55 x 8.55 mm (2.26 x 0.53 x 0.34 in), and the overall assembly length is 1,000 mm (39.37 in). Because the length is fixed, measure the path between the two ports before ordering: 1 m is right for adjacent ports in the same rack or between neighbouring rack units, while a longer run needs a longer DAC or an optical link. The environmental rating is 0 to 70 °C for operation and -40 to 80 °C for storage, with 10 to 90% RH non-condensing operating humidity and 5 to 90% RH non-condensing storage humidity.

Using a DAC rather than two transceivers and a patch lead also simplifies spares and cabling inside a rack: there is one part per link, nothing to clean or align, and the connectors are matched at the factory. The trade-off is reach and flexibility. The SM5220-1M is fixed at 1 m, so it suits ports that sit close together, such as a switch uplink to the switch directly above or below it, or a switch to a server in the same or the next rack. Routes longer than 1 m, or runs between rooms, need a longer cable assembly or an optical module and fibre.

The SM5220-1M is an SFP+ to SFP+ cable, so check that both ends of the link are SFP+ ports running at 10 Gbps and confirm compatibility with the equipment at each end. For 25 Gbps SFP28 ports, the SM6220-1M is the matching 1 m SFP28 DAC, and for 100G QSFP28 ports there is the SM9220-1M.

Key features

10G SFP+ on both ends

Fixed SFP+ connectors, no separate transceivers needed.

10 Gbps data rate

Drives 10 Gigabit Ethernet over 1 m.

Passive twin-ax

A passive direct attach cable assembly.

1 m length

Overall assembly length 1,000 mm.

Silver-plated copper

Conductor material listed by TP-Link.

In-rack connections

Cost-effective links within and between adjacent racks.

0 to 70 °C operating

Storage -40 to 80 °C.

Compact plugs

57.5 x 13.55 x 8.55 mm per plug.

SM5220-1M specifications

At a glance

SFP+ to SFP+
10 Gbps
1 m length
Passive twin-ax
Silver-plated copper
0 to 70 °C operating
Omada accessory
Plug 57.5 x 13.55 x 8.55 mm
SM5220-1M full specifications
General
Product DimensionsPlug: 2.26 0.53 0.34 in (57.5 13.55 8.55 mm);; Overall length: 39.37 in (1,000 mm)
SFP+ Cable
Max. Cable Length1 m
Data Rate10 Gbps
EnvironmentOperating Temperature: 0–70 ℃ (32–158 ℉) Storage Temperature: -40–80 ℃ (-40–176 ℉) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing
ConductorSilver Plated Copper

Source: TP-Link's published specifications for this model (TP-Link Australia product page and datasheet). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

Who the SM5220-1M is for

Switch-to-switch 10G links

  • SFP+ on both ends
  • 1 m within a rack
  • No transceivers to buy

Servers and NAS

  • 10 Gbps link
  • Passive cable
  • Adjacent racks

SM5220-1M compared

TP-Link's 1 m Omada direct attach cables differ by connector and data rate. Choose the one that matches the ports at both ends. The SM9220-1M is the 100G QSFP28 cable in the same 1 m family.

FeatureSM5220-1MSM6220-1MSM9220-1M
ConnectorSFP+ to SFP+SFP28 to SFP28QSFP28 to QSFP28
Data rate10 Gbps25 / 10 / 1 Gbps100 / 40 Gbps
Length1 m1 m1 m
ConductorSilver-plated copperSilver-plated copper, 30AWGSilver-plated copper, 30AWG
Storage temperature-40 to 80 °C-40 to 85 °C-40 to 85 °C

Source: TP-Link Australia product pages for each model.

Buy the SM5220-1M from ARC IP Networks

ARC IP Networks supplies TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the SM5220-1M from the ARC IP Networks team.

Last reviewed October 2026.

A 1 metre passive twin-ax direct attach cable with a 10G SFP+ connector on each end.

Yes. TP-Link Australia lists it as SM5220-1M (TL-SM5220-1M).

10 Gbps.

1 m; the overall assembly length is 1,000 mm.

No. The SFP+ connectors are part of the cable.

Passive: TP-Link describes it as a passive twin-ax cable assembly.

Short distances, connecting within racks and across adjacent racks.

0 to 70 °C operating and -40 to 80 °C storage.

For 25 Gbps SFP28 ports, TP-Link offers the SM6220-1M SFP28 direct attach cable.

Each plug measures 57.5 x 13.55 x 8.55 mm (2.26 x 0.53 x 0.34 in).

Silver-plated copper.

10 to 90% RH non-condensing in operation and 5 to 90% RH non-condensing in storage.

When the two ports are more than 1 m apart along the cable route, as the SM5220-1M is a fixed 1 m assembly.

Both are rated for 0 to 70 °C in operation. Storage is -40 to 80 °C for the SM5220-1M and -40 to 85 °C for the SM6220-1M.

It is listed by TP-Link Australia as an Omada accessory, in the module and cable category.

Need more than one SM5220-1M for a 10G rack interconnect?

Ask ARC IP Networks for volume and project pricing on TP-Link Omada products.
