TP-Link SG6428X Omada 24-Port Gigabit Stackable L3 Managed Switch with 4 10G SFP+ Slots

Price:

$ 2,816.56


TP-Link FC111PB-20 10/100Mbps WDM Media Converter with 1-Port PoE
TP-Link FC111PB-20 10/100Mbps WDM Media Converter with 1-Port PoE
$ 52.51
$ 52.51
TP-Link SG6428XHP Omada 24-Port Gigabit Stackable L3 Managed PoE+ Switch with 4 10G Slots
TP-Link SG6428XHP Omada 24-Port Gigabit Stackable L3 Managed PoE+ Switch with 4 10G Slots
$ 4,056.37
$ 4,056.37

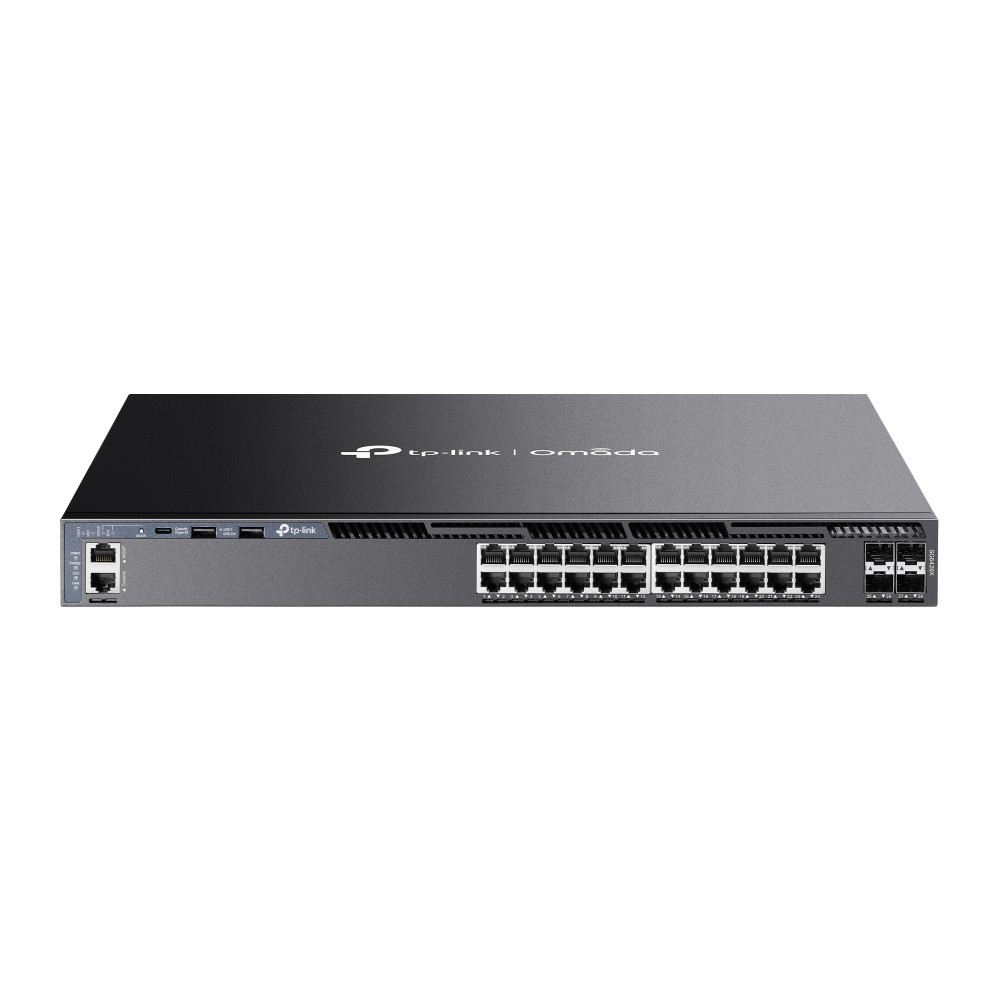

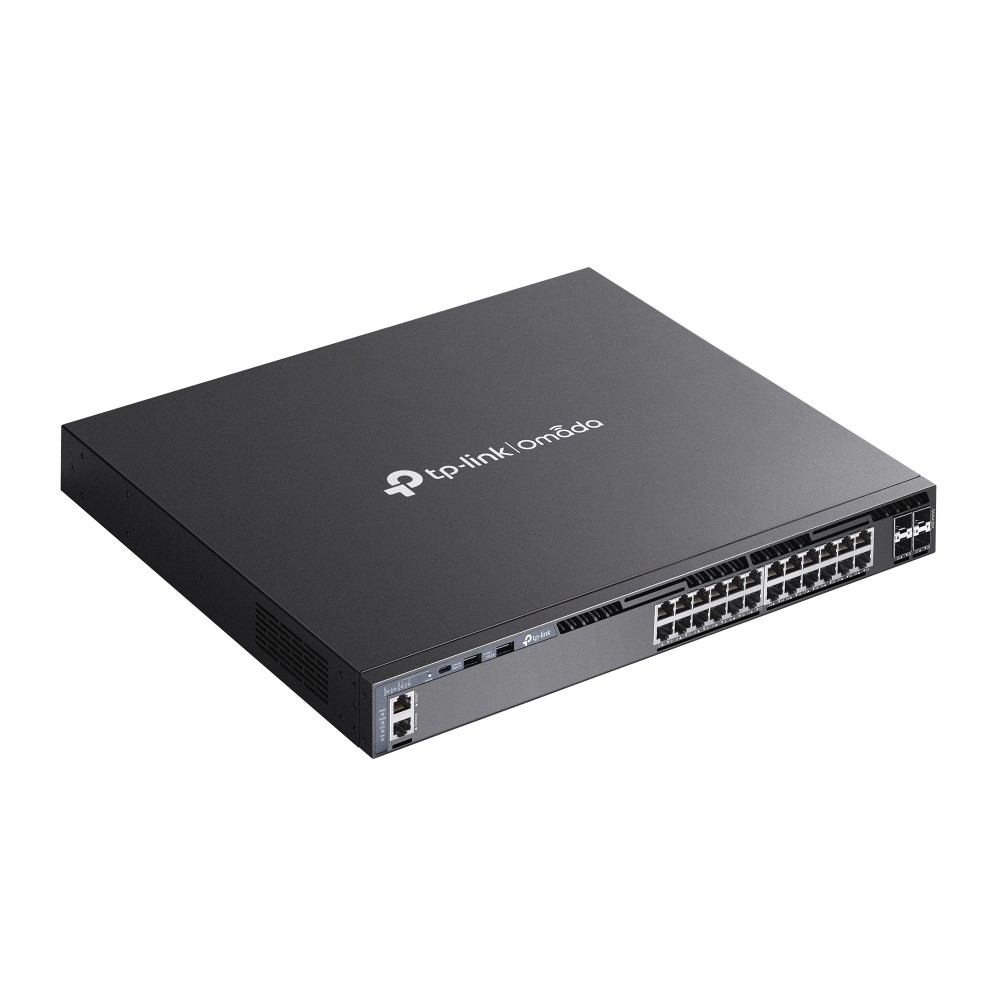

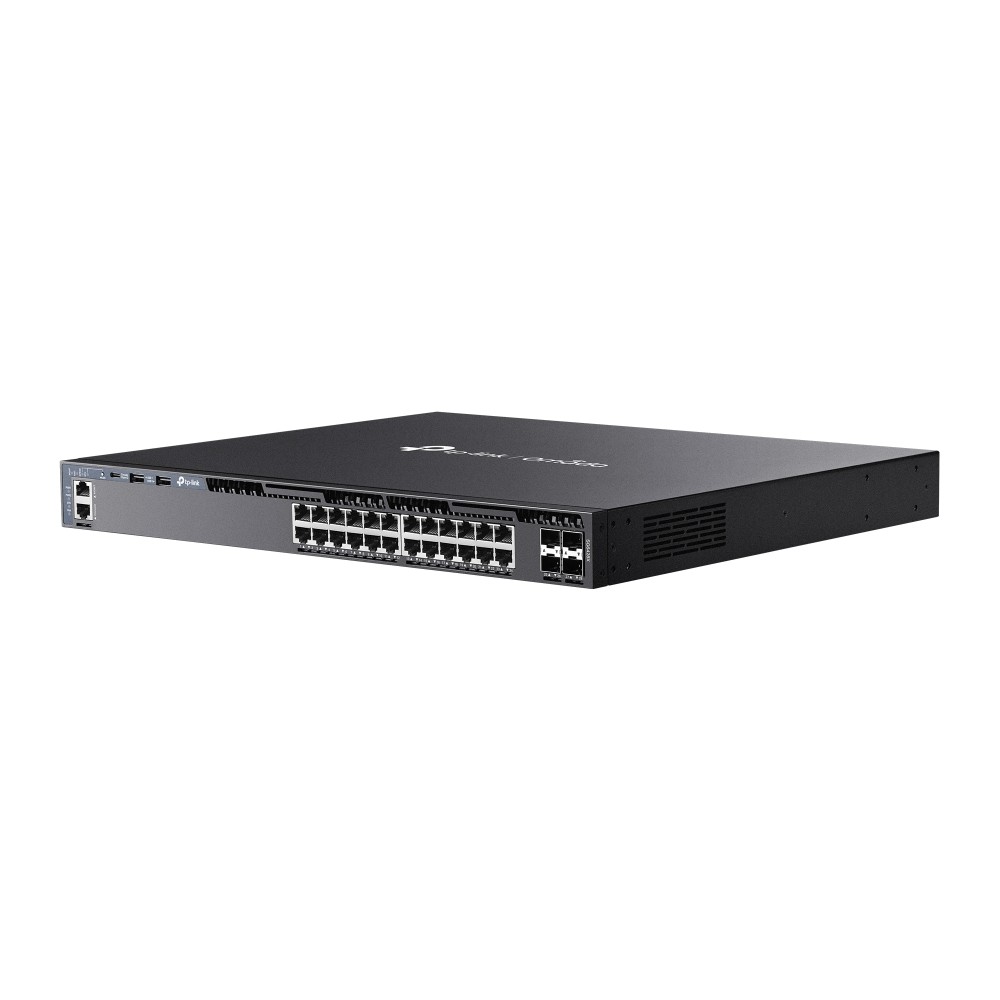

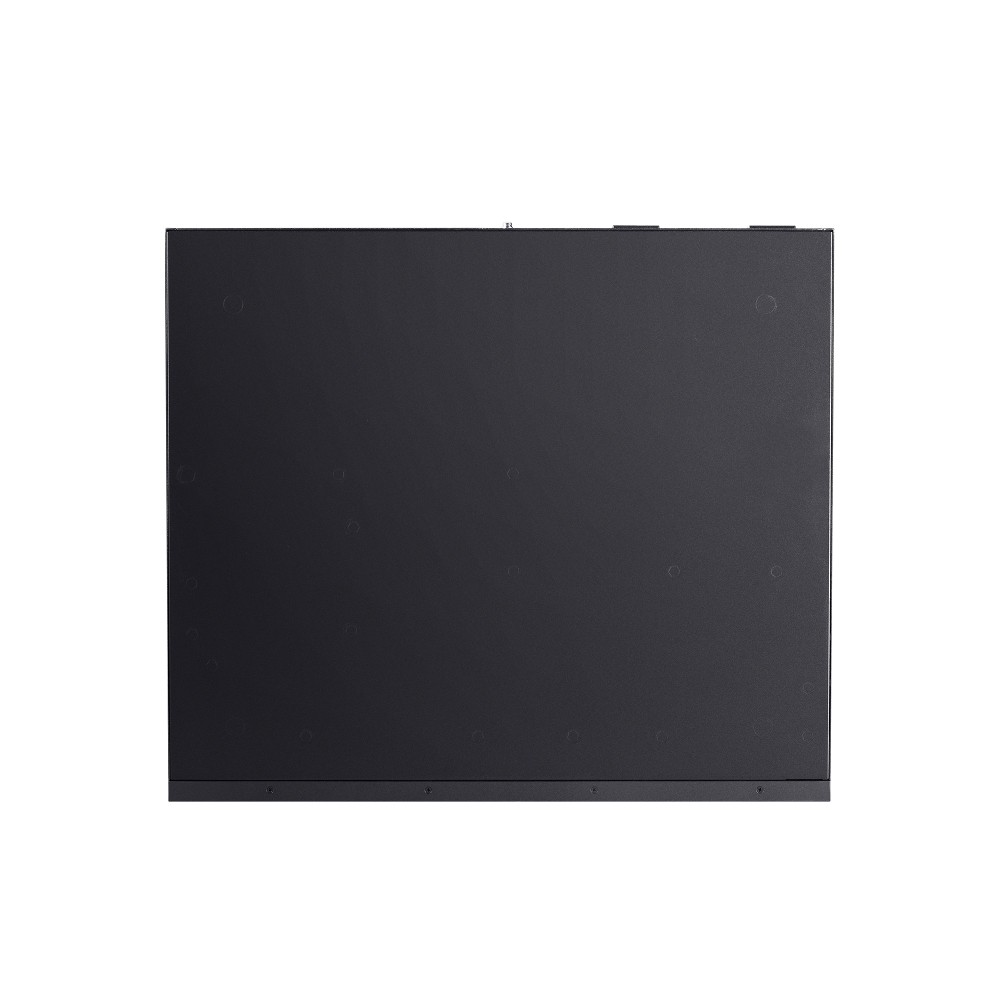

TP-Link SG6428X Omada 24-Port Gigabit Stackable L3 Managed Switch with 4 10G SFP+ Slots

https://arcip.com.au/web/image/product.template/9376/image_1920?unique=874d354

The TP-Link SG6428X is an Omada stackable L3 managed switch with 24 10/100/1000 Mbps RJ45 ports, 4 10G SFP+ slots, 2 USB 2.0 ports, RJ45 and USB Type-C console ports and an RJ45 management port. It has two internal fixed power supply modules and four fans. L3 features include up to 256 IP interfaces, 1,024 static routes, RIP, OSPF v2/v3, VRRP and ECMP. Stacking reaches 8 switches standalone or 4 in Omada mode. 128 Gbps per unit, 32K MAC table, 440 x 380 x 44 mm.

$ 2,816.56 2816.56 AUD $ 2,816.56 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
TL-SG6428X
Barcode
4895252501476

The TP-Link SG6428X is an Omada 24-port gigabit stackable L3 managed switch with 4 10G SFP+ slots. It has two internal fixed power supply modules, four fans, a dedicated RJ45 management port and a 32K MAC table, and supports full L3 routing including static routes, RIP, OSPF v2/v3, VRRP and ECMP. Up to 8 switches stack in standalone mode, or 4 under an Omada controller.

SG6428X overview

The SG6428X is TP-Link's Omada 24-Port Gigabit Stackable L3 Managed Switch with 4 10G Slots, hardware version V1, in the Omada Campus range. It steps up from the Lite L3 SG5428 models to a full L3 feature set and redundant power. Ports are twenty-four 10/100/1000 Mbps RJ45, four 10G SFP+ slots, two USB 2.0 ports, an RJ45 console port, a USB Type-C console port and a dedicated RJ45 management port for out-of-band access. There is no PoE on this model; the SG6428XHP is the PoE+ version.

Resilience is built into the hardware. The SG6428X has two internal fixed power supply modules (100 to 240 V AC, 50/60 Hz), and two power cords are included. Four internal fixed fans handle cooling. The chassis is 440 x 380 x 44 mm and rack mountable, maximum power consumption is 28.4 W at 220 V/50 Hz, and operating temperature is 0 to 45 °C.

The L3 feature set covers up to 256 IPv4 and 256 IPv6 interfaces, up to 1,024 IPv4 and 512 IPv6 static routes, a 6,100-entry host route table, RIP v1/v2, OSPF v2/v3, VRRP v2/v3 with up to 64 groups, and ECMP with 256 entries and up to 32 next hops per destination. L2 features include link aggregation, spanning tree, loopback detection, ERPS, RSPAN, PIM-DM (IPv4), 2,048 IGMP groups, IGMP and MLD snooping and MVR. Performance is 128 Gbps per unit, 95.2 Mpps forwarding, a 32K MAC table, a 3 MB buffer and 9 KB jumbo frames.

Stacking uses the 10G SFP+ slots (all uplink ports can be stacking ports) at 20 Gbps per port full-duplex, with up to 8 switches in standalone mode or 4 in Omada controller mode. For centralised management it works with the Omada Cloud-Based, Hardware and Software Controllers. The box contains the switch, two power cords, an RJ45 console cable, a quick installation guide, a rackmount kit and rubber feet.

Key features

24 gigabit + 4 x 10G SFP+

Non-PoE access ports with 10G uplinks.

Dual power supplies

Two internal fixed PSU modules; two power cords included.

Full L3 routing

Static routes, RIP, OSPF v2/v3.

VRRP and ECMP

VRRP v2/v3 (64 groups); ECMP up to 32 next hops.

Stacking

Up to 8 switches standalone or 4 in Omada mode.

32K MAC table

128 Gbps per unit, 95.2 Mpps forwarding.

Management port

Dedicated RJ45 management port plus two consoles.

Omada SDN

Cloud, hardware or software controller.

SG6428X specifications

At a glance

24 x gigabit RJ45
4 x 10G SFP+
Full L3: OSPF, VRRP, ECMP
Stacking up to 8 switches
Dual fixed PSUs
32K MAC table
Omada SDN
0 to 45 °C operating
SG6428X full specifications
Hardware Features
Interface24× 10/100/1000 Mbps RJ45 Ports; 4× 10G SFP+ Slots; 2× USB 2.0 Ports; 1× RJ45 Console Port; 1× USB Type-C Console Port; 1× RJ45 Management Port
Fan QuantityFour Internal Fixed Fans
Power SupplyTwo Internal Fixed Power Supply Modules (100–240 VAC, 50/60 Hz)
Dimensions ( W x D x H )17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm)
MountingRackmountable
Max. Power Consumption28.4 W (220 V/50 Hz)
Max. Heat Dissipation96.91 BTU/hr (220 V/50 Hz)
Performance
Packet Buffer Memory3 MB
Jumbo Frame9 KB
StackingStacking Number: 8 in standalone mode, 4 in Omada controller mode; Stacking Port: 10G SFP+ Slot (all uplink ports can be used as stacking ports); Stack Bandwidth: 20 Gbps Per Port (Full-Duplex)
Switching Capacity128 Gbps per Unit
Packet Forwarding Rate95.2 Mpps
MAC Address Table32 K
Software Features
Quality of ServiceClass of Service; 8 Queues of Priority; Port Priority; IEEE 802.1p Priority; DSCP Priority; Queue Min-Bandwidth; Schedule Mode (SP, WRR, SP+WRR); Bandwidth Control; Rate Limit; Storm Control; Voice VLAN; User-Defined OUI; Smoother Performance; Action for Flows; QoS remark (802.1P Remark, DSCP Remark)
L3 FeaturesIP Interfaces:; IPv4: Max 256, IPv6: Max 256; Static Routing; Max 1,024, IPv6: Max 512; Host Route Table: Max 6,100 entries; RIP: Version v1/v2, Max 8,190; OSPF: Version v2/v3; v2: Max 8,190, v3: Max 4,097; VRRP: Version v2/v3, Max 64 groups; ECMP: 256 entries, max 32 ECMP Nexthops per Destination; Static ARP: 512 static entries; Dynamic ARP: 7,680 dynamic entries; Proxy ARP; DHCP Server:; Max 8K IP Pools; Max 1,000 Manual Binding Entries; DHCP Relay:; Relayed Interface; Relayed VLAN
L2 and L2+ FeaturesLink Aggregation; Spanning Tree Protocol; Port-based and VLAN-based Loopback Detection; 802.3x Flow Control; Supports 2,048 IGMP groups; ERPS; Mirroring; RSPAN; MAC Address Table; PIM-DM (IPv4); Multicast; IGMP Snooping; MLD Snooping; L2 Multicast Table; Fast Leave; Multicast VLAN Registration (MVR); Static Multicast IP; Multicast Filtering
Advanced FeaturesAutomatic Device Discovery; Batch Configuration; Batch Firmware Upgrading; Intelligent Network Monitoring; Abnormal Event Warnings; Unified Configuration; Reboot Schedule ISP Features :; 802.3ah Ethernet Link OAM; L2PT (Layer 2 Protocol Tunneling); Device Link Detect Protocol (DLDP); DDM; sFlow
VLANMax 4K VLAN Group (802.1q VLAN); 802.1Q Tagged VLAN; MAC VLAN Entries: 200; Multicast VLAN; Management VLAN; VLAN VPN (QinQ): Max 256 entries; GVRP; Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries; VLAN VPN; Voice VLAN; Private VLAN
SecurityPort Isolation; CPU-Defend; ARP Inspection (Dynamic ARP Inspection); DoS Defend; IP-MAC-Port Binding -1,024 Entries; DHCP Snooping; ARP Inspection; IPv4 Source Guard; IPv6-MAC -Port Binding -1,024 Entries; DHCPv6 Snooping; ND Detection; ND Snooping; IPv6 Source Guard; DHCP Filter; Static/Dynamic Port Security; Up to 64 MAC addresses per port; Broadcast/Multicast/Unknown-unicast Storm Control; kbps/ratio control mode; 802.1X; Port base authentication; Mac base authentication; VLAN Assignment; MAB; Guest VLAN; RADIUS authentication and accountability support; AAA (including TACACS+); Secure web management through HTTPS with SSLv3/TLS 1.2; Secure Command Line Interface (CLI) management with SSHv2; IP/Port/MAC-based access control
Management Features
Omada AppYes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralised ManagementOmada Cloud-Based Controller; Omada Hardware Controller; Omada Software Controller
Cloud AccessYes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch ProvisioningYes. Requiring the use of the Omada Cloud-Based Controller.
Management FeaturesWeb-based GUI; Command Line Interface (CLI) through console port, telnet; SNMPv1/v2c/v3; Trap/Inform; RMON (1, 2, 3, 9 groups); SDM Template; DHCP/BOOTP Client; 802.1ab LLDP/LLDP-MED; DHCP Auto Install; Dual Image, Dual Configuration; CPU Monitoring; Cable Diagnostics; Password Recovery; SNTP; System Log; EEE
Others
System RequirementsMicrosoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux.
EnvironmentOperating Temperature: 0–45 ℃ (32–113 ℉);; Storage Temperature: -40–70 ℃ (-40–158 ℉); Operating Humidity: 10–90% RH non-condensing; Storage Humidity: 5–90% RH non-condensing

Source: TP-Link's published specifications for this model (TP-Link Australia product page). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • SG6428X Switch
  • 2× Power Cords
  • RJ45 Console Cable
  • Quick Installation Guide
  • Rackmount Kit
  • Rubber Feet

Source: TP-Link's published package contents.

Who the SG6428X is for

Core or distribution layer

  • OSPF and VRRP
  • ECMP load sharing
  • Redundant power

Stacked campus switching

  • Up to 8 switches standalone
  • 10G SFP+ stacking
  • Out-of-band management port

SG6428X compared

The SG6428X and SG6428XHP share the same L3 software, stacking and 10G uplinks. The SG6428XHP adds 24 PoE+ ports with up to 720 W and uses hot-swappable PSUs and fans.

FeatureSG6428XSG6428XHP
PoENone24 x PoE+, up to 720 W
Power suppliesTwo internal fixedTwo hot-swappable slots (one PSM500-AC shipped)
FansFour internal fixedFour hot-swappable
Dimensions440 x 380 x 44 mm440 x 420 x 44 mm
Power cords in box21

Source: TP-Link Australia product pages for each model.

Buy the SG6428X from ARC IP Networks

ARC IP Networks supplies TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the SG6428X from the ARC IP Networks team.

Last reviewed October 2026.

Yes. It supports static routing, RIP, OSPF v2/v3, VRRP and ECMP.

It has two internal fixed power supply modules, and two power cords are included.

Up to 8 in standalone mode, or 4 in Omada controller mode.

No. The SG6428XHP is the PoE+ model.

Four 10G SFP+ slots, which can also be used as stacking ports.

Yes, a dedicated RJ45 management port plus RJ45 and USB Type-C console ports.

Yes, via the Omada Cloud-Based, Hardware or Software Controller.

32K.

The switch, two power cords, an RJ45 console cable, a quick installation guide, a rackmount kit and rubber feet.

Need more than one SG6428X for a routed campus core?

Ask ARC IP Networks for volume and project pricing on TP-Link Omada products.
