TP-Link SG2210MP Omada 10-Port Gigabit Smart Switch with 8-Port PoE+

Price:

$ 343.35


TP-Link SG2206MP Omada 6-Port Gigabit Smart Switch with 4-Port PoE+
TP-Link SG2206MP Omada 6-Port Gigabit Smart Switch with 4-Port PoE+
$ 239.21
$ 239.21
TP-Link SG2218P Omada 18-Port Gigabit Smart Switch with 16-Port PoE+
TP-Link SG2218P Omada 18-Port Gigabit Smart Switch with 16-Port PoE+
$ 504.68
$ 504.68

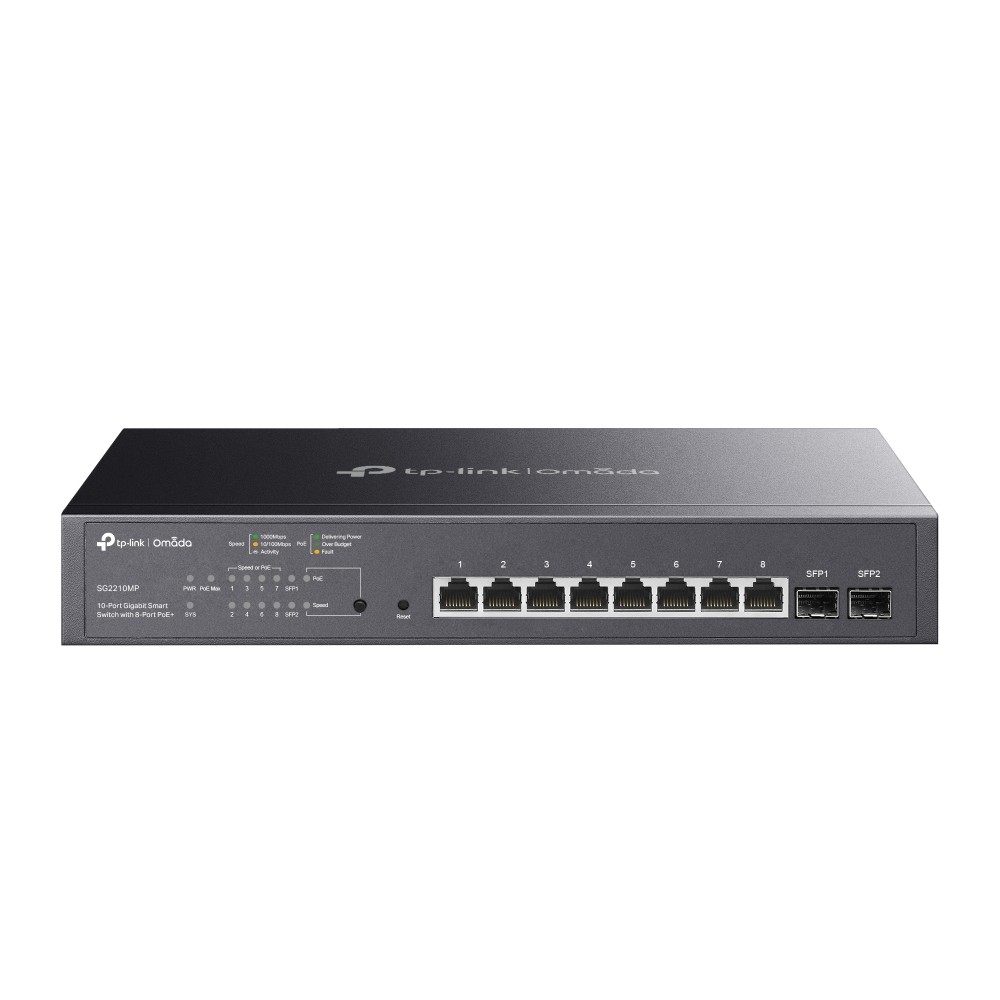

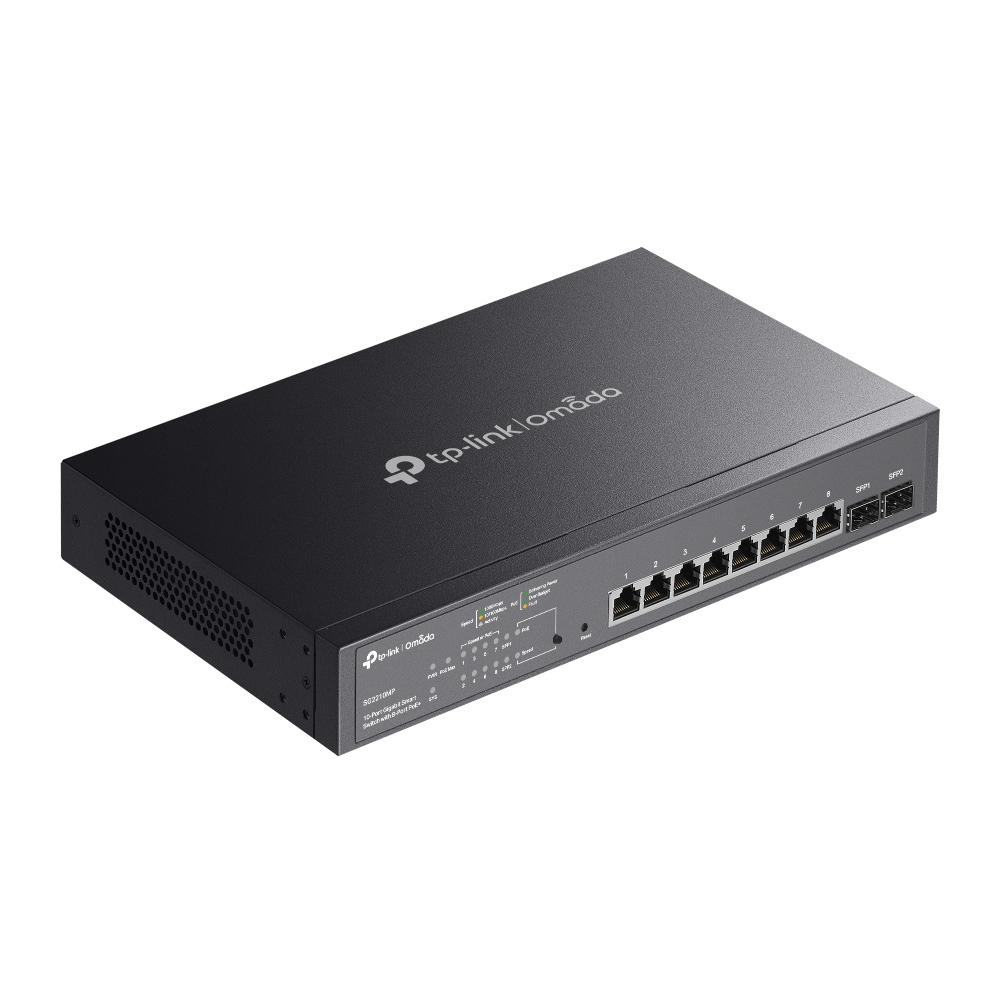

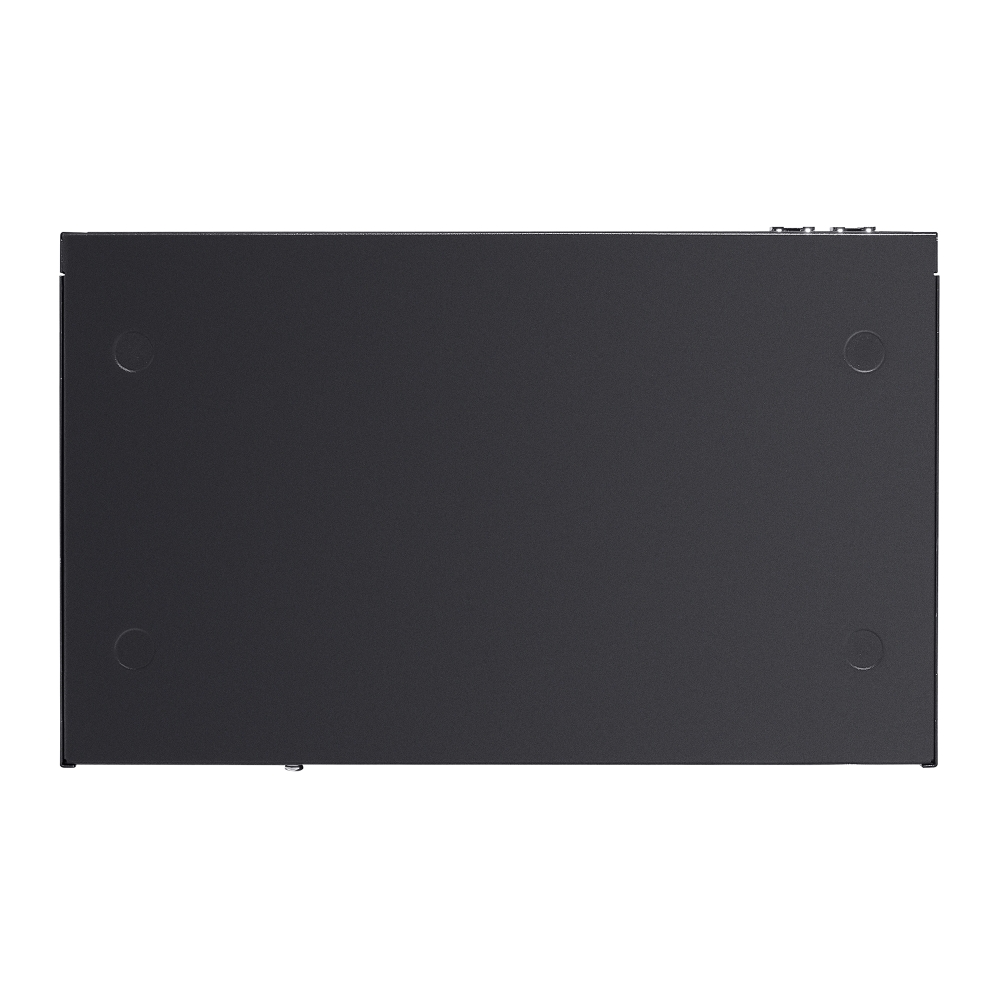

TP-Link SG2210MP Omada 10-Port Gigabit Smart Switch with 8-Port PoE+

https://arcip.com.au/web/image/product.template/9363/image_1920?unique=874d354

The TP-Link SG2210MP is an Omada 10-port gigabit smart switch with eight 10/100/1000 Mbps PoE+ RJ45 ports (802.3at/af, 150 W budget) and two 100/1000 Mbps SFP slots. It is fanless with ±6 kV surge protection, rack or desktop mountable at 294 x 180 x 44 mm, with an internal 100–240 V supply. Omada SDN centralised management, cloud access, the Omada app and zero-touch provisioning are supported, alongside standalone web, CLI, SNMP and RMON. L2+ features include 16 IP interfaces, 32 static routes, DHCP server, VLAN, ACL, 802.1X and QoS. 20 Gbps switching.

$ 343.35 343.35 AUD $ 343.35 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

In stock online
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
TL-SG2210MP
Barcode
1210002611787

The TP-Link SG2210MP is an Omada 10-port gigabit smart switch with 8-port PoE+. All eight RJ45 ports are 802.3af/at PoE+ with a 150 W budget and up to 30 W per port, and two 100/1000 Mbps SFP slots provide uplinks. The current V5.20 hardware is fanless. It supports Omada SDN cloud management via web or the Omada app, plus standalone web, CLI, SNMP and RMON, with static routing, VLAN, ACL, QoS and IGMP snooping.

SG2210MP overview

The SG2210MP (ARC IP code TL-SG2210MP) is TP-Link's Omada 10-Port Gigabit Smart Switch with 8-Port PoE+, current AU hardware version V5.20. It has eight 10/100/1000 Mbps RJ45 ports, all supporting PoE+, and two 100/1000 Mbps SFP slots for fibre uplinks. The PoE+ ports are 802.3at/af compliant, with up to 30 W per port and a 150 W total PoE budget. TP-Link highlights uses with IP cameras for surveillance, IP phones for conference calls and access points for Wi-Fi coverage, and it also works with non-PoE devices such as PCs and printers.

One hardware detail is worth noting: the current V5.20 specification lists a fanless design, so the switch runs silently. TP-Link's page also lists earlier hardware versions (V1 to V5); the details on this page reflect V5.20. The SG2210MP has an internal 100 to 240 V AC power supply, a durable metal casing, a physical security lock and ±6 kV surge protection, and it measures 294 x 180 x 44 mm for rackmount or desktop use; the rackmount kit and rubber feet are in the box with the power cord and installation guide. Operating temperature is 0 to 50 °C. Maximum power consumption is 170.5 W at 220 V/50 Hz with 150 W of PDs connected.

For management, the SG2210MP supports centralised cloud management through the Omada Cloud-Based Controller, Omada Hardware Controller and Omada Software Controller, from the web or the Omada app, with zero-touch provisioning through the Cloud-Based Controller. Controller-based features include automatic device discovery, batch configuration and firmware upgrading, intelligent network monitoring and abnormal event warnings. It can also be managed standalone via web, CLI, SNMP and RMON.

Its L2+ features include 16 IPv4/IPv6 interfaces and static routing with 32 static routes, which helps route internal traffic for higher efficiency, plus DHCP server and relay, static and proxy ARP, link aggregation, spanning tree, loopback detection and 802.3x flow control. VLAN, ACL, QoS and IGMP snooping are supported, with 802.1p CoS/DSCP priority across eight queues, SP and WRR scheduling, bandwidth control and storm control. Performance is 20 Gbps switching capacity, a 14.9 Mpps forwarding rate, an 8K MAC table, a 4.1 Mbit buffer and 9 KB jumbo frames.

Key features

8 PoE+ ports

All eight gigabit RJ45 ports support 802.3at/af PoE+.

150 W PoE budget

Up to 30 W per port.

2 SFP slots

100/1000 Mbps SFP for fibre uplinks.

Fanless (V5.20)

Silent operation, metal casing, ±6 kV surge protection.

Omada SDN

Cloud management via web or Omada app, zero-touch provisioning.

Static routing

16 IP interfaces and 32 static routes, DHCP server.

VLAN, ACL, QoS, IGMP

Eight QoS queues, storm control and IGMP snooping.

Rack or desktop

294 x 180 x 44 mm, internal 100–240 V supply.

SG2210MP specifications

At a glance

8 x gigabit PoE+
2 x gigabit SFP
150 W PoE budget
Fanless (V5.20)
Omada SDN
Static routing
Rack/desktop
0 to 50 °C operating
SG2210MP full specifications
Hardware Features
Interface8× 10/100/1000 Mbps RJ45 Ports, all supporting PoE+ (Auto-Negotiation/Auto MDI/MDIX); 2× 100/1000 Mbps SFP Slots
Fan QuantityFanless Design
Physical Security Lock√
Power Supply100-240V AC, 50/60Hz
PoE Ports (RJ45)Standard: 802.3at/af compliant; PoE+ Ports: 8 Ports; PoE Power Budget: 150 W
Dimensions ( W x D x H )11.6×7.1×1.7 in (294×180×44 mm)
Surge Protection±6 kV
MountingRackmount/Desktop
Max. Power Consumption170.5 W (220 V/50 Hz @ 25 °C) (with 150 W PD connected); 175.6 W (110 V/60 Hz @ 25 °C) (with 150 W PD connected)
Max. Heat Dissipation579.84 BTU/hr (220 V/50 Hz @ 25 °C) (with 150 W PD connected); 597.04 BTU/hr (110 V/60 Hz @ 25 °C) (with 150 W PD connected)
Performance
Packet Buffer Memory4.1 Mbit
Jumbo Frame9 KB
Switching Capacity20 Gbps
Packet Forwarding Rate14.9 Mpps
MAC Address Table8K
Software Features
Quality of Service802.1p CoS/DSCP priority; 8 priority queues; Priority Schedule Mode; SP (Strict Priority); WRR (Weighted Round Robin); Queue Weight Config; Bandwidth Control; Port/Flow based Rating Limit; Smoother Performance; Storm Control; Multiple Control Modes(kbps/ratio); Broadcast/Multicast/Unknown-Unicast Control
L2 and L2+ Features16 IP Interfaces: Support IPv4/IPv6 Interface; Static Routing: 32 IPv4/IPv6 Static Routes; DHCP Server; DHCP Relay; DHCP Interface Relay; DHCP VLAN Relay; DHCP L2 Relay; Static ARP; Proxy ARP; Gratuitous ARP; Link Aggregation; Spanning Tree Protocol; Loopback Detection; 802.3x Flow Control; Mirroring; Device Link Detect Protocol (DLDP); 802.1ab LLDP/ LLDP-MED
L2 Multicast511 IPv4, IPv6 shared multicast groups; IGMP Snooping; Multicast VLAN Registration (MVR); Multicast Filtering; Limited IP Multicast (256 profiles and 16 entries per profile)
Advanced FeaturesAutomatic Device Discovery; Batch Configuration; Batch Firmware Upgrading; Intelligent Network Monitoring; Abnormal Event Warnings; Unified Configuration; Reboot Schedule
VLANVLAN Group; Max. 4K VLAN Groups; 802.1Q tag VLAN; MAC VLAN: 12 Entries; Protocol VLAN; GVRP; Voice VLAN
Access Control ListSupport up to 230 entries; Time-based ACL; MAC ACL; IP ACL; IPv6 ACL; Combined ACL; Rule Operation: Permit/Deny; Policy Action; Mirroring; Redirect; Rate Limit; QoS Remark; ACL Rules Binding; Port Binding; VLAN Binding
SecurityIP-MAC-Port Binding; AAA; 802.1X; Port-based authentication; MAC (Host) based authentication; Authentication Method includes PAP/EAP-MD5; MAB; Guest VLAN; Support Radius authentication and accountability; IP/IPv6-MAC Binding; 512 Binding Entries; DHCP Snooping; DHCPv6 Snooping; ARP Inspection; ND Detection; IP Source Guard; 253 Entries; Source IP+Source MAC; IPv6 Source Guard; 183 Entries; Source IPv6 Address+Source MAC; DoS Defend; Static/Dynamic/Permanent Port Security; Up to 64 MAC addresses per port; Broadcast/Multicast/Unicast Storm Control; kbps/ratio control mode; Port Isolation; Secure web management through HTTPS with SSLv3/TLS 1.2; Secure Command Line Interface (CLI) management with SSHv1/SSHv2; IP/Port/MAC-based access control
IPv6IPv6 Static Routing and ACL; IPv6 Dual IPv4/IPv6; IPv6 Interface; Multicast Listener Discovery (MLD) Snooping; IPv6 neighbor discovery (ND); Path maximum transmission unit (MTU) discovery; Internet Control Message Protocol (ICMP) version 6; TCPv6/UDPv6; IPv6 applications; DHCPv6 Client; Ping6; Tracert6; Telnet(v6); IPv6 SNMP; IPv6 SSH; IPv6 SSL; Http/Https; IPv6 TFTP
MIBsMIB II (RFC1213); Bridge MIB (RFC1493); P/Q-Bridge MIB (RFC2674); Radius Accounting Client MIB (RFC2620); Radius Authentication Client MIB (RFC2618); Remote Ping, Traceroute MIB (RFC2925); Support TP-Link private MIBs; RMON MIB(RFC1757, rmon 1,2,3,9)
Management Features
Omada AppYes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralised ManagementOmada Cloud-Based Controller; Omada Hardware Controller; Omada Software Controller
Cloud AccessYes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch ProvisioningYes. Requiring the use of Omada Cloud-Based Controller
Management FeaturesWeb-based GUI; Command Line Interface (CLI) through telnet; SNMPv1/v2c/v3; SNMP Trap/Inform; RMON (1,2,3,9 groups); SDM Template; DHCP/BOOTP Client; Dual Image, Dual Configuration; CPU Monitoring; Cable Diagnostics; EEE; SNTP; System Log
Others
CertificationCE, FCC
System RequirementsMicrosoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux.
EnvironmentOperating Temperature: 0–50 ℃ (32–122 ℉);; Storage Temperature: -40–70 ℃ (-40–158 ℉); Operating Humidity: 10–90% RH non-condensing; Storage Humidity: 5–90% RH non-condensing

Source: TP-Link's published specifications for this model (TP-Link Australia product page and datasheet). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • SG2210MP
  • Power Cord
  • Installation Guide
  • Rackmount Kit
  • Rubber Feet

Source: TP-Link's published package contents.

Who the SG2210MP is for

Omada-managed PoE edge

  • Cloud management and app
  • Eight PoE+ ports
  • Zero-touch provisioning

Cameras, phones and APs

  • 150 W budget
  • Up to 30 W per port
  • Fanless for quiet rooms

SG2210MP compared

The SG2210MP and SG2218P are Omada smart switches with the same 150 W PoE budget. The SG2210MP has 8 PoE+ ports and is desktop/rack; the SG2218P has 16 PoE+ ports in a 19-inch chassis.

FeatureSG2210MPSG2218P
PoE+ ports816
SFP slots2 x 100/1000 Mbps2 x gigabit
PoE budget150 W150 W
Switching capacity20 Gbps36 Gbps
Dimensions294 x 180 x 44 mm440 x 180 x 44 mm
Operating temperature0–50 °C0–45 °C

Source: TP-Link Australia product pages for each model.

Buy the SG2210MP from ARC IP Networks

ARC IP Networks supplies TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the SG2210MP from the ARC IP Networks team.

Last reviewed October 2026.

All eight RJ45 ports support 802.3at/af PoE+.

150 W in total, up to 30 W per port.

The current V5.20 hardware specification lists a fanless design.

Yes, two 100/1000 Mbps SFP slots.

Yes, through the Omada Cloud-Based, Hardware or Software Controller, via the web or the Omada app.

Yes, via web GUI, CLI, SNMP and RMON.

Yes, with 16 IP interfaces and 32 static routes.

Yes. It is rackmount or desktop, and a rackmount kit and rubber feet are included.

The SG2210MP, a power cord, an installation guide, a rackmount kit and rubber feet.

Need more than one SG2210MP for an Omada PoE network?

Ask ARC IP Networks for volume and project pricing on TP-Link Omada products.
