TP-Link SG2005P-PD Omada 5-Port Gigabit Switch with 1-Port PoE++ In and 4-Port PoE+ Out

Price:

$ 240.09


TP-Link TL-SG1218MP 18-Port Gigabit Rackmount Switch with 16-Port PoE+
TP-Link TL-SG1218MP 18-Port Gigabit Rackmount Switch with 16-Port PoE+
$ 343.35
$ 343.35
TP-Link SG2206MP Omada 6-Port Gigabit Smart Switch with 4-Port PoE+
TP-Link SG2206MP Omada 6-Port Gigabit Smart Switch with 4-Port PoE+
$ 239.21
$ 239.21

TP-Link SG2005P-PD Omada 5-Port Gigabit Switch with 1-Port PoE++ In and 4-Port PoE+ Out

https://arcip.com.au/web/image/product.template/9361/image_1920?unique=874d354

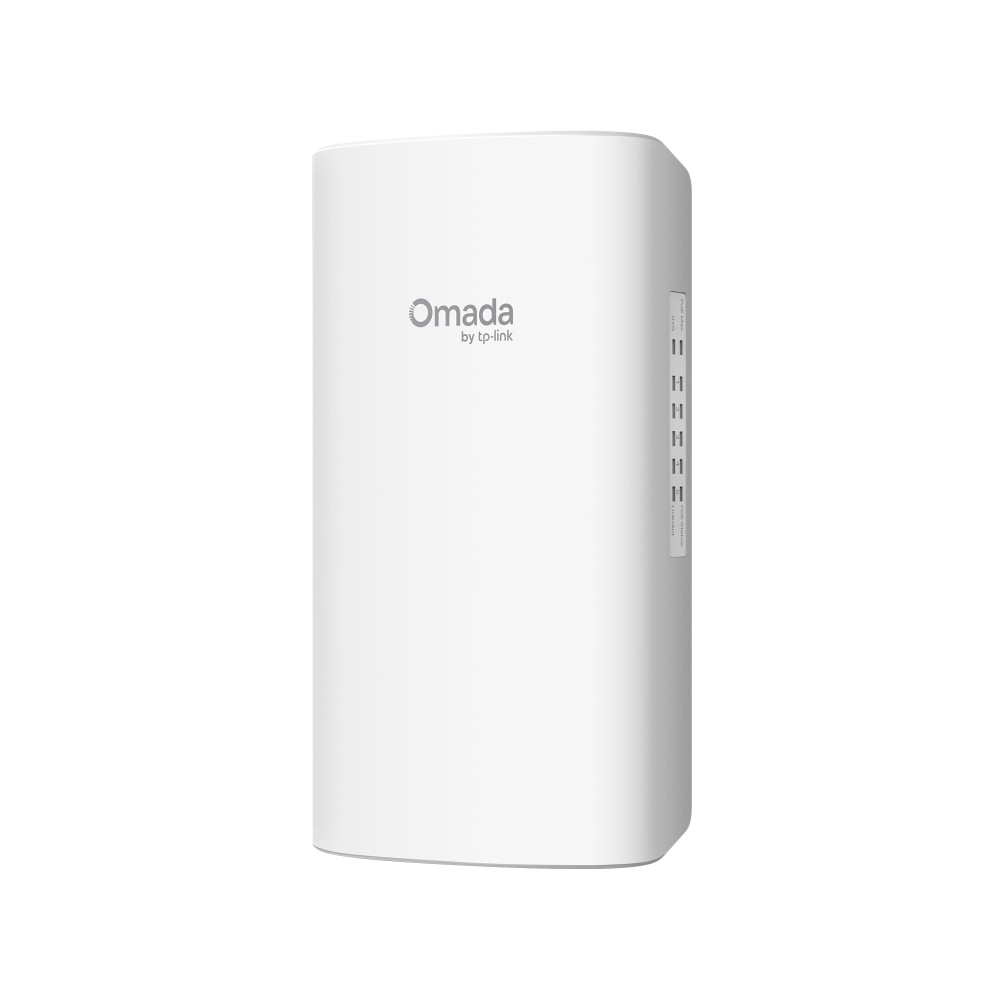

The TP-Link SG2005P-PD is an Omada 5-port gigabit smart switch powered entirely over PoE. One 10/100/1000 Mbps RJ45 PoE In port (802.3af/at/bt) feeds four 10/100/1000 Mbps PoE Out ports (802.3af/at). Output budget depends on the source: 64 W from 802.3bt Type 4 (90 W), 44 W from Type 3 (60 W), 19 W from 802.3at and 6 W from 802.3af, with Fast PoE and Perpetual PoE. It supports Omada SDN, static routing, DHCP server, VLAN, ACL, 802.1X and QoS, has ±6 kV surge protection, -40 to 60 °C operation, and wall or pole mounting.

$ 240.09 240.09 AUD $ 240.09 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

In stock online
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
TL-SG2005P-PD
Barcode
4897098689486

The TP-Link SG2005P-PD is an Omada Access 5-port gigabit smart switch that is itself powered by PoE. Port 5 is a PoE In port accepting 802.3af/at/bt, and ports 1 to 4 are 802.3af/at PoE Out ports, with an output budget of up to 64 W when fed by an 802.3bt Type 4 (90 W) source. It supports Omada SDN cloud management, static routing, VLAN, ACL and QoS, is rated -40 to 60 °C, and comes with wall and pole mounting hardware.

SG2005P-PD overview

The SG2005P-PD (listed by ARC IP as TL-SG2005P-PD) is TP-Link's Omada Access 5-Port Gigabit Switch with 1-Port PoE++ In and 4-Port PoE+ Out, current AU hardware version V2. It has no mains power supply at all: it obtains power from an 802.3af/at/bt PoE source on port 5, the PoE In port, and passes power on to devices connected to ports 1 to 4, which are 802.3af/at PoE Out ports. All five RJ45 ports are 10/100/1000 Mbps. That means a single cable from a PoE++ switch or injector can provide both the uplink and the power for up to four further PoE devices at the far end of the run.

How much power is available downstream depends on what feeds it. TP-Link lists a PoE Out budget of 64 W when powered by 802.3bt Type 4 (90 W), 44 W when powered by 802.3bt Type 3 (60 W), 19 W when powered by 802.3at and 6 W when powered by 802.3af. Fast PoE and Perpetual PoE are both supported. Maximum power consumption is 71.05 W and heat dissipation 241.57 BTU/hr, both when powered by an 802.3bt Type 4 (90 W) source. Surge protection is rated at ±6 kV.

The switch is built for difficult locations. It is fanless, measures 103.0 x 41.6 x 186.2 mm, and is rated for operation from -40 to 60 °C with 10 to 90% RH non-condensing humidity. The box includes a wall mount bracket, a pole mount strap, wall anchors and screws along with the installation guide, so it can be fixed to a wall or a pole close to the devices it powers.

Despite its size it is a full Omada smart switch. It can be managed centrally through the Omada Cloud-Based Controller (built-in version 5.15.22 or later), Omada Hardware Controller or Omada Software Controller (5.15.20 or later), with cloud access and the Omada app, and zero-touch provisioning with the Cloud-Based Controller. Standalone management is via web GUI, CLI through telnet, SNMP v1/v2c/v3 and RMON. Features include 32 IPv4/IPv6 interfaces and 32 static routes, DHCP server and relay, 802.3ad LACP, spanning tree, 4K VLAN groups with voice VLAN, up to 230 ACL entries, 802.1X, DHCP snooping and IP source guard, IGMP and MLD snooping, and 802.1p/DSCP QoS with eight queues. Performance is 10 Gbps switching, 7.44 Mpps forwarding, an 8K MAC table, a 4.1 Mbit buffer and 9 KB jumbo frames.

Key features

Powered by PoE

Port 5 accepts 802.3af/at/bt; no mains supply needed.

4 PoE+ out ports

Ports 1 to 4 deliver 802.3af/at PoE.

Up to 64 W output

When fed by 802.3bt Type 4 (90 W); 44 W from Type 3.

Fast and Perpetual PoE

Both listed in the PoE specification.

-40 to 60 °C operating

Fanless, with ±6 kV surge protection.

Wall or pole mount

Bracket, pole strap, anchors and screws included.

Omada SDN

Cloud, hardware or software controller, Omada app, zero-touch provisioning.

L2+ features

Static routing, DHCP server, VLAN, ACL, 802.1X and QoS.

SG2005P-PD specifications

At a glance

1 x PoE In (802.3af/at/bt)
4 x PoE+ Out
Up to 64 W PoE out
Fast / Perpetual PoE
-40 to 60 °C
±6 kV surge
Wall/pole mount
Omada SDN
SG2005P-PD full specifications
Hardware Features

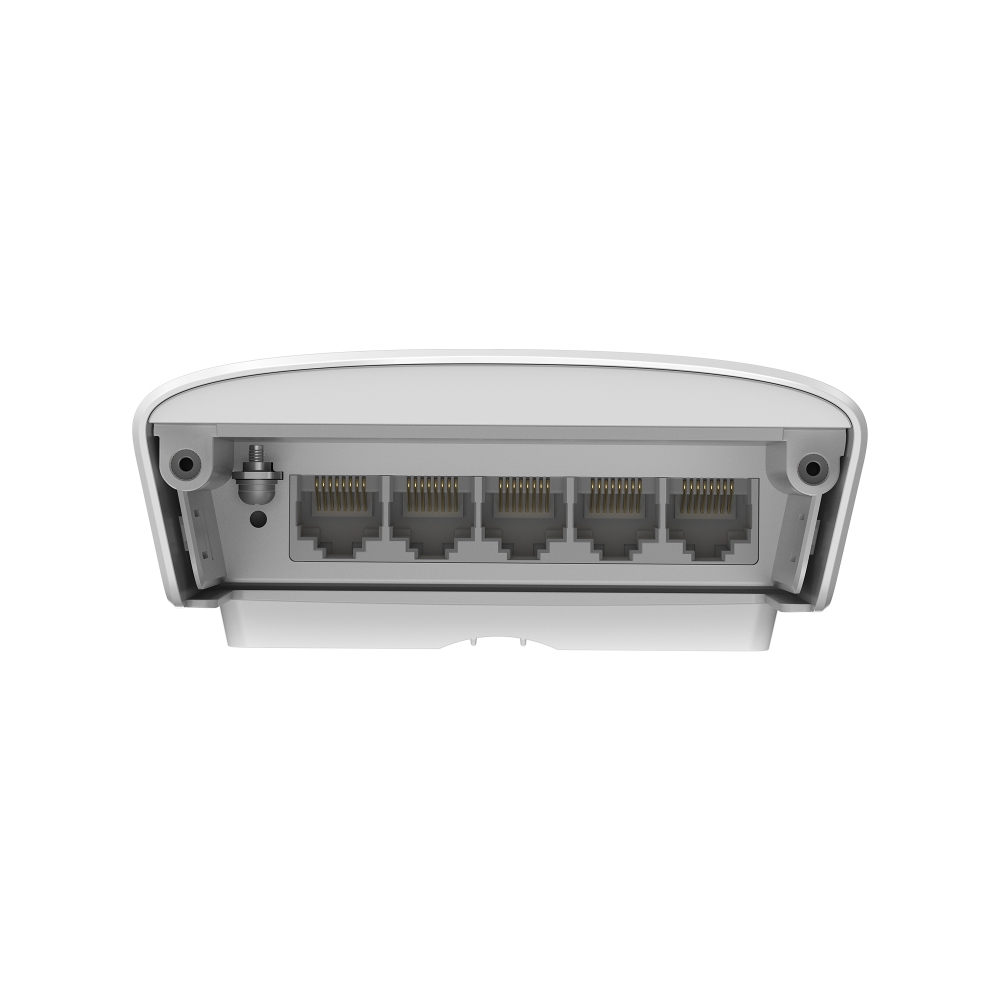

Interface1× 10/100/1000 Mbps RJ45 PoE In Port (compliance with 802.3af/at/bt); 4× 10/100/1000 Mbps RJ45 PoE Out Ports (compliance with 802.3af/at)
Network Media10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); 100BASE-TX/1000Base-T: UTP category 5, 5e or 6 cable (maximum 100m)
Fan QuantityFanless
Power SupplyObtain Power from 802.3af/at/bt PoE Source

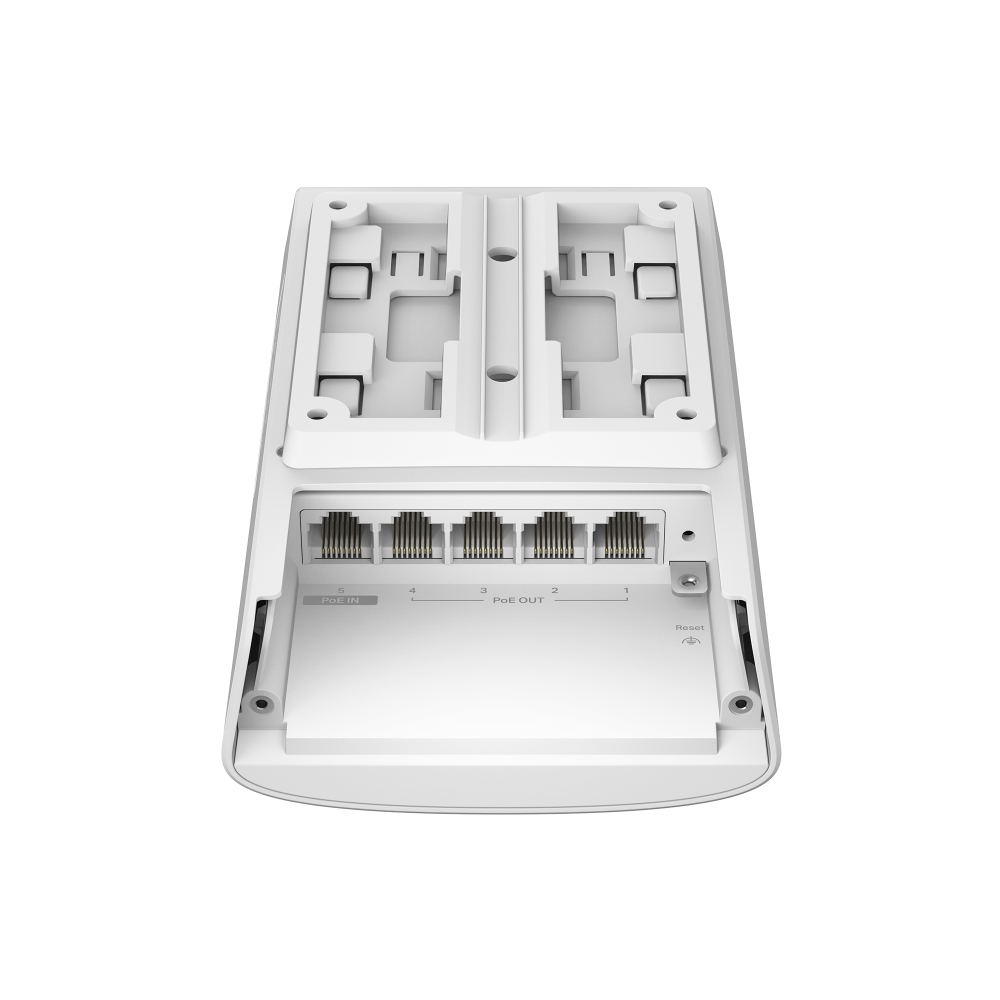

PoE Ports (RJ45)PoE In Port: Port 5, compliance with 802.3af/at/bt; PoE Out Ports: Ports 1-4, compliance with 802.3af/at; PoE Power Budget: -64W when powered by 802.3bt Type 4 (90W) -44W when powered by 802.3bt Type 3 (60W) -19W when powered by 802.3at -6W when powered by 802.3af; Fast PoE; Perpetual PoE
Dimensions ( W x D x H )4.1 × 1.6 × 7.3 in (103.0 × 41.6 × 186.2 mm)
Surge Protection±6 kV
Max. Power Consumption71.05 W (when powered by 802.3bt Type 4 (90W))
Max. Heat Dissipation241.57 BTU/hr (when powered by 802.3bt Type 4 (90W))
Performance
Packet Buffer Memory4.1 Mbit
Jumbo Frame9 KB
Switching Capacity10 Gbps
Packet Forwarding Rate7.44 Mpps
MAC Address Table8K
Software Features
Quality of Service802.1p CoS/DSCP priority; 8 priority queues; Priority Schedule Mode; SP (Strict Priority); WRR (Weighted Round Robin); Queue Weight Config; Bandwidth Control; Port/Flow-based Rating Limit; Smoother Performance; Storm Control; Multiple Control Modes(kbps/ratio); Broadcast/Multicast/Unknown-Unicast Control
L2 and L2+ Features32 IP IPv4/IPv6 Interface; Static Routing; 32 IPv4/IPv6 Static Routes; DHCP Server; DHCP Relay; DHCP Interface Relay; DHCP VLAN Relay; DHCP L2 Relay; Static ARP; Proxy ARP; Gratuitous ARP; Link Aggregation; Static link aggregation; 802.3ad LACP; Up to 8 aggregation groups and up to 8 ports per group; Spanning Tree Protocol; 802.1D STP; 802.1w RSTP; 802.1s MSTP; STP Security: TC Protect, BPDU Filter/Protect, Root Protect; Loopback Detection; Flow Control; 802.3x Flow Control; Mirroring; Port Mirroring; CPU Mirroring; One-to-One; Many-to-One; Flow-Based; Ingress/Egress/Both; Device Link Detect Protocol (DLDP); 802.1ab LLDP/ LLDP-MED
L2 Multicast511 IPv4, IPv6 shared multicast groups; IGMP Snooping; IGMP v1/v2/v3 Snooping; Fast Leave; IGMP Snooping Querier; Static Group Config; Multicast VLAN Registration (MVR); Multicast Filtering; MLD Snooping; MLD v1/v2 Snooping; Fast Leave; MLD Snooping Querier; Static Group Config; Limited IP Multicast (256 profiles and 16 entries per profile)
Advanced FeaturesAutomatic Device Discovery; Batch Configuration; Batch Firmware Upgrading; Intelligent Network Monitoring; Abnormal Event Warnings; Unified Configuration; Reboot Schedule
VLANVLAN Group; Max. 4K VLAN Groups; 802.1Q tag VLAN; MAC VLAN: 12 Entries; Protocol VLAN; GVRP; Voice VLAN
Access Control ListSupport up to 230 entries; Time-Range; Time Slice; Week Time-Range; Absolute Time-Range; Holiday; Time-based ACL; MAC ACL; Source MAC; Destination MAC; VLAN ID; User Priority; Ether Type; IP ACL; Source IP; Destination IP; IP Protocol; TCP Flag; TCP/UDP Source Port; TCP/UDP Destination Port; DSCP/IP TOS; IPv6 ACL; Combined ACL; Rule Operation; Permit/Deny; Policy Action; Mirror; Rate Limit; Redirect; QoS Remark; ACL Rules Binding; Port Binding; VLAN Binding; Actions for flows; Mirror (to supported interface); Redirect (to supported interface); Rate Limit; QoS Remark
SecurityAuthentication, Authorization, Accounting (AAA); 802.1X; Port-based authentication; MAC (Host) based authentication; Authentication Method includes PAP/EAP-MD5; MAB; Guest VLAN; Support Radius authentication and accountability; IP/IPv6-MAC Binding; 512 Binding Entries; DHCP Snooping; DHCPv6 Snooping; ARP Inspection; ND Detection; IP Source Guard; 253 Entries; Source IP+Source MAC; IPv6 Source Guard; 183 Entries; Source IPv6 Address+Source MAC; DoS Defend; Static/Dynamic/Permanent Port Security; Up to 64 MAC addresses per port; Broadcast/Multicast/Unicast Storm Control; kbps/ratio control mode; Port Isolation; Secure web management through HTTPS with SSLv3/TLS 1.2; Secure Command Line Interface (CLI) management with SSHv1/SSHv2; IP/Port/MAC-based access control
IPv6IPv6 Static Routing and ACL; IPv4/IPv6 Dual Stack; IPv6 Interface; Multicast Listener Discovery (MLD) Snooping; IPv6 neighbor discovery (ND); Path maximum transmission unit (MTU) discovery; Internet Control Message Protocol (ICMP) version 6; TCPv6/UDPv6; IPv6 applications; DHCPv6 Client; Ping6; Tracert6; Telnet(v6); IPv6 SNMP; IPv6 SSH; IPv6 SSL; Http/Https; IPv6 TFTP
MIBsMIB II (RFC1213); Bridge MIB (RFC1493); P/Q-Bridge MIB (RFC2674); Radius Accounting Client MIB (RFC2620); Radius Authentication Client MIB (RFC2618); Remote Ping, Traceroute MIB (RFC2925); Support TP-Link private MIBs; RMON MIB(RFC1757, rmon 1,2,3,9)
Management Features
Omada AppYes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralised ManagementOmada Cloud-Based Controller (Requires built-in version 5.15.22 or later); Omada Hardware Controller (Requires built-in version 5.15.20 or later); Omada Software Controller (Requires built-in version 5.15.20 or later)
Cloud AccessYes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch ProvisioningYes. Requiring the use of Omada Cloud-Based Controller.
Management FeaturesWeb-based GUI; Command Line Interface (CLI) through telnet; SNMPv1/v2c/v3; SNMP Trap/Inform; RMON (1,2,3,9 groups); SDM Template; DHCP/BOOTP Client; Dual Image, Dual Configuration; CPU Monitoring; Cable Diagnostics; EEE; SNTP; System Log
Others
CertificationCE, FCC, IP66
System RequirementsMicrosoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux.
EnvironmentOperating Temperature: -40 to 60 °C (-40 to 140 °F); Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F); Operating Humidity: 10–90% RH non-condensing; Storage Humidity: 5–90% RH non-condensing

Source: TP-Link's published specifications for this model (TP-Link Australia product page and datasheet). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • SG2005P-PD
  • Wall Mount Bracket
  • Pole Mount Strap
  • Wall Anchors
  • Screws
  • Installation Guide

Source: TP-Link's published package contents.

Who the SG2005P-PD is for

Extending PoE to remote spots

  • Powered from one PoE++ cable
  • Four PoE+ outputs
  • No local power point needed

Harsh or outdoor-adjacent sites

  • -40 to 60 °C rating
  • Pole and wall mounting
  • Fanless design

Buy the SG2005P-PD from ARC IP Networks

ARC IP Networks supplies TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the SG2005P-PD from the ARC IP Networks team.

Last reviewed October 2026.

No. It obtains power from an 802.3af/at/bt PoE source on port 5.

Up to 64 W from an 802.3bt Type 4 (90 W) source, 44 W from Type 3 (60 W), 19 W from 802.3at and 6 W from 802.3af.

Ports 1 to 4 are 802.3af/at PoE Out ports, within the budget set by the input source.

Yes, via the Omada Cloud-Based Controller (5.15.22 or later) or Hardware/Software Controller (5.15.20 or later), plus the Omada app.

It is rated for -40 to 60 °C operation and is fanless.

On a wall or pole; the wall mount bracket, pole mount strap, wall anchors and screws are included.

Yes, by web GUI, CLI through telnet, SNMP and RMON.

Yes, with 32 IPv4/IPv6 static routes and a DHCP server.

The SG2005P-PD, a wall mount bracket, a pole mount strap, wall anchors, screws and an installation guide.

Need more than one SG2005P-PD for a remote PoE extension?

Ask ARC IP Networks for volume and project pricing on TP-Link Omada products.
