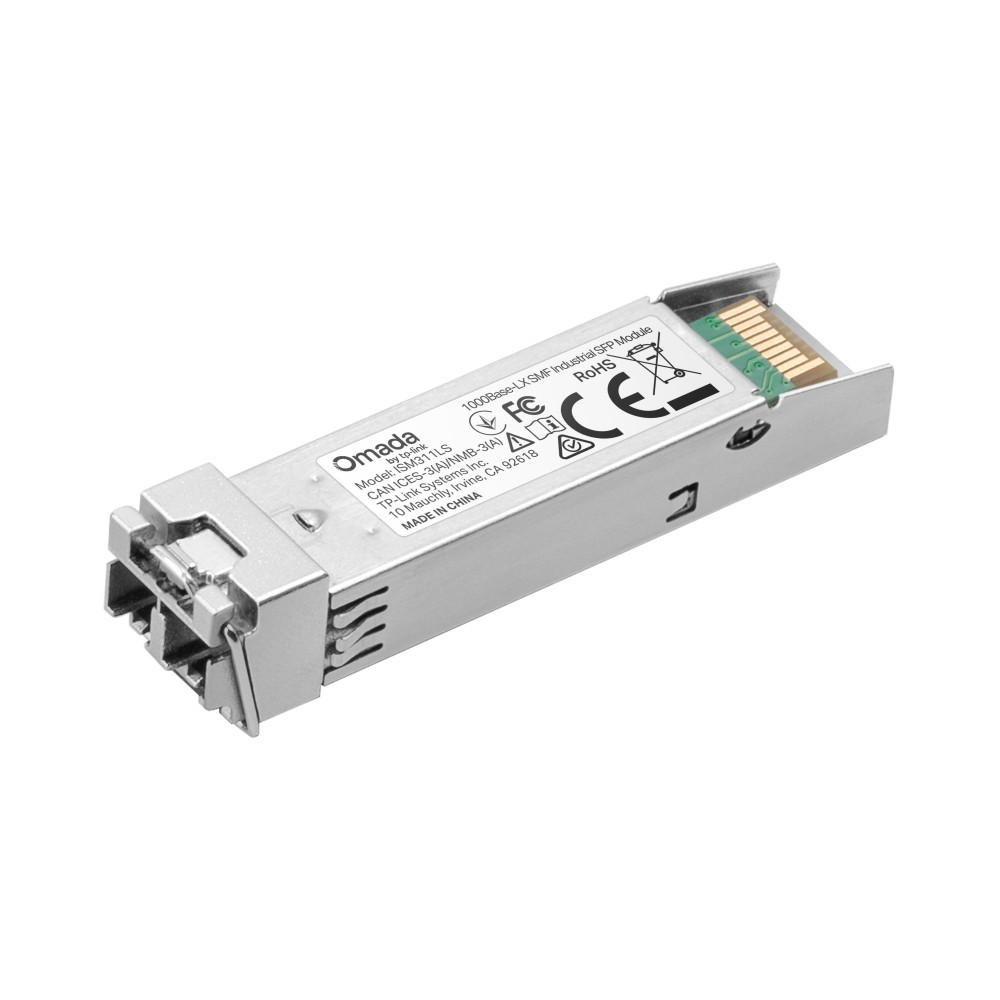

TP-Link ISM311LS 1000Base-LX SMF Industrial SFP Module

https://arcip.com.au/web/image/product.template/9301/image_1920?unique=47919ea

The TP-Link ISM311LS is a 1000Base-LX SMF industrial SFP module for extending transfer distance from TP-Link industrial switches. It is a single-mode SFP LC transceiver running at 1.25 Gbps and 1310 nm over 9/125 um single-mode fibre for up to 20 km, with a duplex LC/UPC connector. It supports Digital Diagnostic Monitoring (DDM), is compatible with the Small Form Pluggable Multi-Source Agreement (SFP-MSA), is hot-pluggable, draws power at 3.3 V and is a Class 1 laser product. Operating temperature is -40 to 85 degrees C, and it carries FCC and CE certification.

$ 42.30 42.3 AUD $ 42.30 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
TL-ISM311LS
Barcode
1210002601955

The TP-Link ISM311LS is a 1000BASE-LX single-mode industrial SFP module. It runs at 1.25 Gbps on 1310 nm over 9/125 um single-mode fibre for up to 20 km, with a duplex LC/UPC connector, Digital Diagnostic Monitoring (DDM), SFP-MSA compatibility and hot-swap support. It is rated for industrial operation from -40 to 85 degrees C.

ISM311LS overview

The ISM311LS is TP-Link's 1000BASE-LX SMF industrial SFP module. TP-Link describes it as an industrial SFP module introduced for extending transfer distance: attached to TP-Link's industrial switches, the ISM311LS can extend the distance to 20 km, and TP-Link notes that users can choose whether and which fibre modules to use according to demand in order to lower cost. It is a single-mode SFP LC transceiver built to IEEE 802.3z, carrying a 1.25 Gbps data rate (Gigabit Ethernet) at a 1310 nm wavelength over 9/125 um single-mode fibre, with a maximum cable length of 20 km.

The ISM311LS uses an LC duplex port with duplex LC/UPC connectors, so a link uses two fibres: one to transmit and one to receive, both at 1310 nm. That is the practical difference from TP-Link's ISM321B-20, which is a WDM bi-directional module that uses a single LC simplex fibre and must be paired with an ISM321A-20. With the ISM311LS, the far end needs another 1000BASE-LX single-mode module on a duplex fibre pair. TP-Link lists a maximum laser output power of 0.794 mW (-1 dBm) and classifies the module as a Class 1 laser product. It is powered from the host slot at 3.3 V.

For monitoring and maintenance, the ISM311LS supports Digital Diagnostic Monitoring (DDM), which lets a compatible host switch report the module's optical and operating values. It is compatible with the Small Form Pluggable Multi-Source Agreement (SFP-MSA) and is hot swappable, which TP-Link describes as hot-pluggable with maximum flexibility, so modules can be fitted or replaced without powering down the switch. Certifications are FCC and CE.

Industrial temperature rating is what sets the ISM311LS apart from standard office SFP modules. TP-Link rates it for operation from -40 to 85 degrees C (-40 to 185 degrees F) and storage over the same range, with 5 to 85% RH operating and storage humidity, non-condensing, which suits outdoor cabinets, roadside enclosures and plant rooms. The module measures 56.4 x 13.4 x 10.97 mm (2.22 x 0.53 x 0.43 in) on the datasheet; the product page rounds this to 56.4 x 13.4 x 11.0 mm. The box contains the ISM311LS and an installation guide.

Key features

1000BASE-LX single-mode

IEEE 802.3z Gigabit at 1.25 Gbps over 9/125 um single-mode fibre.

Up to 20 km

Extends transfer distance to 20 km from TP-Link industrial switches.

1310 nm, LC duplex

Duplex LC/UPC connector: separate transmit and receive fibres.

DDM

Digital Diagnostic Monitoring for optical and operating values.

SFP-MSA and hot-swap

SFP-MSA compatible and hot-pluggable for maximum flexibility.

-40 to 85 degrees C

Industrial operating temperature range.

Class 1 laser

Maximum laser output power 0.794 mW (-1 dBm).

ISM311LS specifications

At a glance

1000BASE-LX
1.25 Gbps
Single-mode
1310 nm
LC duplex
Up to 20 km
DDM
-40 to 85 degrees C
ISM311LS full specifications
Transceiver
Standards and ProtocolsIEEE 802.3z,TCP/IP
Wave Length1310 nm
Power Supply3.3V
Fibre Type9/125 µm Single-mode
Max. Cable Length20 km
Data Rate1.25 Gbps
ConnectorLC Duplex
Regulatory ComplianceFCC, CE
EnvironmentOperating Temperature: -40˚C~ 85˚C (-40˚F~ 185˚F); Storage Temperature: -40℃~85℃ (-40˚F~ 185˚F); Operating Humidity: 5%~85% non-condensing; Storage Humidity: 5%~85% non-condensing
Hardware Features
DDMYes
SFP-MSAYes
Hot SwappableYes
Dimensions ( W x D x H )2.2 0.5 0.4 in (56.4 13.4 11.0 mm)

Source: TP-Link's published specifications for this model (TP-Link Australia product page and datasheet). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • ISM311LS
  • Installation Guide

Source: TP-Link's published package contents.

Who the ISM311LS is for

Long industrial fibre runs

  • Up to 20 km single-mode
  • Gigabit 1.25 Gbps
  • Duplex LC fibre pair

Harsh environments

  • -40 to 85 degrees C operation
  • 5 to 85% RH humidity
  • Industrial SFP design

Monitored links

  • DDM diagnostics
  • Hot-swappable
  • SFP-MSA compatible

ISM311LS compared

TP-Link's industrial SFP range includes the duplex ISM311LS and the single-fibre ISM321B-20. Both are 1.25 Gbps single-mode modules rated to 20 km and -40 to 85 degrees C; the difference is the fibre arrangement.

SpecificationISM311LSISM321B-20
Type1000BASE-LX1000BASE-BX WDM bi-directional
Wavelength1310 nmTx 1310 nm, Rx 1550 nm
ConnectorLC duplex (LC/UPC)LC simplex (LC/UPC)
Fibres per linkTwoOne
Pairs withAnother 1000BASE-LX moduleISM321A-20
Max cable length20 km20 km
Data rate1.25 Gbps1.25 Gbps
Operating temperature-40 to 85 degrees C-40 to 85 degrees C

Source: TP-Link Australia product pages for each model.

Buy the ISM311LS from ARC IP Networks

ARC IP Networks supplies TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the ISM311LS from the ARC IP Networks team.

Last reviewed October 2026.

A 1000BASE-LX single-mode industrial SFP module from TP-Link, for extending transfer distance from TP-Link industrial switches.

Up to 20 km over 9/125 um single-mode fibre.

Two. It has a duplex LC/UPC connector. For a single-fibre link, TP-Link's ISM321B-20 (paired with an ISM321A-20) is the WDM option.

1310 nm.

TP-Link lists it for 9/125 um single-mode fibre only.

Yes. Digital Diagnostic Monitoring is listed.

Yes. TP-Link lists hot swap support and SFP-MSA compatibility.

-40 to 85 degrees C operating and storage, at 5 to 85% RH non-condensing.

It runs at 3.3 V from the host slot and is a Class 1 laser product with a maximum laser output power of 0.794 mW (-1 dBm).

FCC and CE.
