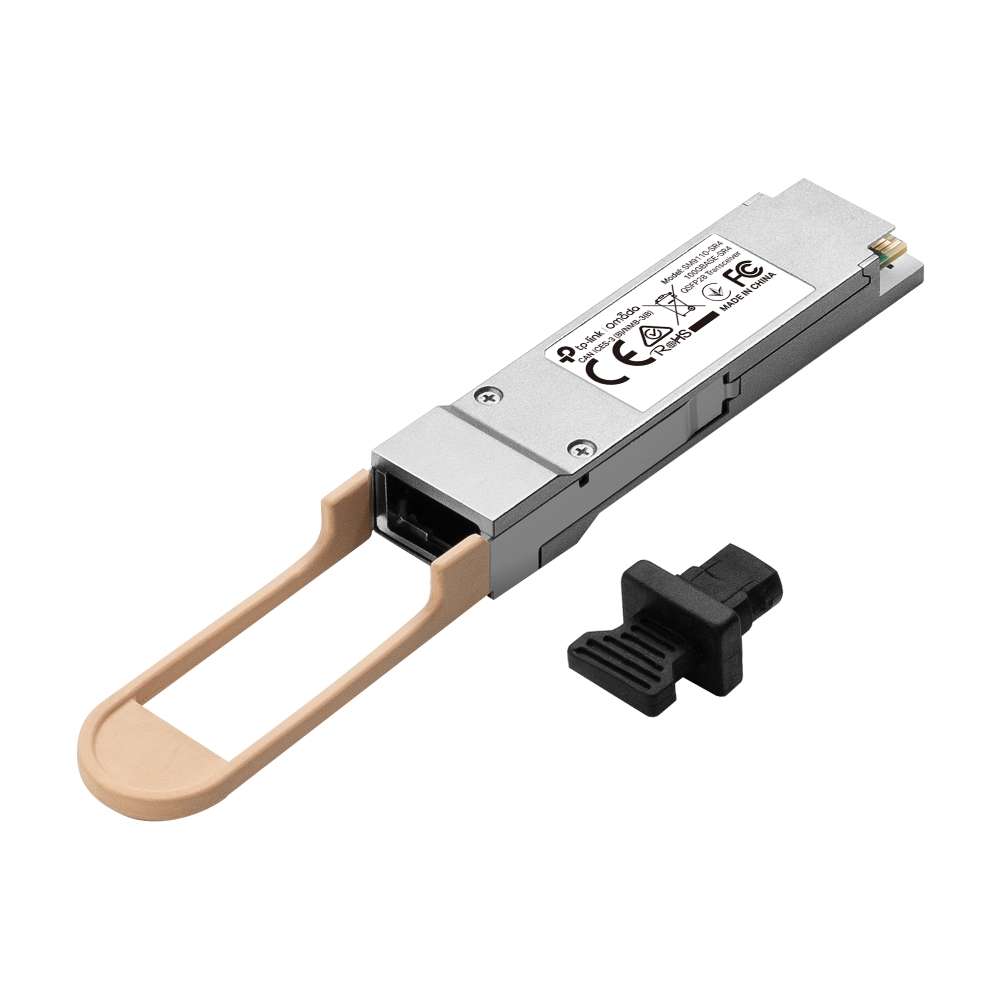

TP-Link SM9110-SR4 Omada 100GBASE-SR4 QSFP28 Transceiver

https://arcip.com.au/web/image/product.template/8191/image_1920?unique=73ac110

The TP-Link SM9110-SR4 is an Omada 100GBASE-SR4 QSFP28 transceiver, a dual-rate 100G/40GBASE-SR4 850 nm multi-mode module. It supports 100G Ethernet links up to 70 m on OM3 or 100 m on OM4, and 40G links up to 100 m on OM3 or 150 m on OM4, over 50/125 µm multi-mode fibre with an MTP/MPO-12 connector. The module supports Digital Diagnostic Monitoring (DDM), complies with QSFP28 MSA, is hot-pluggable and draws a maximum of 1.8 W at 100 Gbps. Supplied by ARC IP Networks from Australian stock with the full manufacturer's warranty.

$ 146.44 146.44 AUD $ 146.44 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

In stock online
SFP TP-Link Omada
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
SM9110-SR4
Barcode
8885020625493
Tags

The TP-Link SM9110-SR4 is an Omada 100G/40GBASE-SR4 QSFP28 transceiver for 850 nm multi-mode fibre. It is dual rate (103.125 Gbps and 41.2 Gbps), reaches 70 m on OM3 or 100 m on OM4 at 100G and 100 m on OM3 or 150 m on OM4 at 40G, uses an MTP/MPO-12 connector, supports DDM and is hot-pluggable, drawing at most 1.8 W.

SM9110-SR4 overview

The SM9110-SR4 is TP-Link's Omada 100GBASE-SR4 QSFP28 transceiver. TP-Link describes it as a 100G/40GBASE-SR4 high-performance 850 nm multi-mode QSFP28 transceiver designed to extend transmission distance based on ultra-fast Ethernet connectivity. It is dual rate: 103.125 Gbps (4 x 25.78 Gbps) for 100G Ethernet and 41.2 Gbps (4 x 10.3 Gbps) for 40G Ethernet. Over 50/125 µm multi-mode fibre, maximum cable length at 100G is 70 m on OM3 and 100 m on OM4, and at 40G it is 100 m on OM3 and 150 m on OM4. The optical connector is MTP/MPO-12, and the module is compatible with the 100G/40G Quad Small Form-Factor Pluggable 28 (QSFP28) MSA.

Optically, the SM9110-SR4 uses an 850 nm VCSEL transmitter and a PIN receiver, with COB packaging and a built-in CDR (clock and data recovery). Transmitter power is -8.4 to 2.4 dBm at 103.125 Gbps and -7.6 to 2.4 dBm at 41.2 Gbps. Receiver sensitivity is better than -10.3 dBm at 103.125 Gbps and -9.5 dBm at 41.2 Gbps, receiver overload is above 2.4 dBm at both rates, and the extinction ratio is above 2 dB at 100G and 3 dB at 40G. The datasheet also lists an optical budget of more than 1.9 dBm at both 103.125 Gbps and 41.2 Gbps.

Standards and protocols listed are IEEE 802.3bm and IEEE 802.3ba, the QSFP28 MSA, SFF-8665, SFF-8636 and SFF-8436, CPRI and eCPRI, and TCP/IP. The module supports Digital Diagnostic Monitoring (DDM) and is hot-pluggable, which TP-Link describes as giving maximum flexibility. It runs from a 3.3 V supply, with maximum power consumption of 1.8 W at 100 Gbps and 1.54 W at 40 Gbps. Regulatory compliance is CE, FCC and RoHS, and the module measures 124 x 18.35 x 11.7 mm.

TP-Link highlights a wide operating temperature: the SM9110-SR4 is rated for 0 to 70 degrees C in operation and -40 to 85 degrees C in storage, with 0 to 85% RH non-condensing humidity for both operation and storage. The package contains the SM9110-SR4 and an installation guide. In summary, it is a QSFP28 SR4 optic for 100G or 40G Ethernet over 50/125 µm OM3 or OM4 multi-mode fibre with an MTP/MPO-12 connector, offering up to 100 m at 100G and 150 m at 40G on OM4, with DDM, hot-plug support and a maximum draw of 1.8 W. ARC IP Networks supplies the SM9110-SR4 from Australian stock with the full manufacturer's warranty.

Key features

100G/40G dual rate

103.125 Gbps (4 x 25.78 Gbps) or 41.2 Gbps (4 x 10.3 Gbps).

Up to 100 m at 100G on OM4

70 m on OM3 or 100 m on OM4 at 100G; 100 m on OM3 or 150 m on OM4 at 40G.

850 nm multi-mode

VCSEL 850 nm transmitter over 50/125 µm multi-mode fibre.

MTP/MPO-12 connector

The optical connector is listed as MTP/MPO-12.

Built-in CDR

Clock and data recovery built in, with COB packaging.

DDM

Supports Digital Diagnostic Monitoring.

Hot-pluggable

Hot-pluggable with maximum flexibility, according to TP-Link.

QSFP28 MSA

IEEE 802.3bm/802.3ba, SFF-8665, SFF-8636 and SFF-8436.

Power consumption

Maximum 1.8 W at 100 Gbps and 1.54 W at 40 Gbps.

SM9110-SR4 specifications

At a glance

100G/40GBASE-SR4
QSFP28
850 nm multi-mode
100 m OM4 at 100G
150 m OM4 at 40G
MTP/MPO-12
DDM
Max 1.8 W
SM9110-SR4 full specifications
Hardware Features
DDMYes
QSFP28 MSAYes
Hot SwappableYes
Dimensions ( W x D x H )4.88 0.72 0.46 in (124 18.35 11.7 mm)
Transceiver
Form FactorQSFP28
Standards and ProtocolsIEEE 802.3bm, IEEE 802.3ba, QSFP28 MSA,; SFF-8665, SFF-8636, SFF-8436,; CPRI, eCPRI; TCP/IP
Wave Length850 nm
Power Supply3.3 V
Max. Power ConsumptionMax 1.8 W at 100 Gbps Max 1.54 W at 40 Gbps
Fibre Type50/125um MMF (Multimode)
Max. Cable Length70 m (OM3), 100 m (OM4) @103.125 Gbps (4x 25.78Gbps) 100 m (OM3), 150 m (OM4) @41.2 Gbps (4x 10.3 Gbps)
Data RateDual Rate 103.125 Gbps and 41.2 Gbps
ConnectorMTP/MPO-12
Transmission power-8.4 dBm to 2.4 dBm @103.125 Gbps -7.6 dBm to 2.4 dBm @41.2 Gbps
Transmitter TypeVCSEL 850 nm
Receiver TypePIN
Receiver Sensitivity<-9.5 dBm @41.2 Gbps
Receiver Overload>2.4 dBm @103.125 Gbps >2.4 dBm @41.2 Gbps
Extinction Ratio>2 dB @103.125 Gbps >3 dB @41.2 Gbps
Regulatory ComplianceCE, FCC, RoHS
Environment
Operating Temperature0°C to 70°C (32°F to 158°F)
Storage Temperature-40°C to 85°C (-40°F to 185°F)
Operating Humidity0 to 85% RH Non-condensing
Storage Humidity0 to 85% RH Non-condensing

Source: TP-Link's published specifications for this model (TP-Link Australia product page and datasheet). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • SM9110-SR4
  • Installation Guide

Source: TP-Link's published package contents.

Who the SM9110-SR4 is for

100G Ethernet links on multi-mode fibre

  • Up to 70 m on OM3 or 100 m on OM4
  • MTP/MPO-12 cabling
  • Built-in CDR

40G Ethernet links

  • Up to 100 m on OM3 or 150 m on OM4
  • Same module, dual rate
  • Hot-pluggable with DDM

Buy the SM9110-SR4 from ARC IP Networks

ARC IP Networks supplies genuine TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • Genuine TP-Link: new TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the SM9110-SR4 from the ARC IP Networks team.

Last reviewed October 2026.

It is dual rate: 103.125 Gbps for 100G Ethernet and 41.2 Gbps for 40G Ethernet.

70 m on OM3 or 100 m on OM4 multi-mode fibre.

100 m on OM3 or 150 m on OM4 multi-mode fibre.

MTP/MPO-12.

50/125 µm multi-mode fibre (OM3 or OM4 for the rated distances).

850 nm, with a VCSEL transmitter.

Yes. Digital Diagnostic Monitoring is supported.

Yes.

A maximum of 1.8 W at 100 Gbps and 1.54 W at 40 Gbps, from a 3.3 V supply.

0 to 70 degrees C, with 0 to 85% RH non-condensing humidity.

The SM9110-SR4 transceiver and an installation guide.

Need more than one SM9110-SR4 for a 100G or 40G fibre link?

Ask ARC IP Networks for volume and project pricing on genuine TP-Link Omada products.
