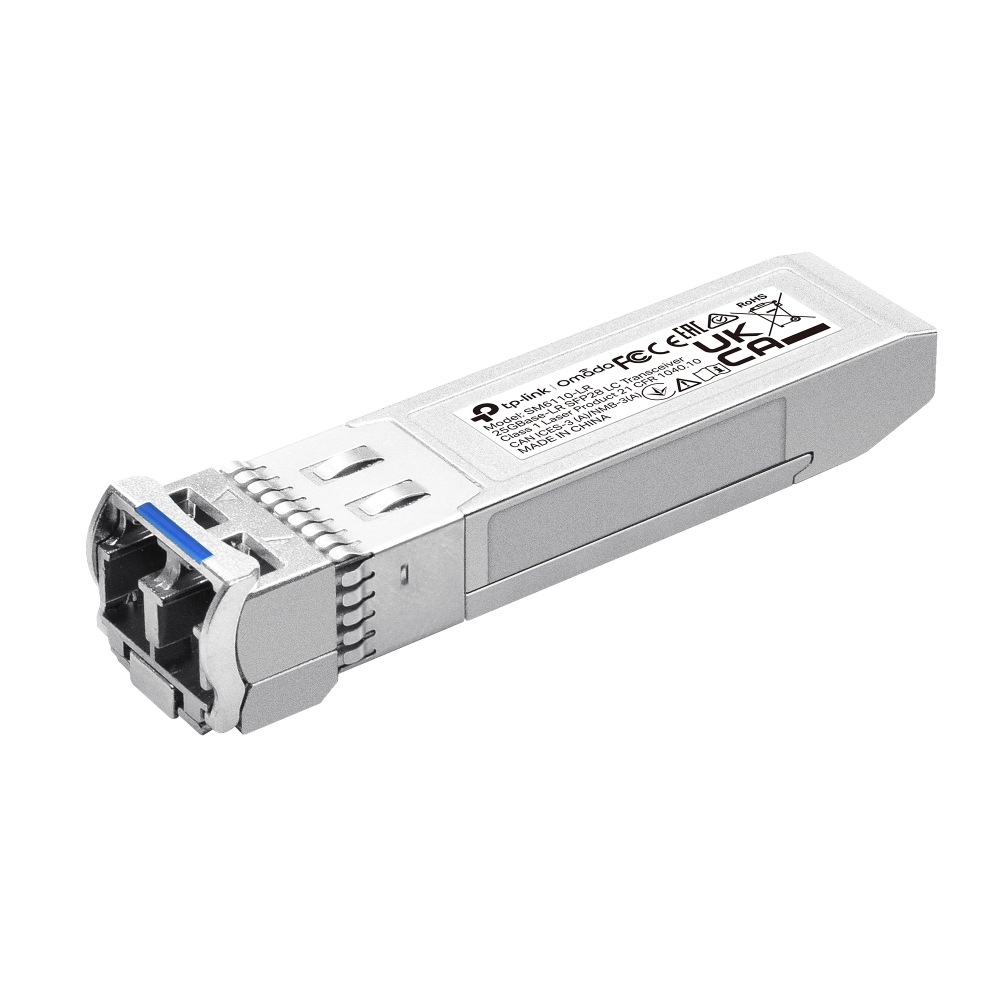

TP-Link SM6110-LR Omada 25GBase-LR SFP28 LC Transceiver

https://arcip.com.au/web/image/product.template/8190/image_1920?unique=73ac110

The TP-Link SM6110-LR is an Omada 25GBase-LR SFP28 LC transceiver, a 10G/25GBASE-LR 1310 nm single-mode SFP+/SFP28 module with dual rate 25.78 Gbps and 10.31 Gbps operation. It supports full-duplex links up to 10 km over 9/125um single-mode fibre through a duplex LC/UPC connector. The module is hot-pluggable, supports DDM and draws no more than 1.2 W. TP-Link lists compatibility with 25G switches like the SX6632YF and 10G switches like the SG3428X and SG3452X. Supplied by ARC IP Networks from Australian stock with the full manufacturer's warranty.

$ 123.54 123.54 AUD $ 123.54 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

In stock online
SFP TP-Link Omada
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
SM6110-LR
Barcode
8885020622355
Tags

The TP-Link SM6110-LR is an Omada 25GBASE-LR SFP28 LC transceiver for single-mode fibre. It is dual rate (25.78 Gbps and 10.31 Gbps), works at 1310 nm over 9/125 um fibre for up to 10 km, uses a duplex LC/UPC connector, supports DDM, is hot swappable and draws no more than 1.2 W.

SM6110-LR overview

The SM6110-LR is TP-Link's long-reach SFP28 optical module for Omada networks. TP-Link describes it as a 10G/25GBASE-LR high-performance 1310 nm single-mode SFP+/SFP28 transceiver, designed to extend transfer distances on 10G and 25G Ethernet connections. It supports full-duplex 10G and 25G Ethernet links of up to 10 km over 9/125 um single-mode fibre, with a dual data rate of 25.78 Gbps and 10.31 Gbps. That dual-rate design means the same module can be used in 25G SFP28 ports and in 10G ports: TP-Link's datasheet names compatibility with switches with 25G ports such as the SX6632YF, and with 10G ports such as the SG3428X and SG3452X. The datasheet highlights also describe it as compatible with the 10G/25G Small Form Pluggable Multi-Source Agreement (SFP28 MSA), and list hot-pluggable operation, Digital Diagnostic Monitoring and low power consumption of no more than 1.2 W.

Optically, the SM6110-LR uses a DFB transmitter and a PIN receiver in TO-CAN packaging, with a duplex LC/UPC connector. Transmitter power is -7 to 2 dBm at 25.78 Gbps and -8.2 to 0.5 dBm at 10.31 Gbps. Receiver sensitivity is better than -13.3 dBm at 25.78 Gbps and -14.4 dBm at 10.31 Gbps, with receiver overload above 2 dBm and 0.5 dBm respectively, and the extinction ratio is above 3 dB at 25.78 Gbps and 3.5 dB at 10.31 Gbps. These published optical figures are the ones to use when you plan the link budget for a fibre run. A built-in CDR (clock and data recovery) is also listed.

For operations, the module supports Digital Diagnostic Monitoring (DDM). It is hot swappable, which TP-Link describes as hot-pluggable with maximum flexibility, and it complies with the SFP28 Multi-Source Agreement (SFP-MSA). Listed standards and protocols are IEEE 802.3cc and IEEE 802.3ae; SFF-8402, SFF-8431, SFF-8432 and SFF-8472; eCPRI and CPRI; and TCP/IP. It runs from a 3.3 V supply, with power consumption of no more than 1.2 W, which TP-Link highlights as low power consumption.

The SM6110-LR is rated for operating temperatures of 0 to 70 degrees C and storage from -40 to 85 degrees C, with 10 to 90 per cent RH non-condensing operating humidity and 5 to 90 per cent RH non-condensing storage humidity. It measures 57 x 14 x 12 mm and carries CE, FCC and RoHS regulatory compliance. In the box are the SM6110-LR and an installation guide. ARC IP Networks supplies the SM6110-LR from Australian stock with the full manufacturer's warranty.

Key features

Dual rate 25G / 10G

Supports 25.78 Gbps and 10.31 Gbps for 25G SFP28 and 10G ports.

Up to 10 km

Full-duplex 10G/25G Ethernet links up to 10 km over 9/125 um single-mode fibre.

1310 nm LR optics

DFB transmitter and PIN receiver at 1310 nm, with built-in CDR.

Duplex LC/UPC

Standard duplex LC/UPC connector for single-mode patch leads.

DDM support

Supports Digital Diagnostic Monitoring (DDM).

Hot swappable

Hot-pluggable for maximum flexibility, compliant with SFP28 MSA.

Low power

No more than 1.2 W from a 3.3 V supply.

Omada switch compatibility

Datasheet names the SX6632YF (25G) and SG3428X and SG3452X (10G).

Published optical budget

Tx power -7 to 2 dBm and Rx sensitivity below -13.3 dBm at 25.78 Gbps.

Wide operating range

Rated for 0 to 70 degrees C operation and -40 to 85 degrees C storage.

SM6110-LR specifications

At a glance

SFP28
25.78 / 10.31 Gbps
1310 nm
Single-mode 9/125 um
Up to 10 km
Duplex LC/UPC
DDM
≤ 1.2 W
SM6110-LR full specifications
Transceiver
Standards and ProtocolsIEEE 802.3ae, 802.3cc; SFF-8402, SFF-8431, SFF-8432, SFF-8472; eCPRI, CPRI; TCP/IP
Wave Length1310 nm
Power Supply3.3V
Fibre Type9/125um Single-Mode
Max. Cable Length10 km
ConnectorDuplex LC/UPC
Regulatory ComplianceCE, FCC, RoHS
EnvironmentOperating Temperature: 0°C to 70°C (32°F to 158°F); Storage Temperature: -40°C to 85°C (-40°F to 185°F); Operating Humidity: 10% to 90% RH, Non-Condensing; Storage Humidity: 5% to 90% RH, Non-Condensing
Hardware Features
DDMYes
SFP-MSAYes
Hot SwappableYes
Dimensions ( W x D x H )2.24 0.55 0.47 in (57 14 12 mm)
SFP28 Cable
Data RateDual Rate 25.78 Gbps and 10.31 Gbps

Source: TP-Link's published specifications for this model (TP-Link Australia product page and datasheet). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • SM6110-LR
  • Installation Guide

Source: TP-Link's published package contents.

Who the SM6110-LR is for

Long fibre links

  • 10G or 25G links up to 10 km
  • Single-mode 9/125 um fibre
  • Duplex LC/UPC connection

Omada switch uplinks

  • 25G ports such as the SX6632YF
  • 10G ports such as the SG3428X and SG3452X
  • Dual-rate module for either port type

Buy the SM6110-LR from ARC IP Networks

ARC IP Networks supplies genuine TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • Genuine TP-Link: new TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the SM6110-LR from the ARC IP Networks team.

Last reviewed October 2026.

An Omada 25GBASE-LR SFP28 LC transceiver: a 1310 nm single-mode module for 10G and 25G Ethernet links up to 10 km.

Yes. It is dual rate (25.78 Gbps and 10.31 Gbps), and TP-Link's datasheet lists compatibility with 10G ports such as the SG3428X and SG3452X.

TP-Link names switches with 25G ports like the SX6632YF and 10G ports like the SG3428X and SG3452X.

Up to 10 km over 9/125 um single-mode fibre.

9/125 um single-mode fibre with a duplex LC/UPC connector.

No. It is specified for single-mode fibre (SMF) with a 9/125 um core.

Yes. Digital Diagnostic Monitoring is supported.

Yes. It is hot swappable (hot-pluggable).

No more than 1.2 W, from a 3.3 V supply.

The SM6110-LR transceiver and an installation guide.
