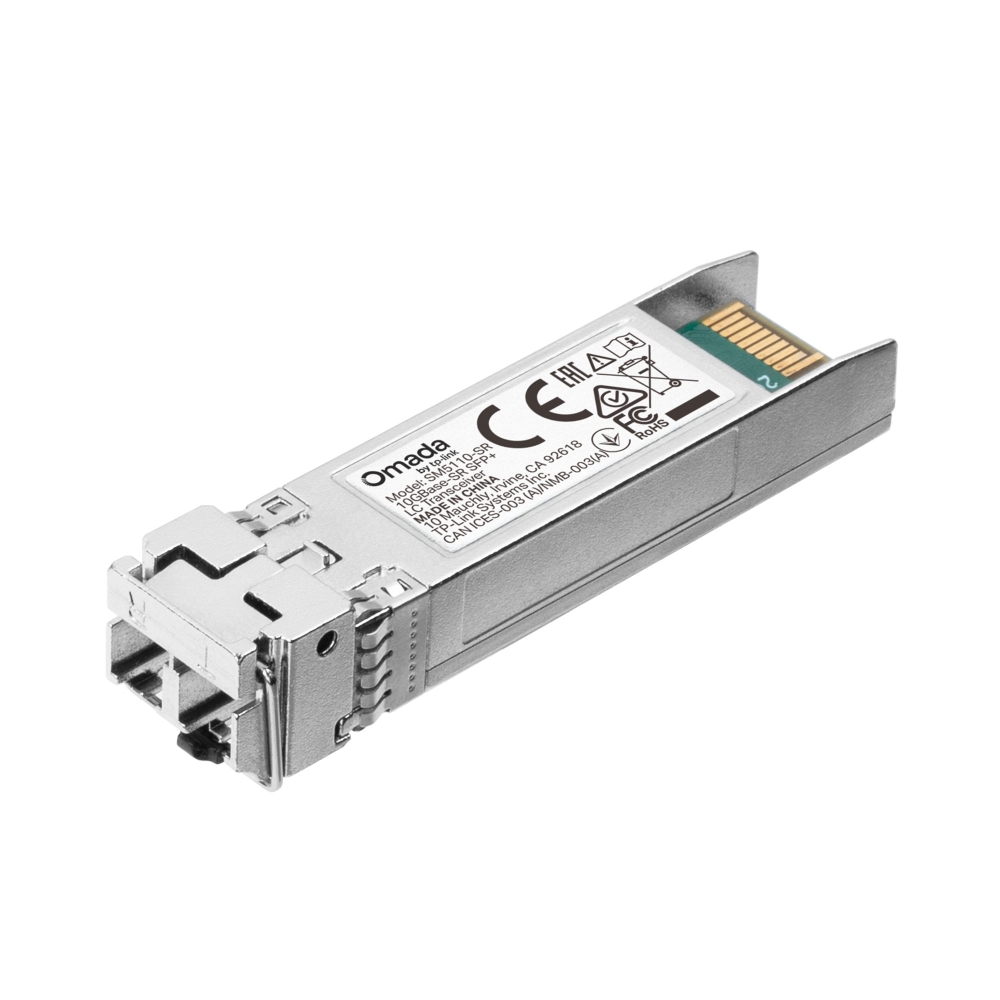

TP-Link SM5110-SR Omada 10GBase-SR SFP+ LC Transceiver

https://arcip.com.au/web/image/product.template/8185/image_1920?unique=874d354

The TP-Link SM5110-SR is an Omada 10GBase-SR SFP+ LC transceiver, a high-performance 850nm multi-mode module for extending 10Gbps Ethernet links. It supports full-duplex 10G connections up to 300m over 50/125µm (OM3) fibre or 33m over 62.5/125µm fibre via an LC duplex port. It is hot swappable, supports Digital Diagnostic Monitoring (DDM) and complies with IEEE 802.3ae and the SFP+ MSA. TP-Link lists it as compatible with switches that have 10G SFP+ ports, such as the SG3428X and SG3428XMP. Supplied by ARC IP Networks from Australian stock with the full manufacturer's warranty.

$ 43.32 43.32 AUD $ 43.32 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

In stock online
SFP TP-Link Omada
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
SM5110-SR
Barcode
1210002612111
Tags

The TP-Link SM5110-SR is an Omada 10GBase-SR SFP+ LC transceiver: an 850 nm multi-mode module that supports full-duplex 10G Ethernet up to 300 m on 50/125 μm fibre or 33 m on 62.5/125 μm fibre. It has an LC duplex port, supports DDM, is SFP+ MSA compatible and hot swappable, and TP-Link names switches with 10G SFP+ ports such as the SG3428X and SG3428XMP as compatible.

SM5110-SR overview

The SM5110-SR is TP-Link's Omada 10GBase-SR SFP+ LC transceiver. TP-Link says it is designed to extend transfer distances based on 10 Gbps Ethernet connectivity, and describes it as a 10GBASE-SR high-performance 850 nm multi-mode SFP+ transceiver. It supports full-duplex 10G Ethernet connections up to 300 m with 50/125 μm fibre or 33 m with 62.5/125 μm fibre; the product page spec table gives the 300 m figure for OM3. The data rate is 10 Gbps, and the standards and protocols TP-Link lists are IEEE 802.3ae, TCP/IP and SFF-8472.

On the optical side, the SM5110-SR uses an 850 nm wavelength and is specified for 50/125 μm or 62.5/125 μm multi-mode fibre, with an LC duplex port. Maximum laser output power is 0.794 mW (-1 dBm). TP-Link states it is compatible with switches with 10G SFP+ ports, such as the SG3428X, SG3428XMP and more. For comparison, TP-Link's SM5110-LR is a 10GBase-LR single-mode SFP+ LC transceiver rated for 10 km. The comparison table below sets the two published specifications side by side.

TP-Link's highlights for the SM5110-SR are that it is a multi-mode SFP+ LC transceiver, hot swappable with maximum flexibility, supports Digital Diagnostic Monitoring (DDM), and is compatible with the 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA). Power is 3.3 V, and the module carries FCC and CE safety and emission approvals. It measures 61.3 x 14.5 x 12.2 mm (2.4 x 0.6 x 0.5 in).

TP-Link rates the SM5110-SR for operation from 0 to 70 °C (32 to 158 °F) and storage from -40 to 85 °C (-40 to 185 °F), with operating humidity of 10 to 90% RH non-condensing and storage humidity of 5 to 90% RH non-condensing. In the box are the SM5110-SR and an installation guide. When planning a link, check which multi-mode fibre is installed, because the rated reach is 300 m on 50/125 μm fibre but 33 m on 62.5/125 μm fibre. ARC IP Networks supplies the SM5110-SR from Australian stock with the full manufacturer's warranty.

Key features

10GBase-SR SFP+

A high-performance 10GBASE-SR SFP+ transceiver with a 10 Gbps data rate.

Up to 300 m

Full-duplex 10G Ethernet up to 300 m on 50/125 μm fibre, or 33 m on 62.5/125 μm fibre.

850 nm multi-mode

Operates at 850 nm on 50/125 μm or 62.5/125 μm multi-mode fibre.

LC duplex port

Uses an LC duplex connector; maximum laser output power is 0.794 mW (-1 dBm).

Digital Diagnostic Monitoring

Supports DDM, with SFF-8472 listed among its standards.

SFP+ MSA compatible

Compatible with the 10G Small Form Pluggable Multi-Source Agreement.

Hot swappable

Hot swappable with maximum flexibility.

Works with 10G SFP+ switches

TP-Link names switches with 10G SFP+ ports such as the SG3428X and SG3428XMP.

SM5110-SR specifications

At a glance

10GBase-SR SFP+
10 Gbps
850 nm
300 m (50/125 μm)
33 m (62.5/125 μm)
LC duplex
DDM
Hot swappable
SM5110-SR full specifications
Transceiver
Standards and ProtocolsIEEE 802.3ae, TCP/IP, SFF-8472
Wave Length850nm
Power Supply3.3V
Fibre Type50/125um or 62.5/125um Multi-mode
Max. Cable Length300m (OM3)
Data Rate10Gbps
Port TypeLC Duplex
Safety & EmissionFCC, CE
EnvironmentOperating Temperature: 0–70 ℃ (32–158 ℉); Storage Temperature: -40–85 ℃ (-40–185 ℉); Operating Humidity: 10–90% RH non-condensing; Storage Humidity: 5–90% RH non-condensing
Hardware Features
DDMYes
SFP-MSAYes
Hot SwappableYes
Media Converter & Module
Dimensions ( W x D x H )2.4 0.6 0.5 in (61.3 14.5 12.2 mm)

Source: TP-Link's published specifications for this model (TP-Link Australia product page and datasheet). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • SM5110-SR
  • Installation Guide

Source: TP-Link's published package contents.

Who the SM5110-SR is for

10G links on multi-mode fibre

  • Up to 300 m on 50/125 μm fibre
  • Full-duplex 10 Gbps
  • IEEE 802.3ae

Switches with 10G SFP+ ports

  • Named: SG3428X and SG3428XMP
  • SFP+ MSA compatible
  • Hot swappable with DDM

SM5110-SR compared

The SM5110-SR and SM5110-LR are both TP-Link Omada 10G SFP+ LC transceivers. The SM5110-SR is the multi-mode short-reach module; the SM5110-LR is the single-mode long-reach module.

FeatureSM5110-SRSM5110-LR
Type10GBase-SR SFP+10GBase-LR SFP+
Wavelength850 nm1310 nm
Fibre type50/125 μm or 62.5/125 μm multi-mode9/125 μm single-mode
Max. cable length300 m (50/125 μm), 33 m (62.5/125 μm)10 km
Data rate10 Gbps10 Gbps
Port typeLC duplexLC duplex
DDM / SFP-MSA / hot swappableYes / Yes / YesYes / Yes / Yes

Source: TP-Link Australia product pages for each model.

Buy the SM5110-SR from ARC IP Networks

ARC IP Networks supplies TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the SM5110-SR from the ARC IP Networks team.

Last reviewed October 2026.

A 10GBASE-SR 850 nm multi-mode SFP+ transceiver with an LC duplex port, designed to extend transfer distances based on 10 Gbps Ethernet connectivity.

Up to 300 m with 50/125 μm multi-mode fibre, or 33 m with 62.5/125 μm fibre.

850 nm.

No. It is specified for 50/125 μm or 62.5/125 μm multi-mode fibre. TP-Link's SM5110-LR is the single-mode 10GBase-LR transceiver.

TP-Link states it is compatible with switches with 10G SFP+ ports, such as the SG3428X, SG3428XMP and more.

Yes. It supports Digital Diagnostic Monitoring.

Yes.

LC duplex.

0 to 70 °C operating and -40 to 85 °C in storage.

The SM5110-SR and an installation guide.

Need more than one SM5110-SR for a 10G fibre uplink project?

Ask ARC IP Networks for volume and project pricing on TP-Link Omada products.
