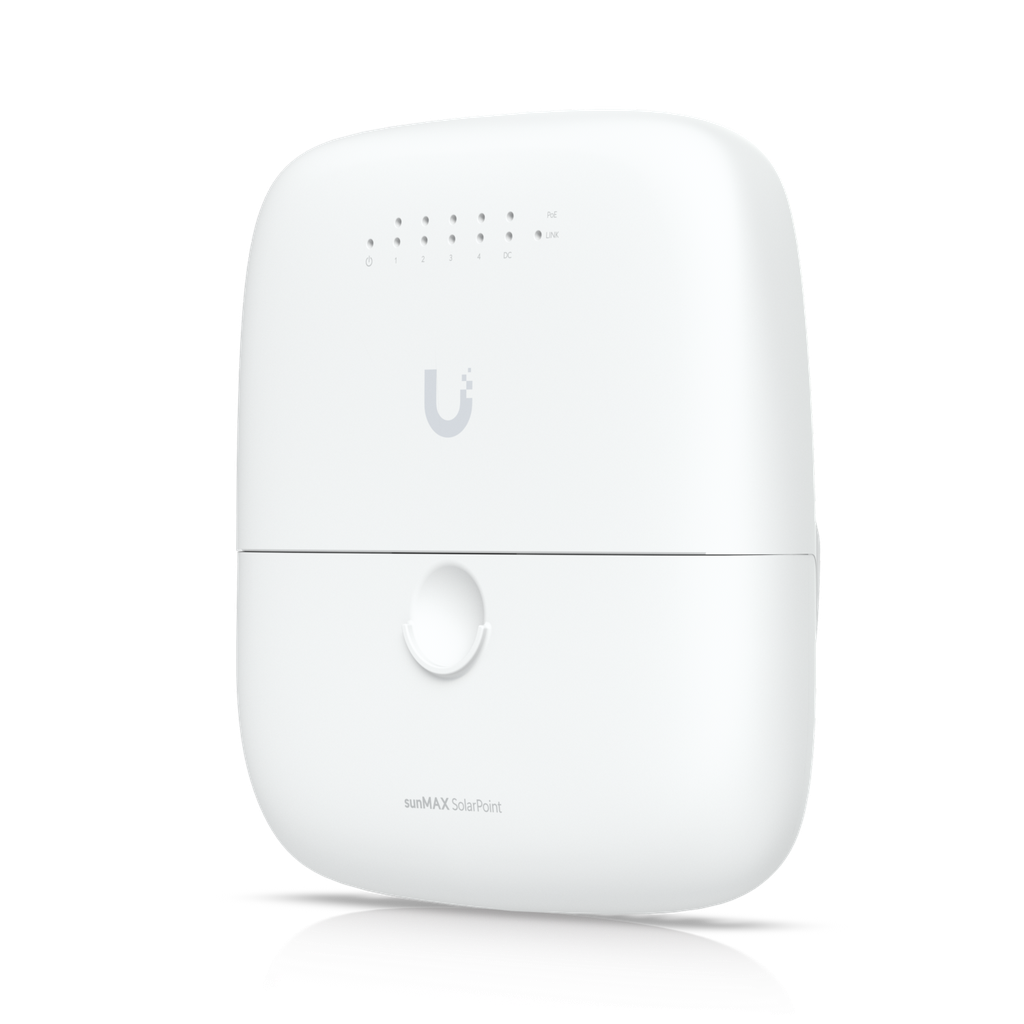

Ubiquiti SM-SP-40 SunMax SolarPoint 4 Port 24v POE Solar Switch Outdoor

https://arcip.com.au/web/image/product.template/2782/image_1920?unique=8867584
The Ubiquiti SM-SP-40 SunMax SolarPoint is a robust outdoor 4-port, 24V PoE switch designed for solar-powered deployments. It efficiently manages solar input to deliver reliable power and data connectivity to your Ubiquiti devices in remote or off-grid locations.

372.35 372.35 AUD 372.35 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

Ubiquiti
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
SM-SP-40
Barcode
817882028301
Tags
SM-SP-40
Ubiquiti SM-SP-40 SunMax SolarPoint 4 Port 24v POE Solar Switch Outdoor

Features

  • Integrated Solar Charge Controller (MPPT) for Efficient Power Management
  • 4x 24V Passive PoE Output Ports for Ubiquiti airMAX and UniFi Devices
  • Gigabit Ethernet Connectivity for High-Speed Data Transfer
  • Flexible Power Input: Solar Panel or DC Terminal Block
  • Outdoor-Rated, UV-Stabilized Enclosure for Harsh Environments
  • Battery Charging and Monitoring with High/Low-Temperature Cutoff
  • Advanced Monitoring and Configuration via UISP/UNMS
  • Built-in Grounding for Enhanced ESD Protection

Specifications

Power
Solar Panel Input10-30VDC, Max. 60W
Battery Input10-30VDC (For 12V or 24V Lead-Acid Batteries)
PoE Output4x 24V Passive PoE (Pins 4, 5+; 7, 8-)
Max. PoE Output Current1.25A per port (Total 45W)
Charge Controller TypeMPPT (Maximum Power Point Tracking)
Battery ChemistryLead-Acid (Flooded, AGM, Gel)
Max. Power Consumption (Device Only)2W (Excluding PoE output)
Network
Ethernet Ports5x 10/100/1000 Mbps RJ45 (1x Data In, 4x PoE Out)
Data Rate SupportGigabit Ethernet
Physical/Environmental
Enclosure MaterialOutdoor UV Stabilized Polycarbonate
MountingWall / Pole Mount (Kit Included)
Operating Temperature-30 to 60° C (-22 to 140° F)
Operating Humidity5 to 95% Non-Condensing
Dimensions189 x 189 x 45 mm (7.44 x 7.44 x 1.77")
Weight0.5 kg (1.1 lb)
ESD/EMP ProtectionAir: ±24 kV, Contact: ±24 kV

Professional Overview

The Ubiquiti SM-SP-40 SunMax SolarPoint is a revolutionary outdoor solar switch, meticulously engineered to provide reliable, off-grid power and data connectivity for a wide range of Ubiquiti airMAX and UniFi devices. This innovative solution integrates an advanced MPPT (Maximum Power Point Tracking) solar charge controller with a 4-port Gigabit PoE switch, making it an indispensable tool for deploying wireless infrastructure and surveillance systems in remote locations where traditional power sources are unavailable or cost-prohibitive. The SolarPoint efficiently harnesses solar energy to charge connected batteries and power devices, ensuring continuous operation even during periods of low sunlight.

Designed for unparalleled versatility, the SM-SP-40 features multiple power input options, supporting direct connection to solar panels and external DC power sources, alongside battery input for energy storage. Its four 24V Passive PoE output ports deliver up to 45W of total power, capable of powering several Ubiquiti CPEs, access points, or IP cameras. The Gigabit Ethernet capability ensures that high-bandwidth data requirements are met, preventing bottlenecks and maintaining optimal network performance across your solar-powered deployments. This seamless integration of power management and data switching dramatically simplifies installation and reduces the overall system footprint.

The robust, outdoor-rated, and UV-stabilized polycarbonate enclosure ensures the SolarPoint withstands harsh environmental conditions, including extreme temperatures, moisture, and prolonged sun exposure. Integrated battery management features, such as high and low-temperature cutoffs, safeguard connected batteries against damage and extend their lifespan, contributing to the system's long-term reliability. Furthermore, advanced monitoring and configuration through Ubiquiti's UISP (Ubiquiti Internet Service Provider) or UNMS (Ubiquiti Network Management System) platforms provide network administrators with real-time insights and remote control over their solar-powered infrastructure.

For Wireless Internet Service Providers (WISPs), surveillance integrators, and anyone seeking a resilient and autonomous networking solution, the Ubiquiti SM-SP-40 SunMax SolarPoint offers a powerful, efficient, and reliable platform. It enables the deployment of scalable networks in previously inaccessible areas, minimizes operational costs associated with conventional power infrastructure, and provides peace of mind through its robust protection features and intelligent power management. The SolarPoint is a strategic investment for building future-proof, environmentally conscious, and highly dependable wireless communication networks.
