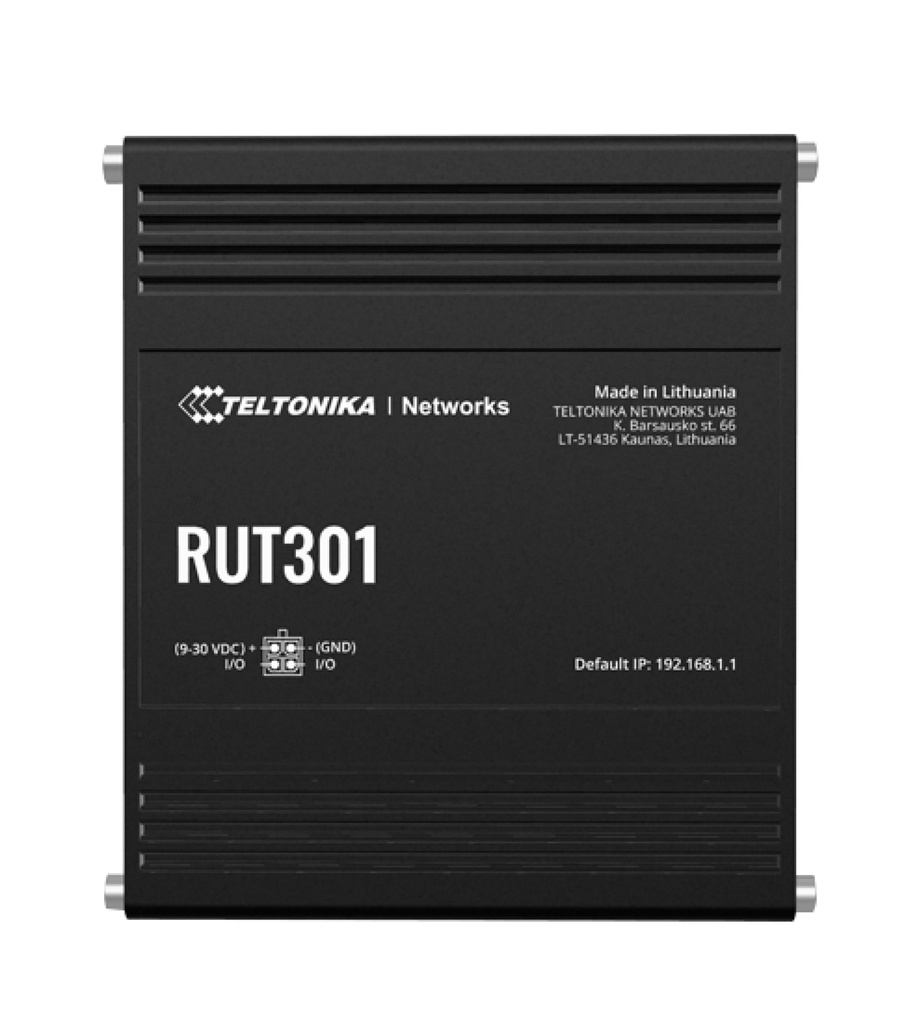

Teltonika RUT301 Industrial Ethernet Router

https://arcip.com.au/web/image/product.template/15464/image_1920?unique=6bbe47d

The Teltonika RUT301 (RUT301 Industrial Ethernet Router) is an industrial Ethernet router with five Ethernet ports (10/100 Mbps), two configurable digital I/Os and a USB 2.0 port. It accepts 9 - 30 VDC and operates from -40 °C to 75 °C in an anodised aluminium housing. It includes a pre-configured firewall and multiple VPN services.

$ 150.57 150.57 AUD $ 150.57 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU

Teltonika RUT301 at a glance

The Teltonika RUT301 (RUT301 Industrial Ethernet Router) is an industrial Ethernet router with five Ethernet ports (10/100 Mbps), two configurable digital I/Os and a USB 2.0 port. It accepts 9 - 30 VDC and operates from -40 °C to 75 °C in an anodised aluminium housing. It includes a pre-configured firewall and multiple VPN services.

ARC IP Networks supplies the genuine RUT301 Industrial Ethernet Router from Australian stock with the full manufacturer's warranty.

Ethernet5 x RJ45, 10/100 Mbps
I/O2 x configurable digital I/O
USB1 x USB 2.0 (Type A)
Input voltage9 - 30 VDC
Operating temp-40 °C to 75 °C
SecurityPre-configured firewall + VPN
Size / weight100 x 30 x 85 mm, 233 g
Operating systemRutOS (OpenWrt based)

Best for

  • Industrial machinery connectivity
  • Enterprise or retail equipment connectivity
  • Remote management of sites via RMS

Consider instead

Key features

Interfaces: 5 x Ethernet ports (10/100 Mbps), Digital I/Os, and USB 2.0

Rms: For remote management, access & VPN services

Security Suite: Pre-configured firewall and multiple VPN services

Durable: Industrial-grade design for withstanding harsh environments

Teltonika RUT301 specifications

Ethernet

WAN1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX
LAN4 x LAN ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

Network

RoutingStatic routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
Network protocolsTCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
VoIP passthrough supportH.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoringPing Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
FirewallPort forward, traffic rules, custom rules, TTL target customisation
Firewall status pageView all your Firewall statistics, rules, and rule counters
Port managementView device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
Network topologyVisual representation of your network, showing which devices are connected to which other devices
DHCPStatic and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
QoS / Smart Queue Management (SQM)Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNSSupported >77 service providers, others can be configured manually
DNS over HTTPSDNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS
Network backupVRRP, Wired options, each of which can be used as an automatic Failover
Load balancingBalance Internet traffic over multiple WAN connections
HotspotCaptive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes
SSHFSPossibility to mount remote file system via SSH protocol
Traffic ManagementReal-time monitoring, wireless signal charts, traffic usage history

Security

AuthenticationPre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
FirewallPreconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64
Attack preventionDDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLANPort and tag-based VLAN separation
WEB filterBlock list for blocking out unwanted websites, allow list for specifying allowed sites only
Access controlFlexible access control of SSH, Web interface, CLI and Telnet
Certificate ManagerCertificate creation tool allows to create CA, server, client, let's encrypt, SCEP certificates
802.1xPort-based network access control server

Vpn

OpenVPNMultiple clients and a server can run simultaneously, 27 encryption methods
OpenVPN EncryptionDES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192,
BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256IPsec
XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)GRE
GRE tunnel, GRE tunnel over IPsec supportPPTP, L2TP
Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec supportStunnel
Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s codeDMVPN
Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub supportSSTP
SSTP client instance supportZeroTier
ZeroTier VPN client supportWireGuard
WireGuard VPN client and server supportTinc

Opc Ua

Supported modesClient, Server
Supported connection typesTCP

Modbus

Supported modesServer, Client
Supported connection typesTCP, USB
Custom registersMODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality
Supported data formats8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

Data To Server

ProtocolHTTP(S), MQTT, Azure MQTT
Data to serverExtract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature

Bacnet

Supported modesRouter
Supported connection typesIP, RTU (USB)
Configuration optionsSupport for multiple BACnet/IP interfaces, Network number assignment, Preconfigured BDT entries for BBMD (BACnet Broadcast Management Device)

Mqtt Gateway

Modbus MQTT GatewayAllows sending commands and receiving data from MODBUS Server through MQTT broker

Dnp3

Supported modesStation, Outstation
Supported connectionTCP, USB

Dlms/Cosem

DLMS SupportDLMS - standard protocol for utility meter data exchange
Supported modesClient
Supported connection typesTCP, USB

Api

Teltonika Networks Web API (beta) supportExpand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

Monitoring & Management

WEB UIHTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
FOTAFirmware update from server, automatic notification
SSHSSH (v1, v2)
TR-069OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTTMQTT Broker, MQTT publisher
SNMPSNMP (v1, v2, v3), SNMP Trap, Brute force protection
JSON-RPCManagement API over HTTP/HTTPS
RMSTeltonika Remote Management System (RMS)

Iot Platforms

Cumulocity - Cloud of ThingsAllows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP. Has reboot and firmware upgrade actions
Azure IoT HubCan be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs

System Characteristics

CPUMediatek, 580 MHz, MIPS 24KEc
RAM128 MB, DDR2
FLASH storage16 MB serial NOR flash

Firmware/Configuration

WEB UIUpdate FW from file, check FW on server, configuration profiles, configuration backup
FOTAUpdate FW
RMSUpdate FW/configuration for multiple devices at once
Keep settingsUpdate FW without losing current configuration
Factory settings resetA full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration

Firmware Customisation

Operating systemRutOS (OpenWrt based Linux OS)
Supported languagesBusybox shell, Lua, C, C++
Development toolsSDK package with build environment provided
GPL customizationYou can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs
Package ManagerThe Package Manager is a service used to install additional software on the device

Usb

Data rateUSB 2.0
ApplicationsSamba share, USB-to-serial
External devicesPossibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter
Storage formatsFAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4

Input/Output

InputUp to 2 x Configurable digital Inputs (shared), 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
OutputUp to 2 x Configurable digital Outputs (shared), Open collector output, max output 30 V, 300 mA
EventsEmail, RMS
I/O jugglerAllows to set certain I/O conditions to initiate event

Power

Connector4-pin industrial DC power socket
Input voltage range9 - 30 VDC, reverse polarity protection, voltage surge/transient protection
PoE (passive)Passive PoE (Optional - different hardware required; contact your sales manager)
Power consumptionIdle: < 0.8 W, Max: < 3.8 W

Physical Interfaces

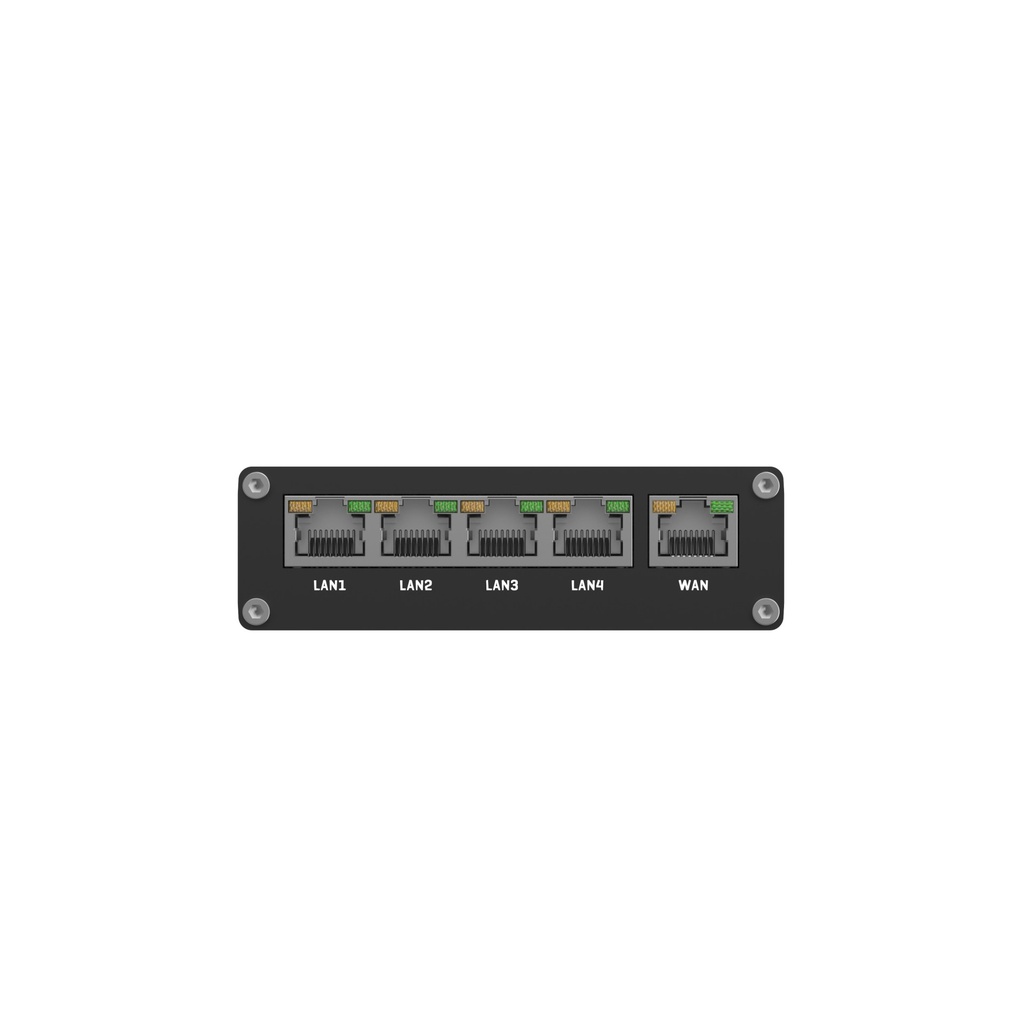

Ethernet5 x RJ45 ports, 10/100 Mbps
I/O’s2 x Configurable digital I/O on 4-pin power connector
Status LEDs1 x WAN type LED, 4 x LAN status LEDs, 1 x Power LED
Power1 x 4-pin power connector
USB1 x USB A port for external devices
ResetReboot/User default reset/Factory reset button

Physical Specification

Casing materialAnodised aluminium housing and panels
Dimensions (W x H x D)100 x 30 x 85 mm
Weight233 g
Mounting optionsDIN rail, wall mount, flat surface (all require additional kit)

Operating Environment

Operating temperature-40 °C to 75 °C
Operating humidity10% to 90% non-condensing
Ingress Protection RatingIP30

Specifications from Teltonika's official product data for the RUT301, checked October 2026.

The RUT301 Industrial Ethernet Router in depth

Industrial Ethernet routing with advanced security

The RUT301 is an industrial Ethernet router that provides network connectivity with advanced security features. It has five Ethernet ports (10/100 Mbps), made up of one WAN port and four LAN ports, plus two configurable digital I/Os and a USB 2.0 port. This makes it straightforward to connect to industrial machinery, enterprise or retail equipment. A pre-configured firewall is included, and the router supports multiple industrial communication protocols.

Security, VPN and protocol support

The RUT301 includes firewall rules, DDOS and port scan prevention, port and tag-based VLAN separation, a web filter and 802.1x port-based network access control. VPN options include OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier and WireGuard. On the industrial side it supports Modbus, OPC UA, DNP3, BACnet and DLMS/COSEM, with a Modbus MQTT gateway and a Data to Server feature for HTTP(S), MQTT and Azure MQTT.

Built for demanding environments

The RUT301 is housed in anodised aluminium and measures 100 x 30 x 85 mm, weighing 233 g. It has an IP30 rating, operates from -40 °C to 75 °C at 10% to 90% non-condensing humidity, and includes reverse polarity and voltage surge/transient protection. Mounting options are DIN rail, wall mount or flat surface, all of which require an additional kit. Remote management is available through Teltonika RMS, and the router runs RutOS, which is OpenWrt based.

Frequently asked questions

Straight answers about the RUT301 Industrial Ethernet Router from the ARC IP Networks team. Last reviewed October 2026.

The Teltonika RUT301 is an industrial Ethernet router with five 10/100 Mbps Ethernet ports, two configurable digital I/Os and a USB 2.0 port. It includes a pre-configured firewall and multiple VPN services, and can be managed remotely through RMS.

It has 5 x RJ45 Ethernet ports (10/100 Mbps), made up of 1 WAN and 4 LAN ports. It also has 2 configurable digital I/Os on the 4-pin power connector and 1 USB A port for external devices. Status LEDs and a reboot/reset button are also provided.

The box contains the RUT301 router, a 9 W PSU, an Ethernet cable (1.5 m), a Quick Start Guide and the packaging box.

It uses a 4-pin industrial DC power socket with an input range of 9 - 30 VDC. It has reverse polarity protection and voltage surge/transient protection. Power consumption is under 0.8 W at idle and under 3.8 W at maximum.

The RUT301 supports Modbus (TCP and USB), OPC UA (client and server), DNP3, BACnet, DLMS/COSEM and MQTT. It also includes a Modbus MQTT gateway.

The operating temperature is -40 °C to 75 °C, with 10% to 90% non-condensing humidity. The ingress protection rating is IP30.

Mounting options are DIN rail, wall mount or flat surface. All of them require an additional kit.

ARC IP Networks supplies the Teltonika RUT301 from Australian stock with the full manufacturer's warranty.
