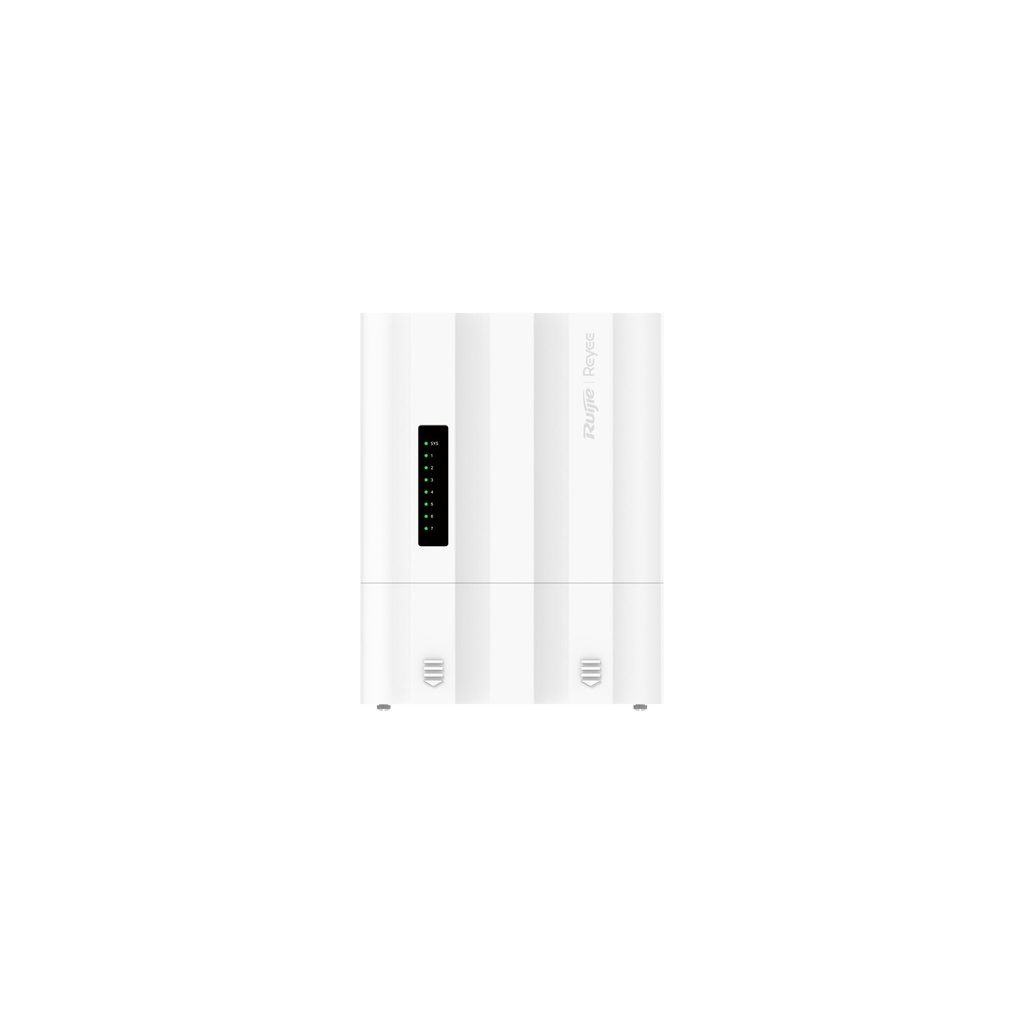

Ruijie RG-ES207GS-PI-OD 7-Port Gigabit Outdoor IP65 Cloud-Managed Switch, PoE-In or 12V DC, 4 x PoE+ Out, 2 x SFP

Price:

$ 204.88


Ubiquiti UDB-IoT Device Bridge IoT
Ubiquiti UDB-IoT Device Bridge IoT
$ 94.05
$ 101.75 (8% OFF)
Hikvision iDS-2CD5T87G2/V-XHSY DeepinViewX 8 MP Fixed Bullet Network Camera, 2.8 mm, IR 80 m, Guanlan AI Perimeter Protection
Hikvision iDS-2CD5T87G2/V-XHSY DeepinViewX 8 MP Fixed Bullet Network Camera, 2.8 mm, IR 80 m, Guanlan AI Perimeter Protection
$ 1,144.50
$ 1,144.50

Ruijie RG-ES207GS-PI-OD 7-Port Gigabit Outdoor IP65 Cloud-Managed Switch, PoE-In or 12V DC, 4 x PoE+ Out, 2 x SFP

https://arcip.com.au/web/image/product.template/10360/image_1920?unique=306b97f

Ruijie RG-ES207GS-PI-OD 7-port Gigabit outdoor cloud-managed switch powered by PoE-in (IEEE 802.3af/at/bt) or 12 V DC. Five 10/100/1000BASE-T RJ45 ports with four IEEE 802.3af/at PoE+ outputs (60 W budget with 90 W PoE++ input, 0 W on DC input) and two 1GE SFP ports with ERPS. IP65 plastic housing, –30°C to +65°C, ±8 kV surge on ports 1-4, wall or pole mounting. Uninterrupted PoE, PoE watchdog, 14 Gbps switching, 32 VLANs. Managed via Ruijie Cloud, Ruijie Reyee App or eWeb. Genuine Ruijie from ARC IP Networks, authorised Ruijie reseller with Australian stock.

$ 204.88 204.88 AUD $ 204.88 incl. GST

Not Available For Sale


  • Brand
  • Switching Capacity
  • Form Factor
  • Port Speed
  • Ports
  • Network Connectivity
  • Uplink
  • PoE Specification

This combination does not exist.

In stock online
Outdoor Switch PoE Ruijie Cloud Managed Reyee CCTV
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
RG-ES207GS-PI-OD
Barcode
6976915006564
Tags

Ruijie RG-ES207GS-PI-OD at a glance

The Ruijie RG-ES207GS-PI-OD is a 7-port Gigabit outdoor switch in an IP65 housing that is powered by PoE input or 12 V DC, with four PoE+ output ports and two 1GE SFP ports for ERPS. Its PoE output budget depends on the input: up to 60 W with a 90 W PoE++ input, and none on DC input.

ARC IP Networks is an authorised Ruijie reseller in Australia. We supply the genuine Ruijie RG-ES207GS-PI-OD from Australian stock, with a GST tax invoice on every order.

Power inPoE/PoE+/PoE++ or 12 V DC
PoE outUp to 60 W, 4 x PoE+
RatingIP65, ±8 kV PoE surge
Operating temp–30°C to +65°C

Best for

  • Outdoor camera points with no mains power, fed by a PoE++ uplink
  • Solar-powered outdoor sites, as highlighted by Ruijie
  • Pole-mounted camera clusters linked by a fibre ring using ERPS

Key features

Five 10/100/1000BASE-T RJ45 ports and two 1GE SFP ports.

Powered by one PoE-in port (IEEE 802.3af/at/bt) or a 12 V DC input, so no dedicated power cabling is required.

Four IEEE 802.3af/at PoE+ output ports; budget is 60 W with a 90 W PoE++ input.

IP65 enclosure, fully dustproof and jet-water resistant, for wall or pole mounting.

Rated for –30°C to +65°C with fanless natural cooling.

±8 kV surge protection on ports 1–4, per Ruijie.

ERPS on the SFP ports for fibre-ready outdoor rings.

Uninterrupted PoE during restarts, PoE watchdog, camera detection and Ruijie Cloud / Reyee App management.

Ruijie RG-ES207GS-PI-OD specifications

Ruijie RG-ES207GS-PI-OD technical specifications
SpecificationValue
Ports
10/100/1000BASE-T RJ45 ports5
1GE SFP ports2
Reset button1
PoE output
PoE out standardIEEE 802.3af/at (PoE/PoE+)
PoE/PoE+ out ports4
PoE out budget60 W with 90 W PoE++ input; 40 W with 60 W PoE++ input; 19 W with 30 W PoE+ input; 6 W with 15.4 W PoE input; 0 W on DC input
PoE power pins1–2 (+), 3–6 (-)
Performance
Switching capacity14 Gbps
Forwarding rate10.42 Mpps
MAC address table2000 entries
Maximum VLANs32
Jumbo frame (MTU)9216 bytes
Flash memory8 MB
Layer 2, reliability and security
IEEE 802.1Q VLANYes
Static link aggregationYes
LACPNo
Rate limiting (inbound/outbound per interface)Yes
Port isolationYes
Storm controlBroadcast, multicast and unknown unicast
DHCP snoopingYes
CPU protection policyYes
ERPS ring protectionYes
PoE watchdogYes
Uninterrupted PoE during warm restartYes
IGMP snoopingNo
ACLs / 802.1X / RADIUSNo
802.1p / DSCP traffic classificationNo
Management
Cloud managementRuijie Cloud and Ruijie Reyee App
Local managementeWeb (HTTP/HTTPS)
SON (zero-touch provisioning)Yes
Camera detectionYes
Port mirroringYes
Cable testYes
EEEYes
IPv4 pingYes
DHCP / DNS clientYes
Online upgradeYes
SNMP / LLDP / SyslogNo
Power
Power input12 V DC (0.5 A rated) or PoE in
PoE in standardIEEE 802.3af/at/bt (PoE/PoE+/PoE++)
PoE in ports1
Maximum power consumption6 W with no PoE load; 66 W at full PoE load
Physical and environmental
CasingPlastic, IP65
Dimensions (W x D x H)258 mm x 200 mm x 62.8 mm
CoolingFanless, natural cooling
MountingWall or pole
Operating temperature–30°C to +65°C
Storage temperature–40°C to +70°C
Operating humidity10% to 90% RH (non-condensing)
MTBF200,000 hours
Surge protectionPorts 1–4 ±8 kV common mode; port 5 ±2 kV common mode; power connector ±2 kV common mode
CertificationCE, CB
In the box and warranty
ContentsSwitch, mounting bracket, 2 hose clamps, 4 expansion anchors, 4 x ST4.2 x 19 mm screws, terminal block, user manual, warranty card
Warranty3 years

Figures from Ruijie's official product page and datasheet.

The Ruijie RG-ES207GS-PI-OD in depth

Outdoor switching without mains power

The RG-ES207GS-PI-OD runs from a single PoE input or a 12 V DC supply, which Ruijie positions for remote and solar-powered outdoor sites. It mounts on a wall or pole in an IP65 housing rated for –30°C to +65°C.

PoE out depends on PoE in

The four PoE+ output ports share whatever the input allows: 60 W with a 90 W PoE++ input, 40 W with 60 W, 19 W with a 30 W PoE+ input and 6 W with a 15.4 W PoE input. On 12 V DC input the PoE output budget is 0 W.

Fibre rings and cloud management

Two 1GE SFP ports support ERPS for resilient fibre rings, and the switch is managed through Ruijie Cloud, the Reyee App or eWeb.

Frequently asked questions

Straight answers about the Ruijie RG-ES207GS-PI-OD from the ARC IP Networks team. Last reviewed October 2026.

By PoE input on one port (IEEE 802.3af/at/bt) or by 12 V DC. It has no AC input; the RG-ES207GS-AC-OD is the AC version.

It depends on the input: 60 W with a 90 W PoE++ input, 40 W with 60 W PoE++, 19 W with 30 W PoE+, 6 W with 15.4 W PoE, and 0 W on DC input.

No. Ruijie lists a PoE output budget of 0 W on DC input, so PoE output needs a PoE input.

Yes. Ruijie rates it IP65 with an operating range of –30°C to +65°C.

Ruijie lists a 3-year warranty for the RG-ES207GS-PI-OD.

ARC IP Networks is an authorised Ruijie reseller and supplies the RG-ES207GS-PI-OD from Australian stock with a GST tax invoice.

Explore the full Ruijie range: Ruijie Australia hub · Shop all Ruijie Reyee

Buy the Ruijie RG-ES207GS-PI-OD in Australia

ARC IP Networks is an authorised Ruijie reseller, supplying Ruijie Reyee access points, switches, routers and wireless bridges to businesses, installers and integrators across Australia.

  • Genuine Ruijie with the full manufacturer's warranty, supplied from Australian stock.
  • Australian stock, shipped Australia-wide.
  • Manufacturer's warranty and local help with warranty claims and choosing the right model.
  • GST tax invoice on every order, with trade and project pricing available.

Planning a Ruijie network?

Ask ARC IP Networks for project pricing or a configured quote, or call us to check the right Ruijie model for your site.

Brand Ruijie
Switching Capacity 14 Gbps
Form Factor Outdoor IP65 Enclosure
Port Speed 5 x GbE + 2 x 1G SFP
Ports 7 Ports
Network Connectivity Wired
Uplink 2 x 1GE SFP
PoE Specification PoE-in 802.3af/at/bt, PoE+ out on 4 ports
