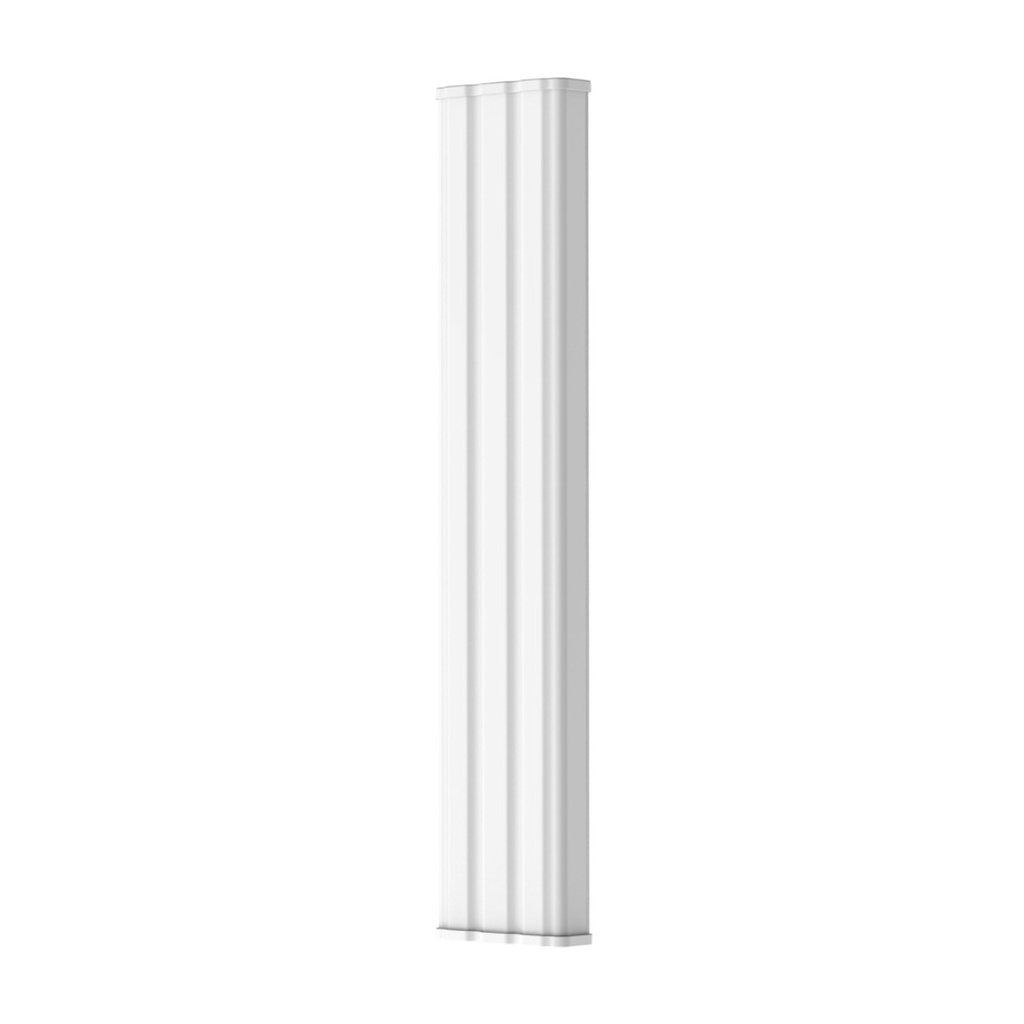

Ruijie RG-ANT20S-90 5GHz 20dBi Sector Antenna for RG-AirMetro550G-B, 90° Coverage, Up to 10km

Price:

$ 269.91


Ruijie RG-AirMetro460G 5GHz Wireless Bridge CPE, 23dBi Dish, Up to 15km PTP, Gigabit Port, IP65
Ruijie RG-AirMetro460G 5GHz Wireless Bridge CPE, 23dBi Dish, Up to 15km PTP, Gigabit Port, IP65
$ 132.69
$ 144.40 (8% OFF)
Ruijie RG-RAP1260 Reyee Wi-Fi 6 AX3000 Dual-Band Wall Plate Access Point, 5 x Gigabit Ports, PoE/PoE+ Powered
Ruijie RG-RAP1260 Reyee Wi-Fi 6 AX3000 Dual-Band Wall Plate Access Point, 5 x Gigabit Ports, PoE/PoE+ Powered
$ 205.33
$ 205.33

Ruijie RG-ANT20S-90 5GHz 20dBi Sector Antenna for RG-AirMetro550G-B, 90° Coverage, Up to 10km

https://arcip.com.au/web/image/product.template/5635/image_1920?unique=306b97f

Ruijie RG-ANT20S-90 5 GHz 2 x 2 sector antenna for the RG-AirMetro550G-B wireless bridge base station. 20 dBi gain, 90° horizontal and 7° vertical beam. Maximum bridge distance 10 km with the RG-AirMetro550G-B; Ruijie-tested throughput 204 Mbps at 3 km, 153 Mbps at 5 km and 77 Mbps at 10 km (HT40). IP55, -40°C to +80°C, pole mounting, dimensions 139.9 x 48.9 x 694 mm. Supplied with two RF cables, uptilt and downtilt brackets, pole brackets and clamps and protective cover. Antenna only, base station sold separately. Genuine Ruijie from ARC IP Networks, authorised Ruijie reseller with Australian stock.

$ 269.91 269.91 AUD $ 287.57 incl. GST

Not Available For Sale


  • Brand
  • Ingress Protection

This combination does not exist.

In stock online
Outdoor Ruijie Reyee Wireless Bridge Point to Point
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
RG-ANT20S-90
Barcode
6971693278530
Tags

Ruijie RG-ANT20S-90 at a glance

The Ruijie RG-ANT20S-90 is a 5 GHz 2 x 2 sector antenna with 20 dBi gain and a 90° horizontal by 7° vertical beam, designed for the RG-AirMetro550G-B base station. With it, Ruijie lists a maximum bridge distance of 10 km and throughput of 204 Mbps at 3 km in its testing.

ARC IP Networks is an authorised Ruijie reseller in Australia. We supply the genuine Ruijie RG-ANT20S-90 from Australian stock, with a GST tax invoice on every order.

Gain20 dBi, 5 GHz 2 x 2
Beam90° H / 7° V
Max. distance10 km with RG-AirMetro550G-B
RatingIP55, -40°C to +80°C

Best for

  • Long-range 90° sector coverage from a high mast
  • WISP sectors reaching subscribers up to 10 km away
  • Long-distance CCTV backhaul to several remote camera sites

Key features

5 GHz 2 x 2 sector antenna with 20 dBi gain.

Beam width of 90° horizontal and 7° vertical.

Pairs with the RG-AirMetro550G-B base station for a maximum bridge distance of 10 km.

Ruijie-tested throughput with the RG-AirMetro550G-B: 204 Mbps at 3 km, 153 Mbps at 5 km and 77 Mbps at 10 km (HT40).

IP55 rated for outdoor installation, operating from -40°C to +80°C.

Pole mounting, with two RF cables and a protective cover included.

MTBF of 400,000 hours with natural cooling.

One of three antennas Ruijie offers for the RG-AirMetro series, so each base station can be matched to the site.

Ruijie RG-ANT20S-90 specifications

Ruijie RG-ANT20S-90 technical specifications
SpecificationValue
Antenna
Band5 GHz, 2 x 2
TypeSector
Gain20 dBi
Horizontal beam90°
Vertical beam7°
Performance with RG-AirMetro550G-B (Ruijie testing, HT40)
Maximum bridge distance10 km
Throughput204 Mbps at 3 km, 153 Mbps at 5 km and 77 Mbps at 10 km
Physical
Dimensions (W x D x H)139.9 x 48.9 x 694 mm excluding bracket
MountingPole
ColourElegant white
Environment
Operating temperature-40°C to +80°C
Storage temperature-40°C to +85°C
Operating humidity5% to 95% RH, non-condensing
Altitude-500 m to +5,000 m
IP ratingIP55
MTBF400,000 hours
Package contents
In the boxAntenna, 2 RF cables, uptilt and downtilt brackets, 2 pole brackets, 2 pole clamps, 8 flange nuts, 8 bolts, protective cover, user manual

Figures from Ruijie's official product page and datasheet.

The Ruijie RG-ANT20S-90 in depth

Sector antenna for the AirMetro base station

The RG-ANT20S-90 gives the RG-AirMetro550G-B its 5 GHz coverage pattern. Its 20 dBi gain and 90° by 7° beam suit long-range 90° sector coverage from a high mast.

Range and throughput

Ruijie lists a maximum bridge distance of 10 km when the RG-AirMetro550G-B is installed on the RG-ANT20S-90, with 204 Mbps at 3 km, 153 Mbps at 5 km and 77 Mbps at 10 km (HT40) in its own testing. Actual results depend on the site.

Built for outdoor masts

The antenna is IP55 rated, operates from -40°C to +80°C and is supplied with uptilt and downtilt brackets, pole brackets and clamps, two RF cables and a protective cover.

Frequently asked questions

Straight answers about the Ruijie RG-ANT20S-90 from the ARC IP Networks team. Last reviewed October 2026.

It is designed for the RG-AirMetro550G-B base station, which mounts on the antenna; Ruijie lists a maximum bridge distance of 10 km with this combination.

20 dBi at 5 GHz, with a 90° horizontal and 7° vertical beam.

With the RG-AirMetro550G-B, Ruijie measured 204 Mbps at 3 km, 153 Mbps at 5 km and 77 Mbps at 10 km (HT40).

Yes. It is IP55 rated and operates from -40°C to +80°C.

No. It is an antenna only; the RG-AirMetro550G-B base station is sold separately.

ARC IP Networks is an authorised Ruijie reseller and supplies the RG-ANT20S-90 from Australian stock with a GST tax invoice.

Explore the full Ruijie range: Ruijie Australia hub · Shop all Ruijie Reyee

Buy the Ruijie RG-ANT20S-90 in Australia

ARC IP Networks is an authorised Ruijie reseller, supplying Ruijie Reyee access points, switches, routers and wireless bridges to businesses, installers and integrators across Australia.

  • Genuine Ruijie with the full manufacturer's warranty, supplied from Australian stock.
  • Australian stock, shipped Australia-wide.
  • Manufacturer's warranty and local help with warranty claims and choosing the right model.
  • GST tax invoice on every order, with trade and project pricing available.

Planning a Ruijie network?

Ask ARC IP Networks for project pricing or a configured quote, or call us to check the right Ruijie model for your site.

Brand Ruijie
Ingress Protection IP55
RG-ANT20S-90_Datasheet_Official_2026-09-07.pdf
