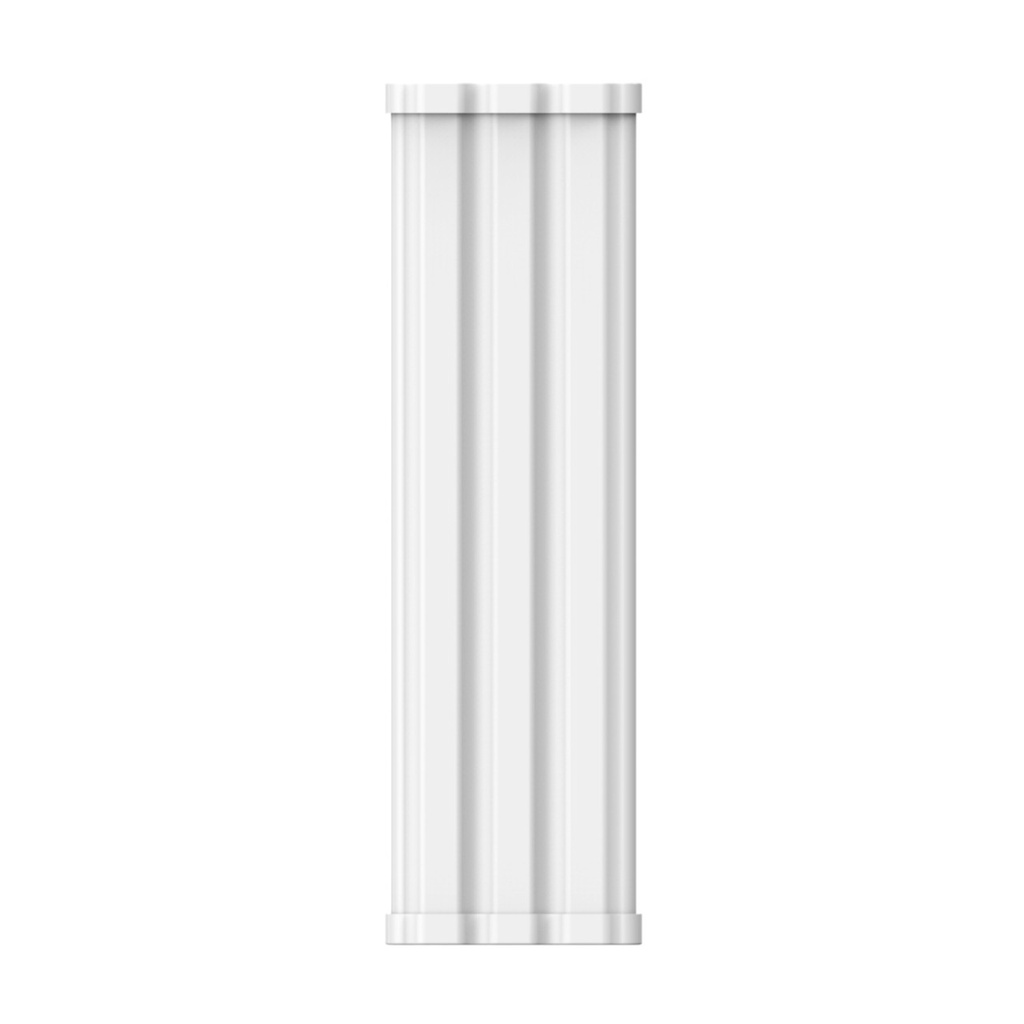

Ruijie RG-ANT16S-120 5GHz 16dBi Sector Antenna for RG-AirMetro550G-B, 120° Coverage, Up to 5km

Price:

$ 165.45


Ruijie RG-EW3000GX Reyee AX3000 Wi-Fi 6 Dual-WAN Gigabit Router, 160 MHz, 5 Antennas, Reyee Mesh
Ruijie RG-EW3000GX Reyee AX3000 Wi-Fi 6 Dual-WAN Gigabit Router, 160 MHz, 5 Antennas, Reyee Mesh
$ 85.16
$ 85.16
Ruijie RG-RAP52-OD Reyee Wi-Fi 5 AC1300 Dual-Band Outdoor Access Point, IP65, 2 Detachable Antennas, PoE
Ruijie RG-RAP52-OD Reyee Wi-Fi 5 AC1300 Dual-Band Outdoor Access Point, IP65, 2 Detachable Antennas, PoE
$ 150.96
$ 164.29 (8% OFF)

Ruijie RG-ANT16S-120 5GHz 16dBi Sector Antenna for RG-AirMetro550G-B, 120° Coverage, Up to 5km

https://arcip.com.au/web/image/product.template/5634/image_1920?unique=306b97f

Ruijie RG-ANT16S-120 5 GHz 2 x 2 sector antenna for the RG-AirMetro550G-B wireless bridge base station. 16 dBi gain, 120° horizontal and 10° vertical beam. Maximum bridge distance 5 km with the RG-AirMetro550G-B; Ruijie-tested throughput 204 Mbps at 1 km, 153 Mbps at 3 km and 94 Mbps at 5 km (HT40). IP55, -40°C to +80°C, pole mounting, dimensions 110 x 48.5 x 361 mm. Supplied with two RF cables, a U bracket, pole bracket and pole clamp and protective cover. Antenna only, base station sold separately. Genuine Ruijie from ARC IP Networks, authorised Ruijie reseller with Australian stock.

$ 165.45 165.45 AUD $ 180.06 incl. GST

Not Available For Sale


  • Brand
  • Ingress Protection

This combination does not exist.

In stock online
Outdoor Ruijie Reyee Wireless Bridge Point to Point
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
RG-ANT16S-120
Barcode
6971693278592
Tags

Ruijie RG-ANT16S-120 at a glance

The Ruijie RG-ANT16S-120 is a 5 GHz 2 x 2 sector antenna with 16 dBi gain and a 120° horizontal by 10° vertical beam, designed for the RG-AirMetro550G-B base station. With it, Ruijie lists a maximum bridge distance of 5 km and throughput of 204 Mbps at 1 km in its testing.

ARC IP Networks is an authorised Ruijie reseller in Australia. We supply the genuine Ruijie RG-ANT16S-120 from Australian stock, with a GST tax invoice on every order.

Gain16 dBi, 5 GHz 2 x 2
Beam120° H / 10° V
Max. distance5 km with RG-AirMetro550G-B
RatingIP55, -40°C to +80°C

Best for

  • Medium-range 120° sector coverage from a mast
  • WISP sectors serving subscribers up to 5 km away
  • CCTV sites with cameras spread across a wide arc

Key features

5 GHz 2 x 2 sector antenna with 16 dBi gain.

Beam width of 120° horizontal and 10° vertical.

Pairs with the RG-AirMetro550G-B base station for a maximum bridge distance of 5 km.

Ruijie-tested throughput with the RG-AirMetro550G-B: 204 Mbps at 1 km, 153 Mbps at 3 km and 94 Mbps at 5 km (HT40).

IP55 rated for outdoor installation, operating from -40°C to +80°C.

Pole mounting, with two RF cables and a protective cover included.

MTBF of 400,000 hours with natural cooling.

One of three antennas Ruijie offers for the RG-AirMetro series, so each base station can be matched to the site.

Ruijie RG-ANT16S-120 specifications

Ruijie RG-ANT16S-120 technical specifications
SpecificationValue
Antenna
Band5 GHz, 2 x 2
TypeSector
Gain16 dBi
Horizontal beam120°
Vertical beam10°
Performance with RG-AirMetro550G-B (Ruijie testing, HT40)
Maximum bridge distance5 km
Throughput204 Mbps at 1 km, 153 Mbps at 3 km and 94 Mbps at 5 km
Physical
Dimensions (W x D x H)110 x 48.5 x 361 mm excluding bracket
MountingPole
ColourElegant white
Environment
Operating temperature-40°C to +80°C
Storage temperature-40°C to +85°C
Operating humidity5% to 95% RH, non-condensing
Altitude-500 m to +5,000 m
IP ratingIP55
MTBF400,000 hours
Package contents
In the boxAntenna, 2 RF cables, U bracket, pole bracket, pole clamp, 6 flange nuts, 4 bolts, protective cover, user manual

Figures from Ruijie's official product page and datasheet.

The Ruijie RG-ANT16S-120 in depth

Sector antenna for the AirMetro base station

The RG-ANT16S-120 gives the RG-AirMetro550G-B its 5 GHz coverage pattern. Its 16 dBi gain and 120° by 10° beam suit medium-range 120° sector coverage from a mast.

Range and throughput

Ruijie lists a maximum bridge distance of 5 km when the RG-AirMetro550G-B is installed on the RG-ANT16S-120, with 204 Mbps at 1 km, 153 Mbps at 3 km and 94 Mbps at 5 km (HT40) in its own testing. Actual results depend on the site.

Built for outdoor masts

The antenna is IP55 rated, operates from -40°C to +80°C and is supplied with a U bracket, pole bracket and pole clamp, two RF cables and a protective cover.

Frequently asked questions

Straight answers about the Ruijie RG-ANT16S-120 from the ARC IP Networks team. Last reviewed October 2026.

It is designed for the RG-AirMetro550G-B base station, which mounts on the antenna; Ruijie lists a maximum bridge distance of 5 km with this combination.

16 dBi at 5 GHz, with a 120° horizontal and 10° vertical beam.

With the RG-AirMetro550G-B, Ruijie measured 204 Mbps at 1 km, 153 Mbps at 3 km and 94 Mbps at 5 km (HT40).

Yes. It is IP55 rated and operates from -40°C to +80°C.

No. It is an antenna only; the RG-AirMetro550G-B base station is sold separately.

ARC IP Networks is an authorised Ruijie reseller and supplies the RG-ANT16S-120 from Australian stock with a GST tax invoice.

Explore the full Ruijie range: Ruijie Australia hub · Shop all Ruijie Reyee

Buy the Ruijie RG-ANT16S-120 in Australia

ARC IP Networks is an authorised Ruijie reseller, supplying Ruijie Reyee access points, switches, routers and wireless bridges to businesses, installers and integrators across Australia.

  • Genuine Ruijie with the full manufacturer's warranty, supplied from Australian stock.
  • Australian stock, shipped Australia-wide.
  • Manufacturer's warranty and local help with warranty claims and choosing the right model.
  • GST tax invoice on every order, with trade and project pricing available.

Planning a Ruijie network?

Ask ARC IP Networks for project pricing or a configured quote, or call us to check the right Ruijie model for your site.

Brand Ruijie
Ingress Protection IP55
