MikroTik RB924iR-2nD-BT5&BG77&R11e-LR9 KNOT LR9 Kit IoT Gateway with Lora900MHz Radio

Price:

305.25


Mikrotik RB4011iGS+5HacQ2HnD-IN 4x 1,4 GHz, 10x Gigabit LAN SFP+ L5 WiFi Desktop Case
Mikrotik RB4011iGS+5HacQ2HnD-IN 4x 1,4 GHz, 10x Gigabit LAN SFP+ L5 WiFi Desktop Case
470.80
470.80
MikroTik 2.4GHz mAP lite AP 802.11bgn 2x2 (NO PSU)
MikroTik 2.4GHz mAP lite AP 802.11bgn 2x2 (NO PSU)
52.80
52.80

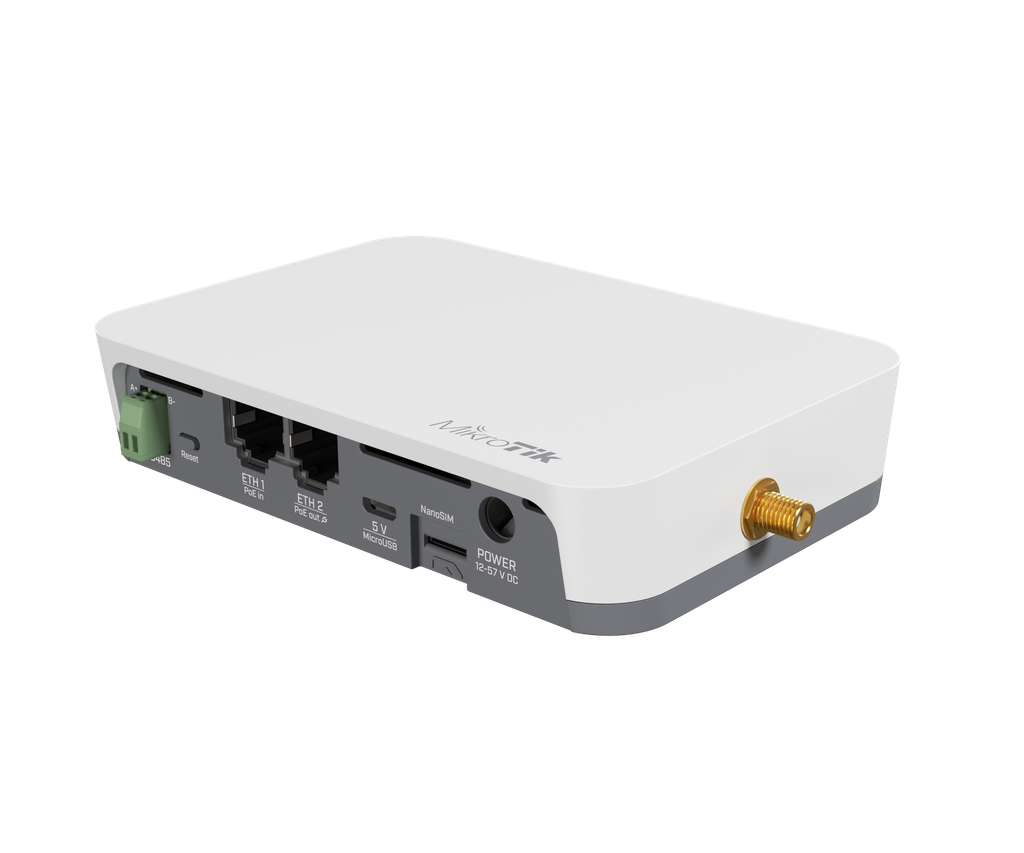

MikroTik RB924iR-2nD-BT5&BG77&R11e-LR9 KNOT LR9 Kit IoT Gateway with Lora900MHz Radio

https://arcip.com.au/web/image/product.template/3105/image_1920?unique=982a144
The MikroTik KNOT LR9 Kit is a comprehensive IoT gateway, seamlessly integrating LoRa900MHz, LTE-M, NB-IoT, and Bluetooth 5 for versatile, long-range connectivity. It's the ultimate solution for industrial IoT applications requiring robust multi-protocol communication and remote monitoring.

305.25 305.25 AUD 305.25 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

MikroTik RouterOS
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
RB924iR-2nD-BT5&BG77&R11e-LR9
Barcode
4752224007865
Tags
RB924iR-2nD-BT5&BG77&R11e-LR9
MikroTik RB924iR-2nD-BT5&BG77&R11e-LR9 KNOT LR9 Kit IoT Gateway with Lora900MHz Radio

Features

  • Integrated 900MHz LoRaWAN Radio (R11e-LR9) for Long-Range IoT
  • Multi-protocol support: LTE-M (CAT M1) & NB-IoT (CAT NB2) via Quectel BG77 modem
  • Bluetooth 5.0 for Local IoT Sensor Communication
  • 2.4 GHz 802.11b/g/n Wireless Connectivity
  • 1x Gigabit Ethernet Port with PoE-in (802.3af/at & Passive)
  • Integrated GPS/GNSS for Location Tracking
  • Multiple Powering Options: PoE-in, DC Jack, MicroUSB
  • Powered by MikroTik RouterOS for Advanced Network Management

Specifications

Processor & Memory
CPU ArchitectureARM 64bit
CPU Core Count2
CPU Nominal Frequency800 MHz
RAM128 MB
Storage16 MB Flash
LoRaWAN Radio
Frequency Range902-928 MHz
LoRaWAN Channels8
LoRa ChipsetSemtech SX1301/SX1302 or compatible
Antenna ConnectorsU.FL (requires external antenna, not included)
Cellular Modem (BG77)
LTE CategoryCAT M1 / CAT NB2
GPS/GNSSIntegrated
Wireless (WiFi)
Wireless Standard802.11b/g/n
Frequency Band2.4 GHz
Antenna Gain2 dBi (Integrated)
MIMO2x2 (Dual Chain)
Bluetooth
Bluetooth Standard5.0
Ethernet
10/100/1000 Ethernet Ports1
Powering
PoE In Standard802.3af/at & Passive PoE (12-57V)
DC Jack Input Voltage12-57V
MicroUSB Input Voltage5V
Max Power Consumption8W
General
Operating SystemRouterOS (License Level 4)
Dimensions120 x 105 x 30 mm (approx.)
Operating Temperature-40°C to +70°C
Enclosure TypePlastic (Indoor/Outdoor Ready with proper enclosure)

Professional Overview

The MikroTik RB924iR-2nD-BT5&BG77&R11e-LR9 KNOT LR9 Kit is a comprehensive and highly versatile IoT gateway solution, meticulously engineered to connect diverse Internet of Things (IoT) devices to the broader network infrastructure with unparalleled flexibility and reliability. This all-in-one kit integrates a powerful array of communication protocols, including a 900MHz LoRaWAN radio, cutting-edge LTE-M (CAT M1) and NB-IoT (CAT NB2) cellular capabilities via the Quectel BG77 module, Bluetooth 5, and 2.4GHz 802.11b/g/n WiFi. It is an indispensable asset for system integrators and network professionals deploying smart sensor networks, industrial monitoring systems, and remote data collection points across various sectors.

The KNOT LR9 Kit excels in its multi-layered communication approach. The integrated 900MHz LoRaWAN radio (R11e-LR9) provides robust, long-range, and low-power connectivity for vast numbers of IoT sensors and end-devices, acting as a high-capacity collector for environmental data, asset telemetry, or other low-bandwidth applications. Bluetooth 5.0 further enhances local connectivity, enabling seamless communication with short-range IoT sensors. This local data is then efficiently uplinked to cloud services or central servers via the integrated cellular modem, which supports both LTE-M and NB-IoT technologies. These LPWA (Low-Power Wide-Area) standards are optimized for transmitting small packets of data over long distances with minimal power consumption, significantly extending battery life for remote devices. The onboard 2.4GHz WiFi also provides standard local network access, configuration interface, or an alternative backhaul option where available.

Further enhancing its utility, the RB924iR KNOT LR9 Kit features an integrated GPS/GNSS module, enabling precise location tracking—a critical functionality for mobile assets, logistics, geo-fencing, and emergency services, providing valuable telemetry data. Powering options are equally versatile, with support for 802.3af/at PoE-in and passive PoE on its Gigabit Ethernet port, a DC jack, and even a microUSB port for 5V input. This flexible powering ensures easy deployment in a myriad of scenarios, from fixed industrial installations to dynamic mobile setups, making it adaptable to almost any IoT use case.

Running MikroTik's feature-rich RouterOS (License Level 4), the KNOT LR9 Kit provides advanced routing, firewalling, and VPN capabilities, allowing network administrators to establish secure, isolated, and highly customized network configurations. This powerful combination of diverse connectivity options, resilient hardware, and sophisticated software ensures long-term operational stability and efficiency. The MikroTik RB924iR-2nD-BT5&BG77&R11e-LR9 KNOT LR9 Kit is a strategic investment for building scalable, reliable, and future-proof IoT infrastructures, contributing to enhanced data collection, improved operational efficiency, and smarter decision-making across diverse industrial and commercial sectors.

Brand Mikrotik
