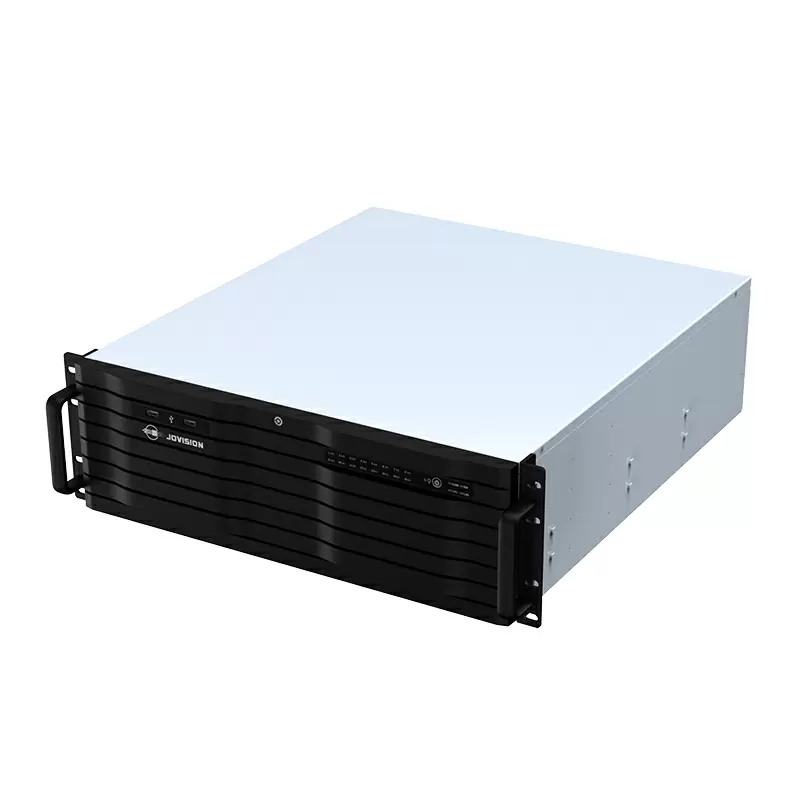

Jovision 128CH Enterprise Network Video Recorder System

Price:

3,723.50


Jovision 64CH 8 H.D.D Enterprise Network Video Recorder System
Jovision 64CH 8 H.D.D Enterprise Network Video Recorder System
891.00
891.00
Jovision 4CH WiFi Security Camera Kit HD 2MP
Jovision 4CH WiFi Security Camera Kit HD 2MP
401.50
401.50

Jovision 128CH Enterprise Network Video Recorder System

https://arcip.com.au/web/image/product.template/899/image_1920?unique=55857d7
128CH Enterprise Network Video Recorder with 16HDD support. 2xHDMI, 2xVGA, 2xRJ45, 16xSATA, up to 10TB each, Support 4K Output, Support 128CH 5.0Megapixel IP Cameras, Support Audio Input and Output, Support Alarm Input and Output. 16 In & 4 Out, Support dual network port, Network fault tolerance and Load balancing, Support RS485, Support ONVIF, Support Intelligent Analysis, Support APP

3,723.50 3723.5 AUD 3,723.50 incl. GST

Not Available For Sale


  • Brand
  • IP Camera Input
  • Compression
  • H.D.D (SATA)
  • Capacity

This combination does not exist.

Jovision NVR
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
JVS-ND912816-H-XM
Tags

Overview

The Jovision 128CH Enterprise Network Video Recorder System is a 128-channel network video recorder (NVR) for recording and managing your Jovision cameras. It uses H.265 compression. Footage records to local storage with no monthly cloud fees. Backed by local warranty and support from ARC IP Networks, the authorised Jovision distributor in Australia.

Key capabilities

128 channels

Records and manages up to 128 Jovision cameras from a single recorder.

H.265 compression

Efficient compression stores far more footage on the same hard drive.

HDMI output

Connect a monitor directly for live view and playback.

Best for

  • Recording a Jovision camera system: Central recording, storage and playback for your cameras.
  • Built-in PoE convenience: PoE ports power and connect cameras over a single cable each (on PoE models).
  • Local storage, no monthly fees: Records to an internal hard drive with no cloud subscription.
  • Scalable coverage: Choose the channel count to match the number of cameras you need.

Specifications

Video & Audio

IP Camera Input128 Channel
Audio Input/ Output1 Channel RCA Output, 1 Channel RCA Input128 Channel Audio output; through HDMI
Bandwidth I/O500Mbps/320Mbps

Display

Interface2 HDMI, 2 VGA
Video OutputHDMI: 3840x2160/ 2560x1440/ 1920x1080/ 1440x900/ 1280x1024/ 1280x720/ 1024x768; VGA: 1920x1080/ 1440x900/ 1280x1024/ 1280x720/ 1024x768
Max Decoding128CH 5.0MP/ 4.0MP/ 1080p/ 960p/ 720p @25fps
Multi-Screen Display1/ 4/ 5/ 6 up to 64x2
OSDCamera Name & Time, Recording, Alarm Detecting, Remote connection,; Volume, Channel Number

Recording

CompressionH.265/H.264
Resolution128CH 5.0MP/ 4.0MP/ 1080p/ 960p/ 720p
Record ModeManual, Schedule, Motion Detection

Video Detection & Alarm

Trigger EventsRecording, Snapshot, PTZ, Voice, E-mail, Client, Buzzer
Video DetectionMotion Detection, No Video Detection
Alarm-In & Out16CH Alarm Input; 4CH Alarm Output

Playback & Backup

Sync Playback9CH 5.0MP @20fps/ 11CH 4.0MP/ 13CH 3.0MP/16CH 1080p
Search ModeChannel Number / Recording Type / Date
Playback FunctionDay View, Hour View, Back Step, Rewind, Pause, Play, Fast Forward,; Slow, Step, Full Screen, Snap, Sound On/Off, Zoom
Backup ModeFAT32/ NTFS/ exFAT USB Device / Network

Network & Interfaces

Network Interface2x RJ45 (10/100/1000Mbps)
Network FunctionTCP/IP, DHCP, UDP, SMTP, NTP, CloudSEE
Smart PhoneSupport iOS, Android App
InteroperabilityONVIF 2.4
PTZ InterfaceRS485

Storage

SATA16 SATA Interface
CapacityUp to 10TB
USB2x USB2.0, 1x USB3.0

General

Power Supply100~240V/ 6~3A/ 50~60HZ
Consumption≤10W (Without HDD)
Working Temperature-10°C ~ 55°C
Working Humidity10% ~ 90%
Dimensions530x144x483mm
Weight≤6.2Kg (Without HDD)

Ideal use cases

Home camera systems

Record and review multiple cameras centrally.

Retail & office

Reliable local recording for business hours.

Multi-camera sites

Scale storage and channels to the property.

Upgrades

Add capacity to an existing Jovision setup.

Choosing the right model

  • Choose this model if: you need a recorder to store and manage your Jovision cameras.
  • Choose a different model if: If you want cameras included, choose a complete camera kit instead.

Why choose the JVS-ND912816-H-XM

The Jovision 128CH Enterprise Network Video Recorder System is the heart of a Jovision camera system, giving you central recording, storage and playback with local storage and no cloud subscription. Supplied and supported in Australia by ARC IP Networks, the authorised Jovision distributor, with local Melbourne stock, Australia-wide shipping and local warranty and support.

Frequently asked questions

It is a 128-channel recorder, so it records up to 128 cameras.

No — this is the recorder only. For a complete system with cameras included, see our Jovision camera kits.

From ARC IP Networks — the authorised distributor of Jovision in Australia — with local Melbourne stock, Australia-wide shipping and local warranty and support.

Part of the Jovision range

Authorised Jovision distributor in Australia — explore the range, technology and guides:

Jovision rangeCamera kitsBuyer’s guide
Brand Jovision
IP Camera Input 128 Channel
Compression H.256+ / H.264
H.D.D (SATA) 16
Capacity Up to 10TB
