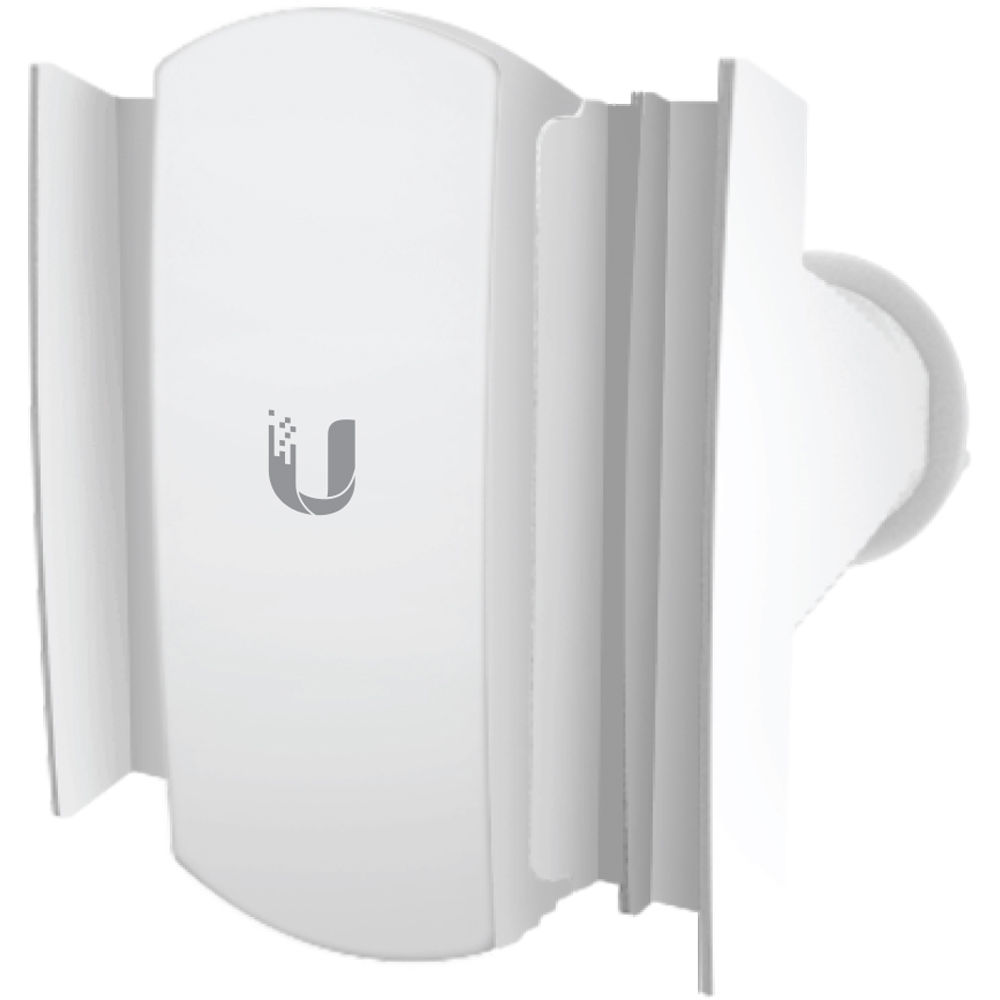

Ubiquiti Horn-5-60 5 GHz PrismAP Antenna 60°

https://arcip.com.au/web/image/product.template/3791/image_1920?unique=8867584
The Ubiquiti Horn-5-60 is a 60° asymmetrical horn antenna designed for the PrismAP system, engineered to deliver superior beam performance and noise immunity in co-located Point-to-MultiPoint networks.

131.45 131.45 AUD 131.45 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

Ubiquiti
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
Horn-5-60
Barcode
817882020077
Tags
Horn-5-60
Ubiquiti Horn-5-60 5 GHz PrismAP Antenna 60°

Features

  • 60° asymmetrical horn design for precise, targeted coverage
  • Interchangeable antenna for the PrismAP (PrismStation AC) radio
  • Superior beam performance with virtually no side lobes for noise immunity
  • Designed for high-density co-location and frequency re-use
  • Single button release for fast, tool-less installation and swapping
  • Ideal for Point-to-MultiPoint (PtMP) network sectors

Specifications

RF Characteristics
Frequency Range5.15 - 5.85 GHz
Gain12.5 dBi
HPOL Beamwidth60° (3 dB), 90° (6 dB)
VPOL Beamwidth60° (3 dB), 90° (6 dB)
Elevation Beamwidth60° (3 dB)
Max. VSWR2:1
Mechanical
Wind Survivability200 km/h (125 mph)
Wind Loading33 N @ 200 km/h
MountingIntegrated PrismAP Interface
Dimensions216 x 178 x 167 mm
Weight0.88 kg

Professional Overview

The Ubiquiti Horn-5-60 is a specialized 60° horn antenna that represents a significant leap forward in Point-to-MultiPoint (PtMP) network design. As a key component of the modular PrismAP (PrismStation) system, it is engineered to provide highly defined, targeted RF coverage while aggressively mitigating interference, a critical requirement for modern high-density wireless networks.

The primary advantage of the Horn-5-60 lies in its superior beam performance. Unlike traditional sector antennas that produce wide side lobes which can cause and receive interference, this horn antenna has virtually no side lobes and an extremely clean back side. It focuses the RF energy only where it's needed, within a precise 60-degree beam. This characteristic is invaluable in co-located tower environments, as it allows network operators to deploy multiple radios close together without causing self-interference, enabling greater frequency reuse and dramatically increasing the overall capacity of the site.

Designed for scalability and flexibility, the Horn-5-60 is part of an interchangeable antenna family. It can be easily swapped with other PrismAP horns (such as 30°, 45°, and 90° models) to precisely tailor the coverage area for a specific deployment scenario. The innovative single-button release mechanism allows for fast, tool-less antenna changes, making it incredibly efficient to modify or scale a basestation as network demands evolve.

For Wireless Internet Service Providers (WISPs) and network architects aiming to build robust, high-performance PtMP networks in noisy, high-density environments, the Ubiquiti Horn-5-60 provides an unmatched solution. Its combination of precise beam control, excellent noise immunity, and modular design makes it an essential tool for creating scalable and interference-resistant wireless infrastructure.
