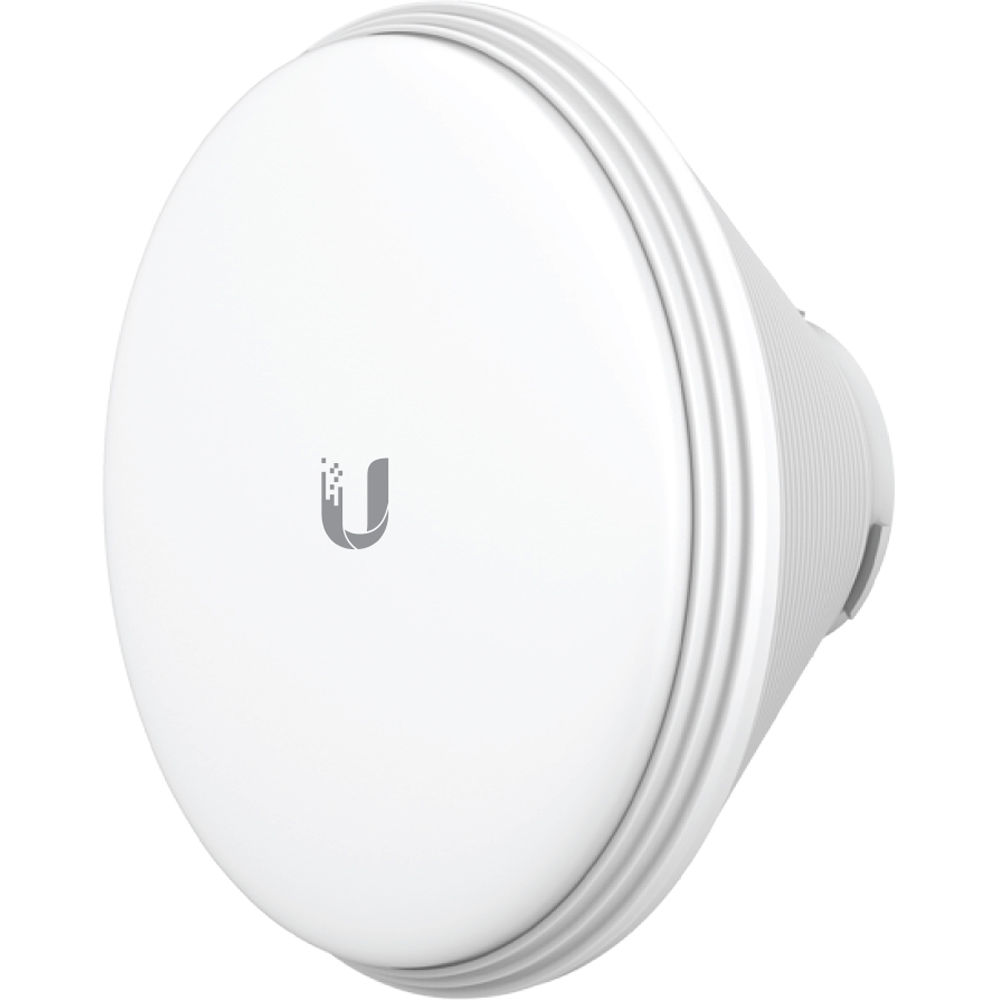

Ubiquiti Horn-5-45 5 GHz PrismAP Antenna 45°

https://arcip.com.au/web/image/product.template/2741/image_1920?unique=8867584
The Ubiquiti Horn-5-45 is a high-performance 5 GHz PrismAP Horn Antenna designed for precision sectorization and exceptional co-location capabilities. Its 45° beamwidth delivers focused coverage and minimizes interference in dense wireless environments.

131.45 131.45 AUD 131.45 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

Ubiquiti
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
Horn-5-45
Barcode
817882022712
Tags
Horn-5-45
Ubiquiti Horn-5-45 5 GHz PrismAP Antenna 45°

Features

  • Precise 45° Symmetrical Beamwidth for Optimal Sectorization
  • Designed for Co-location in High-Density PtMP Deployments
  • Low-Sidelobe Radiation Pattern Reduces Noise Interference
  • Integrated Mount for PrismStation 5AC and IsoStation 5AC Radios
  • Robust Die-Cast Aluminum Construction for Durability
  • Wide 5 GHz Frequency Range for Flexible Deployment
  • Exceptional Front-to-Back Ratio and Low VSWR

Specifications

Wireless
Frequency Range5.15 - 5.85 GHz
Gain17 dBi
HPOL Beamwidth45°
VPOL Beamwidth45°
Elevation Beamwidth45°
PolarizationDual-Linear
VSWR Max1.5:1
Front-to-Back Ratio30 dB
Antenna
CompatibilityUbiquiti PrismStation 5AC, IsoStation 5AC
TypePrismAP Horn Antenna
Cross-pol Isolation20 dB
Physical/Environmental
Enclosure MaterialDie-Cast Aluminum, UV Stabilized Polycarbonate
Wind Loading30.5 N @ 200 km/h (6.86 lbf @ 125 mph)
Wind Survivability200 km/h (125 mph)
Operating Temperature-40 to 70° C (-40 to 158° F)
Operating Humidity5 to 95% Non-Condensing
Dimensions155 x 155 x 115 mm (6.1 x 6.1 x 4.53")
Weight0.7 kg (1.54 lb)

Professional Overview

The Ubiquiti Horn-5-45 5 GHz PrismAP Antenna is an advanced solution engineered to meet the growing demands of high-density Point-to-MultiPoint (PtMP) wireless deployments. Part of Ubiquiti's innovative PrismAP family, this horn antenna delivers a highly precise and symmetrical 45° beamwidth, which is crucial for achieving clean sectorization and maximizing spectral efficiency. Its unique design significantly reduces side-lobe radiation, mitigating interference in crowded frequency environments and enabling superior co-location of multiple radios on a single tower.

Operating within the 5 GHz band, the Horn-5-45 boasts a robust 17 dBi gain, providing strong signal propagation while maintaining a focused coverage area. This precise beam control minimizes unintended radiation, preventing noise propagation to adjacent sectors or distant clients. The antenna features an excellent front-to-back ratio and low VSWR, ensuring optimal signal integrity and power efficiency, which translates to higher throughput and more reliable connections for subscribers. Its seamless integration with Ubiquiti's PrismStation 5AC and IsoStation 5AC radios simplifies deployment and ensures plug-and-play compatibility, creating a powerful and resilient wireless link.

Constructed from durable die-cast aluminum and UV-stabilized polycarbonate, the Horn-5-45 is built to withstand harsh outdoor conditions, including extreme temperatures and high winds, ensuring long-term reliability and consistent performance. This robust design makes it an ideal choice for Wireless Internet Service Providers (WISPs) looking to expand their network capacity, improve subscriber experience, and reduce operational costs associated with interference management. By deploying the Ubiquiti Horn-5-45, network professionals can achieve higher network scalability, improved link stability, and enhanced spectral efficiency, ultimately leading to a more robust and profitable wireless infrastructure.

Brand UBIQUITI
