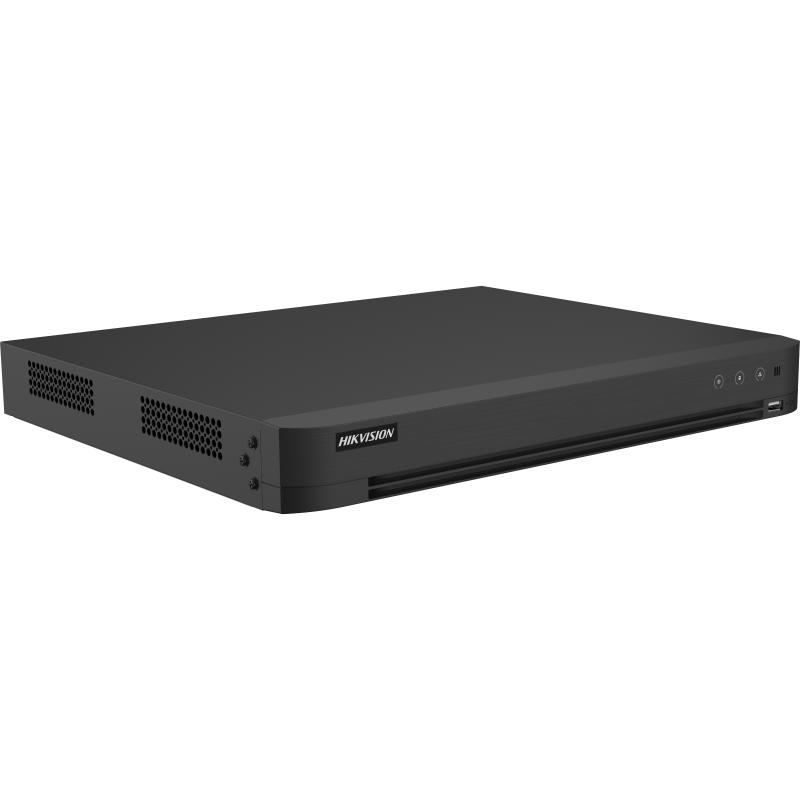

Hikvision iDS-7216HUHI-M2/XT AcuSense 16-Channel Turbo HD DVR, H.265 Pro+, Facial Recognition, 2 HDD Bays

Price:

1,336.50


Hikvision DS-2CD2T66G2-2I-6MM AcuSense 6 MP Fixed Bullet Network Camera, 6 mm, 60 m IR
Hikvision DS-2CD2T66G2-2I-6MM AcuSense 6 MP Fixed Bullet Network Camera, 6 mm, 60 m IR
372.96
372.96
Hikvision IDS-7316HUHI-M4-S AcuSense 16-Channel Hybrid DVR, 5 MP, H.265 Pro+, 4 SATA Bays
Hikvision IDS-7316HUHI-M4-S AcuSense 16-Channel Hybrid DVR, 5 MP, H.265 Pro+, 4 SATA Bays
1,638.02
1,638.02

Hikvision iDS-7216HUHI-M2/XT AcuSense 16-Channel Turbo HD DVR, H.265 Pro+, Facial Recognition, 2 HDD Bays

https://arcip.com.au/web/image/product.template/9784/image_1920?unique=12e6e76
The iDS-7216HUHI-M2/XT is Hikvision's 16-channel AcuSense DVR bringing deep-learning intelligence to coaxial camera infrastructures. It records at up to 8 MP, supports HD-TVI, AHD, HDCVI, CVBS and IP on all 16 channels, and expands to 32 IP inputs at 256 Mbps bandwidth. AcuSense Motion Detection 2.0 classifies humans and vehicles to eliminate false alarms, while Perimeter Protection, Facial Recognition (4-ch, 16 libraries) and AcuSearch add enterprise-grade intelligence. H.265 Pro+ reduces storage demand, and dual SATA bays each hold up to 12 TB. 4K HDMI output, Hik-Connect remote access, ONVIF compatibility, and a 3-year Australian warranty.

1,336.50 1336.5 AUD 1,336.50 incl. GST

Not Available For Sale


  • Brand
  • Form Factor
  • HDD Bays
  • Smart Features
  • Recorder Type
  • Channels
  • Max Incoming Bandwidth
  • Decoding
  • Max Recording Resolution
  • Signal Inputs

This combination does not exist.

Hikvision 8MP AcuSense DVR 16 Channel Turbo HD DVR
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
iDS-7216HUHI-M2/XT
Hikvision iDS-7216HUHI-M2/XT — 16-Channel AcuSense 5 MP Turbo HD DVR, H.265 Pro+, Facial Recognition & Perimeter Protection, 2 SATA HDD Bays

Features

  • AcuSense deep-learning motion detection 2.0 on all 16 analog channels — classifies humans and vehicles, dramatically reducing nuisance false alarms caused by leaves, lights and animals
  • Perimeter Protection on up to 8 channels (advanced model) for virtual-line and region intrusion detection using deep-learning algorithms
  • 4-channel facial recognition with up to 16 face picture libraries, backed up to HDD and flash for resilience against HDD failure
  • 8-channel AcuSearch technology enables rapid event-type and object-type search across recorded footage
  • Encoding up to 4K/8 MP @ 8 fps and 3K/5 MP @ 12 fps; records at up to 8 MP resolution
  • H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 multi-codec support — H.265 Pro+ reduces storage costs by up to 75% vs H.264
  • Accepts 5 signal types on every analog channel: HD-TVI, AHD, HDCVI, CVBS and IP — works with virtually any existing HD camera
  • Expandable to 32 IP camera channels (up to 8 MP each), total network bandwidth 256 Mbps
  • 4K HDMI output (3840 × 2160) plus simultaneous HDMI/VGA output for dual-monitor installations
  • Two SATA interfaces supporting up to 12 TB per disk; front USB 2.0 and rear dual USB 3.0 for fast backup
  • Hik-Connect remote access and DDNS support; ONVIF-compatible for third-party camera integration
  • All-channel HDTVI Two-Way Audio Technology via coaxial cable

Specifications

Smart Features (AcuSense)
Facial RecognitionUp to 4-ch analog face picture comparison alarm; up to 16 face picture libraries (backed up by HDD and flash)
Motion Detection 2.0Deep learning–based human/vehicle analysis on all 16 analog channels; quick search by object or event type
Perimeter ProtectionUp to 8-ch (advanced model); line crossing and intrusion detection
AcuSearch8-ch fast intelligent playback search by object/event type
Video & Audio Input/Output
IP Video Input16-ch (expandable to 32-ch), each up to 8 MP
Analog Video Input16-ch; BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input8 MP (3840 × 2160) @ 12/15 fps; 3K (2960 × 1665) @ 25/20 fps; 5 MP (2560 × 1944) @ 20 fps; 4 MP (2560 × 1440) @ 25/30 fps; 1080P @ 25/30 fps; 720P @ 25/30 fps
AHD Input5 MP (2560 × 1944) @ 20 fps; 4 MP (2560 × 1440) @ 25/30 fps; 1080P @ 25/30 fps; 720P @ 25/30 fps
HDCVI Input8 MP (3840 × 2160) @ 12/15 fps; 5 MP (2592 × 1944) @ 20 fps; 4 MP (2560 × 1440) @ 25/30 fps; 1080P @ 25/30 fps; 720P @ 25/30 fps
HDMI Output1-ch; 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz; simultaneous HDMI/VGA output
VGA Output1-ch; 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz; simultaneous HDMI/VGA output
CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω); PAL: 704 × 576; NTSC: 704 × 480
Synchronous Playback16-ch
Audio Input1-ch (up to 16-ch optional), RCA (2.0 Vpp, 1 kΩ); 16-ch via coaxial cable
Audio Output1-ch, RCA (Linear, 1 kΩ)
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 kΩ) using the audio input
Recording
Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution8 MP / 5 MP / 3K / 4 MP / 3 MP / 1080p / 720p / WD1 / 4CIF / VGA / CIF
Frame Rate (Main Stream)8 MP @ 8 fps; 3K @ 12 fps; 5 MP @ 12 fps; 4 MP @ 15 fps; 3 MP @ 18 fps; 1080p/720p/WD1/4CIF/VGA/CIF @ 25 fps (PAL) / 30 fps (NTSC)
Frame Rate (Sub-Stream)WD1/4CIF/CIF @ 25 fps (PAL) / 30 fps (NTSC)
Video Bitrate32 Kbps – 10 Mbps
Audio CompressionG.711u
Audio Bitrate64 Kbps
Stream TypeVideo; Video & Audio
Dual-StreamSupported (main stream or sub-stream)
Decoding
Decoding CapabilityUp to 24-ch 1080P @ 30 fps
Network
Total Bandwidth256 Mbps
Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP
Remote Connections128
Network Interface1 × RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
HDD & Auxiliary Interface
SATA Interfaces2 SATA interfaces
HDD CapacityUp to 12 TB per disk
Serial InterfaceRS-485 (half-duplex)
USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 2 × USB 3.0
Alarm In/OutN/A (optional to support)
General
Power Supply12 VDC, 5 A
Max Power Consumption≤ 60 W
Working Temperature−10 °C to +55 °C
Working Humidity10% to 90%
Dimensions (W × D × H)385 × 315 × 52 mm
Weight≤ 2.1 kg
Form Factor1U Rack-mountable (optional mounting ears)

AcuSense DVR FAQ — iDS-7216HUHI-M2/XT

What is the Hikvision iDS-7216HUHI-M2/XT and what makes it an AcuSense DVR?

The iDS-7216HUHI-M2/XT is a 16-channel, 1U rack-mount Turbo HD DVR from Hikvision's AcuSense series. AcuSense is Hikvision's deep-learning motion detection 2.0 technology that runs on all 16 analog channels simultaneously, classifying targets as human or vehicle and eliminating false alarms from leaves, animals, and lighting changes. It also supports perimeter protection, facial recognition, and AcuSearch intelligent playback — all driven by on-board deep learning algorithms.

How does AcuSense motion detection reduce false alarms on the iDS-7216HUHI-M2/XT?

AcuSense Motion Detection 2.0 uses a deep-learning neural network to distinguish humans and vehicles from non-threatening motion such as leaves blowing, insects, and light changes. All 16 analog channels benefit from this classification in real time. When a human or vehicle is detected, the DVR triggers an alarm; other motion is filtered out. The AcuSearch feature lets operators quickly locate footage by searching for a specific object type (person or vehicle) or event type across all recorded channels, dramatically reducing investigation time.

How many HDD bays does the iDS-7216HUHI-M2/XT have and what is the maximum storage capacity?

The iDS-7216HUHI-M2/XT has 2 SATA HDD bays, each supporting up to 12 TB, giving a maximum raw storage capacity of 24 TB. The unit ships without HDDs (/XT designation = no pre-installed HDD). The two rear USB 3.0 ports provide fast external backup, while a front-panel USB 2.0 port allows on-site file export.

What camera signal types are compatible with the iDS-7216HUHI-M2/XT?

Each of the 16 analog BNC inputs auto-detects and supports five signal formats: HD-TVI, AHD, HDCVI, CVBS, and IP, making it compatible with virtually any existing HD camera. Supported resolutions include 8 MP HD-TVI at 12 fps, 5 MP at 20 fps, 4 MP at 25 fps, and 1080P at 30 fps. The unit also accepts up to 32 IP cameras each up to 8 MP for hybrid deployments.

What facial recognition capabilities does the iDS-7216HUHI-M2/XT offer?

The iDS-7216HUHI-M2/XT supports facial recognition on up to 4 analog channels. Up to 16 face picture libraries can be stored, each backed up simultaneously to HDD and on-board flash memory, ensuring enrolled face data is retained even after a hard drive failure. The unit provides real-time face detection, face picture search, and 4-channel face picture comparison alarms.

What recording resolution and H.265 Pro+ storage savings does the iDS-7216HUHI-M2/XT deliver?

The iDS-7216HUHI-M2/XT records at resolutions up to 8 MP at 8 fps, 5 MP at 12 fps, or 4 MP at 15 fps, down to CIF. H.265 Pro+ encoding can reduce storage requirements by up to 75% vs H.264, enabling longer retention on the same drives. Video bitrate is configurable from 32 Kbps to 10 Mbps per channel.

Professional Overview

The Hikvision iDS-7216HUHI-M2/XT is a 16-channel, 1U rack-mount Turbo HD Digital Video Recorder from the AcuSense series, designed for medium-to-large analog and hybrid IP security deployments that require deep-learning intelligence alongside the simplicity of a coaxial-cable infrastructure. Its 5 MP maximum analog resolution, H.265 Pro+ compression, and support for up to 32 IP cameras make it a highly flexible recording hub for retail outlets, warehouses, commercial buildings, car parks, and educational campuses.

On the recording side, the iDS-7216HUHI-M2/XT accepts all five major HD analog signal types (HD-TVI up to 8 MP, AHD up to 5 MP, HDCVI up to 8 MP, CVBS, and IP up to 8 MP) on each of its 16 BNC inputs. A single Gigabit Ethernet interface provides 256 Mbps total network bandwidth. Output options include a 4K HDMI port (3840 × 2160 @ 30 Hz) and simultaneous VGA, supporting dual-monitor live-view and playback. Synchronous playback of all 16 channels is supported, and decoding handles up to 24 × 1080P @ 30 fps from network sources.

The AcuSense intelligence platform delivers four layers of deep-learning capability: Motion Detection 2.0 (human/vehicle classification on all 16 channels to eliminate nuisance alarms), Perimeter Protection (virtual-line crossing and intrusion detection on up to 8 channels), Facial Recognition (up to 4 channels with 16 face libraries backed up to flash), and AcuSearch (object/event-type rapid playback search across 8 channels). Together these reduce operator workload and response times significantly compared with conventional motion detection.

Built in a compact 385 × 315 × 52 mm, 1U chassis weighing under 2.1 kg, the iDS-7216HUHI-M2/XT operates across −10 °C to +55 °C on a 12 VDC supply consuming no more than 60 W. Two SATA bays accommodate HDDs up to 12 TB each for up to 24 TB total storage, and the /XT designation means the unit ships without a pre-installed drive. Hik-Connect remote monitoring, DDNS, ONVIF interoperability, and a three-year Australian warranty complete a solution trusted by security professionals. Australian stock from ARC IP Networks.

Brand Hikvision
Form Factor 1U Rack
HDD Bays 2 SATA (up to 12 TB each)
Smart Features AcuSense (Person & Vehicle Detection)
Recorder Type Digital Video Recorder (DVR)
Channels 16-Channel
Max Incoming Bandwidth 256 Mbps
Decoding Up to 24-ch 1080P@30fps
Max Recording Resolution 8 MP (4K)
Signal Inputs HD-TVI / AHD / HDCVI / CVBS / IP
IDS-7216HUHI-M2-XT_Datasheet.pdf
