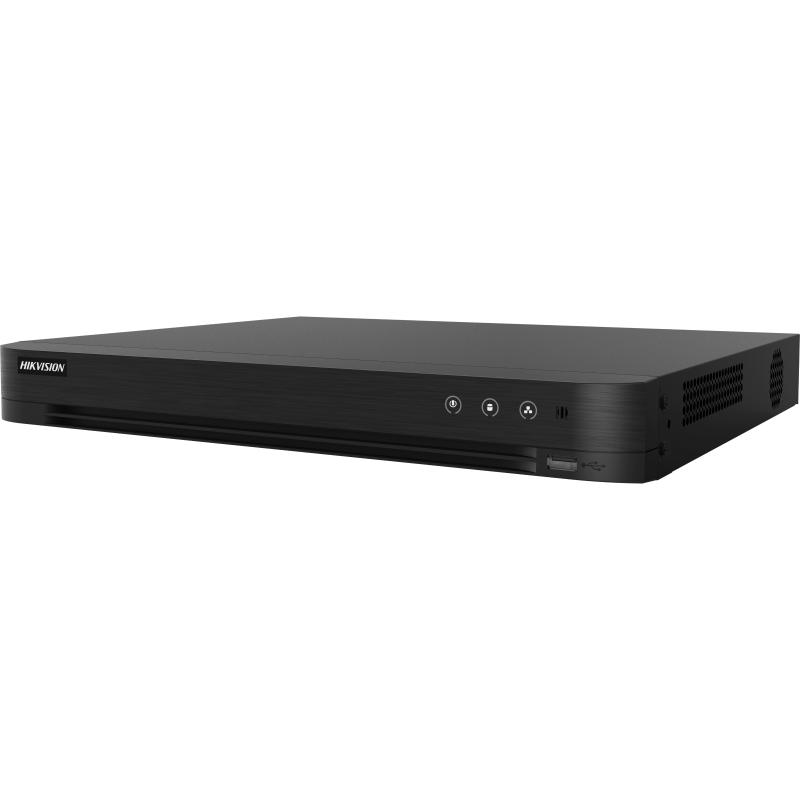

Hikvision IDS-7204HUHI-M2-S AcuSense 4-Channel Turbo HD DVR, Dual HDD, Up to 8 MP Recording

https://arcip.com.au/web/image/product.template/9782/image_1920?unique=12e6e76
The Hikvision IDS-7204HUHI-M2-S is a 4-channel AcuSense Turbo HD DVR that brings deep learning-based perimeter protection and human/vehicle classification to any HDTVI, AHD, CVI, CVBS, or IP camera installation. H.265 Pro+ encoding significantly reduces storage requirements while supporting recording resolutions up to 8 MP on channel 1 and 1080p across all channels. Dual SATA bays support up to 10 TB per drive, and the 2K HDMI output delivers sharp live view and playback. With Hik-Connect remote access, ONVIF compatibility, and a compact 1U chassis, it is the ideal upgrade path for hybrid analog-IP surveillance systems.

396.83 396.83 AUD 396.83 incl. GST

Not Available For Sale


  • Brand
  • HDD Bays
  • Video Input
  • Video Compression
  • DVR Channels
  • Max Recording Resolution

This combination does not exist.

In stock online
Hikvision H.265 AcuSense DVR 4-Channel Turbo HD
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
IDS-7204HUHI-M2-S
Hikvision IDS-7204HUHI-M2-S — 4-Channel AcuSense Turbo HD DVR, Dual HDD, Up to 8 MP Recording
Key Features
  • Deep learning-based Motion Detection 2.0 active on all 4 analog channels by default — classifies human and vehicle targets to dramatically reduce false alarms
  • Deep learning-based Perimeter Protection: line crossing and intrusion detection on up to 4 channels
  • Facial Detection & Capture with face picture search across recorded footage
  • H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression — H.265 Pro+ reduces storage requirements by up to 75% versus H.264
  • Accepts 5-in-1 analog inputs: HDTVI, AHD, CVI, CVBS and IP cameras on every channel
  • Records at up to 8 MP (3840 × 2160) resolution on channel 1
  • Up to 8 IP camera inputs (up to 8 MP) with Enhanced IP mode enabled
  • Dual SATA interfaces with up to 10 TB capacity per drive
  • 2K HDMI output (2560 × 1440 @ 60 Hz) plus simultaneous VGA output
  • Audio via coaxial cable (coaxitron) — no separate audio cabling required
  • Hik-Connect and DDNS for easy remote access; Wi-Fi dongle compatible
  • Compact 1U chassis (380 × 320 × 48 mm), 12 VDC power, ≤ 10 W consumption
Technical Specifications
Smart Functions — AcuSense
Motion Detection 2.0Deep learning-based; human/vehicle classification on all 4 analog channels; enabled by default
Perimeter ProtectionLine crossing and intrusion detection; human/vehicle analysis on up to 4 channels
Facial Detection & CaptureFace picture detection and face picture search
VCA EventsMultiple Video Content Analytics events supported on both analog and smart IP cameras
Video & Audio Input
Analog Video Input4-ch; BNC interface (1.0 Vp-p, 75 Ω); supports coaxitron connection
Analog Signal SupportHDTVI / AHD / CVI / CVBS (5-in-1 adaptive)
HDTVI Max Resolution8 MP (3840 × 2160) @ 15 fps; also 3K, 5 MP, 4 MP, 3 MP, 1080p, 720p
AHD Max Resolution5 MP (2560 × 1944) @ 20 fps; also 4 MP, 1080p, 720p
HDCVI Max Resolution8 MP (3840 × 2160) @ 15 fps; also 5 MP, 4 MP, 1080p, 720p
IP Video Input2-ch (up to 6-ch) standard; up to 8-ch with Enhanced IP mode; up to 8 MP; H.265+/H.265/H.264+/H.264
Audio Input1-ch, RCA (2.0 Vp-p, 1 kΩ); audio also supported via coaxial cable
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 kΩ) using first audio input
Recording
Video CompressionH.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264
Encoding Resolution8 MP / 5 MP / 3K / 4 MP / 3 MP / 1080p / 720p / WD1 / 4CIF / VGA / CIF
Main Stream Frame Rate8 MP @ 8 fps (ch1 only); 5 MP @ 12 fps; 4 MP @ 15 fps; 8 MP Lite @ 15 fps (ch2–4); 3 MP @ 18 fps; 1080p/720p/WD1/4CIF/VGA/CIF @ 25 fps (PAL) / 30 fps (NTSC)
Sub-Stream Frame RateWD1 / 4CIF / CIF @ 25 fps (PAL) / 30 fps (NTSC)
Video Bitrate32 Kbps – 10 Mbps
Dual-StreamSupported
Stream TypeVideo; Video & Audio
Audio CompressionG.711u
Audio Bitrate64 Kbps
Synchronous Playback4-ch
Smart SearchSupported for efficient event-based playback
HDD & Storage
SATA Interfaces2 × SATA
HDD CapacityUp to 10 TB per drive (20 TB total)
Video Output & Display
HDMI Output1-ch: 2K (2560 × 1440) @ 60 Hz; 1920 × 1080 @ 60 Hz; 1280 × 1024 @ 60 Hz; 1280 × 720 @ 60 Hz
VGA Output1-ch: 1920 × 1080 @ 60 Hz; 1280 × 1024 @ 60 Hz; 1280 × 720 @ 60 Hz; simultaneous HDMI/VGA output supported
CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω); PAL: 704 × 576; NTSC: 704 × 480
Audio Output1-ch, RCA (Linear, 1 kΩ)
Network
Network Interface1 × RJ45 10M/100M self-adaptive Ethernet
Total Bandwidth96 Mbps
Remote ConnectionsUp to 32 simultaneous
Network ProtocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Wi-FiCompatible with major USB Wi-Fi dongle products
Remote ManagementHik-Connect app; DDNS; output bandwidth limit configurable
Interface
USBFront panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
Serial InterfaceRS-485 (half-duplex)
Alarm In/OutN/A (base model; variants with alarm I/O available)
General
Power Supply12 VDC
Power Consumption≤ 10 W
Working Temperature−10 °C to +55 °C
Working Humidity10% to 90%
Chassis1U (380 mm rack-ready with included ears)
Frequently Asked Questions

What is the Hikvision IDS-7204HUHI-M2-S and what series does it belong to?

The Hikvision IDS-7204HUHI-M2-S is a 4-channel Turbo HD AcuSense DVR from Hikvision’s AcuSense series. It uses deep learning algorithms to classify human and vehicle targets on every analog channel, dramatically reducing nuisance alerts triggered by animals, leaves, or lighting changes. The unit supports 5-in-1 analog input (HDTVI, AHD, CVI, CVBS, IP) and records at resolutions up to 8 MP.

How many cameras can the IDS-7204HUHI-M2-S support?

The IDS-7204HUHI-M2-S has 4 analog BNC inputs (HDTVI/AHD/CVI/CVBS) plus IP camera support. In standard mode it accepts 2 IP cameras (total up to 6 channels); with Enhanced IP mode enabled, it accepts up to 8 IP cameras at up to 8 MP each, giving a maximum of 8 channels total when operating in Enhanced IP mode.

What is the maximum recording resolution and frame rate of the IDS-7204HUHI-M2-S?

Channel 1 records at up to 8 MP (3840 × 2160) at 8 fps via HDTVI or HDCVI input. Channels 2–4 record at up to 8 MP Lite at 15 fps. All channels support 1080p at 25/30 fps. The DVR encodes using H.265 Pro+ compression, which reduces storage consumption significantly compared to H.264.

How many hard drives does the IDS-7204HUHI-M2-S support, and what is the maximum capacity?

The IDS-7204HUHI-M2-S is equipped with 2 SATA interfaces, each supporting a single hard drive of up to 10 TB capacity, giving a total maximum internal storage of 20 TB. This ample storage, combined with H.265 Pro+ compression, allows extended recording periods at high resolution.

What display outputs are available on the IDS-7204HUHI-M2-S?

The DVR provides an HDMI output capable of up to 2K (2560 × 1440) at 60 Hz and a VGA output up to 1920 × 1080 at 60 Hz. Both outputs can operate simultaneously. A CVBS output (BNC) is also available for legacy analog monitors. All 4 channels can be played back synchronously.

Can the IDS-7204HUHI-M2-S be accessed remotely?

Yes. The IDS-7204HUHI-M2-S supports Hik-Connect cloud access, DDNS, and PPPoE for flexible remote viewing and management via smartphone, tablet, or PC. It supports up to 32 simultaneous remote connections and is compatible with USB Wi-Fi dongles for wireless network connectivity. The unit also supports ONVIF, SADP, NFS, iSCSI, and HTTPS protocols.

Professional Overview

The Hikvision IDS-7204HUHI-M2-S is a professional-grade 4-channel AcuSense Turbo HD DVR designed to bridge the gap between legacy analog infrastructure and modern AI-driven surveillance analytics. By applying deep learning directly at the recorder level, the unit delivers human and vehicle target classification across all analog channels without requiring smart camera upgrades — making it a cost-effective path to intelligent perimeter protection and false alarm reduction in retail, light commercial, and residential deployments.

Recording performance is a standout feature: channel 1 supports full 8 MP (3840 × 2160) Turbo HD input at 8 fps, while all four channels deliver 1080p footage at 25 fps (PAL) or 30 fps (NTSC) using H.265 Pro+ compression. This combination of high resolution and efficient encoding translates directly into longer retention windows on the dual SATA bays, each supporting drives up to 10 TB. The 2K HDMI output ensures sharp live-view and playback on modern displays, while simultaneous VGA output maintains compatibility with existing monitoring screens.

Network integration is comprehensive: Hik-Connect, DDNS, PPPoE, ONVIF, SADP, NFS, and iSCSI are all supported natively, and the unit accommodates up to 32 concurrent remote connections. The 5-in-1 analog input compatibility (HDTVI, AHD, CVI, CVBS, IP) means the IDS-7204HUHI-M2-S can be retrofitted into virtually any existing cable infrastructure without recabling. Expanding to IP cameras is seamless — up to 8 network cameras at up to 8 MP can be integrated using Enhanced IP mode, enabling a fully hybrid analog-IP architecture as security needs evolve.

Housed in a compact 1U chassis (380 × 320 × 48 mm) drawing only ≤ 10 W, the IDS-7204HUHI-M2-S is quiet, energy-efficient, and rack-mountable. Operating reliably from −10 °C to +55 °C, it suits both conditioned equipment rooms and less controlled environments. Backed by Hikvision’s three-year warranty and local technical support, this DVR is available as Australian stock from ARC IP Networks.

Brand Hikvision
HDD Bays 2-Bay
Video Input HDTVI / AHD / CVI / CVBS / IP
Video Compression H.265 Pro+
DVR Channels 4-Channel
Max Recording Resolution 8 MP
IDS-7204HUHI-M2-S_Datasheet.pdf
