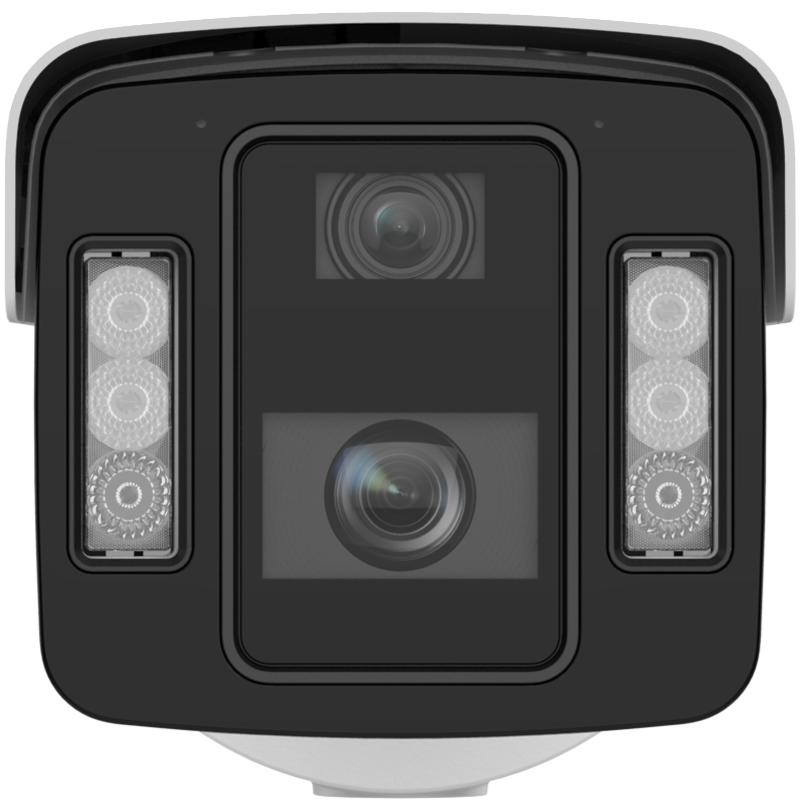

Hikvision IDS-2CD8A86G2-XZHSY-1050 DeepinView 8+4 MP Dual-Sensor Bullet Network Camera, Varifocal 10-50 mm + Fixed 4 mm, DarkFighter 2.0 with Face Capture & LPR

Price:

2,755.50


Hikvision IDS-2CD8A46G2-XZHSY-0832 DeepinView 4 MP Dual-Sensor Bullet Network Camera, 8–32 mm Varifocal + 4 mm, DarkFighter 2.0, LPR
Hikvision IDS-2CD8A46G2-XZHSY-0832 DeepinView 4 MP Dual-Sensor Bullet Network Camera, 8–32 mm Varifocal + 4 mm, DarkFighter 2.0, LPR
2,251.21
2,251.21
Hikvision IDS-2CD7A46G2-P-IZHSY-2.8-12MM DeepinView 4 MP ANPR Varifocal Bullet Network Camera, 2.8–12 mm Motorised, IR 60 m, IP67/IK10
Hikvision IDS-2CD7A46G2-P-IZHSY-2.8-12MM DeepinView 4 MP ANPR Varifocal Bullet Network Camera, 2.8–12 mm Motorised, IR 60 m, IP67/IK10
1,921.70
1,921.70

Hikvision IDS-2CD8A86G2-XZHSY-1050 DeepinView 8+4 MP Dual-Sensor Bullet Network Camera, Varifocal 10-50 mm + Fixed 4 mm, DarkFighter 2.0 with Face Capture & LPR

https://arcip.com.au/web/image/product.template/9779/image_1920?unique=12e6e76
The IDS-2CD8A86G2-XZHSY-1050 is a Hikvision DeepinView dual-sensor bullet camera combining an 8 MP varifocal 10–50 mm telephoto channel and a 4 MP fixed 4 mm wide-angle channel for simultaneous detail and panoramic coverage. DarkFighter 2.0 technology achieves colour imaging at 0.0005 Lux with hybrid IR/white-light illumination up to 120 m on the telephoto channel. On-board deep learning delivers face capture (120 faces), face comparison (150,000 identities), licence plate recognition (≥98 % accuracy), and perimeter protection on both channels without NVR processing. The aluminium alloy body is rated IP67, IK10, NEMA 4X, and operates from −40 °C to +60 °C with a built-in heater. Supports PoE IEEE 802.3at, RS-485, Wiegand, dual alarm I/O, and microSD up to 256 GB.

2,755.50 2755.5 AUD 2,755.50 incl. GST

Not Available For Sale


  • Brand
  • Form Factor
  • Night Vision
  • Resolution
  • Power
  • IR Range
  • Lens Type
  • Compression
  • Camera Series
  • Protection Rating
  • Smart Analytics

This combination does not exist.

In stock online
PoE Bullet Camera Hikvision IP Camera 8MP DeepinView DarkFighter Dual-Sensor LPR Face Capture
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
IDS-2CD8A86G2-XZHSY-1050
Hikvision IDS-2CD8A86G2-XZHSY-1050 — 8 MP DeepinView Dual-Sensor Bullet Camera, Varifocal 10–50 mm + Fixed 4 mm, DarkFighter 2.0 Low-Light with Face Capture & LPR
Key Features
  • Dual-channel design: Channel 1 delivers 8 MP (3840 × 2160) telephoto detail via a motorised varifocal 10–50 mm P-iris lens; Channel 2 delivers 4 MP (2688 × 1520) wide panoramic coverage via a fixed 4 mm F1.0 lens — both channels output simultaneously.
  • DarkFighter 2.0 technology: Ultra-low minimum illumination of 0.0005 Lux (colour, F1.2) on Channel 1 and 0.0003 Lux (colour, F1.0) on Channel 2; full-colour images in near-zero-light environments with 0 Lux capability when the built-in hybrid illuminator is active.
  • 140 dB AWDR: Extreme wide dynamic range for scenes with simultaneous bright backlighting and deep shadows, such as entry points, retail shopfronts, and carparks.
  • Hybrid Smart Supplement Light: 850 nm IR illumination up to 120 m on Channel 1 and up to 30 m on Channel 2, plus white-light strobe; Smart Supplement Light adjusts intensity automatically to avoid overexposure.
  • Deep learning face capture & comparison: Detects up to 120 faces simultaneously, supports 10 face libraries with up to 150,000 faces in total, and uploads both background and close-up face images for downstream analytics.
  • Multi-target-type detection: Simultaneously detects and captures human body, face, motor vehicle, and non-motor vehicle; extracts 7 face attributes, 13 body attributes, and 2 vehicle attributes.
  • License plate recognition (LPR): Deep learning LPR with ≥98 % recognition accuracy; blocklist/allowlist support with up to 10,000 records; vehicle type, colour, and brand attribute detection.
  • Perimeter protection on both channels: Line crossing, intrusion, region entrance, and region exiting on Channel 1 and Channel 2 independently; AI filtering eliminates false triggers from leaves, animals, and lights.
  • IP67 & IK10 + NEMA 4X corrosion protection: Weatherproof and vandal-resistant aluminium alloy body with NEMA 4X rating on the -Y model for moderate anti-corrosion environments, plus a built-in heater and demist function for cold or humid climates.
  • Built-in G-sensor & power meter: On-board vibration detection via G-sensor; built-in power meter logs historical power consumption statistics for energy auditing.
  • 5 independent streams: H.265+/H.265/H.264+/H.264 compression; up to 25 fps at full 4K on Channel 1; 5 configurable streams per channel, SVC, ROI, and target cropping for bandwidth management.
  • Comprehensive I/O & storage: 1× RS-485, 1× Wiegand, 2× alarm in / 2× alarm out, built-in dual microphones, built-in speaker, microSD up to 256 GB, NAS/ANR network storage.
Specifications
Camera
Image SensorChannel 1: 1/1.2" Progressive Scan CMOS; Channel 2: 1/1.8" Progressive Scan CMOS
Max. ResolutionChannel 1: 3840 × 2160 (8 MP); Channel 2: 2688 × 1520 (4 MP)
Min. IlluminationCh1 — Colour: 0.0005 Lux @ F1.2 AGC ON; 0 Lux with light / IR. Ch2 — Colour: 0.0003 Lux @ F1.0 AGC ON; 0 Lux with light / IR
Shutter Time1 s to 1/100,000 s
Day & NightIR cut filter; Blue glass module (reduced ghost phenomenon)
Angle AdjustmentPan: 0°–355°; Tilt: 0°–90°; Rotate: 0°–360°
WDR140 dB AWDR
Image EnhancementCh1: BLC, HLC, 3D DNR, Defog, EIS; Ch2: BLC, HLC, 3D DNR, Defog
Privacy Mask8 programmable polygon privacy masks
Lens
Focal Length & FOVCh1: 10–50 mm; HFOV 36°–13.1°, VFOV 20.4°–7.4°, DFOV 41.8°–14.9°. Ch2: 4 mm fixed; HFOV 89°, VFOV 45°, DFOV 107°
Focus (Ch1)Auto, semi-auto, manual
Iris TypeCh1: P-iris; Ch2: Fixed
ApertureCh1: Constant F1.6 throughout zoom range; Ch2: F1.0
Illuminator
Supplement Light TypeHybrid (IR and White Light)
IR Wavelength850 nm
Supplement Light RangeCh1: up to 120 m; Ch2: up to 30 m
Smart Supplement LightYes — automatic intensity adjustment
DORI
Ch1 — Wide end (10 mm)Detection: 241.4 m; Observation: 95.8 m; Recognition: 48.3 m; Identification: 24.1 m
Ch1 — Tele end (50 mm)Detection: 620.7 m; Observation: 246.3 m; Recognition: 124.1 m; Identification: 62.1 m
Ch2 (4 mm)Detection: 77 m; Observation: 30.5 m; Recognition: 15.4 m; Identification: 7.7 m
Smart Features
Face CaptureCh1: up to 120 faces simultaneously; swing −60° to +60°, tilt −30° to +30°; uploads background and close-up
Face ComparisonCh1: up to 10 libraries; 30,000 faces/library (150,000 total); face library encryption
Multi-target DetectionCh1: up to 60 targets; human body, face, motor vehicle, non-motor vehicle; 7 face + 13 body + 2 vehicle features
LPR / Road TrafficCh1: ≥98 % recognition rate; blocklist/allowlist 10,000 records; vehicle type, colour, brand detection
Perimeter ProtectionBoth channels: line crossing, intrusion, region entrance, region exiting; human/vehicle target filter
Basic / Smart EventsMotion detection, tampering, vibration detection, audio exception, defocus, scene change, unattended baggage, object removal, video quality diagnosis
Deep LearningMulti-target-type detection, face capture, face comparison, perimeter protection, LPR all running on embedded chip — no external NVR processing required
Video & Audio
Main StreamCh1: 25/30 fps up to 3840 × 2160; Ch2: 25/30 fps up to 2688 × 1520
Video CompressionMain: H.265+/H.265/H.264+/H.264; Sub/4th/5th: H.265/H.264/MJPEG; 5 streams total per channel
Video Bit Rate32 Kbps to 16 Mbps
Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio I/O1× line in, 1× line out (3.5 mm); 2 built-in microphones; 1 built-in speaker
General & Environmental
Power12 VDC ±20 %, 1.89 A, max. 22.6 W; 24 VAC ±20 %, 1.48 A, max. 22.2 W; PoE IEEE 802.3at Type 2 Class 4, max. 24 W
Network Interface1× RJ45 10/100/1000 M self-adaptive Ethernet
On-board StoragemicroSD/microSDHC/microSDXC, up to 256 GB; NAS (NFS/SMB); ANR
Alarm I/O2 inputs, 2 outputs (max. 24 VDC / 1 A)
RS-4851× RS-485, half-duplex; HIKVISION, Pelco-P, Pelco-D, self-adaptive
Wiegand1× Wiegand (CardID 26-bit, SHA-1 26-bit, Hik 34-bit, NEWG 72-bit)
MaterialAluminium alloy body
ProtectionIP67 (IEC 60529:2013), IK10 (IEC 62262:2002), NEMA 4X on -Y model
Operating Temperature−40 °C to +60 °C; Humidity ≤95 % non-condensing
CertificationsCE-EMC, CE-LVD, RCM (AS/NZS CISPR 32:2015), CE-RoHS, WEEE, Reach; EN50121-4 railway; PVC FREE
ProtocolsONVIF (Profile S/G/T), ISAPI, SDK, ISUP; TCP/IP, DHCP, DNS, RTSP, SNMP, QoS, IPv4/IPv6, TLS 1.2/1.3
Client SoftwareiVMS-4200, Hik-Connect
Frequently Asked Questions

What is the Hikvision IDS-2CD8A86G2-XZHSY-1050 and what makes it a DeepinView camera?

The IDS-2CD8A86G2-XZHSY-1050 is a Hikvision DeepinView series 8 MP dual-sensor bullet network camera. It is classified as DeepinView because it carries an embedded deep learning chip that runs face capture, face comparison, multi-target-type detection, license plate recognition, and perimeter protection entirely on-board — without relying on an external NVR or server. The “iDS” prefix in the model number designates DeepinView models, confirming that all AI analytics are executed at the camera edge.

What are the two lenses on this camera and what purpose does each serve?

Channel 1 uses a motorised varifocal 10–50 mm P-iris lens (constant F1.6) with a horizontal FOV of 36° at wide and 13.1° at tele. This telephoto channel is designed for detailed identification at distance, achieving a DORI identification range of up to 62.1 m at the 50 mm tele end. Channel 2 uses a fixed 4 mm F1.0 lens with a wide horizontal FOV of 89° for broad situational-awareness coverage. Together the two channels enable simultaneous detail capture and panoramic monitoring from a single camera body.

How far does the IDS-2CD8A86G2-XZHSY-1050 see in total darkness?

The camera's DarkFighter 2.0 technology delivers a minimum illumination of 0.0005 Lux (colour) and 0.0001 Lux (B/W) on Channel 1, and 0.0003 Lux (colour) / 0.0001 Lux (B/W) on Channel 2. When active, the hybrid 850 nm IR and white-light supplement illuminator extends Channel 1's effective night range to 120 m and Channel 2 to 30 m, both at 0 Lux. The Smart Supplement Light function continuously adjusts illuminator intensity to prevent overexposure of close targets.

What IP and IK ratings does this camera carry, and is it suitable for outdoor or coastal environments?

The IDS-2CD8A86G2-XZHSY-1050 is rated IP67 (IEC 60529:2013) for full dust exclusion and protection against water immersion, and IK10 (IEC 62262:2002) for resistance to 20 joule impacts. The -Y model variant additionally carries NEMA 4X certification (NEMA 250-2018), providing moderate anti-corrosion protection suitable for coastal areas approximately 2 km from the shoreline and environments affected by acid rain. It also includes a built-in heater and demist function to maintain clear imaging in rainy, snowy, or heavily humid conditions, with an operating range of −40 °C to +60 °C.

What access-control integration options does the IDS-2CD8A86G2-XZHSY-1050 support?

The camera includes a 1× Wiegand interface supporting CardID 26-bit, SHA-1 26-bit, Hik 34-bit, and NEWG 72-bit protocols, allowing direct integration with compatible card readers and access-control panels. It also provides 1× RS-485 (Pelco-P, Pelco-D, self-adaptive) for PTZ and legacy device control, plus 2× alarm inputs and 2× alarm outputs (max. 24 VDC / 1 A) for triggering door releases, lighting, or sirens on face-match, LPR blocklist, or perimeter breach events.

What power options are available for the IDS-2CD8A86G2-XZHSY-1050?

The camera accepts three power inputs: 12 VDC ±20 % at up to 22.6 W, 24 VAC ±20 % at up to 22.2 W, or PoE via IEEE 802.3at Type 2 Class 4 (42.5–57 V, max. 24 W). PoE connectivity simplifies deployment by delivering both power and data over a single Cat-5e/Cat-6 cable, eliminating the need for a separate power supply at the camera location. A three-core terminal block is provided for 12 VDC and 24 VAC connections. The built-in power meter records historical power statistics for energy monitoring.

Professional Overview

The Hikvision iDS-2CD8A86G2-XZHSY-1050 represents the pinnacle of the DeepinView intelligent camera series, engineered specifically for high-security perimeters, transport hubs, and critical infrastructure where a single camera must deliver both panoramic situational awareness and forensic-grade detail capture simultaneously. Its dual-sensor architecture — an 8 MP 10–50 mm telephoto channel paired with a 4 MP 4 mm wide-angle channel — eliminates the traditional trade-off between coverage area and image resolution, providing operators with a unified view that supports real-time analytics on both channels concurrently.

At the heart of this camera is DarkFighter 2.0 technology, combining a 1/1.2” large-format CMOS sensor, F1.2 maximum aperture, and adaptive hybrid 850 nm IR plus white-light illumination to achieve full-colour imaging at 0.0005 Lux on the telephoto channel. The 140 dB AWDR system handles extreme contrast scenes — such as vehicle entry barriers with glaring headlights against a dark background — without washing out licence plates or facial features. Deep learning inference running entirely on the embedded chip powers face capture of up to 120 simultaneous faces, face comparison against libraries of up to 150,000 enrolled identities, multi-target classification, and licence plate recognition at ≥98 % accuracy, all without burdening downstream NVR processing resources.

Constructed from die-cast aluminium alloy with IP67, IK10, and NEMA 4X (on the -Y model) ratings, and equipped with a built-in heater and demist function, this camera is rated for operation from −40 °C to +60 °C and tolerates the corrosive and vibration-heavy environments found at coastal facilities, transportation corridors, and industrial sites. The on-board G-sensor adds an additional layer of tamper detection by triggering alerts on physical vibration or reorientation events. Integration flexibility is maximised through ONVIF Profile S/G/T, ISAPI, SDK, Wiegand, RS-485, dual-channel alarm I/O, and PoE IEEE 802.3at, making the camera compatible with virtually all major VMS and access-control platforms.

For Australian security integrators and end-users who demand the highest level of on-camera AI intelligence, long-range identification capability, and all-weather resilience in a single ruggedised bullet body, the IDS-2CD8A86G2-XZHSY-1050 is the definitive choice. Certified to RCM (AS/NZS CISPR 32:2015) for the Australian market and supported by a local warranty, it is available as Australian stock from ARC IP Networks.

Brand Hikvision
Form Factor Bullet
Night Vision DarkFighter 2.0 / Hybrid IR+White Light
Resolution 8 MP + 4 MP Dual-Sensor
Power PoE IEEE 802.3at / 12 VDC / 24 VAC
IR Range Up to 120 m
Lens Type Varifocal 10-50 mm + Fixed 4 mm
Compression H.265+ / H.265 / H.264+ / H.264
Camera Series DeepinView
Protection Rating IP67 / IK10 / NEMA 4X
Smart Analytics Face Capture, LPR, Perimeter Protection
IDS-2CD8A86G2-XZHSY-1050_Datasheet.pdf
