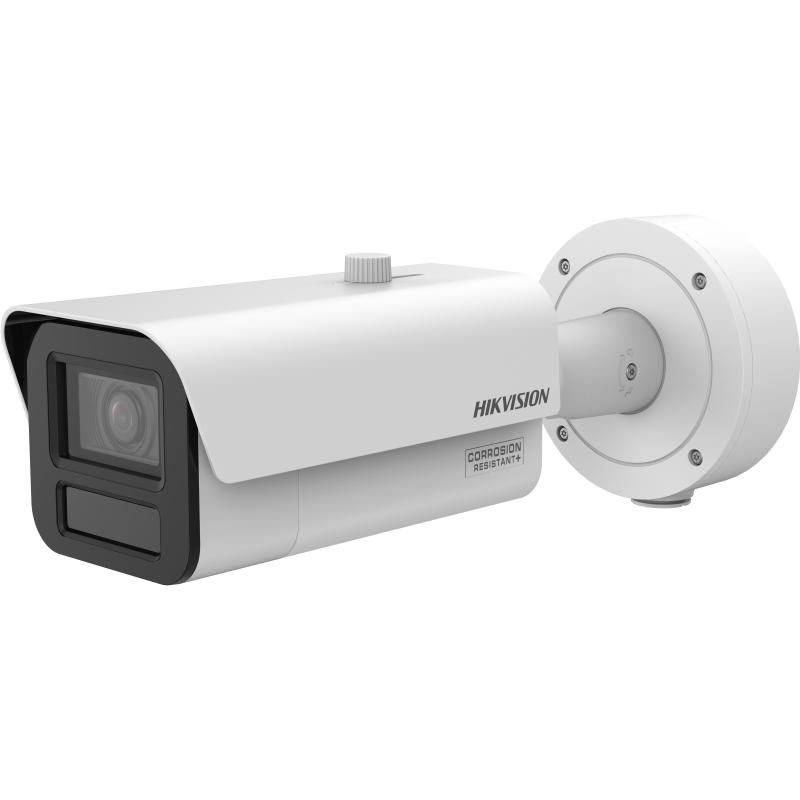

Hikvision IDS-2CD7A46G2-P-IZHSY-8-32MM DeepinView 4MP ANPR Motorised Varifocal Bullet Network Camera, 8–32 mm, IR 100 m

https://arcip.com.au/web/image/product.template/9781/image_1920?unique=12e6e76
The IDS-2CD7A46G2-P-IZHSY-8-32MM combines a 1/1.8″ CMOS sensor, DarkFighter 2.0 low-light technology, and 150 dB AWDR for reliable imaging under any lighting condition. Its 8–32 mm motorised varifocal P-iris lens achieves a DORI detect range up to 400 m at tele, with 100 m IR Smart Supplement Light. Embedded perimeter protection classifies humans and vehicles to eliminate false alarms, while on-device vehicle attribute detection outputs type, colour, brand, and direction as metadata. Rugged IP67/IK10/optional NEMA 4X aluminium alloy housing with a built-in heater and PoE 802.3at ensures reliable operation across Australian outdoor environments.

2,113.10 2113.1 AUD 2,113.10 incl. GST

Not Available For Sale


  • Brand
  • Network Connectivity
  • Night Vision
  • Resolution
  • Camera Type
  • Lens
  • Smart Features
  • Ingress Protection
  • Power
  • IR Range
  • Deep Learning Features

This combination does not exist.

In stock online
Hikvision IP Camera Bullet DeepinView ANPR Varifocal 4MP LPR
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
IDS-2CD7A46G2-P-IZHSY-8-32MM
Hikvision IDS-2CD7A46G2-P-IZHSY-8-32MM — 4 MP DeepinView ANPR Motorised Varifocal Bullet, 8–32 mm, IR 100 m, License Plate Recognition

Features

  • Deep learning–powered ANPR (Automatic Number Plate Recognition) supporting 124+ countries and regions including all Australian state plates, with licence plate recognition accuracy ≥98% and capture rate ≥99%
  • 4 MP (2688 × 1520) high-resolution imaging with 1/1.8" progressive scan CMOS sensor for exceptional detail at distance
  • DarkFighter 2.0 technology delivers outstanding low-light performance — colour imaging at 0.0005 Lux and monochrome at 0.0001 Lux (F1.2)
  • 8–32 mm motorised P-iris varifocal lens with auto, semi-auto and manual focus modes; DORI Detect 150.3 m, Recognise 30.1 m, Identify 15 m (wide) / 400 m detect at tele
  • IR Smart Supplement Light up to 100 m illumination range at 850 nm wavelength
  • 150 dB Wide Dynamic Range (AWDR) for clear imaging against strong backlighting
  • Embedded perimeter protection — line crossing, intrusion, region entrance and exit detection with human and vehicle target filtering to dramatically reduce false alarms
  • Vehicle attribute detection including type, colour, brand and driving direction, plus vehicle counting (vehicle and non-vehicle)
  • High frame rate up to 4MP@60fps and 2MP@120fps with 5 independent video streams and H.265+ compression
  • Built-in heater for reliable operation in rain or snow; built-in G-sensor for vibration detection and built-in power meter for historical power statistics
  • IP67 weather resistance, IK10 vandal-proofing and optional NEMA 4X corrosion resistance for demanding outdoor deployments
  • MicroSD/SDHC/SDXC on-board storage up to 1 TB; PoE IEEE 802.3at Type 2 Class 4 (max. 22.6 W) or 12 VDC/24 VAC

Specifications

Camera
Image Sensor1/1.8" Progressive Scan CMOS
Max. Resolution2688 × 1520
Min. IlluminationColour: 0.0005 Lux @ (F1.2, AGC ON)  |  B/W: 0.0001 Lux @ (F1.2, AGC ON)  |  B/W: 0 Lux with IR
Shutter Time1 s to 1/100,000 s
Day & NightIR cut filter; Blue glass module (less ghost phenomenon)
Wide Dynamic Range (WDR)150 dB
SNR≥ 52 dB
Image StabilisationEIS
Lens (8–32 mm)
Focal Length & FOV8 to 32 mm; Horizontal FOV 42.5° to 15.2°, Vertical FOV 23.4° to 8.7°, Diagonal FOV 49.7° to 17.3°
FocusAuto, Semi-auto, Manual
Iris TypeP-iris
ApertureF1.7 to F1.73
DORI (8–32 mm)
Wide — Detect / Observe / Recognise / Identify150.3 m / 59.7 m / 30.1 m / 15 m
Tele — Detect / Observe / Recognise / Identify400 m / 158.7 m / 80 m / 40 m
StandardEN 62676-4
Illuminator
Supplement Light TypeIR
IR Range (8–32 mm)Up to 100 m monitoring range
IR Wavelength850 nm
Smart Supplement LightYes
Video & Audio
Main Stream (60 Hz)Up to 60 fps (2688 × 1520, 1280 × 720); Up to 120 fps (1920 × 1080)
Video CompressionH.265+/H.265/H.264+/H.264 (main); H.265/H.264/MJPEG (sub); 5 independent streams
Video Bit Rate32 Kbps to 8 Mbps
Audio TypeMono sound
Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Region of Interest (ROI)4 fixed regions per stream
e-PTZPatrol and Auto Tracking
Deep Learning & Smart Features
Perimeter ProtectionLine crossing, intrusion, region entrance/exit; human and vehicle target filtering
ANPR / LPRLicence plate recognition ≥98%; Capture rate ≥99%; 124+ countries/regions; Blocklist & allowlist (up to 10,000 records); Checkpoint and side-installation modes
Vehicle AttributesType, colour, brand, driving direction; vehicle and non-vehicle counting
Capture SpeedFront installation (checkpoint): up to 120 km/h; Side installation: up to 80 km/h
Metadata OutputIntrusion, line crossing, region entrance/exit, road traffic
Basic EventsMotion detection (human/vehicle), video tampering, video quality diagnosis, vibration detection
Network
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, SRTP, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, WebSocket
Simultaneous Live ViewUp to 20 channels
APIISAPI, SDK, ISUP, OTAP, ONVIF (Profile S/G/T/M)
User / HostUp to 32 users; 3 user levels (administrator, operator, user)
SecurityHTTPS, 802.1X, TLS 1.2/1.3, TPM 2.0 (FIPS 140-2 Level 2), AES128/256, watermark, IP filter
Network StorageNAS (NFS, SMB/CIFS), ANR; Hikvision encrypted memory card with health detection
Interface
Ethernet1 × RJ45 10M/100M/1000M self-adaptive
On-Board StorageMicroSD/SDHC/SDXC slot, up to 1 TB
Alarm I/O2 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A)
Audio I/O1 × 3.5 mm line in (max. 3.3 Vpp) / 1 × 3.5 mm line out (max. 3.3 Vpp)
RS-4851 × RS-485 half-duplex (HIKVISION, Pelco-P, Pelco-D)
Video Output1 Vp-p Composite (75 Ω/CVBS) — for debugging only
General / Environmental
Power SupplyPoE IEEE 802.3at Type 2, Class 4 (42.5 V to 57 V, max. 22.6 W); or 12 VDC ±20%, max. 22.56 W; or 24 VAC ±20%, max. 21.5 W
Operating TemperatureAvailable on full datasheet
Ingress ProtectionIP67
Vandal ResistanceIK10
Corrosion ResistanceNEMA 4X (optional)
Body MaterialAluminium alloy
Built-in HeaterYes
Built-in G-SensorYes (vibration detection)
Client SoftwareiVMS-4200, Hik-Connect, Hik-Central

DeepinView FAQ — IDS-2CD7A46G2-P-IZHSY-8-32MM

What does the Hikvision IDS-2CD7A46G2-P-IZHSY-8-32MM use for licence plate recognition?

The IDS-2CD7A46G2-P-IZHSY-8-32MM is equipped with embedded deep learning–based ANPR (Automatic Number Plate Recognition) algorithms that operate directly on the camera with no server software required. The system achieves a licence plate recognition accuracy of ≥98% and a capture rate of ≥99%, covering 4 major areas and 124+ countries and regions including all Australian states. Blocklist and allowlist management supports up to 10,000 records, and the camera can capture vehicles at up to 120 km/h in front-of-vehicle (checkpoint) mode or up to 80 km/h in side-installation mode.

What is the Hikvision DeepinView series and how does it differ from standard IP cameras?

The DeepinView series is Hikvision’s AI-powered camera line built specifically for intelligent traffic and perimeter security applications. Unlike standard IP cameras, DeepinView cameras embed deep learning neural networks directly in the camera hardware, enabling on-device licence plate recognition, vehicle attribute detection (make, colour, type, direction), and perimeter protection with human and vehicle target classification. This eliminates the need for a separate AI server and dramatically reduces false alarms from environmental triggers such as leaves, animals, and lights.

What is the IR range of the 8–32 mm variant and what DORI performance does it achieve?

The 8–32 mm variant (IDS-2CD7A46G2-P-IZHSY-8-32MM) provides an IR Smart Supplement Light illumination range of up to 100 m at 850 nm. Its DORI performance (EN 62676-4) at the wide-end setting is: Detect 150.3 m, Observe 59.7 m, Recognise 30.1 m, and Identify 15 m. At the tele end the Detect range extends to 400 m, making it ideal for long-range vehicle identification tasks such as carpark entry, gate control, and road monitoring.

Can the IDS-2CD7A46G2-P-IZHSY detect vehicle attributes beyond just the plate number?

Yes. In addition to licence plate capture and recognition, the camera performs full vehicle attribute detection including vehicle type, colour, brand, and driving direction. It also supports vehicle and non-vehicle counting. All attribute data can be output as metadata and used for access control decisions, blocklist/allowlist matching, and integration with third-party VMS platforms via ISAPI, ONVIF, or SDK. Alarm linkage options include FTP/NAS upload, email notification, and alarm output triggering.

How does DarkFighter 2.0 improve low-light performance on the IDS-2CD7A46G2-P-IZHSY?

DarkFighter 2.0 combines the large 1/1.8" progressive scan CMOS sensor with advanced image signal processing to achieve colour imaging at an extremely low minimum illumination of 0.0005 Lux (F1.2, AGC ON) and black-and-white imaging at 0.0001 Lux. The camera also benefits from 150 dB AWDR to retain detail in high-contrast scenes, a ≥52 dB signal-to-noise ratio for clean imagery, and 3D DNR, BLC/HLC and Defog enhancement modes. When IR illumination is active, the minimum illumination reaches 0 Lux, ensuring clear monochrome capture in complete darkness.

Is the IDS-2CD7A46G2-P-IZHSY-8-32MM suitable for Australian outdoor environments?

Yes. The camera carries IP67 ingress protection against dust and water immersion, IK10 vandal-proofing for impact resistance, and an optional NEMA 4X corrosion resistance rating for coastal or industrial environments. A built-in heater protects internal electronics in cold or wet weather. The aluminium alloy body provides both structural rigidity and effective thermal dissipation. Power is supplied via PoE IEEE 802.3at Type 2, Class 4 (max. 22.6 W), 12 VDC, or 24 VAC, giving flexible installation options across Australian commercial, government, and transport infrastructure sites.

Professional Overview

The Hikvision IDS-2CD7A46G2-P-IZHSY-8-32MM is a professional-grade 4 MP (2688 × 1520) DeepinView ANPR bullet camera purpose-built for intelligent traffic monitoring, access control, and perimeter protection applications. Combining a large 1/1.8" progressive scan CMOS sensor with a 8–32 mm motorised P-iris varifocal lens, it delivers outstanding image quality across a flexible zoom range. The IP67 and IK10–rated aluminium alloy housing, optional NEMA 4X corrosion resistance, and integrated heater make it equally at home on petrol station forecourts, multi-level car parks, commercial premises, and critical infrastructure sites.

At the heart of the IDS-2CD7A46G2-P-IZHSY-8-32MM is Hikvision’s embedded deep learning ANPR engine delivering licence plate recognition accuracy ≥98% across 124+ countries and regions, including all Australian state plate formats. The 8–32 mm motorised varifocal lens achieves a DORI Detect range of 150.3 m (wide) to 400 m (tele) and a Recognise range of 30.1 m to 80 m, while the IR Smart Supplement Light provides up to 100 m illumination range. The camera captures vehicles at up to 120 km/h in checkpoint mode, with blocklist/allowlist management for up to 10,000 plates directly on-device.

DarkFighter 2.0 technology ensures colour imaging remains usable at 0.0005 Lux and black-and-white imaging at 0.0001 Lux (F1.2, AGC ON), backed by 150 dB AWDR for scenes with strong backlighting such as vehicle headlights or morning sun. Beyond ANPR, the embedded perimeter protection engine classifies humans and vehicles to filter out spurious motion alarms from leaves, animals, and environmental interference. Vehicle attribute detection outputs vehicle type, colour, brand, and direction as structured metadata, supporting seamless integration with Hikvision iVMS-4200, Hik-Central, and third-party ONVIF VMS platforms via ISAPI, SDK, or ONVIF Profile G/T/M.

High frame rate recording at 4MP@60fps and 2MP@120fps with H.265+ compression minimises storage requirements while preserving detail for forensic review. The camera supports five independent video streams, on-board storage up to 1 TB (microSD), alarm I/O, RS-485, and PoE IEEE 802.3at Type 2 Class 4 power for single-cable installation. With a 5-year warranty on Australian stock and a proven deployment track record across transport, retail, and government sectors, the IDS-2CD7A46G2-P-IZHSY-8-32MM represents the benchmark for embedded AI ANPR performance. Australian stock from ARC IP Networks.

Brand Hikvision
Network Connectivity Wired (RJ45 10/100/1000 M)
Night Vision IR (DarkFighter 2.0, 0.0005 Lux colour)
Resolution 4 MP (2688 × 1520)
Camera Type Bullet
Lens 8–32 mm motorised varifocal (P-iris)
Smart Features DeepinView ANPR / Perimeter Protection
Ingress Protection IP67, IK10
Power PoE 802.3at (max. 22.6 W) / 12 VDC / 24 VAC
IR Range Up to 100 m
Deep Learning Features ANPR / Vehicle Attribution / Perimeter Protection
