Hikvision DS-2CD3766G2HT-LIZSUY Smart Hybrid Light 6 MP Varifocal Dome Network Camera, 2.7–13.5 mm, IR & White Light 40 m

https://arcip.com.au/web/image/product.template/9769/image_1920?unique=12e6e76
The Hikvision DS-2CD3766G2HT-LIZSUY is a 6 MP Smart Hybrid Light motorized varifocal dome camera designed for demanding security environments. Smart Hybrid Light technology intelligently switches between infrared and white-light illumination, delivering crisp colour footage at night up to 40 m without compromising covert operation. AcuSense deep-learning algorithms accurately classify humans and vehicles to slash false alarm rates, while the motorized 2.7–13.5 mm varifocal lens enables remote zoom and focus adjustment without physical access. With H.265+ compression, 120 dB Wide Dynamic Range, IP67 weatherproofing, IK10 vandal resistance, and on-board microSD storage up to 512 GB, this camera suits retail, logistics, parking and perimeter protection applications. Backed by Australian stock and support from ARC IP Networks.

614.67 614.67 AUD 614.67 incl. GST

Not Available For Sale


  • Brand
  • Form Factor
  • Resolution
  • Ingress Protection
  • Power
  • Lens Type
  • Focal Length
  • Max IR Range
  • Illumination
  • Compression
  • Impact Rating

This combination does not exist.

In stock online
Dome Camera Hikvision IP Camera AcuSense Smart Hybrid Light 6MP
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
DS-2CD3766G2HT-LIZSUY

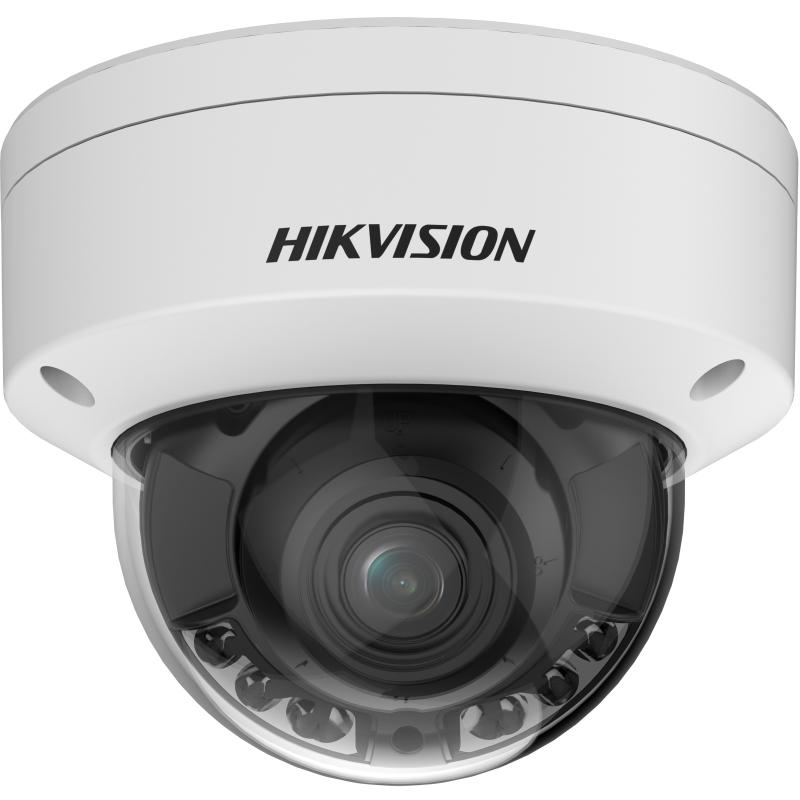

Hikvision DS-2CD3766G2HT-LIZSUY — 6 MP Smart Hybrid Light Varifocal Dome, 2.7–13.5 mm Motorized, Dual IR & White-Light Illumination 40 m
Key Features
  • 6 MP resolution (3200 × 1800) on a 1/1.8″ Progressive Scan CMOS sensor for exceptional detail capture across wide scenes.
  • Smart Hybrid Light — intelligently combines infrared (850 nm) and white-light supplemental illumination up to 40 m, auto-switching based on ambient conditions for both covert IR and full-colour night imaging.
  • AcuSense deep-learning analytics accurately classify humans and vehicles, dramatically reducing false alarms from animals, foliage, and environmental noise.
  • Motorized varifocal lens 2.7–13.5 mm (F1.2 aperture) with auto/semi-auto/manual focus — adjust remotely without opening the enclosure.
  • 120 dB Wide Dynamic Range for clear imaging in scenes with extreme contrast between bright and dark areas, such as building entrances or car parks.
  • H.265+ compression reduces storage and bandwidth consumption by up to 75 % versus H.264 without sacrificing image quality.
  • IP67 & IK10 rated — fully dust-sealed, weatherproof against water jets, and resistant to 20 J vandal impacts, suitable for indoor/outdoor use.
  • PoE IEEE 802.3at (Class 4) — single-cable power and data via standard PoE+ switches; 12 VDC input also supported.
  • On-board microSD storage up to 512 GB (microSD/microSDHC/microSDXC) for local redundancy and edge recording.
  • HEOP 2.0 open platform with 1.5 TOPS computing power, supporting third-party AI apps via Caffe, PyTorch, TensorFlow, PaddlePaddle, and ONNX frameworks.
  • Perimeter protection — line crossing, intrusion, region entrance/exiting with human/vehicle target classification.
  • 4 simultaneous video streams with up to 25 fps at full 3200 × 1800 resolution (50 Hz mode).
Technical Specifications
Camera
Image Sensor1/1.8″ Progressive Scan CMOS
Max. Resolution3200 × 1800
Min. IlluminationColour: 0.0028 Lux @ (F1.2, AGC ON); 0 Lux with light
Shutter Time1/3 s to 1/100,000 s
Day & NightIR cut filter
Angle AdjustmentPan: 0°–355°, Tilt: 0°–90°, Rotate: 0°–360°
WDR120 dB
SNR≥ 52 dB
Image EnhancementBLC, HLC, 3D DNR, Defog
Privacy Mask4 programmable polygon privacy masks
Lens
Lens TypeVarifocal, motorized, 2.7–13.5 mm
Focal Length & FOV2.7–13.5 mm; H-FOV 112.3°–41.2°, V-FOV 58.1°–23.1°, D-FOV 137.4°–47.3°
Lens MountIntegrated
FocusAuto, Semi-auto, Manual
Iris TypeDC iris
ApertureF1.2
Depth of Field1 m to ∞
Illuminator
Supplement Light TypeSmart Hybrid Light: IR (850 nm) + White Light
Supplement Light RangeUp to 40 m
Smart Supplement LightYes — auto-selects IR or white light based on scene
DORI Distance
Wide-end DORIDetect 89 m  |  Observe 35 m  |  Recognise 18 m  |  Identify 9 m
Tele-end DORIDetect 220 m  |  Observe 87 m  |  Recognise 44 m  |  Identify 22 m
Smart Features
AcuSenseHuman and vehicle classification based on deep learning
Perimeter ProtectionLine crossing, intrusion, region entrance, region exiting (human/vehicle targets)
Basic EventMotion detection (human/vehicle target types), video tampering alarm, exception
Smart EventScene change detection, audio exception detection, defocus detection
Face CaptureYes
People CountingYes
HEOP Computing1.5 TOPS; 40 MB RAM, 350 MB Smart RAM, 2 GB eMMC; HEOP 2.0
Video
Main Stream (50 Hz)25 fps @ 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720
Main Stream (60 Hz)30 fps @ 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720
Video CompressionH.265+/H.265/H.264+/H.264/MJPEG
Video Bit Rate32 Kbps to 16 Mbps
H.265 ProfileMain Profile
Bit Rate ControlCBR, VBR
ROI5 fixed regions for main stream and sub-stream
Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Network
ProtocolsTCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, SRTP
Simultaneous Live ViewUp to 6 channels
APIONVIF (Profile S, G, T), ISAPI, SDK, ISUP
Network StorageNAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
ClientiVMS-4200, Hik-Connect, Hik-Central
Interface
Ethernet1 × RJ45 10/100 M self-adaptive
On-Board StoragemicroSD/microSDHC/microSDXC slot, up to 512 GB
Audio1 line-in, 1 line-out (3.3 Vpp, two-core terminal block)
Alarm I/O2 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A)
Power Output12 VDC, max. 100 mA
General / Environmental
Power Supply12 VDC ± 25%, max. 12.6 W (coaxial plug); PoE IEEE 802.3at Class 4, max. 15 W
Protection RatingIP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
Operating Temperature−30 °C to 60 °C (−22 °F to 140 °F); humidity ≤ 95 % (non-condensing)
Storage Temperature−30 °C to 60 °C
MaterialMetal body, bracket, and front cover
Language Support33 languages including English, French, German, Spanish, Japanese, Korean, Traditional Chinese
CertificationsCE-EMC, CE-LVD, CE-RoHS, IP67: IEC 60529-2013, IK10: IEC 62262:2002
Frequently Asked Questions

What resolution and sensor does the DS-2CD3766G2HT-LIZSUY provide?

The Hikvision DS-2CD3766G2HT-LIZSUY uses a 1/1.8″ Progressive Scan CMOS sensor delivering 6 MP resolution at 3200 × 1800 pixels. The large sensor combined with an F1.2 aperture lens achieves a minimum illumination of 0.0028 Lux in colour mode, enabling clear imaging in near-darkness, and 0 Lux with active supplemental light.

What is Smart Hybrid Light and how does it benefit night surveillance?

Smart Hybrid Light is Hikvision’s dual-illumination technology that combines 850 nm infrared LEDs with a white-light source in a single unit. The camera intelligently selects between infrared (for covert, monochrome imaging) and white light (for full-colour night footage) based on user configuration and scene conditions, providing up to 40 m illumination range in both modes. This eliminates the need for separate colour-at-night cameras or external lighting.

How does the DS-2CD3766G2HT-LIZSUY Smart Hybrid Light series reduce false alarms?

The DS-2CD3766G2HT-LIZSUY belongs to Hikvision’s AcuSense generation, which applies deep-learning algorithms directly on the camera’s 1.5 TOPS HEOP processor. These algorithms distinguish humans and vehicles from other motion triggers such as animals, leaves, rain, and headlight sweeps. As a result, only genuine human/vehicle intrusions generate alarms, cutting nuisance alerts by up to 90 % compared to traditional motion-detection cameras.

What are the power options and how is the DS-2CD3766G2HT-LIZSUY installed?

The DS-2CD3766G2HT-LIZSUY supports PoE Plus (IEEE 802.3at, Class 4, max. 15 W) for single-cable power and network connectivity, or 12 VDC ± 25% via a 5.5 mm coaxial plug (max. 12.6 W). The dome housing includes pan (0°–355°), tilt (0°–90°), and rotate (0°–360°) adjustment. The motorized 2.7–13.5 mm varifocal lens can be remotely focused and zoomed through the management interface, simplifying installation at height without repeated physical access.

Is the DS-2CD3766G2HT-LIZSUY suitable for outdoor and high-vandalism environments?

Yes. The DS-2CD3766G2HT-LIZSUY carries an IP67 ingress protection rating (fully dust-tight, withstands water jets) and an IK10 impact-resistance rating (withstands 20 joule impacts). The housing is constructed from metal throughout — front cover, body, and bracket. The operating temperature range extends from −30 °C to 60 °C, making it suitable for Australian outdoor deployments, cold-store facilities, and exposed car-park structures.

Does the DS-2CD3766G2HT-LIZSUY support local storage and NAS recording?

Yes. The camera features a built-in microSD/microSDHC/microSDXC card slot supporting cards up to 512 GB, enabling continuous local recording independent of network availability. It also supports NAS recording via NFS and SMB/CIFS protocols, and Hikvision’s Auto Network Replenishment (ANR) feature — which automatically back-fills the NVR from the SD card if the network connection drops — ensuring no footage gaps during brief outages.

Professional Overview

The Hikvision DS-2CD3766G2HT-LIZSUY is an enterprise-grade 6 MP Smart Hybrid Light varifocal dome camera from Hikvision’s Ultra-Series SmartIP platform. Designed to bridge the gap between discreet dome aesthetics and the performance demands of high-security installations, it delivers both wide-angle coverage at 2.7 mm and detailed telephoto views at 13.5 mm — all adjustable remotely via the motorized lens mechanism without the need to access the camera housing. The 120 dB Wide Dynamic Range engine and 3D Digital Noise Reduction processing ensure consistently clean imagery across the full lighting spectrum, from harsh midday sun entering a doorway to near-total darkness in a carpark after hours.

At the core of the DS-2CD3766G2HT-LIZSUY’s intelligence is Hikvision’s AcuSense platform, powered by a 1.5 TOPS on-board neural processor. AcuSense performs real-time classification of detected objects into human, vehicle, or “other” categories, enabling perimeter protection rules — line crossing, intrusion, region entrance and exiting — that trigger alarms only on confirmed human or vehicle targets. Face capture and people counting functions extend the camera’s usefulness beyond pure security into retail analytics and access-management workflows. The HEOP 2.0 open platform further allows operators to deploy custom deep-learning applications built on PyTorch, TensorFlow, PaddlePaddle, ONNX, or Caffe without any additional hardware.

Smart Hybrid Light sets this model apart from standard IR-only dome cameras. By combining infrared LEDs with a dedicated white-light source and an adaptive switching algorithm, the DS-2CD3766G2HT-LIZSUY provides full-colour footage in low light when forensic detail matters most — such as recording a vehicle’s colour or a person’s clothing — while still supporting covert IR-only operation when visible light would be intrusive. The 40 m effective range in both modes, combined with the wide 112.3° field of view at the wide end, makes it well-suited to warehouse aisles, loading docks, building lobbies, and perimeter fencelines where lighting conditions vary unpredictably throughout the day and night.

Integration with Hikvision’s iVMS-4200, Hik-Connect, and Hik-Central VMS platforms is seamless, and ONVIF Profile S/G/T compliance ensures compatibility with third-party video management systems. The camera supports up to 6 simultaneous live-view channels, 32 concurrent users, and records to microSD (up to 512 GB) or NAS via NFS/SMB with Auto Network Replenishment for resilient edge recording. The DS-1260ZJ junction box is included, and optional vertical pole, corner, and compact pole mounts (DS-1275ZJ-SUS series) are available for ceiling, wall, and post installations. Available as Australian stock from ARC IP Networks.

Brand Hikvision
Form Factor Dome
Resolution 6 MP
Ingress Protection IP67
Power PoE (IEEE 802.3at)
Lens Type Motorized Varifocal
Focal Length 2.7–13.5 mm
Max IR Range 40 m
Illumination Smart Hybrid Light (IR + White Light)
Compression H.265+
Impact Rating IK10
