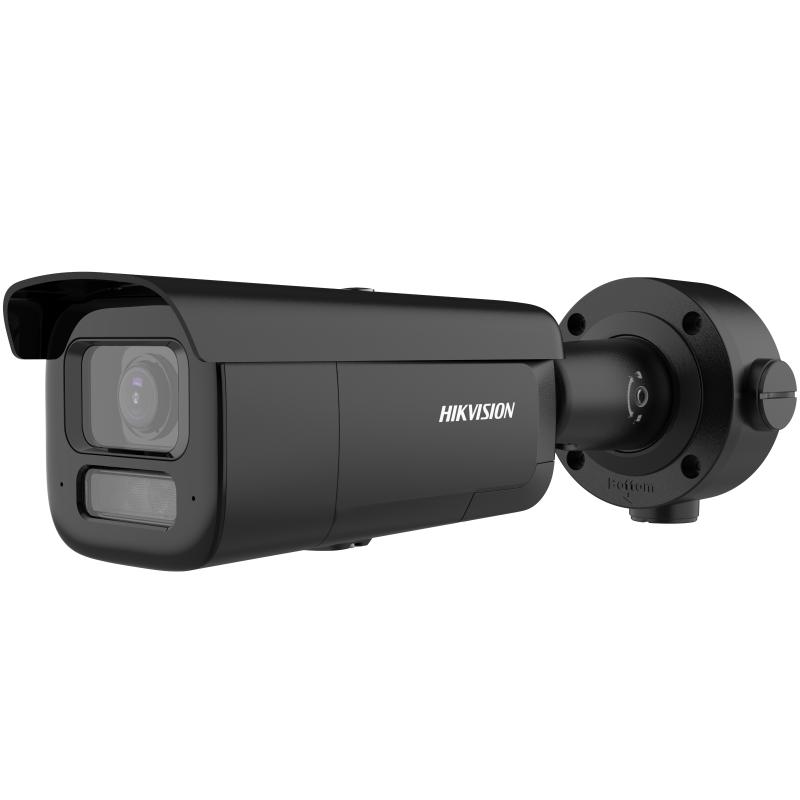

Hikvision DS-2CD3666G2HT-LIZSY-BLK Smart Hybrid Light 6 MP Motorized Varifocal Bullet Network Camera, Black, 2.7-13.5 mm, 60 m Dual Illumination

https://arcip.com.au/web/image/product.template/9771/image_1920?unique=12e6e76
The DS-2CD3666G2HT-LIZSY-BLK delivers 6 MP (3200 × 1800) resolution from a 1/1.8″ CMOS sensor with Hikvision Smart Hybrid Light technology, automatically blending 850 nm IR and white-light illuminators for full-colour or long-range coverage up to 60 m. The 2.7–13.5 mm motorized varifocal lens enables remote zoom and auto-focus adjustment for fast, ladder-free commissioning. Built-in HEOP with 1.5 TOPS supports third-party AI apps alongside native deep-learning perimeter protection, face capture, and people counting. IP67 and IK10 rated, PoE+ powered, with on-board microSD storage up to 512 GB.

650.19 650.19 AUD 650.19 incl. GST

Not Available For Sale


  • Brand
  • Form Factor
  • Resolution
  • Colour
  • Ingress Protection
  • Power
  • IR Range
  • Lens Type
  • Focal Length
  • Illumination
  • Megapixels
  • Impact Resistance

This combination does not exist.

In stock online
Bullet Camera Hikvision IP Camera Smart Hybrid Light 6 MP
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
DS-2CD3666G2HT-LIZSY-BLK
Hikvision DS-2CD3666G2HT-LIZSY-BLK — 6 MP Smart Hybrid Light Motorized Varifocal Bullet Network Camera, Black, 2.7–13.5 mm, Dual IR & White Light up to 60 m
Key Features
Feature Highlights
Resolution6 MP (3200 × 1800) — 1/1.8" Progressive Scan CMOS
SeriesSmart Hybrid Light — simultaneous IR and white-light illumination, up to 60 m range
Lens2.7–13.5 mm motorized varifocal, F1.2 aperture, auto/semi-auto/manual focus, depth of field 1 m to ∞
Wide Dynamic Range120 dB WDR — clear imaging against strong back-light
Video CompressionH.265+ / H.265 / H.264+ / H.264 — up to 50% bandwidth savings with H.265+
Smart DetectionDeep-learning perimeter protection: line crossing, intrusion, region entrance/exiting with human & vehicle target classification
HEOP Edge ComputingHikvision Embedded Open Platform (HEOP): 1.5 TOPS, 40 MB memory, 350 MB smart RAM, 2 GB eMMC — run third-party AI apps on-camera
People Counting & Face CaptureOn-board deep-learning face capture and bi-directional people counting without an NVR
ProtectionIP67 ingress protection and IK10 vandal resistance — rated for outdoor and public-area installation
On-Board StorageMicroSD/SDHC/SDXC slot, up to 512 GB — continuous local recording without NVR
PoE / 12 V DCIEEE 802.3at PoE Class 4 (max. 18 W) or 12 VDC ±25%
ColourBlack (SKU suffix -BLK) — low-visibility for covert or architectural deployments
Full Specifications
Camera
Image Sensor1/1.8" Progressive Scan CMOS
Max. Resolution3200 × 1800
Min. IlluminationColour: 0.0028 Lux @ (F1.2, AGC ON); 0 Lux with supplemental light
Shutter Time1/3 s to 1/100,000 s
Day & NightIR cut filter (automatic)
Angle AdjustmentPan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°
SNR≥ 52 dB
Privacy Mask4 programmable polygon privacy masks
Lens
Lens TypeVarifocal, motorized, 2.7–13.5 mm
Focal Length & FOVHorizontal FOV 112.3° to 41.2°; vertical FOV 58.1° to 23.1°; diagonal FOV 137.4° to 47.3°
Lens MountIntegrated
FocusAuto, semi-auto, manual
Iris TypeDC iris
ApertureF1.2
Depth of Field1 m to ∞
Illuminator
Supplement Light TypeIR and white light (Smart Hybrid Light — dual independent illuminators)
Supplement Light RangeUp to 60 m
Smart Supplement LightYes — automatically blends IR and white light for optimal exposure
IR Wavelength850 nm
DORI
Wide-end (2.7 mm)Detection: 89 m – Observation: 35 m – Recognition: 18 m – Identification: 9 m
Tele-end (13.5 mm)Detection: 220 m – Observation: 87 m – Recognition: 44 m – Identification: 22 m
Smart Features
Basic EventMotion detection (human & vehicle target types), video tampering alarm, exception
Smart EventScene change detection, audio exception detection, defocus detection
Perimeter ProtectionLine crossing, intrusion, region entrance, region exiting — target types: human and vehicle
Deep Learning FunctionsFace capture, people counting
HEOP Computing1.5 TOPS — HEOP 2.0 OpendevSDK; supports Caffe, PyTorch, TensorFlow, PaddlePaddle, ONNX; C/C++ programming
ROI5 fixed regions for main stream and sub-stream
Image EnhancementBLC, HLC, 3D DNR, Defog
WDR120 dB
General / Environmental
Power12 VDC ±25%, 1.21 A, max. 14.5 W (Ø5.5 mm coaxial plug); or PoE IEEE 802.3at, Class 4, max. 18 W
Operating Temperature−30 °C to +60 °C (−22 °F to +140 °F); humidity 95% or less (non-condensing)
Storage Temperature−30 °C to +60 °C (−22 °F to +140 °F); humidity 95% or less (non-condensing)
Protection RatingIP67: IEC 60529-2013; IK10: IEC 62262:2002
MaterialFront cover: metal; body: metal; bracket: metal
On-Board StorageMicroSD/SDHC/SDXC, up to 512 GB; supports memory-card encryption and health detection
Ethernet1 × RJ45 10M/100M self-adaptive
Audio1 × input (line in) / 1 × output (line out); 2 × alarm in / 2 × alarm out (max. 24 VDC/24 VAC, 1 A)
Video Bit Rate32 Kbps to 16 Mbps
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, SRTP
Client SoftwareiVMS-4200, Hik-Connect, Hik-Central
APIONVIF (Profile S, G, T), ISAPI, SDK, ISUP
CertificationsCE-EMC, CE-LVD, CE-RoHS, UL, CB — EN 55032:2015, IEC 62368-1, EN 50130-4: 2011+A1: 2014
Accessory (Included)DS-1260ZJ junction box
Frequently Asked Questions

What series does the DS-2CD3666G2HT-LIZSY-BLK belong to, and what makes it unique?

The DS-2CD3666G2HT-LIZSY-BLK belongs to Hikvision’s Smart Hybrid Light series. It combines both IR (850 nm) and white-light illuminators into a single unit, enabling the camera to automatically blend or switch between the two light sources — providing full-colour detail in low light without the washed-out look of white-light-only cameras, and extending night-vision coverage to 60 m.

What resolution and frame rate does the DS-2CD3666G2HT-LIZSY-BLK deliver?

The camera delivers 6 MP (3200 × 1800) at up to 25 fps (50 Hz) or 30 fps (60 Hz). Sub-streams at 1280 × 720, 640 × 480, and 640 × 360 are available simultaneously for remote viewing or NVR storage at reduced bandwidth.

What is the varifocal lens range, and can it be adjusted remotely?

The motorized varifocal lens covers 2.7–13.5 mm, providing a horizontal field of view from 112.3° (wide) down to 41.2° (tele). Focus and zoom are both motorized, so the lens can be adjusted remotely via iVMS-4200, Hik-Central, or any ONVIF-compatible client — no ladder or physical access required after installation.

What smart detection and AI features are built into the camera?

The DS-2CD3666G2HT-LIZSY-BLK includes deep-learning perimeter protection (line crossing, intrusion, region entrance/exiting) with human and vehicle target classification to reduce false alarms. It also supports face capture, bi-directional people counting, and audio exception detection. The HEOP (Hikvision Embedded Open Platform) adds 1.5 TOPS of edge computing with 2 GB eMMC storage, allowing third-party AI applications to run directly on the camera using C/C++, PyTorch, TensorFlow, ONNX, and other frameworks.

Is the DS-2CD3666G2HT-LIZSY-BLK suitable for outdoor installation in harsh environments?

Yes. The camera carries an IP67 ingress protection rating (IEC 60529-2013) against dust and water immersion, and IK10 vandal resistance (IEC 62262:2002) against physical impact up to 20 joules. The full metal housing (front cover, body, and bracket) and −30 °C to +60 °C operating range make it suitable for demanding outdoor environments including extreme climates.

Does this camera support PoE, and what is the power draw?

Yes. The DS-2CD3666G2HT-LIZSY-BLK supports IEEE 802.3at PoE (Class 4) with a maximum draw of 18 W, making it compatible with all 802.3at PoE+ switches and injectors. Alternatively, it can be powered via 12 VDC ±25% at up to 14.5 W through a standard Ø5.5 mm coaxial power plug.

Professional Overview

The Hikvision DS-2CD3666G2HT-LIZSY-BLK is a 6 MP Smart Hybrid Light motorized varifocal bullet camera built for professional outdoor surveillance where image quality, flexibility, and deep-learning edge intelligence are all required. The Smart Hybrid Light system — combining an 850 nm IR illuminator and an independent white-light module — delivers full-colour night footage alongside long-range 60 m coverage, adapting automatically to scene conditions without manual intervention. With 120 dB WDR, 0.0028 Lux colour sensitivity, and a large 1/1.8" CMOS sensor, the camera maintains sharp, detailed images across the most challenging lighting transitions, from glaring entrance canopies to pitch-dark car parks.

The 2.7–13.5 mm motorized varifocal lens offers remote zoom and auto-focus adjustment, eliminating the need for costly return visits during commissioning. The DORI performance is exceptional: at full tele, detection range extends to 220 m and identification to 22 m, making this camera equally effective for wide-area perimeter coverage and licence-plate or face-level detail capture. The integrated DC iris and F1.2 aperture ensure consistent exposure whether the scene is brightly lit or nearly dark.

Edge intelligence is provided through the Hikvision Embedded Open Platform (HEOP), which offers 1.5 TOPS of neural-network compute, 350 MB smart RAM, and 2 GB eMMC storage. This enables operators to deploy third-party AI applications — such as retail analytics, queue monitoring, or safety-compliance detection — directly on the camera without additional servers. Built-in deep-learning events include line crossing, intrusion, region entrance/exiting, face capture, and people counting, all with human-and-vehicle target filtering to minimise false alarms. On-board microSD storage up to 512 GB provides a resilient local backup independent of the NVR.

The black (-BLK) colour variant offers a discreet profile suited to commercial facades, hospitality environments, and architectural installations where a white camera body would be visually intrusive. The full metal housing, IP67 and IK10 ratings, and −30 °C to +60 °C operating range confirm this camera’s readiness for even the most demanding Australian outdoor sites. Powered over a single Cat5e/Cat6 cable via IEEE 802.3at PoE+, or by 12 VDC, installation is straightforward with the included DS-1260ZJ junction box. Available in Australian stock from ARC IP Networks.

Brand Hikvision
Form Factor Bullet
Resolution 3200 x 1800
Colour Black
Ingress Protection IP67
Power PoE (IEEE 802.3at) / 12 VDC
IR Range 60 m
Lens Type Motorized Varifocal
Focal Length 2.7-13.5 mm
Illumination Smart Hybrid Light (IR + White Light)
Megapixels 6 MP
Impact Resistance IK10
DS-2CD3666G2HT-LIZSY-BLK_Datasheet.pdf
