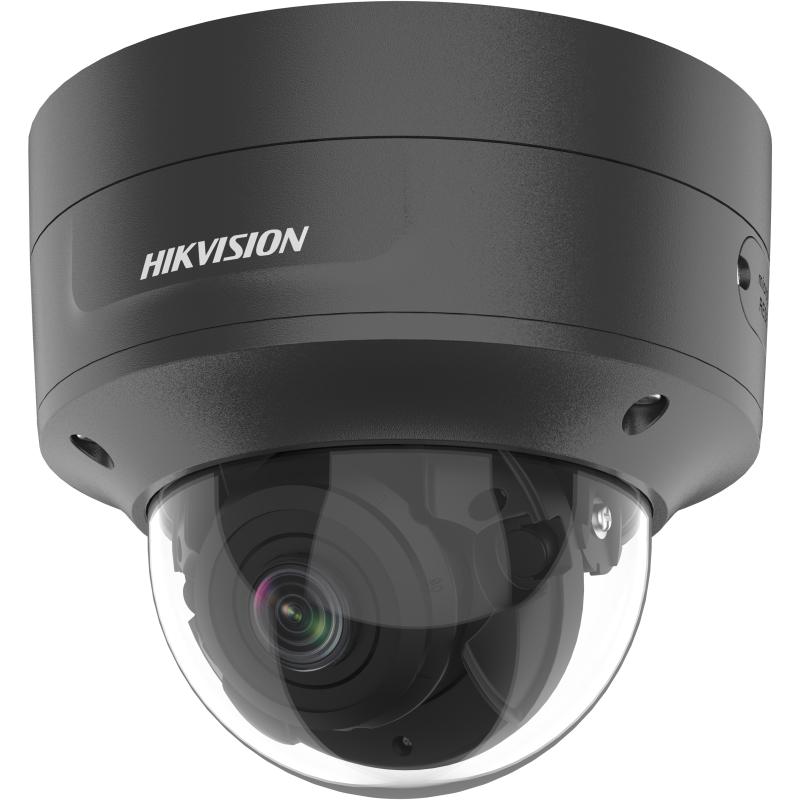

Hikvision DS-2CD2766G2T-IZS-BNC-BLK AcuSense 6 MP Varifocal Dome Network Camera, 2.8–12 mm, DarkFighter, BNC Output, Black

https://arcip.com.au/web/image/product.template/9765/image_1920?unique=12e6e76
The DS-2CD2766G2T-IZS-BNC-BLK is a 6 MP AcuSense varifocal dome camera featuring deep-learning human and vehicle classification for near-zero false alarms. Powered-by-DarkFighter technology achieves 0.003 Lux colour sensitivity, while 120 dB true WDR handles challenging backlighting. The motorised 2.8–12 mm lens adjusts remotely, and Smart IR covers up to 40 m. A built-in BNC output enables direct analogue monitoring alongside the main IP stream, and the black IK10/IP67 metal housing suits discreet outdoor deployments. Available from Australian stock at ARC IP Networks.

611.64 611.64 AUD 611.64 incl. GST

Not Available For Sale


  • Brand
  • Network Connectivity
  • Night Vision
  • Resolution
  • Camera Type
  • Lens
  • Smart Features
  • Ingress Protection
  • Power
  • IR Range
  • Audio / Alarm

This combination does not exist.

In stock online
Hikvision IP Camera AcuSense DarkFighter 6MP Varifocal Dome
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
DS-2CD2766G2T-IZS-BNC-BLK
Hikvision DS-2CD2766G2T-IZS-BNC-BLK — 6 MP AcuSense Powered-by-DarkFighter Motorised Varifocal Dome, 2.8–12 mm, BNC Output, IP67 / IK10, Black

Features

  • AcuSense deep-learning classification — distinguishes human and vehicle targets to dramatically reduce false alarms from animals, wind-blown foliage, and lighting changes.
  • Powered-by-DarkFighter low-light performance — colour imaging down to 0.003 Lux (F1.4, AGC ON) and 0 Lux in B/W mode with IR active.
  • 6 MP / 3200 × 1800 resolution — 1/2.4” Progressive Scan CMOS delivers crisp detail across wide or telephoto fields of view.
  • Motorised varifocal 2.8–12 mm lens — remote electronic zoom and focus via client software; no need to climb the mount during commissioning.
  • 120 dB true Wide Dynamic Range — simultaneously exposes bright entrances and shadowed interiors without blow-out or crushing.
  • Up to 40 m Smart IR illumination — adaptive IR power prevents overexposure of nearby subjects and automatically increases range as the scene darkens.
  • BNC analogue video output — the -BNC variant adds a BNC composite output for direct connection to analogue monitors or legacy DVR review screens alongside its IP stream.
  • Audio & alarm I/O — 1× audio in (line), 1× audio out (line), 1× alarm input, 1× alarm output (max. 24 VDC / 1 A).
  • Face capture deep learning function — records and crops face images for downstream recognition workflows.
  • H.265+ tri-stream compression — drastically reduces storage and bandwidth versus H.264 at equivalent quality.
  • IP67 weatherproof and IK10 vandal-resistant — sealed metal housing rated for continuous outdoor use and resists up to 20 J impact.
  • MicroSD onboard storage up to 512 GB — local ANR recording keeps footage safe during network outages.

Specifications

Camera
Image Sensor1/2.4” Progressive Scan CMOS
Max. Resolution3200 × 1800
Min. IlluminationColour: 0.003 Lux @ F1.4, AGC ON  |  B/W: 0 Lux with IR
Shutter Time1/3 s to 1/100,000 s
Day & NightIR cut filter with auto switching
Angle AdjustmentPan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355°
Wide Dynamic Range120 dB
SNR≥ 52 dB
Image EnhancementBLC, HLC, 3D DNR
Privacy Mask4 programmable polygon masks
Lens
Lens TypeVarifocal, motorised
Focal Length & FOV2.8–12 mm |  H-FOV: 106° to 35° |  V-FOV: 56° to 20° |  D-FOV: 127° to 41°
Lens MountØ14
ApertureF1.6
DORI
Wide (2.8 mm)Detect: 68 m  |  Observe: 27 m  |  Recognise: 13 m  |  Identify: 7 m
Tele (12 mm)Detect: 200 m  |  Observe: 79 m  |  Recognise: 40 m  |  Identify: 20 m
Illuminator
Supplement Light TypeIR
Supplement Light RangeUp to 40 m
Smart Supplement LightYes (adaptive power)
IR Wavelength850 nm
Video & Audio
Main Stream50 Hz: 25 fps (3200×1800, 2688×1520, 1920×1080, 1280×720)  |  60 Hz: 30 fps
Sub-Stream50 Hz: 25 fps (1280×720, 640×480, 640×360)
Third Stream50 Hz: 10 fps (1920×1080, 1280×720, 640×480, 640×360)
Video CompressionMain: H.265+/H.265/H.264+/H.264  |  Sub: H.265/H.264/MJPEG  |  Third: H.265/H.264
Video Bit Rate32 Kbps to 16 Mbps
Bit Rate ControlCBR, VBR
SVCH.264 and H.265 encoding
Region of Interest1 fixed region for main stream and sub-stream
Audio TypeMono
Audio CompressionG.711 / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC-LC
Audio Sampling Rate8 / 16 / 32 / 44.1 / 48 kHz
Smart Features (AcuSense)
Basic EventMotion detection (human / vehicle target type filter), video tampering alarm, exception
Smart EventLine crossing, intrusion, region entrance / exiting detection (human / vehicle), scene change
Deep LearningHuman & vehicle classification; Face Capture
LinkageUpload to FTP/NAS/memory card, notify surveillance centre, email, trigger recording/capture/alarm output, audible warning
Network
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, SRTP, SFTP
Simultaneous Live ViewUp to 6 channels
APIONVIF (Profile S, G, T), ISAPI, SDK, ISUP
UsersUp to 32 (3 levels: administrator, operator, user)
Network StorageNAS (NFS, SMB/CIFS), ANR, MicroSD up to 512 GB
Client SoftwareiVMS-4200, Hik-Connect, Hik-Central
Interface
Ethernet1× RJ45 10/100 M self-adaptive
Audio In1× line in, two-core terminal block, max. 3.3 Vpp input amplitude
Audio Out1× line out, two-core terminal block, max. 3.3 Vpp output amplitude
Alarm1× input, 1× output (max. 24 VDC, 1 A)
Onboard StorageMicroSD slot, up to 512 GB
Reset KeyYes
General / Environmental
Power Supply12 VDC ± 25%, 0.88 A, max. 10.5 W (coaxial plug)  |  PoE IEEE 802.3af, Class 3, max. 12.5 W
Operating Temperature−30 °C to 60 °C, humidity ≤ 95% (non-condensing)
Storage Temperature−30 °C to 60 °C
Ingress ProtectionIP67 (IEC 60529-2013)
Impact ResistanceIK10 (IEC 62262:2002)
HousingFull metal
ColourBlack
CertificationsFCC Part 15B, CE-EMC, RCM (AS/NZS CISPR 32:2015), UL 62368-1, CE-LVD, CE-RoHS, WEEE

AcuSense FAQ — DS-2CD2766G2T-IZS-BNC-BLK

What does AcuSense technology do in the DS-2CD2766G2T-IZS-BNC-BLK?

AcuSense uses deep learning algorithms trained on millions of real-world images to distinguish human and vehicle targets from other motion sources such as animals, blowing leaves, rain, and lighting changes. When the DS-2CD2766G2T-IZS-BNC-BLK detects motion, it classifies whether a human or vehicle is actually present before triggering an alarm, which dramatically reduces unwanted notifications and allows security teams to respond only to genuine intrusions. Smart events including line crossing, intrusion, region entrance, and region exiting can each be filtered to trigger solely on human targets, vehicle targets, or both.

What is the IR range and low-light capability of this camera?

The DS-2CD2766G2T-IZS-BNC-BLK achieves a minimum colour illumination of just 0.003 Lux at F1.4 with AGC enabled, and reduces to 0 Lux in black-and-white mode when the 850 nm IR LEDs are active. The Smart IR system automatically adjusts LED power to eliminate lens flare on nearby subjects and maximise the effective IR range of up to 40 m. This is underpinned by Hikvision’s Powered-by-DarkFighter technology, which optimises the sensor readout pipeline for extremely low noise in minimal ambient light.

What is the motorised varifocal lens range and how does remote focus work?

The camera is fitted with a motorised varifocal lens that covers 2.8 mm to 12 mm, providing a horizontal field of view that varies from 106° at wide angle to 35° at full telephoto. Both zoom and focus are electronically driven and can be adjusted from the iVMS-4200 client software, the Hik-Connect mobile app, or any ONVIF-compatible VMS — there is no need for physical access to the dome housing once it is mounted. DORI distances span from Detect 68 m / Identify 7 m at wide angle, up to Detect 200 m / Identify 20 m at 12 mm tele.

Why does the DS-2CD2766G2T-IZS-BNC-BLK include a BNC output, and what is it used for?

The -BNC suffix denotes a BNC composite video output in addition to the standard RJ45 IP stream. This allows the camera to feed a low-latency analogue signal directly to a local monitor or legacy DVR recorder for spot-checking footage on site without needing a network connection or NVR. It is particularly useful during installation and commissioning to confirm camera aim and focus on a portable monitor, or for hybrid installations where some analogue infrastructure is retained alongside an IP network.

Is the DS-2CD2766G2T-IZS-BNC-BLK suitable for outdoor installation in harsh conditions?

Yes. The camera carries an IP67 rating (IEC 60529-2013) meaning complete ingress protection against dust and sustained water immersion, plus IK10 impact resistance (IEC 62262:2002) equating to 20 joules of mechanical impact tolerance. The full-metal housing is rated for an operating temperature range of −30 °C to 60 °C, making it appropriate for Australian outdoor use across all climatic zones from alpine to tropical. The black finish is also RCM-certified (AS/NZS CISPR 32:2015) for the Australian and New Zealand market.

What compression formats and streaming capabilities does this AcuSense camera support?

The camera supports three simultaneous streams. The main stream encodes in H.265+, H.265, H.264+, or H.264 at up to 25 fps (50 Hz) or 30 fps (60 Hz) at full 3200 × 1800 resolution. The sub-stream adds MJPEG for browser-based viewing. H.265+ delivers roughly half the storage footprint of H.264 at equivalent quality, which is especially valuable given the high 6 MP resolution. Scalable Video Coding (SVC) is supported for adaptive delivery over variable bandwidth links, and bit rates are configurable from 32 Kbps to 16 Mbps with CBR or VBR control.

Professional Overview

The Hikvision DS-2CD2766G2T-IZS-BNC-BLK is a 6 MP outdoor dome network camera designed for professional surveillance installations where intelligent false-alarm filtering, exceptional low-light imaging, and flexible lens coverage are required. Featuring a 1/2.4” Progressive Scan CMOS sensor with a native 3200 × 1800 resolution, the camera suits perimeter protection, car parks, building entrances, retail environments, and any application demanding high-resolution evidence capture around the clock. The black-finish housing is purpose-built for discreet deployments where a white dome would stand out.

At the heart of the camera is Hikvision’s AcuSense deep-learning engine, which classifies every motion event as a human target, vehicle target, or irrelevant trigger before raising an alarm. Combined with a motorised varifocal lens spanning 2.8–12 mm (H-FOV 106° to 35°), operators can remotely dial in the optimal framing from a workstation rather than returning to the mount, and then trust that only genuine intrusions will generate actionable alerts. The Smart IR system provides up to 40 m illumination range with adaptive power control to maintain even exposure whether a subject is 2 m or 40 m from the dome.

Powered-by-DarkFighter technology drives the minimum colour illumination down to 0.003 Lux, capturing usable colour video in near-darkness without supplemental white light. When ambient light falls below even that threshold, the 850 nm IR LEDs take over for 0 Lux B/W operation. A 120 dB true Wide Dynamic Range engine ensures the sensor simultaneously handles bright headlights and deeply shaded areas in the same frame — critical for monitoring entry points where direct sunlight and interior shadows coexist. H.265+ compression then reduces the resulting high-resolution stream to manageable storage and bandwidth requirements, and a built-in microSD slot accepts cards up to 512 GB for local ANR redundancy.

The camera’s IP67 and IK10 ratings, full-metal construction, and −30 °C to 60 °C operating range make it field-ready for the full range of Australian outdoor conditions. The unique -BNC variant adds a composite video output alongside the IP stream, bridging hybrid analogue–IP installations and simplifying on-site commissioning via portable monitors. Audio in/out line connections and a hardware alarm relay complete the integration toolkit for access-control linkage and two-way audio. RCM-certified for Australian compliance. Australian stock from ARC IP Networks.

Brand Hikvision
Network Connectivity Wired
Night Vision IR (Powered-by-DarkFighter)
Resolution 6 MP
Camera Type Dome
Lens 2.8–12 mm motorised varifocal
Smart Features AcuSense (person/vehicle)
Ingress Protection IP67 / IK10
Power PoE (802.3af) / 12 VDC
IR Range Up to 40 m
Audio / Alarm Audio in/out + alarm I/O
DS-2CD2766G2T-IZS-BNC-BLK_Datasheet.pdf
Download
