TP-Link FC1420 Omada 14-Slot Rackmount Media Converter Chassis

Price:

$ 289.97


TP-Link ES228GP Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+ (250W)
TP-Link ES228GP Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+ (250W)
$ 453.19
$ 453.19
TP-Link IES206G Omada 6-Port Gigabit Industrial Easy Managed Switch
TP-Link IES206G Omada 6-Port Gigabit Industrial Easy Managed Switch
$ 225.94
$ 225.94

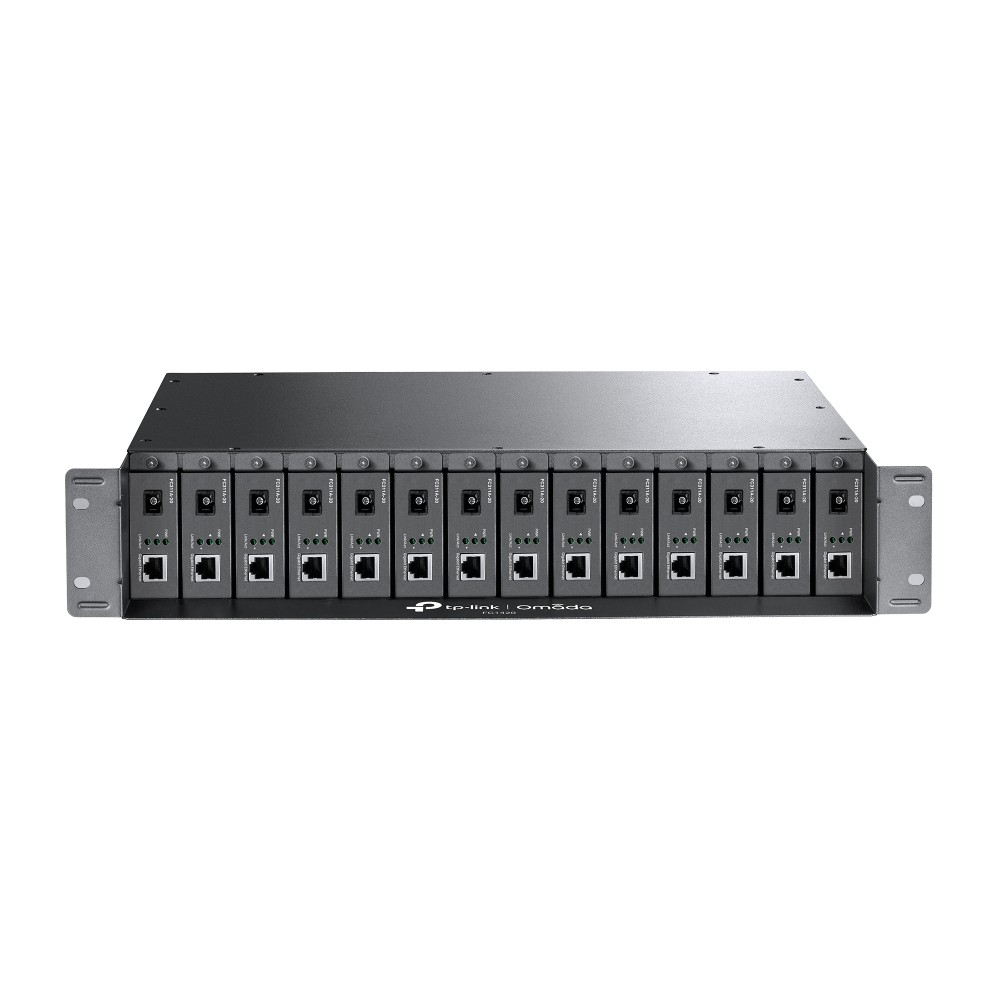

TP-Link FC1420 Omada 14-Slot Rackmount Media Converter Chassis

https://arcip.com.au/web/image/product.template/8104/image_1920?unique=48bc9ed

The TP-Link FC1420 Omada 14-Slot Rackmount Chassis is designed to hold up to 14 TP-Link FC series media converters in a standard 19-inch, 2U rack space and power them all from one central supply, saving space and power cables. Its AC power supply takes 100-240 V, 50/60 Hz (1.8 A max) and outputs 12 V DC at up to 6.25 A, delivering 5 V DC / 0.6 A to each of the 14 slots. Converters are hot-swappable, so they can be installed or removed without powering off the chassis, and the chassis supports the optional MCRP100 redundant power supply for continuous operation. It measures 482 x 309 x 86 mm and operates from 0 to 50 °C. Note: TP-Link lists the FC1420 as End of Life on its global product page.

$ 289.97 289.97 AUD $ 289.97 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

In stock online
SFP TP-Link
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
FC1420
Barcode
6935364010454
Tags

The TP-Link FC1420 is an Omada 14-slot rackmount chassis that houses up to 14 TP-Link FC series media converters and powers them centrally, saving space and power cables. It is a standard 19-inch 2U unit with a 100-240 V AC supply delivering 5 V DC / 0.6 A to each slot, hot-swappable converter bays, over-voltage and over-current protection, and an optional redundant power supply (MCRP100).

FC1420 overview

The FC1420 is TP-Link's Omada 14-slot rackmount chassis for media converters. TP-Link describes it as specially designed to accommodate 14 media converters for central power supply, saving space and power cables. Instead of each fibre media converter sitting loose in a cabinet with its own plug-pack, up to 14 converters slide into the chassis bays and draw power from the chassis itself, so a fibre distribution point or comms room can be tidied into a single 2U block. The datasheet states that the FC1420 supports TP-Link's FC series media converters (its sibling chassis, the MC1400, is the one for MC series converters), and TP-Link calls the FC1420 together with FC series Gigabit and Fast Ethernet media converters the ideal solution for a media conversion network.

TP-Link notes that continuous operation is of great importance to fibre communication, and two features support that. First, the chassis is equipped for an optional redundant power supply; the datasheet names the MCRP100 as the supported redundant power supply module. Second, the bays are hot-swappable, which TP-Link says allows installing or removing a converter without powering off the chassis, so one link can be replaced or added while the other converters keep running. The datasheet also lists over-voltage and over-current protection.

Power figures come from TP-Link's specifications. The AC power supply accepts 100-240 V AC at 50/60 Hz, with a maximum input of 1.8 A, and its output is +12 V DC at up to 6.25 A. Each slot receives 5 V DC at 0.6 A, listed on the product page as 14 x 5 VDC / 0.6 A. The chassis is a standard 19-inch, 2U-high unit measuring 482 x 309 x 86 mm (19.0 x 12.2 x 3.4 in). It is rated for an operating temperature of 0 to 50 °C and storage from -40 to 70 °C, at 10 to 90% non-condensing operating humidity and 5 to 90% non-condensing storage humidity.

On cooling the official sources differ. The global product page lists a fan quantity of one and says a cooling fan is installed inside the original power supply to stabilise performance and extend its lifetime, while the 2024 combined MC1400/FC1420 datasheet marks the FC1420 as a fanless design and shows no fan quantity for it. Check the unit itself if fan noise or airflow matters in your rack. TP-Link's global product page currently marks the FC1420 as End of Life, and the product information here is taken from that global page and the hardware version 1.20 datasheet, as no Australian product page is available.

Key features

14 converter bays

Houses up to 14 TP-Link FC series media converters in one chassis.

Central power supply

One AC supply powers every slot, saving space and power cables.

5 V per slot

Delivers 5 V DC / 0.6 A to each of the 14 slots.

Hot-swappable

Install or remove a converter without powering off the chassis.

Optional redundant PSU

Supports the MCRP100 redundant power supply for non-stop operation.

Electrical protection

Over-voltage and over-current protection listed in the datasheet.

19-inch 2U

Standard 19-inch rack-mountable chassis, 482 x 309 x 86 mm.

FC1420 specifications

At a glance

14 slots
FC series converters
5 V / 0.6 A per slot
Hot-swappable
Optional MCRP100 PSU
100-240 V AC
19-inch 2U
0 to 50 °C
FC1420 full specifications
Hardware Features
Fan Quantity1
Media Converter & Module
AC Power Supply100-240VAC, 50/60Hz
Power Output14× 5VDC/0.6A
Dimensions ( W x D x H )19.0 12.2 3.4in.(482 309 86); Standard 19-Inch, 2U height
EnvironmentOperating Temperature: 0℃~50℃ (32℉~122℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity:5%~90% non-condensing

Source: TP-Link's published specifications for this model (TP-Link Australia product page and datasheet). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

Who the FC1420 is for

Fibre distribution points

  • Up to 14 FC series converters
  • One 2U rack space
  • No individual plug-packs

Links that must stay up

  • Hot-swappable bays
  • Optional MCRP100 redundant PSU
  • Over-voltage and over-current protection

Tidy comms racks

  • Standard 19-inch mounting
  • Central power for all converters
  • Fewer power cables

Buy the FC1420 from ARC IP Networks

ARC IP Networks supplies TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the FC1420 from the ARC IP Networks team.

Last reviewed October 2026.

TP-Link's datasheet states the FC1420 supports the FC series media converters. The MC1400 is the equivalent chassis for MC series converters.

Up to 14, in 14 bays.

From a central AC supply (100-240 V, 50/60 Hz, 1.8 A max) that outputs 12 V DC at up to 6.25 A, delivering 5 V DC / 0.6 A to each slot.

Yes. The bays are hot-swappable, allowing converters to be installed or removed without powering off the chassis.

Yes, an optional redundant power supply. The datasheet names the MCRP100.

Yes. It is a standard 19-inch, 2U-high chassis measuring 482 x 309 x 86 mm.

TP-Link's sources differ: the product page lists one cooling fan inside the original power supply, while the combined MC1400/FC1420 datasheet describes the FC1420 as fanless.

Both are 14-slot, 19-inch 2U chassis with the same 100-240 V AC supply and dimensions. Per the datasheet, the FC1420 takes FC series converters and supplies 5 V / 0.6 A per slot with a 0 to 50 °C operating range; the MC1400 takes MC series converters (version 2.0 and above), supplies 9 V / 0.6 A per slot, has two fans and is rated 0 to 40 °C.

Operating temperature 0 to 50 °C and storage -40 to 70 °C, with 10 to 90% non-condensing operating humidity.

TP-Link's global product page marks it as End of Life, and there is no Australian product page for it.
