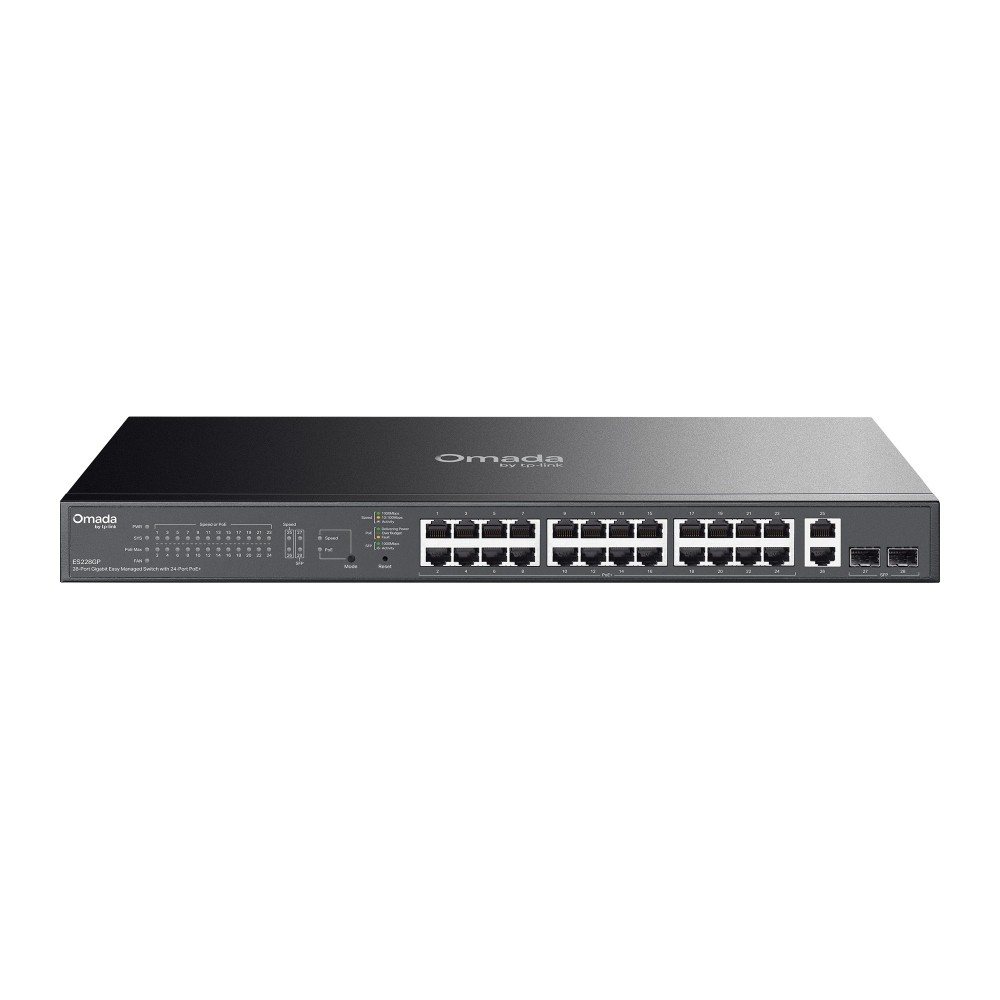

TP-Link ES228GP Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+ (250W)

https://arcip.com.au/web/image/product.template/8103/image_1920?unique=9de2a57

The TP-Link ES228GP is an Omada 28-port Gigabit easy managed switch with twenty-six 10/100/1000 Mbps RJ45 ports, twenty-four of them 802.3af/at PoE+, and two Gigabit SFP slots. The PoE+ ports share a 250 W budget with up to 30 W per port, the lower-budget option alongside the 384 W ES228GMP. It supports Fast PoE, Perpetual PoE, PoE Auto Recovery, remote camera reboot with an Omada controller and up to 250 m PoE when Extend Mode is enabled. Switching capacity is 56 Gbps, with MTU, port-based and 802.1Q VLAN, port isolation, QoS, IGMP snooping, loop prevention and link aggregation of up to eight ports per group. The 440 x 180 x 44 mm metal case has two fans and installs on a desk or in a rack.

$ 453.19 453.19 AUD $ 453.19 incl. GST

Not Available For Sale


  • Brand
  • Switching Capacity
  • RAM

This combination does not exist.

In stock online
Switch PoE Managed Switch TP-Link Omada
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
ES228GP
Barcode
1210002609760
Tags

The TP-Link ES228GP is an Omada 28-port Gigabit easy managed switch with 24-port PoE+. Twenty-four 802.3af/at PoE+ ports share a 250 W budget with up to 30 W per port, with two more Gigabit RJ45 ports and two Gigabit SFP slots. It offers 56 Gbps switching, 250 m PoE in Extend Mode, remote camera reboot, VLAN, QoS and IGMP snooping in a 440 x 180 mm metal case for desktop or rack installation.

ES228GP overview

The ES228GP is TP-Link's Omada 28-port Gigabit easy managed switch with 24-port PoE+, shown on the AU page as hardware version V1. It has twenty-six 10/100/1000 Mbps RJ45 ports, of which twenty-four are 802.3af/at-compliant PoE+, plus two Gigabit SFP slots for fibre uplinks, with auto-negotiation and auto MDI/MDIX on the copper ports. TP-Link describes it as easy to use, supporting plug-and-play for instant connectivity with simple configuration for additional features.

The PoE budget is 250 W across the twenty-four PoE+ ports, with up to 30 W per port. TP-Link notes that PoE budget calculations are based on laboratory testing, and the actual budget is not guaranteed and will vary due to client limitations and environmental factors. In practice 250 W suits a site of fixed cameras and lower-draw access points; where many ports must deliver close to 30 W at once, the ES228GMP has the same port layout with a 384 W budget. The ES228GP is also shallower, at 440 x 180 x 44 mm (17.3 x 7.1 x 1.7 in) against the ES228GMP's 330 mm depth, and is listed for desktop or rack installation. It has two fans and an internal 100-240 V, 50/60 Hz 4.0 A power supply.

Fast PoE and Perpetual PoE are supported, along with PoE Auto Recovery, and TP-Link lists remote camera reboot with an Omada controller. PoE transmission reaches up to 250 m (820 ft) when Extend Mode is enabled, and those ports are downgraded to 10 Mbps; actual distance depends on cable quality. TP-Link groups 250 m PoE, remote camera reboot, QoS and port isolation as features for reliable surveillance networking.

Switching capacity is 56 Gbps with a 41.67 Mpps packet forwarding rate, an 8K MAC address table, 4 Mbit buffer, 15 KB jumbo frames and store-and-forward transmission. QoS covers port-based, 802.1p and DSCP QoS with 8 priority queues, WRR scheduling, queue weight configuration, bandwidth control with port-based rate limiting, and storm control for broadcast, multicast and unknown-unicast traffic. L2 features are MTU VLAN, port-based VLAN and 802.1Q tag VLAN (up to 32 groups, 4K VIDs), static link aggregation with up to four groups and up to eight ports per group, loopback detection, 802.3x flow control, port mirroring (one-to-one or many-to-one, ingress, egress or both), port and traffic statistics, 802.1ab LLDP and IGMP v1/v2/v3 snooping with fast leave.

The switch is managed through a web-based GUI with DHCP client and cable diagnostics, or centrally through an Omada cloud-based, hardware or software controller for cloud management via the web or the Omada app, automatic device discovery, batch configuration, batch firmware upgrading and unified configuration. Zero-touch provisioning requires Omada Central (Standard or Essentials); TP-Link describes Omada Central Essentials as a free, easy-to-use version suited to surveillance networks and small businesses. The metal case has a physical security lock slot and ±6 kV surge protection, operates from -5 to 45 °C and is FCC and CE certified. In the box are the ES228GP, power cord, mounting brackets, rubber feet, screws and installation guide.

Key features

24 PoE+ ports

24 of its 26 Gigabit RJ45 ports are 802.3af/at PoE+ compliant.

250 W PoE budget

Up to 30 W per port; based on laboratory testing, actual budget varies.

SFP uplinks

Two Gigabit SFP slots plus two non-PoE Gigabit RJ45 ports.

56 Gbps switching

41.67 Mpps forwarding, 8K MAC table, 4 Mbit buffer, 15 KB jumbo frames.

250 m Extend Mode

PoE up to 250 m at 10 Mbps when Extend Mode is enabled.

Remote camera reboot

With an Omada controller, plus Fast PoE, Perpetual PoE and PoE Auto Recovery.

Link aggregation

Up to four static groups of up to eight ports each, plus port mirroring.

Desktop or rack

440 x 180 x 44 mm metal case with two fans; brackets and screws included.

ES228GP specifications

At a glance

24 x Gigabit PoE+
250 W PoE budget
2 x Gigabit RJ45
2 x Gigabit SFP
56 Gbps switching
250 m Extend Mode
2 fans
Omada SDN
ES228GP full specifications
Hardware Features
Interface26× 10/100/1000 Mbps RJ45 Ports; 2× Gigabit SFP Slots; Auto-Negotiation/Auto MDI/MDIX
Fan Quantity2
InstallationDesktop/Rackmount Installation
Physical Security Lock√
Power Supply100-240V~ 50/60Hz 4.0A
PoE Ports (RJ45)Standard: 802.3af PoE and 802.3at PoE+ compliant; PoE Ports: 24 ports; PoE Budget: 250W available for all PoE+ ports, 30W max per port; Fast PoE & Perpetual PoE; PoE Auto Recovery; Up to 250m PoE transmission distance
Dimensions ( W x D x H )17.3×7.1×1.7 in (440×180×44 mm)
Surge Protection±6kV
Performance
Packet Buffer Memory4 Mbit
Jumbo Frame15 KB
Switching Capacity56 Gbps
Packet Forwarding Rate41.67 Mpps
MAC Address Table8K
Software Features
Quality of ServicePort-based/802.1p/DSCP QoS; 8 Priority Queues; Priority Schedule Mode; WRR (Weighted Round Robin); Queue Weight Config; Bandwidth Control; Port-Based Rating Limit; Storm Control; Multiple Control Modes (kbps/pps); Broadcast/Multicast/Unknown-Unicast Control
L2 FeaturesLink Aggregation; Static Link Aggregation; Up to 4 aggregation groups and up to 8 ports per group; Loopback Detection; Flow Control; 802.3x Flow Control; Mirroring; Port Mirroring; One-to-One; Many-to-One; Ingress/Egress/Both; Port Statistics; Port Mirror Status; Trafffc Statistics; 802.1ab LLDP
L2 MulticastIGMP Snooping; IGMP v1/v2/v3 Snooping; Fast Leave
VLANMTU VLAN; Port-Based VLAN; 802.1Q Tag VLAN; Max 32 VLAN Groups; 4K VID
Transmission MethodStore-And-Forward
Management Features
Omada AppYes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralised ManagementOmada Cloud-Based Controller; Omada Hardware Controller; Omada Software Controller
Cloud AccessYes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch ProvisioningYes. Requires the use of Omada Cloud-Based Controller
Management FeaturesWeb-based GUI; DHCP Client; Cable Diagnostics; Automatic Device Discovery; Batch Configuration; Batch Firmware Upgrading; Unified Configuration
Others
CertificationFCC, CE
EnvironmentOperating Temperature: -5℃~45℃ (23℉~113℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing

Source: TP-Link's published specifications for this model (TP-Link Australia product page). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • ES228GP
  • Power Cord
  • Mounting Brackets
  • Rubber Feet
  • Screws
  • Installation Guide

Source: TP-Link's published package contents.

Who the ES228GP is for

24-camera CCTV systems

  • 24 PoE+ ports
  • Remote camera reboot
  • 250 m Extend Mode

Comms cabinets with fibre

  • Two Gigabit SFP slots
  • Shallow 180 mm depth
  • Desktop or rack installation

Omada-managed sites

  • Omada Central Essentials
  • Batch configuration
  • Zero-touch provisioning

ES228GP compared

The ES228GP and ES228GMP share 24 Gigabit PoE+ ports, two Gigabit RJ45 ports, two Gigabit SFP slots and 56 Gbps switching. The ES228GP has a 250 W budget in a 180 mm-deep case; the ES228GMP has 384 W in a 330 mm-deep case.

SpecificationES228GPES228GMP
PoE+ ports2424
PoE budget250 W, 30 W per port384 W, 30 W per port
Dimensions440 x 180 x 44 mm440 x 330 x 44 mm
InstallationDesktop / rackmountRackmountable
Fans22
Hardware version (AU page)V1V2

Source: TP-Link Australia product pages for each model.

Buy the ES228GP from ARC IP Networks

ARC IP Networks supplies TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the ES228GP from the ARC IP Networks team.

Last reviewed October 2026.

250 W across 24 PoE+ ports, with up to 30 W per port. TP-Link notes this is based on laboratory testing and the actual budget will vary.

Both have 24 PoE+ ports, two Gigabit RJ45 ports and two SFP slots. The ES228GP has a 250 W budget in a 180 mm-deep case; the ES228GMP has a 384 W budget in a 330 mm-deep case.

Twenty-six Gigabit RJ45 ports, twenty-four of them PoE+, plus two Gigabit SFP slots.

Up to 250 m with Extend Mode enabled. Those ports run at 10 Mbps, and actual distance depends on cable quality.

Yes. It is listed for desktop or rack installation, and mounting brackets and screws are included.

Yes, two fans.

No. It works standalone through a web GUI; cloud management, the Omada app and remote camera reboot use an Omada controller.

The ES228GP, a power cord, mounting brackets, rubber feet, screws and an installation guide.

Need more than one ES228GP for a CCTV or multi-floor PoE project?

Ask ARC IP Networks for volume and project pricing on TP-Link Omada products.

Brand TP-Link
Switching Capacity 56 Gbps
RAM 4 Mbit
