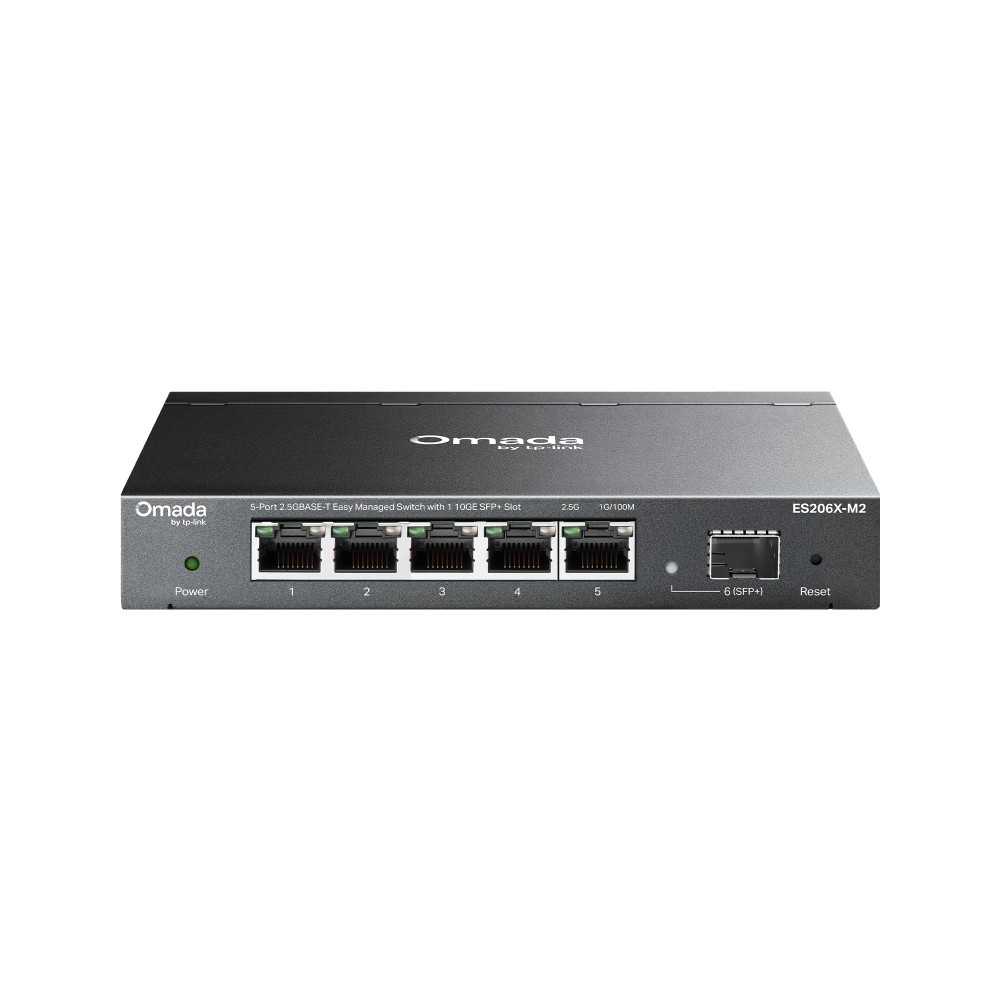

TP-Link ES206X-M2 Omada 5-Port 2.5GBASE-T Easy Managed Switch with 1 10GE SFP+ Slot

Price:

$ 123.99


TP-Link TL-SG108-M2 8-Port 2.5G Desktop Switch
TP-Link TL-SG108-M2 8-Port 2.5G Desktop Switch
$ 97.53
$ 125.44 (22% OFF)
TP-Link EAP655-Wall Omada AX3000 Wi-Fi 6 Dual-Band Wall Plate Access Point
TP-Link EAP655-Wall Omada AX3000 Wi-Fi 6 Dual-Band Wall Plate Access Point
$ 140.39
$ 180.58 (22% OFF)

TP-Link ES206X-M2 Omada 5-Port 2.5GBASE-T Easy Managed Switch with 1 10GE SFP+ Slot

https://arcip.com.au/web/image/product.template/8094/image_1920?unique=a1c878d

The TP-Link ES206X-M2 is a compact Omada easy managed multi-gigabit switch for 2.5G networks. It has five 100 Mbps/1 Gbps/2.5 Gbps RJ45 ports and one 10 Gbps SFP+ slot for a fibre or DAC uplink to a 10G core, router or NAS. Switching capacity is 45 Gbps with a 16K MAC table. It works plug-and-play and adds 802.1Q, port-based and MTU VLAN, port isolation, static link aggregation, IGMP snooping, loop prevention, cable diagnostics, 802.3az EEE and QoS. Through an Omada controller it gains cloud management via the web or the Omada app. The fanless metal case measures 158 x 100.7 x 25.4 mm and weighs 0.52 kg. It does not supply PoE.

$ 123.99 123.99 AUD $ 157.84 incl. GST

Not Available For Sale


  • Brand
  • Switching Capacity
  • RAM

This combination does not exist.

In stock online
Switch Managed Switch TP-Link Omada
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
ES206X-M2
Barcode
1210002600729
Tags

The TP-Link ES206X-M2 is an Omada 5-port 2.5GBASE-T easy managed switch with one 10GE SFP+ slot. It has five 100 Mbps/1 Gbps/2.5 Gbps RJ45 ports, 45 Gbps switching capacity, 802.1Q VLAN, port isolation, IGMP snooping, loop prevention and QoS, in a fanless metal case drawing at most 5.63 W, with Omada cloud management. It has no PoE; the ES206XPP-M2 is the PoE++ version.

ES206X-M2 overview

The ES206X-M2 is TP-Link's Omada 5-port 2.5GBASE-T easy managed switch with one 10GE SFP+ slot. The -M2 marks it as a multi-gigabit model: each of its five RJ45 ports runs at 100 Mbps, 1 Gbps or 2.5 Gbps (IEEE 802.3bz 2.5GBASE-T), so 2.5G Wi-Fi 6 and Wi-Fi 7 access points, 2.5G NAS units, workstations and gateways connect at full speed over existing Cat5e or Cat6 cabling. The 10 Gbps SFP+ slot supports 10GBASE-SR/LR and 10GBASE-LRM optical modules as well as 1000BASE-X, giving a fast uplink that will not bottleneck several 2.5G devices at once.

The ES206X-M2 does not supply Power over Ethernet. That keeps it small, frugal and inexpensive to run: it is powered by a 12 V DC / 1 A adapter, standby consumption is 1.62 W and maximum consumption is only 5.63 W (110 V/60 Hz). If your 2.5G access points or cameras need to be powered from the switch, the ES206XPP-M2 has the same five 2.5G ports and 10G SFP+ slot with four 802.3af/at/bt PoE++ ports and a 120 W budget.

Switching capacity is 45 Gbps, the packet forwarding rate is 33.48 Mpps, and the switch has a 16K MAC address table, a 640 KB packet buffer and 10 KB jumbo frames with store-and-forward transmission. Layer 2 features include 802.1Q tag VLAN with up to 32 groups and 4K VIDs, port-based VLAN and MTU VLAN, port isolation, static link aggregation (two groups of up to four ports), loopback detection for automatic loop prevention, 802.3x flow control, port mirroring, port and traffic statistics, 802.1ab LLDP and IEEE 802.3az Energy Efficient Ethernet. IGMP v1/v2/v3 snooping with fast leave and report suppression manages multicast. QoS supports port-based, 802.1p and DSCP priority with eight queues, bandwidth control, rate limiting and storm control in Standalone Mode, and QoS rules in Controller Mode.

TP-Link says it supports plug-and-play for instant connectivity, with simple configuration for additional features through the HTTP/HTTPS web interface, plus a DHCP client and cable diagnostics. Under Omada SDN it supports the Omada hardware controller, software controller and cloud-based controller, with automatic device discovery, batch configuration, batch firmware upgrading and unified configuration, and centralised cloud management via the web or the Omada app. Zero-touch provisioning requires the Omada Cloud-Based Controller, and ONVIF is supported only in Controller Mode.

Physically it is fanless for silent operation, in a durable metal casing measuring 158 x 100.7 x 25.4 mm with a net weight of 0.52 kg and a physical security lock slot, for desktop or wall installation. Surge protection is ±6 kV common mode on the Ethernet ports, ESD protection is ±8 kV air and ±4 kV contact, the operating range is -5 to 40 °C, the listed MTBF is 1,223,587 hours at 25 °C, and it carries CE and FCC certification. The box contains the switch, power adapter, rubber feet and installation guide.

Key features

Five 2.5G RJ45 ports

100 Mbps/1 Gbps/2.5 Gbps on every port for 2.5G APs, NAS and PCs.

10G SFP+ uplink

One 10 Gbps SFP+ slot for 10GBASE-SR/LR/LRM or 1000BASE-X modules.

45 Gbps switching

33.48 Mpps forwarding, 16K MAC table and 10 KB jumbo frames.

Low power, no PoE

12 V adapter, 5.63 W maximum consumption and 802.3az EEE.

VLAN and port isolation

802.1Q, port-based and MTU VLAN, plus port isolation and IGMP snooping.

Loop prevention and QoS

Loopback detection, storm control and 8-queue QoS in Standalone Mode.

Omada cloud management

Hardware, software or cloud-based controller; ZTP with the Cloud-Based Controller.

Fanless metal case

158 x 100.7 x 25.4 mm, 0.52 kg, desktop or wall mount.

ES206X-M2 specifications

At a glance

5 x 2.5G RJ45
1 x 10G SFP+
No PoE
45 Gbps switching
16K MAC table
5.63 W max
Fanless
Omada SDN
ES206X-M2 full specifications
Hardware Features
Interface5× 2.5 Gbps RJ45 Ports; 1× 10 Gbps SFP+ Slot; Auto-Negotiation/Auto MDI/MDIX
Fan QuantityFanless
InstallationDesktop; Wall Mount
Physical Security Lock√
Power SupplyDC Power Adapter (Output: 12 VDC / 1 A)
Dimensions ( W x D x H )6.2 × 4.0 × 1.0 in (158 × 100.7 × 25.4 mm)
Surge Protection±6kV for Ethernet Ports
Performance
Packet Buffer Memory640 KB
Jumbo Frame10 KB
Switching Capacity45 Gbps
Packet Forwarding Rate33.48 Mpps
MAC Address Table16K
Software Features
Quality of ServicePort-based/802.1p/DSCP QoS; 8 Priority Queues; Priority Schedule Mode; WRR (Weighted Round Robin); Queue Weight Config; Bandwidth Control; Port-Based Rating Limit; Storm Control; Multiple Control Modes (kbps/pps); Broadcast/Multicast/Unknown-Unicast Control
L2 FeaturesStatic Link Aggregation; Loop Prevention / Loopback Detection; Flow Control; 802.3x Flow Control; Mirroring; Port Mirroring; One-to-One; Many-to-One; Ingress/Egress/Both; Port Statistics; Port Mirror Status; Traffic Statistics; 802.1ab LLDP
L2 MulticastIGMP Snooping; IGMP v1/v2/v3 Snooping; Fast Leave
VLANMTU VLAN; Port-Based VLAN; 802.1Q Tag VLAN; Max 32 VLAN Groups; 4K VID
Transmission MethodStore-And-Forward
Management Features
Omada AppYes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralised ManagementOmada Cloud-Based Controller; Omada Hardware Controller; Omada Software Controller
Cloud AccessYes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch ProvisioningYes. Requires the use of Omada Cloud-Based Controller
Management FeaturesWeb-based GUI; DHCP Client; Cable Diagnostics; Automatic Device Discovery; Batch Configuration; Batch Firmware Upgrading; Unified Configuration
Others
CertificationFCC, CE
EnvironmentOperating Temperature: -5℃~40℃ (23℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing

Source: TP-Link's published specifications for this model (TP-Link Australia product page and datasheet). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • ES206X-M2
  • Power Adapter
  • Rubber Feet
  • Installation Guide

Source: TP-Link's published package contents.

Who the ES206X-M2 is for

2.5G desks and workstations

  • 2.5G to PCs and NAS units
  • 10G SFP+ uplink to the core
  • Silent fanless design

2.5G access points with separate power

  • 2.5G per port
  • Use with PoE injectors or the ES206XPP-M2 where PoE is needed
  • VLAN for SSID segmentation

Omada-managed sites

  • Omada Central Essentials or controllers
  • Batch configuration and firmware
  • Zero-touch provisioning

ES206X-M2 compared

The ES206X-M2 and ES206XPP-M2 share the same five 2.5G RJ45 ports, 10G SFP+ slot and 45 Gbps switching capacity. The ES206XPP-M2 adds 802.3af/at/bt PoE++ on four ports with a 120 W budget, in a larger case with a 53.5 V adapter.

SpecificationES206X-M2ES206XPP-M2
2.5G RJ45 ports55
10G SFP+ slot11
PoENone4 x 802.3af/at/bt PoE++
PoE budget-120 W, up to 90 W per port
Switching capacity45 Gbps45 Gbps
Power adapter12 V DC / 1 A53.5 V DC / 2.43 A
Max consumption5.63 W141.4 W with 120 W PD load
Dimensions158 x 100.7 x 25.4 mm209 x 126 x 26 mm
Net weight0.52 kg0.67 kg

Source: TP-Link Australia product pages for each model.

Buy the ES206X-M2 from ARC IP Networks

ARC IP Networks supplies TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the ES206X-M2 from the ARC IP Networks team.

Last reviewed October 2026.

Five 100 Mbps/1 Gbps/2.5 Gbps RJ45 ports and one 10 Gbps SFP+ slot.

No. It does not supply PoE. The ES206XPP-M2 is the sibling with four 802.3af/at/bt PoE++ ports and a 120 W budget.

The datasheet lists IEEE 802.3ae 10GBASE-SR/LR, 802.3aq 10GBASE-LRM and 802.3z 1000BASE-X on the SFP+ slot.

45 Gbps, with a 33.48 Mpps packet forwarding rate and a 16K MAC address table.

Maximum consumption is 5.63 W and standby is 1.62 W (110 V/60 Hz), from a 12 V DC / 1 A adapter.

Yes: 802.1Q tag VLAN with up to 32 groups and 4K VIDs, port-based VLAN, MTU VLAN and port isolation.

Yes, with an Omada hardware, software or cloud-based controller, via the web or the Omada app. Zero-touch provisioning requires the Cloud-Based Controller.

Yes. It is fanless in a durable metal case for desktop or wall mounting.

The net weight is 0.52 kg, and it measures 158 x 100.7 x 25.4 mm.

The ES206X-M2, a power adapter, rubber feet and an installation guide.

Need more than one ES206X-M2 for a 2.5G office upgrade?

Ask ARC IP Networks for volume and project pricing on TP-Link Omada products.

Brand TP-Link
Switching Capacity 45 Gbps
RAM 640 KB
