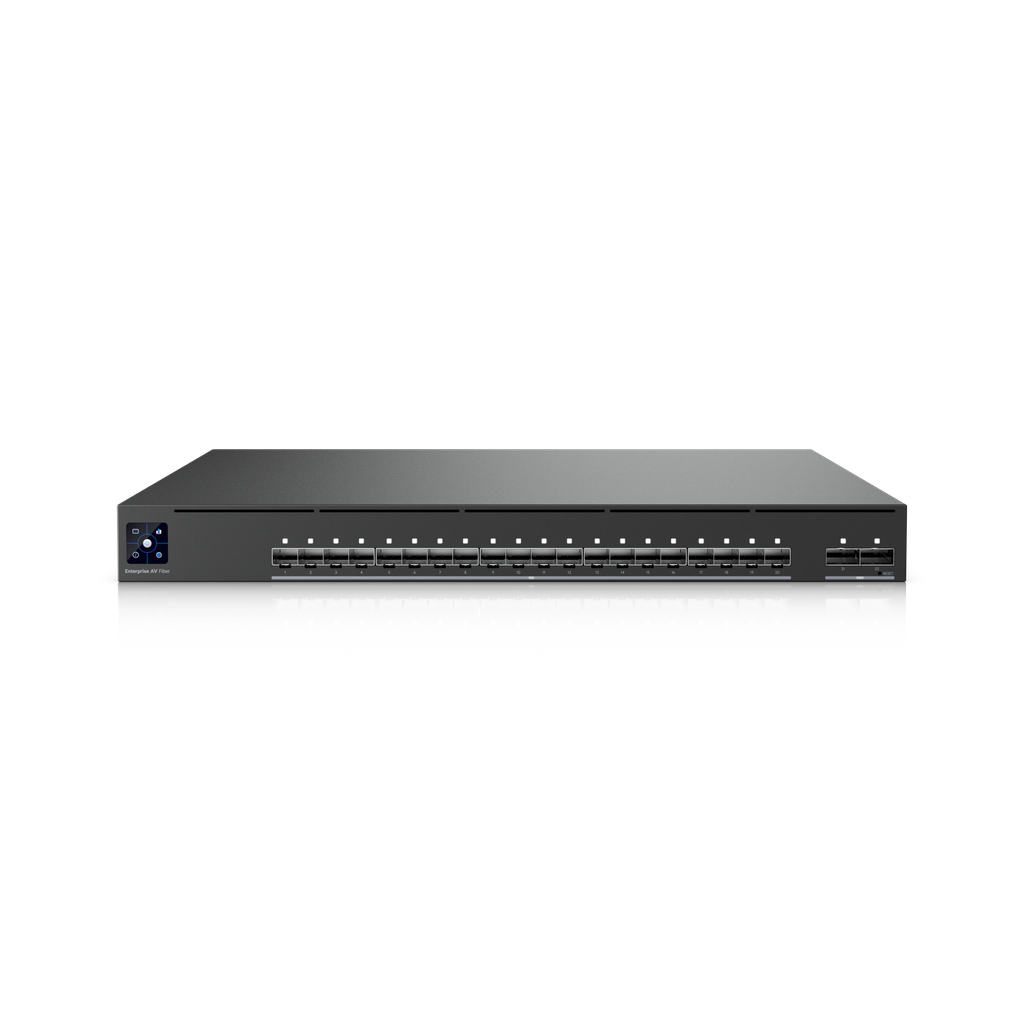

Ubiquiti UniFi EAV-Fiber — Enterprise Audio/Video 1U Aggregation Switch with 20 × 10G SFP+ and 2 × 100G QSFP28, 800 Gbps Switching, PTP / SMPTE ST 2110 / SDVoE / AES67 Timing Engine, OCXO Clock + GPS Grandmaster Input

https://arcip.com.au/web/image/product.template/9724/image_1920?unique=92c75bc

The Ubiquiti EAV-Fiber (Switch Enterprise Audio/Video Fiber) is a 1U full-depth rack-mount Enterprise Audio/Video switch with (20) 10G SFP+ ports and (2) 100G QSFP28 uplinks. It supports PTP timing (IEEE 1588-2008 PTPv2), SMPTE ST 2110, SDVoE and AES67 audio, with a high-precision OCXO clock and optional GPS grandmaster input (SMA) for deterministic media synchronisation. Switching capacity is 800 Gbps with a 595 Mpps forwarding rate, and redundancy comes from (2) hot-swappable PSUs and (4) hot-swappable fans. Includes Etherlighting support and a 1.3" touchscreen. Request a quote from ARC IP Networks for project pricing via Ubiquiti deal registration.

This product is supplied under the Ubiquiti Enterprise Program.


  • Brand
  • Switching Capacity
  • Network Layer
  • Form Factor
  • Port Speed
  • Ports
  • Network Connectivity
  • Uplink
  • PoE Specification
  • Switch Features

This combination does not exist.

UniFi Switch Layer 3 PTP Rackmount Managed Switch Ubiquiti 10G SFP+ EAV Enterprise Audio Video Premium IoT Aggregation 100G 100G QSFP28 22-Port Hot-Swap PSU SMPTE ST 2110 SDVoE AES67 OCXO GPS Grandmaster Broadcast
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal

Ubiquiti EAV-Fiber at a glance

The Ubiquiti EAV-Fiber (Switch Enterprise Audio/Video Fiber) is an Enterprise Audio/Video switch with (20) 10G SFP+ ports and (2) 100G QSFP28 uplinks. It supports PTP timing, SMPTE ST 2110, SDVoE and AES67 audio, with a high-precision OCXO clock and optional GPS grandmaster input (SMA). Switching capacity is 800 Gbps in a 1U, full-depth rack-mount chassis.

ARC IP Networks is an authorised Ubiquiti reseller in Australia. We supply the genuine Switch Enterprise Audio/Video Fiber (EAV-Fiber) under the Ubiquiti Enterprise programme with the full manufacturer's warranty. Contact us before ordering for project pricing and lead time.

10G SFP+20 ports (10G/1G)
100G QSFP282 ports (100G/40G)
Switching capacity800 Gbps
PTP timingIEEE 1588-2008 PTPv2
SMA inputOptional GPS grandmaster
Redundancy(2) hot-swappable PSUs
LCM display1.3" touchscreen
Form factor1U, full-depth rack mount

Best for

  • Audio/video networks using SMPTE ST 2110, SDVoE or AES67
  • Deterministic media synchronisation with PTP and GPS grandmaster input
  • Fibre aggregation with 10G SFP+ and 100G QSFP28 uplinks

Consider instead

💼

Ubiquiti Enterprise Program

The Ubiquiti Enterprise Audio/Video Fiber Switch (EAV-Fiber) is supplied under the Ubiquiti Enterprise Program. Please contact ARC IP Networks before ordering for project pricing and lead time.

Key features

See the Switch Enterprise Audio/Video Fiber (EAV-Fiber)




Introducing: UniFi Enterprise Audio/Video Switching with Precision Hardware Timing (Video: Ubiquiti)

EAV-Fiber Front Panel
EAV-Fiber Rack Deployment
EAV-Fiber Touchscreen + Ports

Ubiquiti EAV-Fiber specifications

Overview

Dimensions442.4 x 480 x 43.7 mm / (17.4 x 18.9 x 1.7")
1 GbE RJ451 / (1G/100M/10M)
10G SFP+20 / (10G/1G)
100G QSFP282 / (100G/40G)
Console1
SMA1
Redundancy(2) Hot-Swappable PSUs / (4) Hot-Swappable Fans
Form FactorRack Mount (1U, Full-Depth)

Performance

Switching Capacity800 Gbps
Total Non-Blocking Throughput400 Gbps
Forwarding Rate595 Mpps
Supported VLANs1,000
MAC Address Table Size32,000
IPv4 Static Routes512
Packet Buffer Size8 MB

Hardware

Max. Power Consumption150W
Power Method(2) Universal input, 100–240V AC, 50/60 Hz
Power Input Method(2) AC input, Hot-swappable power modules
Power Supply(2) Hot-swappable AC/DC 150W power modules
Supported Voltage Range100–240V AC
ManagementEthernet / AR / Serial Console
Heat Dissipation512 BTU/hr
WeightWithout mounting brackets: 8.95 kg (19.7 lb) / With mounting brackets: 9.05 kg (20 lb)
Enclosure MaterialSGCC steel
Mount MaterialSGCC steel
Supported Rack Depth482.6 mm (19") four-post racks / Posts depths ranging from 650 to 1,000 mm (25.6–39.4”)
LCM Display1.3" touchscreen
Fan Method(4) Hot-swappable fan modules
ESD ProtectionAir: ± 12KV, contact: ± 8KV
Ambient Operating Temperature-5 to 40° C (23 to 104° F)
Ambient Operating Humidity10 to 90% noncondensing
CertificationsCE, FCC, IC

Specifications from Ubiquiti's official product data for the EAV-Fiber, checked October 2026.

The Switch Enterprise Audio/Video Fiber (EAV-Fiber) in depth

Built for professional audio/video timing

The EAV-Fiber is an Enterprise Audio/Video switch that supports PTP timing, SMPTE ST 2110, SDVoE and AES67 audio. A high-precision OCXO clock and an optional GPS grandmaster input (SMA) support deterministic media synchronisation. It also includes Etherlighting™ support.

Detailed PTP support

The switch implements Precision Time Protocol IEEE 1588-2008 PTPv2 with hardware timestamping on all Ethernet and QSFP28 ports. It can operate as Grandmaster, Boundary Clock or Transparent Clock, with Boundary Clock operation being two-step only. Supported profiles are IEEE1588, SMPTE 2059-2, AES67 and AES-R16, using the End-to-End (E2E) delay mechanism over Layer 2 Ethernet and UDP/IPv4 transport. Custom profiles allow Sync, Announce and Delay Request intervals from −3 to +4, Announce Receipt Timeout from 2 to 9, a configurable PTP domain number, and BMCA with configurable Priority1 and Priority2.

Ports, performance and hardware

Ports include (20) 10G SFP+ (10G/1G), (2) 100G QSFP28 (100G/40G), (1) 1 GbE RJ45, a console port and an SMA connector. Switching capacity is 800 Gbps, with 400 Gbps total non-blocking throughput and a 595 Mpps forwarding rate. Two hot-swappable 150W AC/DC power modules and four hot-swappable fan modules provide redundancy. A 1.3" touchscreen LCM display is built in. EAV-Fiber was previously named EAV-Aggregation; this is a naming update only, with no hardware changes.

Frequently asked questions

Straight answers about the Switch Enterprise Audio/Video Fiber (EAV-Fiber) from the ARC IP Networks team. Last reviewed October 2026.

The Ubiquiti EAV-Fiber is an Enterprise Audio/Video switch with (20) 10G SFP+ and (2) 100G QSFP28 uplinks. It supports PTP timing, SMPTE ST 2110, SDVoE and AES67 audio.

Yes, it offers an optional GPS grandmaster input via the SMA connector, alongside a high-precision OCXO clock for deterministic media synchronisation.

Supported profiles are IEEE1588, SMPTE 2059-2, AES67 and AES-R16. Clock roles are Grandmaster, Boundary Clock and Transparent Clock, with Boundary Clock operation two-step only.

It has (2) hot-swappable AC/DC 150W power modules with universal 100–240V AC input, 50/60 Hz, and (4) hot-swappable fan modules. Maximum power consumption is 150W.

It is a 1U, full-depth rack-mount switch and requires a 4-post rack. On 2-post racks, a center-mount bracket or cantilever shelf is needed for optimal support.

Yes. EAV-Fiber was previously named EAV-Aggregation. This is a naming update only and no hardware changes have been made.

ARC IP Networks is an authorised Ubiquiti reseller. The EAV-Fiber is part of the Ubiquiti Enterprise programme, so contact us for project pricing via Ubiquiti deal registration.

Buy the Ubiquiti EAV-Fiber in Australia

ARC IP Networks is an authorised Ubiquiti reseller supplying UniFi networking, WiFi, camera and access products to businesses, schools, MSPs and installers across Australia.

  • Genuine Ubiquiti: sourced through Ubiquiti's authorised Australian distribution.
  • Ubiquiti Enterprise programme: project pricing via Ubiquiti deal registration.
  • Full manufacturer's warranty and local pre-sales and after-sales support.
  • Trade and project pricing available.

Planning an audio/video network with the EAV-Fiber?

Ask ARC IP Networks for project pricing or a configured quote, or call us to check the right model for your site.

Brand UBIQUITI
Switching Capacity 800 Gbps
Network Layer Layer 3
Form Factor Rack Mount (1U, Full-Depth)
Port Speed (20) 10G SFP+ + (2) 100G QSFP28 + (1) 1G RJ45 mgmt
Ports 22 Ports + 1 Mgmt
Network Connectivity Wired
Uplink 2 × 100G QSFP28
PoE Specification Non-PoE
Switch Features PTP, SMPTE ST 2110, SDVoE, AES67, OCXO Clock, GPS Grandmaster (SMA), Hot-Swap PSU & Fans, Touchscreen LCM
