TP-Link EAP603-Outdoor Omada AX1800 Wi-Fi 6 Dual-Band Indoor/Outdoor Access Point

https://arcip.com.au/web/image/product.template/8063/image_1920?unique=189e2c1

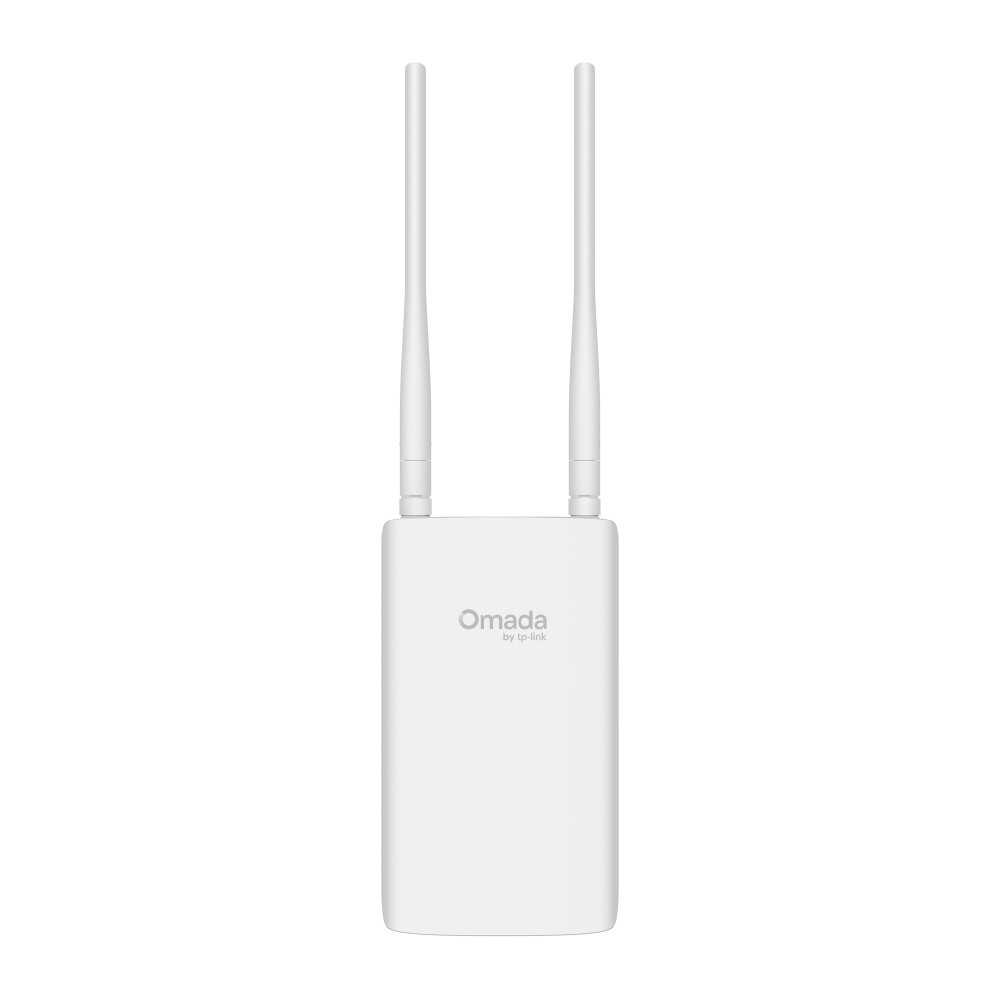

The TP-Link EAP603-Outdoor is an Omada AX1800 Wi-Fi 6 indoor/outdoor access point for long-range outdoor coverage. Its 2x2 5 GHz and 2x2 2.4 GHz radios deliver up to 1201 Mbps and 573 Mbps through external omnidirectional antennas (5 dBi on 5 GHz, 4 dBi on 2.4 GHz) driven by high-power amplifiers, with TP-Link listing coverage of up to 300 m on 5 GHz. The fully sealed enclosure is rated IP66 for wall mount and IP65 for pole mount, from -30 to 70 °C. One Gigabit port takes 802.3at PoE+ (15.8 W maximum), and it supports 250+ clients, 16 SSIDs, WPA3, PPSK and captive portal, with Omada SDN one-click setup.

$ 248.69 248.69 AUD $ 248.69 incl. GST

Not Available For Sale


  • Brand
  • Form Factor
  • WiFi Standard

This combination does not exist.

In stock online
WiFi 6 Outdoor Access Point TP-Link Omada
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
EAP603-OUTDOOR
Barcode
1210002605731
Tags

The TP-Link EAP603-Outdoor is an Omada AX1800 Wi-Fi 6 indoor/outdoor access point with up to 1201 Mbps on 5 GHz and 573 Mbps on 2.4 GHz through two pairs of external omni antennas. TP-Link lists coverage of up to 300 m on 5 GHz and 200 m on 2.4 GHz, a fully sealed IP66 (wall) / IP65 (pole) enclosure, 250+ associated clients, built-in Bluetooth, one Gigabit port powered by 802.3at PoE+, and Omada SDN management with seamless roaming.

EAP603-Outdoor overview

The EAP603-Outdoor is TP-Link's Omada AX1800 indoor/outdoor Wi-Fi 6 access point, shown as V1 on the Australian page. It brings Wi-Fi 6 (802.11ax) to outdoor spaces: up to 1201 Mbps on 5 GHz (802.11a/n/ac/ax) and up to 573 Mbps on 2.4 GHz (802.11b/g/n/ax), with 2x2 radios on each band. TP-Link describes long-range omnidirectional coverage from external antennas equipped with high-power amplifiers, providing strong and expansive wireless coverage to various outdoor environments. Listed coverage is up to 300 m (3,200 ft as stated on the page) on 5 GHz and up to 200 m on 2.4 GHz; coverage figures are laboratory values, and actual range varies with clients and the surroundings. TP-Link notes country-specific restrictions apply to signal rates.

The antennas are external omnidirectional types: two 5 dBi on 5 GHz and two 4 dBi on 2.4 GHz (single-antenna peak gain), plus an internal 4 dBi Bluetooth antenna. Capacity is listed at 250+ associated stations with up to 16 BSSIDs (eight per band). Wireless features include a guest network, automatic channel selection, airtime fairness, band steering, 802.11 rate control, WLAN optimisation, lock to AP, SSID and client rate limits, load balance, QoS and multicast/broadcast management including multicast-to-unicast conversion. Seamless roaming covers 802.11k/v/r, non-stick roaming, ping-pong roaming suppression and AI roaming. Transmit power is adjustable in 1 dBm steps and depends on local regulations.

TP-Link describes the EAP603-Outdoor as fully sealed, with complete dustproof protection and the ability to withstand prolonged submersion in water. The enclosure is rated IP66 when wall mounted and IP65 when pole mounted, and both pole and wall mounting kits are included. Operating temperature is -30 to 70 °C with 10 to 90% non-condensing humidity, and a grounding terminal is provided next to the Ethernet port. The main unit measures 230 x 207.5 x 69.7 mm. Power is 802.3at PoE+ (42.5 to 57 V, 0.36 A) through the single Gigabit Ethernet port; maximum consumption is 15.8 W with both radios active and a 1 Gbps wired link, and idle consumption is 4.8 W. The package lists a passive PoE adapter and power cord alongside the access point, mounting kit and installation guide.

Security is enterprise-grade: WPA, WPA2 and WPA3 Personal and Enterprise, Enhanced Open, 802.1X and MAC-based authentication, RADIUS accounting, PPSK with or without RADIUS, ACL and MAC filtering, rogue AP detection and URL filtering. Captive portal options include simple password, hotspot vouchers, local users, SMS, RADIUS and form authentication, external LDAP or portal servers, pre-authentication access and authentication-free clients. For management, Omada SDN allows quick setup through automatic device identification and one-click adoption, with centralised management through an Omada hardware controller, Omada software controller, Omada Central (cloud-based) or the Omada app; cloud access requires an Omada controller. Standalone management via the web interface, SSH, SNMP v1/v2c/v3, NTP, email alerts, LED control, management MAC access control and backup and restore are also listed. It is CE and FCC certified.

Key features

AX1800 Wi-Fi 6

Up to 1201 Mbps on 5 GHz and 573 Mbps on 2.4 GHz, 2x2 on each band.

Long-range omni coverage

External antennas with high-power amplifiers; up to 300 m on 5 GHz and 200 m on 2.4 GHz.

Fully sealed enclosure

IP66 for wall mount, IP65 for pole mount; -30 to 70 °C operation.

802.3at PoE+ powered

One Gigabit PoE-in port; 15.8 W maximum, 4.8 W idle.

250+ clients

Up to 16 SSIDs (eight per band), band steering, airtime fairness and load balance.

Seamless roaming

802.11k/v/r, non-stick roaming, ping-pong suppression and AI roaming.

Business security

WPA3, PPSK, 802.1X, captive portal with vouchers, SMS and RADIUS.

Omada SDN

One-click adoption, Omada Central cloud management and the Omada app.

EAP603-Outdoor specifications

At a glance

AX1800 Wi-Fi 6
1201 + 573 Mbps
Up to 300 m (5 GHz)
IP66 wall / IP65 pole
1 x Gigabit PoE+ in
250+ clients
Bluetooth built in
Omada SDN
EAP603-Outdoor full specifications
Hardware Features
Interface1× 10M/100M/1000Mbps Gigabit Ethernet Port (RJ45); PoE in; 1× Grounding Termina
Button1× Reset button: Press the button for longer than 5 seconds to make the device restore to factory settings.
Power SupplyInput: 802.3at PoE+: 42.5; 57 V, 0.36A
Max. Power Consumption802.3at (PoE+): 15.8w, 2.4GHz radio 2×2, 5GHz radio 2×2, wired link rate can be up to 1 Gbps, etc.; Idle mode: 4.8W(PoE)
Dimensions ( W x D x H )Main Unit: 230 × 207.5 × 69.7 mm (9.06 × 8.17 × 2.74 in.); Shipping Unit: 324 × 104 × 245 mm (12.76 × 4.09 × 9.65 in.)
AntennaWi-Fi; 2.4 GHz: 2 × 4 dBi (peak gain), external omnidirectional antennas; 5 GHz: 2 × 5 dBi (peak gain), external omnidirectional antennas Note: The gains above are the single-antenna peak gains. IoT; Bluetooth: 1 × 4 dBi (peak gain), internal omnidirectional antennas
BluetoothYes
Weatherproof EnclosureIP66 for Wall Mount IP65 for Pole Mount
MountingPole Mount (Kits included); Wall Mount (Kits included)
Management Features
Omada AppYes
Restore & BackupYes
Firmware update via WebYes
NTPYes
Centralised ManagementOmada Hardware Controller; Omada Software Controller; Omada Central (Cloud-Based); Omada App
Cloud AccessYes. Require the use of an Omada controller.
Email AlertsYes
LED ON/OFF ControlYes
Management MAC Access ControlYes
SNMPv1, v2c, v3
SSHYes
Web-based ManagementYes
Wireless Features
Coverage2.4 GHz: up to 2,150 ft (200 m); 5 GHz: up to 3,200 ft (300 m)
Wireless Standards5 GHz: IEEE 802.11a/n/ac/ax 2.4 GHz: IEEE 802.11b/g/n/ax
Frequency5 GHz; 2.4 GHz
Signal Rate2.4 GHz: up to 573 Mbps; 5 GHz: up to 1201 Mbps Note: Country-Specific Restriction Apply
Wireless FunctionsMaximum number of BSSIDs: 16 (8 on each band); Maximum number of associated STAs: 250+; Guest Network; ACS (Automatic Channel Selection); Airtime Fairness; Band Steering; 802.11 Rate Control; Rogue AP Detection; URL Filtering; WLAN Optimisation; Lock to AP; SSID/Client Rate Limit; Load Balance; Seamless Roaming (802.11k/v/r, Non-Stick Roaming, Ping-Pong Roaming Suppression, AI Roaming); Multicast/Broadcast Management (Multicast-to-Unicast Conversion, ARP-to-Unicast Conversation, Multicast Filtering, Multicast/Broadcast Rate Limit); QoS (Quality of Service)
Wireless SecurityACL; MAC Filter; 802.1X Authentication; MAC-Based Authentication; WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, Enhanced Open, and None; Radius Accounting; PPSK without Radius, PPSK with Radius (Generic Radius with bound MAC/EKMS/Generic Radius with unbound MAC); Captive Portal: No Authentication, Simple Password, Hotspot (Voucher / Local User / SMS / RADIUS / Form Auth), RADIUS Server, External LDAP Server, External Portal Server, Pre-Authentication Access, and Authentication-Free Client; EAP Types: EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-CHAP, EAP-SIM, EAP-AKA, EAP-GTC, EAP-FAST, EAP-PEAP, EAP-MD5, EAP-MSCHAPv2, PEAPv0, PEAPv1
Transmission PowerMaximum transmit power: CE (ERIP); 2.4 GHz: 20 dBm; 5 GHz: 23 dBm in U-NII-1, 23 dBm in U-NII-2A, 29 dBm in U-NII-2C, FCC (Conducted Power); 2.4 GHz: 25 dBm; 5 GHz: 27 dBm in U-NII-1, 24 dBm in U-NII-2A, 24 dBm in U-NII-2C, 27 dBm in U-NII-3 Minimum transmit power CE (ERIP); 2.4 GHz: 7 dBm; 5 GHz: 6 dBm in U-NII-1, 6 dBm in U-NII-2A, 6 dBm in U-NII-2C, 6 dBm in U-NII-3 FCC (Conducted Power); 2.4 GHz: 4 dBm; 5 GHz: 4 dBm in U-NII-1, 4 dBm in U-NII-2A, 4 dBm in U-NII-2C, 4dBm in U-NII-3 Adjustable power increment: 1 dBm Note: MIMO combined power, excluding antenna gains. The actual transmit power depends on local laws and regulations
Others
CertificationCE, FCC
EnvironmentOperating Temperature: -30 °C–70 °C (-22 °F–158 °F);; Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);; Operating Humidity: 10%–90% non-condensing;; Storage Humidity: 5%–90% non-condensing

Source: TP-Link's published specifications for this model (TP-Link Australia product page). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • EAP603-Outdoor
  • Passive PoE Adapter
  • Power Cord
  • Installation Guide
  • Mounting Kit

Source: TP-Link's published package contents.

Who the EAP603-Outdoor is for

Open outdoor areas

  • Up to 300 m coverage on 5 GHz
  • Omnidirectional external antennas
  • Wi-Fi 6 for busy clients

Exposed installations

  • Fully sealed IP66/IP65 enclosure
  • Grounding terminal
  • -30 to 70 °C operation

Guest and public Wi-Fi

  • Captive portal with vouchers and SMS
  • WPA3 and PPSK
  • 250+ associated clients

Buy the EAP603-Outdoor from ARC IP Networks

ARC IP Networks supplies TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the EAP603-Outdoor from the ARC IP Networks team.

Last reviewed October 2026.

It is AX1800 Wi-Fi 6: up to 1201 Mbps on 5 GHz and 573 Mbps on 2.4 GHz. These are maximum signal rates; country-specific restrictions apply and real throughput varies.

TP-Link lists up to 300 m on 5 GHz and up to 200 m on 2.4 GHz. These are laboratory values; actual coverage varies with clients and the environment.

IP66 when wall mounted and IP65 when pole mounted. TP-Link describes it as fully sealed, with complete dustproof protection.

The listed input is 802.3at PoE+ (42.5 to 57 V, 0.36 A). Maximum consumption is 15.8 W.

TP-Link lists 250+ associated stations and up to 16 SSIDs, eight on each band.

Yes. Bluetooth is listed, with an internal 4 dBi omnidirectional antenna.

Both. Pole and wall mounting kits are included.

No for standalone web management. Centralised and cloud management use an Omada hardware or software controller or Omada Central; cloud access requires an Omada controller.
